Rod Toggle Forks
Toggle Forks incorporate an integral Toggle, minimizing the size and weight of what would otherwise be an Eye with a separate Toggle. Available in standard Rod sizes with imperial sized Pins.
See also, other Rod Rigging Components.


Standard Rod Toggle Forks

Removable Rod Toggle Forks

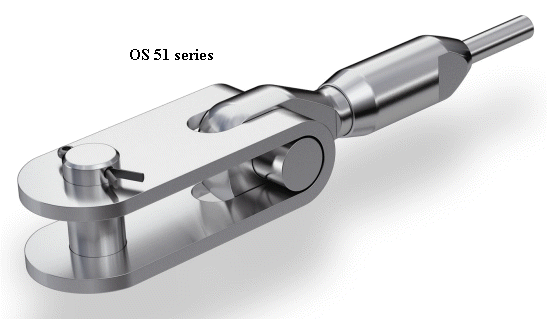

  Rod Toggle Forks - OS / BSI 51 Series
Stainless Steel Toggle Forks (Eye w/ integral Toggle) have imperial sized Pins and UNF threads. All OS Sockets feature a pre-drilled dimple to simplify 'dinging'.
*Length OA from Pin center.

 Part #  Rod Size  Pin Size  Fork ID  Length*  Socket OD
: OS 51380045S:
 -4 (.172")  3/8"  11mm  110mm  14mm
: OS 51716050S:
 -6 (.198")  7/16"  13mm  116mm  16mm
: OS 51716057S:
 -8 (.225")  7/16"  13mm  116mm  16mm
: OS 51120064S:
 -10 (.250")  1/2"  14mm  129mm  18mm
: OS 51120071S:  -12 (.281")  1/2"  14mm  129mm  18mm *
: OS 51580071S:
 -12  5/8"  17.5mm  150mm  22mm
: OS 51580071LS:  -12  5/8"  17.5mm  160mm  22mm *
: OS 51580075S:  -15 (.296")  5/8"  17.5mm  150mm  22mm *
: OS 51580084S:
 -17 (.330")  5/8"  17.5mm  150mm  22mm
: OS 51340095S:
 -22 (.375")  3/4"  21.5mm  170mm  26mm
: OS 51340095LS:  -22  3/4"  21.5mm  185mm  26mm *
: OS 51780111S:
 -30 (.437")  7/8"  24mm  202mm  30mm
: OS 51100127S:
 -40 (.500")  1"  28mm  231mm  35mm
: OS 51118143S:
 -48 (.562")  1 1/8"  31.5mm  240mm  38.5mm
: OS 51RDT6032:
 -60 (.660")  1 1/4"  36.5mm  mm  44mm

  Removable Rod Toggle Forks - Merriman 5251 series
Stainless Steel Rod Toggle Forks have imperial sized Pins and UNF threads. As with all components of the Merriman Rod system, Removable Socket is secured with a machine screw, allowing for inspection of the rod head at any time, as well as complete reusability.
*Length OA from Pin center.


 Part #  Rod Size  Pin Size  Fork ID  Length*  Socket OD
: Mer 5251-0412:
 -4  3/8"  .39"  3 5/8"  5/8"
: Mer 5251-0612:  -6  3/8"  .39"  3 3/4"  5/8"
: Mer 5251-0816:  -8  1/2"  .52"  4 3/4"  3/4"
: Mer 5251-1016:  -10  1/2"  .52"  4 7/8"  3/4"
: Mer 5251-1220:  -12  5/8"  .64"  5 3/8"  15/16"
: Mer 5251-1720:  -17  5/8"  .64"  5 1/2"  15/16"
: Mer 5251-2224:  -22  3/4"  .77"  6 1/8"  1 1/8"
