Chainplate Covers

Chainplate Covers
Chainplate Covers are designed for use with Standard Chainplates made from rectangular bar or plate stock which protrude through the deck. Chainplate Covers fit over the Chainplate and are fastened to the deck to help protect against water intrusion as well as helping to restrict lateral movement. Most Chainplate Covers are made from Stainless Steel plate, are rectangular in shape, and fasten to the deck with 2 or 4 screws.
Formed Chainplate Covers are flared, or pushed up, around the slot where the Chainplate goes through to accommodate a greater amount of caulking underneath the Cover, and therefore a better seal. Chainplate Covers are also commonly used as a reinforcement for lock hasps on companionway boards. Custom Chainplate Covers are available if nothing listed on-site is suitable; for a quote, please contact us with complete dimensions as listed in similar items.

Chainplate Covers are listed below by the size of the Chainplates they fit.
Cover Plate w/ Guy hook for 3/4" x 1/16" Chainplate: K-234:

Special Cover Plate incorporates a smooth formed hook for use with Spinnaker Guys on dinghies. Formed Stainless Steel Chainplate Cover is 2 1/4" long x (maximum) 1 5/8" wide (7/8" wide at base) x 1" high x 1/16" (.072") thick, with slot 3/4" x 1/16". Attaches to deck with (2) #10 (3/16") screws on 1 5/8" centers. For use with Chainplates made from 3/4" wide stock that is 1/16" thick.



 Ken K-234
Cover Plate for 3/4" wide x 3/32" Chainplate: K-233:

Stainless Steel Chainplate Cover is 2" long x 3/4" wide x 1/16" (.062") thick, with slot 13/16" x 3/32", and attaches to deck with (2) #10 (3/16") screws on 1 1/2" centers. For use with Chainplates made from 3/4" wide stock up to 3/32" thick.


Cover Plate for 3/4" wide x 3/16" Chainplate: K-233C:
Stainless Steel Chainplate Cover is 2" long x 3/4" wide x 1/16" (.062") thick, with slot 13/16" x 7/32", and attaches to deck with (2) #10 (3/16") screws on 1 1/2" centers. For use with Chainplates made from 3/4" wide stock up to 3/16" thick. * XXM


Small Cover Plate for 1" wide x 1/8" Chainplate: CP 84-06S:
Stainless Steel Chainplate Cover is 2 1/4" long x 3/4" wide x 1/16" (.072") thick, with slot 1 1/32" x 1/8", and attaches to deck with (2) #10 (3/16") screws on 1 7/16" centers. For use with CP 84-86 and other Chainplates made from 1" wide stock up to 1/8" thick. #r  sc2/3






Cover Plate for 1" wide x 1/8" Chainplate: CP 84-06:

Stainless Steel Chainplate Cover is 2 5/8" long x 3/4" wide x 1/16" (.072") thick, with slot 1 1/32" x 5/32", and attaches to deck with (2) #8 (5/32") screws on 1 7/8" centers. For use with CP 84-86 and other Chainplates made from 1" wide stock up to 5/32" thick.



 CP 84-06


Formed Cover Plate for 1" wide x 1/8" Chainplate: CP 84-69:

Cover Plate for CP 84-86 and other Chainplates made from 1" wide stock up to 5/32" thick. Formed Stainless Steel Chainplate Cover is 2 1/8" long x 1 5/16" wide x 1/16" (.072") thick, with slot 1 1/32" x 5/32", and attaches to deck with (4) #8 (5/32") screws on 1 5/8" and 13/16" centers. For use with CP 84-86 and other Chainplates made from 1" wide stock up to 5/32" thick.



 CP 84-69


Cover Plate w/ Guy hook for 1" x 1/8" Chainplate: K-234A:

Special Cover Plate incorporates a smooth formed hook for use with Spinnaker Guys on smaller boats. Formed Stainless Steel Chainplate Cover is 2 1/4" long x (maximum) 1 5/8" wide (7/8" wide at base) x 1" high x 1/16" (.072") thick, with slot 1 1/32" x 5/32". Attaches to deck with (2) #10 (3/16") screws on 1 5/8" centers. For use with CP 84-86 and other Chainplates made from 1" wide stock up to 5/32" thick.


Formed Cover Plate for 1 1/4" x 1/8" Chainplate: CP 84-54:

Formed Stainless Steel Chainplate Cover is 2 9/16" long x 1 5/16" wide x 1/16" (.072") thick, with slot 1 9/32" x 5/32", and attaches to deck with (4) #8 (5/32") screws on 2 1/16" and 13/16" centers. For use with CP 84-88 and other Chainplates made from 1 1/4" wide stock up to 5/32" thick.


Round Cover Plate for 1 1/4" x 1/8" Chainplate: CP 84-54MR:
Large 2 7/8" OD Round Stainless Steel Chainplate Cover is 2 7/8" Round x 1/8" (.120") thick, with slot 1 1/4" x 1/8", and attaches to deck with (4) #10 (3/16") screws on 1 3/8" and 15/16" centers. For use with CP 84-88 and other Chainplates made from 1 1/4" wide stock up to 1/8" thick.


Cover Plate for 1 1/4" wide x 3/16" Chainplate: K-233AR:

Stainless Steel Chainplate Cover is 2 13/16" long x 3/4" wide x 1/16" (.062") thick, with slot 1 9/32" x 7/32", and attaches to deck with (2) #10 (3/16") RH screws on 2" centers. For use with Chainplates made from 1 1/4" wide stock up to 7/32" thick.






Cover Plate for 1 1/4" wide x 3/16" Chainplate: K-233A:
Stainless Steel Chainplate Cover is 2 3/4" long x 3/4" wide x 1/16" (.062") thick, with slot 1 9/32" x 7/32", and attaches to deck with (2) #10 (3/16") FH screws on 2 1/16" centers. For use with Chainplates made from 1 1/4" wide stock up to 7/32" thick.



 K-233A


Cover Plate for 1 1/4" wide x 1/4" Chainplate: CP 84-41M:

Heavy Stainless Steel Chainplate Cover is 2 1/2" long x 1 3/8" wide x 1/8" (.120") thick, with slot 1 1/4" x 1/4", and attaches to deck with (4) #10 (3/16") screws on 2" and 7/8" centers. For use with Chainplates made from 1 1/4" wide stock up to 1/4" thick.






Small Cover Plate for 1 1/2" wide x 1/8" Chainplate: K-1037S:
Stainless Steel Chainplate Cover is 3" long x 3/4" wide x 1/16" (.062") thick, with slot 1 1/2" x 1/8", and attaches to deck with (2) #10 (3/16") screws on 2 3/16" centers. For use with Chainplates made from 1 1/2" wide stock up to 1/8" thick. #r  sc4






Cover Plate for 1 1/2" wide x 1/8" Chainplate: K-1037:

Stainless Steel Chainplate Cover is 3 1/4" long x 3/4" wide x 1/16" (.062") thick, with slot 1 9/16" x 5/32", and attaches to deck with (2) #8 (5/32") screws on 2 1/2" centers. For use with Chainplates made from 1 1/2" wide stock up to 5/32" thick.



 K-1037


Formed Cover Plate for 1 1/2" x 1/4" Chainplate: CP 84-56:

Formed Stainless Steel Chainplate Cover is 2 9/16" long x 1 5/16" wide x 1/16" (.072") thick, with slot 1 9/16" x 9/32", and attaches to deck with (4) #8 (5/32") screws on 2 1/16" and 13/16" centers. For use with CP 84-90 and other Chainplates made from 1 1/2" wide stock up to 9/32" thick.



 CP 84-56
Formed Cover Plate for 1 1/2" x 3/8" Chainplate: CP 84-57:

Formed Stainless Steel Chainplate Cover is 2 9/16" long x 1 5/16" wide x 1/16" (.072") thick, with slot 1 17/32" x 13/32", and attaches to deck with (4) #8 (5/32") screws on 2 1/16" and 13/16" centers. For use with CP 84-91 and other Chainplates made from 1 1/2" wide stock up to 13/32" thick.



 CP 84-57
Cover Plate for 2" x 1/8" Chainplate: CP 84-42S:

Stainless Steel Chainplate Cover is 3 3/8" long x 3/4" wide x 1/16" thick, with slot 2" x 1/8", and attaches to deck with (2) #10 (3/16") screws on 2 13/16" centers. For use with Chainplates made from 2" wide stock up to 3/16" thick. As used on Sonar, Ideal 18, and others.


Cover Plate for 2" x 3/16" Chainplate: CP 84-42J:

Stainless Steel Chainplate Cover is 3 1/2" long x 1 1/4" wide, with slot 2" x 7/32", and attaches to deck with (2) #10 (3/16") screws on 2 13/16" centers. For use with Chainplates made from 2" wide stock up to 3/16" thick. As used on later J/22, J/24, and others.

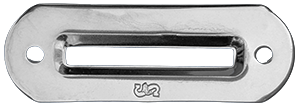

Formed Cover Plate for 2" x 3/16" Chainplate: CP 84-42JX:

Formed Stainless Steel Chainplate Cover is 3 1/2" long x 1 1/4" wide x .072" thick, with slot 2" x 7/32", and attaches to deck with (2) #10 (3/16") screws on 2 13/16" centers. For use with Chainplates made from 2" wide stock up to 3/16" thick. Original as used on J/22, J/24, and others.


Cover Plate for 2" x 1/4" Chainplate: CP 84-43M:

Heavy Stainless Steel Chainplate Cover is 2 3/4" long x 1 1/2" wide x 1/8" (.120") thick, with slot 2" x 1/4", and attaches to deck with (4) #10 (3/16") screws on 2 1/4" and 1" centers. For use with Chainplates made from 2" wide stock up to 1/4" thick.


Formed Cover Plate for 2 1/8" x 3/16" Chainplate: CP 84-52X:
Formed Stainless Steel Chainplate Cover is 3 7/16" long x 1 5/16" wide x 1/16" (.072") thick, with slot 2 7/16" x 7/32", and attaches to deck with (4) #8 (5/32") screws on 2 15/16" and 13/16" centers. For use with Chainplates made from 2 1/8" wide stock up to 7/32" thick. *


Cover Plate for 2 1/4" x 1/4" Chainplate: CP 84-44M:
Heavy Stainless Steel Chainplate Cover is 3" long x 1 1/2" wide x 1/8" (.120") thick, with slot 2 1/4" x 1/4", and attaches to deck with (4) #10 (3/16") screws on 2 1/2" and 1" centers. For use with Chainplates made from 2 1/4" wide stock up to 1/4" thick.


Cover Plate for 2 1/4" x 5/16" Chainplate: CP 84-45M:

Heavy Stainless Steel Chainplate Cover is 3" long x 1 3/4" wide x 1/8" (.120") thick, with slot 2 1/4" x 5/16", and attaches to deck with (4) #10 (3/16") screws on 2 1/2" and 1 1/4" centers. For use with Chainplates made from 2 1/4" wide stock up to 5/16" thick.


Cover Plate for 2 1/4" x 7/16" Chainplate: CP 84-47M:

Heavy Stainless Steel Chainplate Cover is 3" long x 2" wide x 1/8" (.120") thick, with slot 2 1/4" x 7/16", and attaches to deck with (4) #10 (3/16") screws on 2 1/2" and 1 1/2" centers. For use with Chainplates made from 2 1/4" wide stock up to 7/16" thick.


Cover Plate for 2 1/4" x 1/2" Chainplate: CP 84-48M:
Heavy Stainless Steel Chainplate Cover is 3" long x 2" wide x 1/8" (.120") thick, with slot 2 1/4" x 1/2", and attaches to deck with (4) #10 (3/16") screws on 2 1/2" and 1 1/2" centers. For use with Chainplates made from 2 1/4" wide stock up to 1/2" thick.


Formed Cover Plate for 2 3/8" x 3/16" Chainplate: CP 84-53X:
Formed Stainless Steel Chainplate Cover is 3 7/16" long x 1 5/16" wide x 1/16" (.072") thick, with slot 2 7/16" x 7/32", and attaches to deck with (4) #8 (5/32") screws on 2 15/16" and 13/16" centers. For use with Chainplates made from 2 3/8" wide stock up to 7/32" thick. *


Cover Plate for 2 1/2" wide x 3/16" Chainplate: CP 84-272-1CP:
Stainless Steel Chainplate Cover is 3 1/2" long x 1 9/16" wide x 3/32" thick, with slot 2 5/8" x 7/32", and attaches to deck with (4) #10 (3/16") screws on 2 1/8" and 15/16" centers. For use with CP 84-272-1, and other Chainplates made from 2 1/2" x 3/16" stock. As used on O'Day 272, and others.


Cover Plate for 2 1/2" x 1/4" Chainplate: CP 84-50M:
Heavy Stainless Steel Chainplate Cover has slot 2 1/2" x 1/4", and attaches to deck with (4) #10 (3/16") screws. For use with Chainplates made from 2 1/2" wide stock up to 1/4" thick. As used on J/29, J/30, and others.


Cover Plate for 2 1/2" x 3/8" Chainplate: CP 84-49M:

Heavy Stainless Steel Chainplate Cover is 4" long x 2 3/8" wide x 3/16" thick, with slot 2 1/2" x 3/8", and attaches to deck with (4) #10 (3/16") screws on 3 3/8" and 1 3/4" centers. For use with Chainplates made from 2 1/2" wide stock up to 3/8" thick.


Formed Cover Plate for 2 1/2" x 1/2" Chainplate: CP 84-X2:

Formed Stainless Steel Chainplate Cover is 4 1/2" long x 2" wide x 1/16" (.072") thick, with slot 2 5/8" x 1/2", and attaches to deck with (4) #10 (3/16") screws on 4" and 1 1/2" centers. For use with Chainplates made from 2 1/2" wide stock up to 1/2" thick.



 CP 84-X2X
Cover Plate for 2 1/2" x 5/8" Chainplate: CP 84-51M:
Heavy Stainless Steel Chainplate Cover is 4" long x 2 3/8" wide x 3/16" thick, with slot 2 1/2" x 5/8", and attaches to deck with (4) #10 (3/16") screws on 3 3/8" and 1 3/4" centers. For use with Chainplates made from 2 1/2" wide stock up to 5/8" thick.


Cover Plate for 3" x 5/16" Chainplate: CP 84-724S:
Stainless Steel Chainplate Cover is 4" long x 1 1/4" wide x 1/8" thick, with slot 3" x 5/16", and attaches to deck with (4) #10 (3/16") screws on 3 9/16" and 13/16" centers. As used on Wavelength 24, and others.
