Amiot Deck Fills


Amiot Deck Fills
Amiot Deck Fills, made in France, are found on a variety of European built Yachts, notably Beneteau and Jeanneau.  Now made by Goiot, Most Deck Fills come with a cap meant to be unscrewed using a standard Winch Handle (11/16" Square or Octagonal) or Winch Handle Key.  Deck Fills for Gas (Petrol, Essence) normally come with a cap that is unscrewed using a special Hexagonal Key (smaller than a Winch Handle) to help prevent potentially disastrous mistakes in refilling, but the special Cap is sometimes used on other Deck Fills.  All Caps have a rubber O-Ring to help prevent water intrusion and are attached with a chain to prevent misplacement.

In addition to the items listed here, Amiot also manufactures a line of  Traveller Track Systems, and T-Track & Components.


Amiot Aluminum Deck Fills
Aluminum Deck Fill - Replacement Parts

Amiot Composite Deck Fills
Composite Deck Fill - Replacement Parts

Deck Fill Keys



Amiot Aluminum Deck Fills


Water Deck Fill: Ami DFA-Water:
Amiot Water Deck Fill is clear anodized cast Aluminum with a Blue plastic color ring to help in identification. Unit is designed to accept 1 1/2" (37mm) ID Hose. Threaded Cap can be unscrewed using a standard Winch Handle or Winch Handle Key. Unit is 3 1/2" (90mm) diameter, protrudes 2 7/8" (73mm) below deck, and 5/16" (8mm) above. Mounting requires a 2 3/16" (55mm) hole in the deck, unit attaches to deck with (3) 5mm FH screws on a 74mm circle diameter (64mm (2 1/2") between hole centers). Water Deck Fill features a hose stopper to prevent deep entry of filling hose and subsequent over pressurization and tank rupture. The words "Amiot" and "Water" are cast into the main unit.



Ami-deckfill-Pic
Waste Deck Fill for 1 1/2" (37mm Hose): Ami DFA-Waste37:
Amiot Waste Deck Fill is clear anodized cast Aluminum with a Black plastic color ring to help in identification. Unit is designed to accept 1 1/2" (37mm) ID Hose. Threaded Cap can be unscrewed using a standard Winch Handle or Winch Handle Key. Unit is 3 1/2" (90mm) diameter, protrudes 2 7/8" (73mm) below deck, and 5/16" (8mm) above. Mounting requires a 2 3/16" (55mm) hole in the deck, unit attaches to deck with (3) 5mm FH screws on a 74mm circle diameter (64mm (2 1/2") between hole centers). The words "Amiot" and "Waste" are cast into the main unit.



Waste Deck Fill for 2" (55mm Hose): Ami DFA-Waste55:
Amiot Waste Deck Fill is clear anodized cast Aluminum with a Black plastic color ring to help in identification. Unit is designed to accept 2" (55mm) ID Hose. Threaded Cap can be unscrewed using a standard Winch Handle or Winch Handle Key. Unit is 3 1/2" (90mm) diameter, protrudes 2 7/8" (73mm) below deck, and 5/16" (8mm) above. Mounting requires a 2 3/16" (55mm) hole in the deck, unit attaches to deck with (3) 5mm FH screws on a 74mm circle diameter (64mm (2 1/2") between hole centers). The words "Amiot" and "Waste" are cast into the main unit.



Diesel Deck Fill: Ami DFA-Diesel:
Amiot Diesel Deck Fill is clear anodized cast Aluminum with a Red plastic color ring to help in identification. Unit is designed to accept 2" (55mm) ID Hose. Threaded Cap can be unscrewed using a standard Winch Handle or Winch Handle Key. Unit is 3 1/2" (90mm) diameter, protrudes 2 7/8" (73mm) below deck, and 5/16" (8mm) above. Mounting requires a 2 3/16" (55mm) hole in the deck, unit attaches to deck with (3) 5mm FH screws on a 74mm circle diameter (64mm (2 1/2") between hole centers). The words "Amiot" and "Diesel" are cast into the main unit.



Gas (Essence, Petrol) Deck Fill: Ami DFA-Petrol:
Amiot Gas Deck Fill is clear anodized cast Aluminum with a Red plastic color ring to help in identification. Unit is designed to accept 2" (55mm) ID Hose. Threaded Cap can only be unscrewed using a special Amiot Hex Key to prevent misfilling. Unit is 3 1/2" (90mm) diameter, protrudes 2 1/2" (65mm) below deck, and 3/16" (5mm) above. Mounting requires a 2 3/16" (55mm) hole in the deck, unit attaches to deck with (3) 5mm FH screws on a 68mm circle diameter (58mm (2 5/16") between hole centers). The words "Amiot" and "Essence, Petrol" are cast into the main unit.




Amiot Aluminum Deck Fill Replacement Parts


Deck Fill Cap for Standard Winch Handle: Ami DFA-CWH:
Amiot Deck Fill Cap accepts standard (11/16") square or octagonal Winch Handle or any Winch Handle Key. Cast Aluminum Cap is Clear Anodized and includes rubber O-Ring. Cap has 2 1/8" (53.5mm) maximum OD, and fits only Aluminum Deck Fills.



Deck Fill Cap for Special Hex Key: Ami DFA-CSpecial:
Amiot Deck Fill Cap accepts Special Hex Key only, for additional security. Cast Aluminum Cap is Clear Anodized and includes rubber O-Ring. Cap has 2 1/8" (53.5mm) maximum OD, and fits only Aluminum Deck Fills.







Replacement O-Ring for Deck Fill Cap: Ami DF-ORing:
Replacement rubber O-Ring seats in Amiot Deck Fill Cap. Black rubber O-Ring fits Amiot Aluminum and Composite Deck Fill Caps.




Amiot Composite Deck Fills


Water Deck Fill: Ami DFC-Water:
Black Composite Amiot Water Deck Fill is designed to accept 1 1/2" (37mm) ID Hose. Threaded Cap can be unscrewed using a standard Winch Handle or Winch Handle Key. Unit is 3 1/2" (90mm) diameter, protrudes 2 7/8" (73mm) below deck, and 5/16" (8mm) above. Mounting requires a 2 3/16" (55mm) hole in the deck, unit attaches to deck with (3) 5mm FH screws on a 70mm circle diameter (61mm (2 7/16") between hole centers). Water Deck Fill features a hose stopper to prevent deep entry of filling hose and subsequent over pressurization and tank rupture. The words "Water" and "Eau" and the Amiot logo are molded into the main unit.



Waste Deck Fill for 2" (55mm Hose): Ami DFC-Waste55:
Black Composite Amiot Waste Deck Fill is designed to accept 2" (55mm) ID Hose. Threaded Cap can be unscrewed using a standard Winch Handle or Winch Handle Key. Unit is 3 1/2" (90mm) diameter, protrudes 2 7/8" (73mm) below deck, and 5/16" (8mm) above. Mounting requires a 2 3/16" (55mm) hole in the deck, unit attaches to deck with (3) 5mm FH screws on a 70mm circle diameter (61mm (2 7/16") between hole centers). The word "Waste" and the Amiot logo are molded into the main unit.



Diesel Deck Fill: Ami DFC-Diesel:
Black Composite Amiot Diesel Deck Fill is designed to accept 2" (55mm) ID Hose. Threaded Cap can be unscrewed using a standard Winch Handle or Winch Handle Key. Unit is 3 1/2" (90mm) diameter, protrudes 2 7/8" (73mm) below deck, and 5/16" (8mm) above. Mounting requires a 2 3/16" (55mm) hole in the deck, unit attaches to deck with (3) 5mm FH screws on a 70mm circle diameter (61mm (2 7/16") between hole centers). The words "Diesel" and "Gazole" and the Amiot logo are molded into the main unit.



Gas (Essence, Petrol) Deck Fill: Ami DFC-Petrol:
Black Composite Amiot Gas Deck Fill is designed to accept 2" (55mm) ID Hose. Threaded Cap can only be unscrewed using a special Amiot Hex Key to prevent misfilling. Unit is 3 1/2" (90mm) diameter, protrudes 2 1/2" (65mm) below deck, and 3/16" (5mm) above. Mounting requires a 2 3/16" (55mm) hole in the deck, unit attaches to deck with (3) 5mm FH screws on a 70mm circle diameter (61mm (2 7/16") between hole centers). The words "Petrol" and "Essence" and the Amiot logo are molded into the main unit.




Amiot Composite Deck Fill Replacement Parts

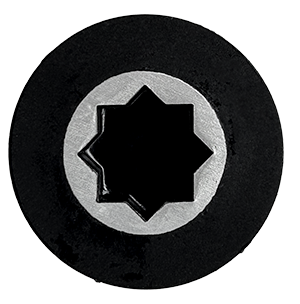

Deck Fill Cap for Standard Winch Handle: Ami DFC-CWH:
Black Composite Amiot Deck Fill Cap accepts standard (11/16") square or octagonal Winch Handle or any Winch Handle Key. Black molded Cap includes rubber O-Ring. Cap has 2 1/8" (53.5mm) maximum OD, and fits only Composite Deck Fills.




Deck Fill Cap for Special Hex Key: Ami DFC-CSpecial:
Black Composite Amiot Deck Fill Cap accepts Special Hex Key only, for additional security. Black molded Cap includes rubber O-Ring. Cap has 2 1/8" (53.5mm) maximum OD, and fits only Composite Deck Fills.








Replacement O-Ring for Deck Fill Cap: Ami DF-ORing:
Replacement rubber O-Ring seats in Amiot Deck Fill Cap. Black rubber O-Ring fits Amiot Aluminum and Composite Deck Fill Caps.




Amiot Deck Fill Keys are suitable for use with all Amiot Deck Fills.


Deck Fill Key for Standard Winch Handle Cap - Alloy: Ami DF-KWHA:
Amiot Deck Fill Key for Standard Winch Handle Cap. Cast Stainless Steel Key is 5" (125mm) long and features hole at handle end for attachment to keychain or lanyard.



Deck Fill Key for Standard Winch Handle Cap - Plastic: Ami DF-KWHP:
Amiot Deck Fill Key for Standard Winch Handle Cap. Black Plastic Key is 3 7/8" (98mm) long and features hole at handle end for attachment to keychain or lanyard.



Deck Fill Key for Special Hex Cap: Ami DF-KSpecial:
Amiot Special Deck Fill Key fits Cap for Special Hex Key only. Cast Stainless Steel Key is 5" (125mm) long and features hole at handle end for attachment to keychain or lanyard.
