Exit Plates


Exit Plates & Chafe Bars
Exit Plates are used to lead any control line (internal halyards, pole lifts, etc.) through a spar wall, where No directional change is required. An Exit Plate is installed in a slot, to prevent the line going through it from coming in contact with the spar wall. This prevents any abrasion of the spar wall, as well as minimizing chafe on the line. Suitable for use with wire or rope, most of the Exit Plates listed below feature welded or formed bars to prevent chafe on the interior mast wall, and smooth formed outer surfaces to reduce wear on all control lines. Chafe Bars come in sets of 2 separate pieces and prevent chafe at the slot ends only, one piece is mounted outside the Spar at one end of the slot, the other piece is mounted inside the Spar at the other end of the slot.

Other Exit Plates are available for replacement or exact matching purposes. Depending on the kind of spars you have, See Kenyon Exit Plates, Isomat/Sparcraft Exit Plates, FranceSpar Exit Plates, or Z-Spar Exit Plates.



Stainless Steel Exit Plates
Stainless Steel Mini Exit Plate: NG0-7S4:
Mini Stainless Steel Exit Plate is just 1 3/4" long x 15/16" wide and will handle line up to 5/16" diameter. One of the smallest we've ever seen, commonly found on High-performance Dinghies. Formed SS plate fits in ovoid mast cutout 1 1/2" high x (maximum) 1/2" wide. Unit is attached with (4) 4mm (5/32", #8) fasteners on 1 7/16" x 5/8" hole centers.



SS Exit Plate: Sch 34-46: (flat)
Small Stainless Steel Exit Plate is 3 1/4" long x 1 1/4" wide and will handle line up to 7/16" diameter. Formed SS plate with welded interior chafe bar fits in mast cutout 2 3/8" high x 7/8" wide. Unit is attached with (4) #10 (3/16") fasteners on 2 3/4" x 3/4" hole centers.




SS Exit Plate: K-10960SF: (flat)
SS Exit Plate: K-10960SC: (curved)
Small Stainless Steel Exit Plate is 3 1/4" long x 1 1/4" wide and will handle line up to 7/16" diameter. Formed SS plate fits in mast cutout 2 3/8" high x 7/8" wide. Unit is attached with (4) #10 (3/16") fasteners on 2 3/4" x 3/4" hole centers. The K-10960SC is slightly curved to fit most Mast Sections, the K-10960SF is uncurved for use on flat-sided Sections.



K-10960SC
Large SS Exit Plate: Sch 34-48: (flat)
Large SS Exit Plate: Sch 34-49: (curved)
Stainless Steel Exit Plate is 4 5/8" long x 2" wide and will handle line up to 3/4" diameter. Formed SS plate with welded interior chafe bar fits in mast cutout 3 1/4" high x 1" wide and fastens with (4) #10 (3/16") fasteners on 3 5/8" x 1 1/2" hole centers.



Large SS Exit Plate: K-10961LF: (flat)
Large SS Exit Plate: K-10961LC: (curved)
Stainless Steel Exit Plate is 4 5/8" long x 2" wide and will handle line up to 3/4" diameter. Formed SS plate with welded interior chafe bar fits in mast cutout 3 1/4" high x 1" wide and fastens with (4) #10 (3/16") fasteners on 3 5/8" x 1 1/2" hole centers.



Special Long SS Exit Plate: PP-34-46K:
Special Long Stainless Steel Exit Plate is 6" long x 2 1/2" wide and will handle line up to 1/2" diameter. Flat SS plate has welded interior chafe bar and a slot that is 5/8" wide x 3 1/2" long. Unit is specially designed to cover large slots left from old-style exit blocks with sheaves. Fastens with (4) #10 (3/16") fasteners on 5 1/4" x 1 3/4" hole centers. As used on a variety of C&C Yachts.



Special Short SS Exit Plate: PP 34-47:
Special Short Stainless Steel Exit Plate is 2 3/4" long x 1 3/8" wide and will handle line up to 3/4" diameter. Formed SS plate fits in mast cutout 2" high x 1" wide and fastens with (4) #10 (3/16") fasteners on 2 5/16" x 15/16" hole centers. As used on a variety of Pearson and Isomat Masts.



Narrow SS Exit Plate - Small: NF 14850:
Stainless Steel Exit Plate is 6 1/4" long x 7/8" wide and will handle line up to 7/16" diameter. Unit fits in mast cutout 4 1/4" high x 9/16" wide and fastens with (1) #10 (3/16") fastener.



Narrow SS Exit Plate - Medium: NF 14851:
Stainless Steel Exit Plate is 8" long x 1" wide and will handle line up to 9/16" diameter. Assembly fits in mast cutout 5 1/4" high x 11/16" wide and fastens with (1) #10 (3/16") fastener.



Narrow SS Exit Plate - Large: NF 14852:
Stainless Steel Exit Plate is 8 1/4" long x 1 1/8" wide and will handle line up to 5/8" diameter. Assembly fits in mast cutout 5 3/4" high x 3/4" wide and fastens with (1) #10 (3/16") fastener.



Stainless Steel Chafe Bars

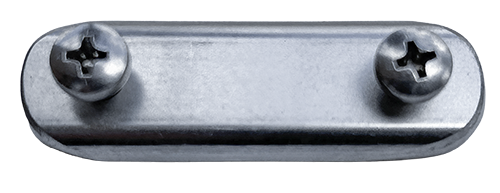

SS Chafe Bar Set: K-11755-A:
Two-piece Stainless Steel Chafe Bar Set is suitable for use with slots of any length. Cast half-round Chafe Bars are 2 1/4" long x 3/4" wide and (except for flat-sided Spar Sections) will need to be bent to fit the curve of the Mast. The Inside Bar has (2) 3/16" holes for attachment (from the outside) with standard 3/16" rivets, the Outside Bar has (2) 3/16" holes countersunk for attachment with Flathead screws or rivets. This item is no longer available and is shown here for identification only. Choose a substitute from Exit Plates, above.
K-11755-A
