Outhaul Slides & Cars For Booms w/ an Add-on Track


Outhaul Slides & Cars for Booms w/ an Add-on Track

For 1" T-Track
For 1 1/4" T-Track
For 5/8" Sailtrack
For 7/8" Sailtrack

Cars for 3/4" I-Beam Track (NF 1159 & Kenyon KT-4540)

Cars for Nicro-Fico NF 1100 Recirculating Ball Track
Cars for Isomat/ Sparcraft Booms w/ Recirculating Ball Track

Cars for Z-Spar Booms w/ Recirculating Ball Track

Please note that what are usually referred to as Traveller Slides are also frequently used on Booms as Outhaul Slides, See: Traveller Slides.

For Track compatible with the items listed here, See: Track.
See also: Outhaul Slides & Cars for Booms with an Integral Track.



Outhaul Slides for 1" T-Track
Outhaul Slide Assembly for 1" T-Track: Sch 95-01X:
Light-duty Outhaul Slide Assembly features channel with 1/4" captive Key Pin for clew attachment, and a welded SS Eye for attachment of Outhaul line or Block. Slide body is formed SS with welded Eye and 1/2" ID channel for Clew. Slide is 3" long x 1 1/8" wide, and 2 1/4" (maximum) high. For Booms using a 1" Outhaul T-Track.



Sch 95-01
Outhaul Slide Ass'y w/ Sheave & Liners for 1" T-Track: RF 336X:
Low friction Outhaul Slide Assembly features channel with 3-position clew attachment using 1/4" clevis pin, and 3/4" OD x 1/4" thick wire Sheave for a 2 part purchase using wire up to 1/8". When additional purchase is not desired, sheave can be used for direct attachment of outhaul pennant. Slide body is formed SS with plastic track liners, and 5/8" ID channel for Clew. Slide is 3 3/4" long x 1 1/4" wide, and 2" (maximum) high. For Booms using a 1" Outhaul T-Track. Replacement Liners are: RF 987LP:



Outhaul Slide Ass'y w/ Sheave for 1" T-Track: RR 95-T1-22:
Heavy-duty Outhaul Slide Assembly features channel with 2-position clew attachment using 5/16" clevis pin, and 1 1/16" OD x 1/2" wide phenolic Sheave for a 2 part purchase using up to 3/8" line. Slide body is formed SS with welded sheave cage and 15/16" ID channel for Clew. Slide is 4" long x 1 1/4" wide, and 2 1/2" (maximum) high. For Booms using a 1" Outhaul T-Track.



RR 95-T1-22

Outhaul Slides for 1 1/4" T-Track
Bronze Outhaul Slide for 1 1/4" T-track: RR 95-T14B-F:
Heavy-duty cast Bronze Outhaul Slide with Toggle for 1 1/4" T-Track. Toggle allows for 2 clew positions with a 3/8" pin and has 3/4" inside clearance for large clew rings. Slide features 3/8" pin for Toggle and (2) holes for 1/8" wire outhaul pennant attachment. Slide is 4 1/4" long x 1 11/16" wide x (maximum) 3 3/4" high, and fits US standard 1 1/4" x 3/16" T-track. Fam R



Chrome Outhaul Slide for 1 1/4" T-track: Fam 3165CB:

Heavy-duty cast Chrome-plated Bronze Outhaul Slide with Toggle for 1 1/4" T-Track. Toggle allows for 2 clew positions with a 1/2" pin and has 7/8" inside clearance for large clew rings. Slide features 1/2" pin for Toggle and hole for up to 3/16" wire outhaul pennant attachment. Slide is 3 7/8" long x 1 11/16" wide x (maximum) 4 3/8" high, and fits US standard 1 1/4" x 3/16" T-track. Fam



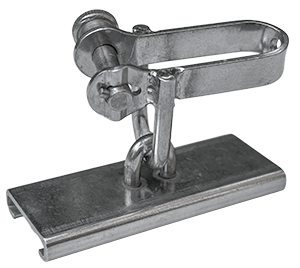

Stainless Steel Outhaul Slide for 1 1/4" T-track: K-11172:

This Heavy-duty SS Outhaul Slide was designed for use on larger yachts. Investment cast SS construction provides high strength at a minimum weight. The toggle allows for 2 clew positions with a 1/2" pin and has 1" inside clearance for extra large clew rings. Slide features 3/8" pins for toggle and outhaul pennant attachment. Captive plastic liners are included and allow unit to slide freely on US standard 1 1/4" x 3/16" T-track. Slide is 4 1/2" long x 1 11/16" wide x (maximum) 4 5/16" high. Suitable for use on a variety of yachts from 35 to 60 feet.
Replacement Liners are: K-11175P:



K-11172




Liners for K-11172 Outhaul Slide: K-11175P:

Replacement Liners for K-11172 Outhaul Slides. Polyethylene Slide Liners are 4 3/16" long. K-11175P consists of 2 pieces.




Outhaul Slides for 5/8" Sailtrack
Simple Outhaul Slide for 5/8" Sailtrack: K-95-51L:

Simple Outhaul/Traveller Slide features welded ring with 3/4" ID for clew shackle and attachment of outhaul pennant. Formed Stainless Steel Slide is 1 3/4" long. For Booms with 5/8" Sailtrack.



Small Outhaul Slide for 5/8" Sailtrack: RL 324X:

Outhaul Slide Assembly features channel with 3 position Clevis Pin for clew attachment, and a riveted loop for attachment of Outhaul line, shackle, or block. Slide body is formed Stainless Steel with 1/2" ID channel for Clew. Slide is 1 3/8" long and 1 1/2" (maximum) high. For Booms with 5/8" Sailtrack.



Outhaul Slide for 5/8" Sailtrack: K-245SM:

Outhaul Slide Assembly features channel with 3/16" captive Key Pin for clew attachment, and a welded loop for attachment of Outhaul line, shackle, or block. Slide body is formed Stainless Steel with welded loop and 5/8" ID channel for Clew. Slide is 2" long and 1 1/2" (maximum) high, Pin bearing surface is 1" above top of track. For Booms with 5/8" Sailtrack. D40060



K-245SM
Outhaul Slide w/ Nylon Sheave for 5/8" Sailtrack: RL 362X:
Outhaul Slide Assembly with Nylon Sheave features channel with 1/4" captive Key Pin for clew attachment, and 1" OD x 1/4" thick Sheave for a 2 part purchase using wire up to 3/32", or line up to 1/8". Slide body is formed Stainless Steel with 5/8" ID welded channel for Clew. Slide is 2 5/8" long and 1 5/8" (maximum) high, Pin bearing surface is 1 1/8" above top of track. For Booms with 5/8" Sailtrack.







Outhaul Slide w/ SS Sheave for 5/8" Sailtrack: K-246-5SM:
Outhaul Slide Assembly with Stainless Steel Sheave features channel with 3/16" captive Key Pin for clew attachment, and 1" OD x 1/8" thick SS Sheave for a 2 part purchase using wire up to 3/32". Slide body is formed Stainless Steel with 5/8" ID welded channel for Clew. Slide is 2 1/4" long and 1 1/2" (maximum) high, Pin bearing surface is 1" above top of track. For Booms with 5/8" Sailtrack. D40062



K-246-5SM
Outhaul Slide w/ Alu. Sheave for 5/8" Sailtrack: K-246-5D:
Deluxe Lightweight Outhaul Slide with Aluminum Sheave features channel with 1/4" captive Key Pin for clew attachment, and 1 3/16" OD x 1/8" thick Sheave for a 2 part purchase using wire up to 3/32". Sheave and cheek feature lightening holes for maximum weight reduction. Slide body is formed Stainless Steel with 1/2" ID welded channel for Clew. Slide is 2 1/2" long and 2 1/4" (maximum) high, Pin bearing surface is 1 3/4" above top of track. For Booms with 5/8" Sailtrack. Seaboard.


K-246-5D
Heavy-Duty Outhaul Slide for 5/8" Sailtrack: K-1161:

Heavy Duty Outhaul Slide Assembly features channel with 1/4" captive Screw Pin for clew attachment. Channel has welded front and back plates with holes for 1/8" wire pennant, wire passes through both ends of channel for maximum support and stability. Slide body is formed Stainless Steel with welded loop and 5/8" ID channel for Clew. Slide is 3" long and 2 3/8" (maximum) high, Pin bearing surface is 1 3/4" above top of track. For Booms with 5/8" Sailtrack.



Bronze Outhaul Slide for 5/8" Sailtrack: Mer 409B-0:

Cast Bronze Size 0 Outhaul Slide Assembly features channel with 1/4" Clevis Pin for clew attachment; Bronze Cotter Pin is captive, attached with a lanyard. Channel has 5/8" ID, forward end has carefully formed groove for up to 3/16" line outhaul pennant, providing a 2-1 purchase. Slide is 1 7/8" long and 1 1/2" (maximum) high, Pin bearing surface is 1 1/8" above top of track. For Booms with 5/8" Sailtrack.



Bronze Snap-action Outhaul Slide for 5/8" Sailtrack: Mer 411B-0:
Cast Bronze Size 0 Snap-action Outhaul Slide features hinged side with spring loaded Pin for clew attachment; unit requires no tools, has no loose parts and is easily closed with 2 fingers. Channel has 5/8" ID, forward end has carefully formed groove for up to 3/16" line outhaul pennant, providing a 2-1 purchase. Slide is 1 7/8" long and 1 1/2" (maximum) high, Pin bearing surface is 7/8" above top of track. For Booms with 5/8" Sailtrack. These items are newly-found original Merriman 1950's production of a design that goes back to 1925, suitable for the most meticulous of renovations. Limited Availability.




Bronze Outhaul Slide for 5/8" Sailtrack: Mer 409B-1:

Cast Bronze Size 1 Outhaul Slide Assembly features channel with 1/4" Clevis Pin for clew attachment; Bronze Cotter Pin is captive, attached with a lanyard. Channel has 5/8" ID, forward end has carefully formed groove for up to 3/16" line outhaul pennant, providing a 2-1 purchase. Slide is 2 3/4" long and 1 11/16" (maximum) high, Pin bearing surface is 1 1/8" above top of track. For Booms with 5/8" Sailtrack.




Outhaul Slides for 7/8" Sailtrack
Outhaul Slide for 7/8" Sailtrack: RL 477X:
Simple Outhaul/Traveller Slide features 1/4" welded loop with 5/8" ID for clew shackle and attachment of outhaul pennant. Formed Stainless Steel Slide is 1 3/4" long. For Booms with 7/8" Sailtrack.



Outhaul Slide w/ SS Sheave for 7/8" Sailtrack: RL 462-SX:
Outhaul Slide Assembly with Stainless Steel Sheave features channel with 1/4" captive Key Pin for clew attachment, and 1 1/16" OD x 7/32" thick Sheave for a 2 part purchase using wire up to 3/32", or line up to 1/8". Slide body is formed Stainless Steel with 5/8" ID welded channel for Clew. Slide is 2 5/8" long and 1 5/8" (maximum) high, Pin bearing surface is 1 1/8" above top of track. For Booms with 7/8" Sailtrack.




Outhaul Cars for Nicro-Fico & Kenyon  3/4" I-Beam
Traveller Track
Outhaul Car for NF & Kenyon 3/4" I-Beam Track: NF 1213S:
This Heavy-duty 4-wheel outhaul car features captive SS ball bearing wheels and control sheave for 1/8" wire pennant for 2-1 or 3-1 external outhaul purchase. SS channel allows for 3 clew positions and Outhaul Pennant becket (3-1) with 1/4" pins and has 5/8" inside clearance for clew rings. Car is 2" long x 1 1/2" wide x 3 3/8" high (maximum), and has an ultimate tensile strength of 2000 lbs. For Track and other Components compatible with this Car, See Nicro-Fico NF-1159 Traveller Systems, and Kenyon 3/4" Traveller Systems.




Outhaul Car for NF & Kenyon 3/4" I-Beam Track: NF 1213:
As NF 1213S, above, but with delrin wheels for less demanding duty. This 4-wheel outhaul car features Delrin wheels and control sheave for 1/8" wire pennant for 2-1 or 3-1 external outhaul purchase. SS channel allows for 3 clew positions and Outhaul Pennant becket (3-1) with 1/4" pins and has 5/8" inside clearance for clew rings. Car is 2" long x 1 1/2" wide x 3 3/8" high (maximum), and has a working load of 800 lbs. For Track and other Components compatible with this Car, See Nicro-Fico NF-1159 Traveller Systems, and Kenyon 3/4" Traveller Systems.








Delrin Wheels for NF 1213 Outhaul Car: NF 1213WP:

Replacement Set of Delrin Wheels as used on NF 1213, above. Wheels measure 11/16" OD x 3/16" ID x 3/16" wide. Set Includes 4 wheels.




Outhaul Cars for NF 1100 Recirculating Ball Track
Outhaul Car for NF 1100 RCB Track: NF 1184:

Outhaul Car designed for use on Nicro-Fico NF 1100 (15/16" wide) Recirculating Ball Traveller Track. Extruded Aluminum Car with plastic end caps rides on Torlon Ball Bearings to provide high strength and low friction at a minimum weight. SS channel allows for 3 Clew positions and 2 Outhaul Pennant positions with 1/4" pins and has 5/8" inside clearance for clew rings. Car is (maximum) 2 3/4" (70mm) long x 2 3/8" (60mm) wide x 2 3/8" (60mm) high (from track surface), and has a safe working load of 1200 lbs.. Outhaul Car uses thirty-six (36) 6.4mm Torlon ball bearings. Suitable for use on most boats up to 30'. For Track and other NF 1100 Components, See Nicro-Fico NF-1100 Traveller Systems.









Outhaul Cars for Z-Spar Recirculating Ball Track

Booms used with Furling Masts often use upgraded Outhaul Systems with Recirculating Ball (RCB) Track and Ball-bearing or Slide Rod Outhaul Cars.
Ball-bearing Cars are shipped on a piece of Car Loader track, and must not be removed from Boom track without Car loader, as ball control is challenging.
Slide Rod Cars ride smoothly on low-friction Torlon Slide Rods. Stronger than Ball Bearings, Slide Rods are easily replaceable, requiring no Car Loader.
Note: These Cars have been produced in a variety of different lengths and configurations.
When ordering parts, be sure to check measurements!



Cars & Parts for 25mm RCB Track

Z-Spar Slide-in 25mm RCB Track for Booms: Z-733-4M:
Z-Spar Rivet-on 25mm RCB Track: Z-931-4M:

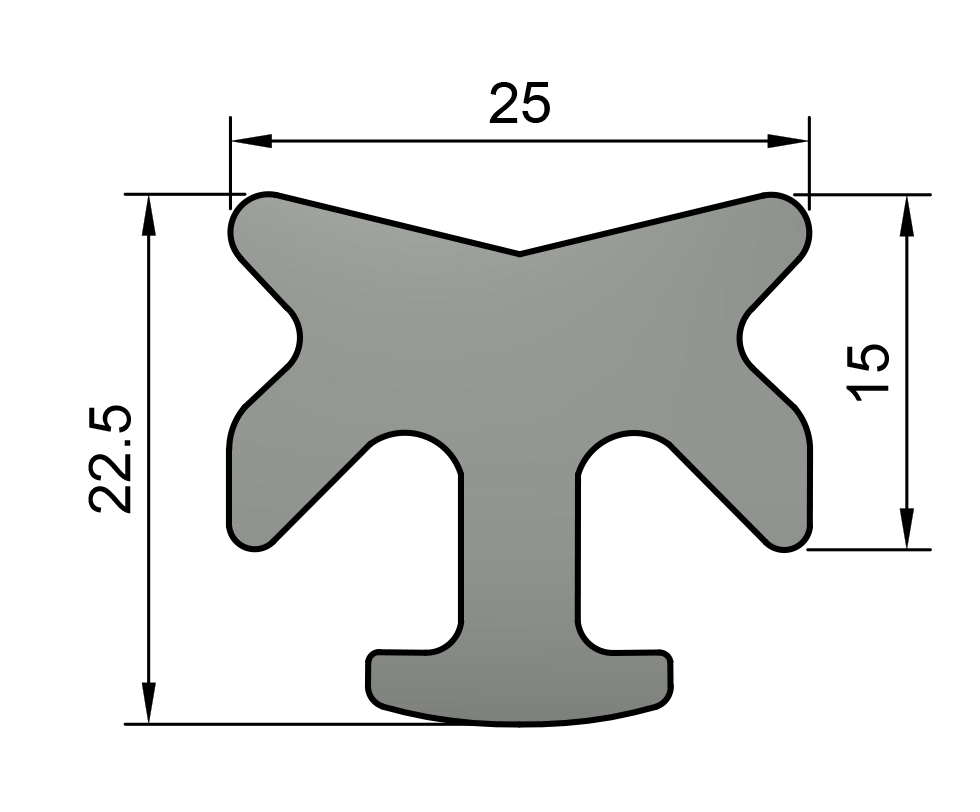

Z-733 Track has an integral "T" which slides into Z160 and larger Boom Sections. Track has no holes, attached to the Boom by sliding it in from the Boom end and held in place by 2 screws.
Z-931 Track has 6mm (1/4") holes for attachment to Custom Booms with rivets or screws, but is most commonly used as Spinnaker Track on Z-401 and larger Mast Sections.
Clear anodized Recirculating Ball (RCB) Tracks are also available in shorter than listed lengths, please specify.
See: Z-Spar Mast Specifications & Components.

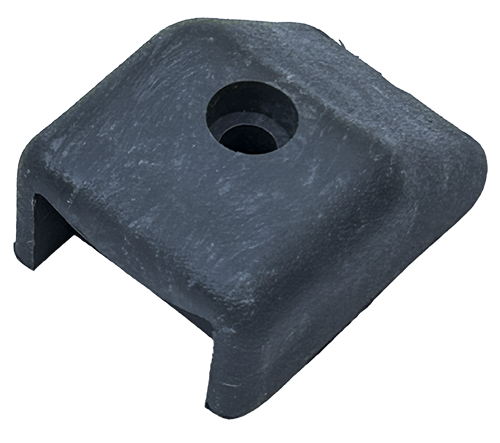

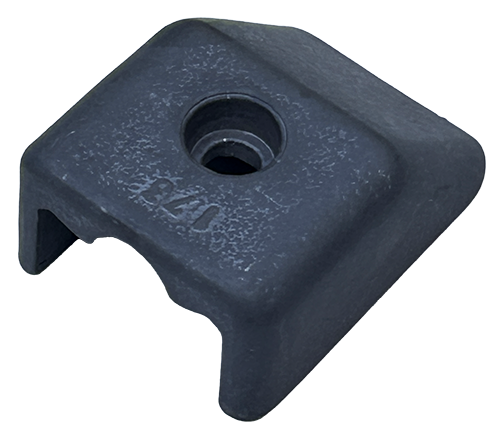

Plastic End Stop for 25mm RCB Track: Z-733-01:

Plastic End Cap for use with Z-733 25mm RCB Tracks is 47mm (1 7/8") long x 35mm (1 3/8") wide, and attaches to Track with (1) 6mm (1/4") AH screw. wt218/55





Simple Outhaul Car for 25mm RCB Track: Z-95-88SDR:

Outhaul Car for Booms using Z-Spar Z-733 25mm wide Recirculating Ball Track. Car incorporates a pivoting 8mm eye for dead end of sail and Outhaul line. Car rides on Torlon slide rods, making it easy to install. Car is 3 1/2" (88mm) long x 2 3/8" (61mm) wide. R6.4x3



Short Outhaul Car w/ Sheave & Shackle: Z-95-85MTS:

Ball Bearing Outhaul Car for Booms using Z-Spar Z-733 25mm wide Recirculating Ball Track. Car incorporates a pivoting Sheave Carriage Z-600AS, with attached Shackle for dead end of Outhaul line. Car rides on Torlon Ball Bearings to provide high strength and low friction at a minimum weight. Car body is 85mm (3 3/8") long x 61mm (2 3/8") wide x 22mm (7/8") high (from track surface). Outhaul Car uses forty-eight (48) 6.4mm Torlon ball bearings.







Short Outhaul Car w/ Eye: Z-95-85MT: XXX
Ball Bearing Outhaul Car for Booms using Z-Spar Z-733 25mm wide Recirculating Ball Track. Car incorporates a pivoting Sheave Carriage Z-600A, and a large 8mm eye for dead end of Outhaul line. Car rides on Torlon Ball Bearings to provide high strength and low friction at a minimum weight. Car body is 85mm (3 3/8") long x 61mm (2 3/8") wide x 22mm (7/8") high (from track surface). Outhaul Car uses forty-eight (48) 6.4mm Torlon ball bearings.
This item is no longer available, having been replaced by Z-95-85MTS, above, but replacement parts are listed below.







  Ball Bearing Set for Short Outhaul Cars: Z-BP6M-T50:




Replacement ball bearing pack for Z-95-85MT and other 85mm long Outhaul Cars. Car requires forty-eight (48) 6.4mm Torlon ball bearings, Pack contains 50 pcs..

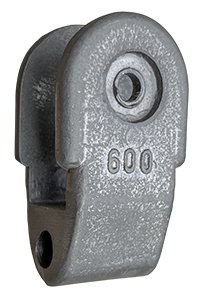

Sheave Carriage Ass'y for Outhaul Car: Z-600A:

Cast Aluminum Sheave Carriage Assembly as used in a variety of Z-Spar Outhaul Cars, rides on 8mm Pin and includes 35mm (1 3/8") OD plastic Sheave, Z-1617.

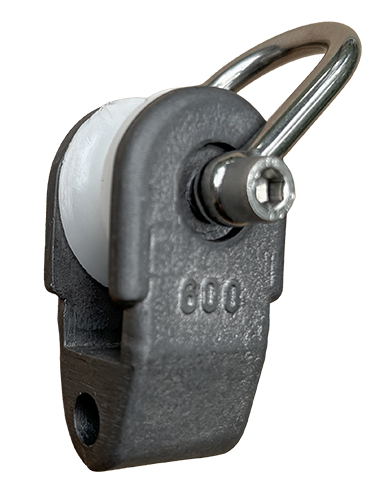

Sheave Carriage Ass'y w/ Shackle: Z-600AS:

Cast Aluminum Sheave Carriage Assembly with Shackle as used in Z-95-85MT Outhaul Cars. Sheave Carriage rides on 8mm Pin and includes 35mm (1 3/8") OD plastic Sheave, Z-1617.







5" Car Loader for Ball Bearing Cars: Z-733-CL5:

Short piece of Z-Spar Z-733 RCB Track is modified for Outhaul Car transport and Ball loading. This item is shipped (in various lengths) with all Z-Spar Ball-bearing Outhaul Cars, used to transfer the Car to the Boom Track. RCB Track is 5" long with one end stopped.




Medium Outhaul Car w/ Block, pivoting Shackle & Slide Rods: Z-95-100MTR:
Outhaul Car for Booms using Z-733 25mm wide Recirculating Ball Track. Car incorporates a heavy Block and a pivoting Shackle to attach Outhaul line. Car rides on Torlon Slide Rods to provide high strength and low friction and will take higher loads than ball bearing versions. Car is 100mm (4") long x 61mm (2 3/8") wide.








Slide Rod Set for Z-95-100MTR Outhaul Car: Z-SR8M-T88:
Replacement Slide Rod Set for Z-95-100MTR Outhaul Car. Torlon Slide Rods (2) are 7.9mm x 88mm (3 1/2") long.

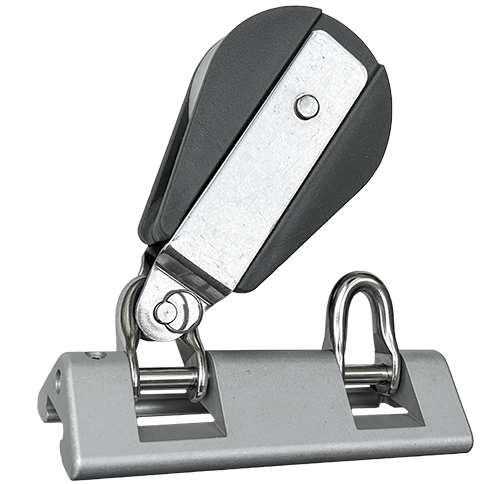

Long Outhaul Car w/ pivoting Shackle & Slide Rods: Z-95-155MTR:
Outhaul Car for Booms using Z-733 25mm wide Recirculating Ball Track. Car incorporates a pivoting Sheave Carriage, Z-600A, and an 8mm pivoting shackle for dead end of Outhaul line. New-style Car rides on Torlon Slide Rods to provide high strength and low friction at a minimum weight. Car is 156mm (6 1/8") long x 61mm (>2 3/8") wide. Early Ball Bearing version (Z-95-155MT) used ninety-two (92) Torlon balls.







Long Outhaul Car w/ Slide Rods: Z-95-145CSR:

Long Outhaul Car w/ Ball Bearings: Z-95-145C:

Ball Bearing Outhaul Car for Booms using Z-733 25mm wide Recirculating Ball Track. Car incorporates a pivoting Sheave Carriage, Z-600A, and a bail to attach Outhaul line. Car rides on Ball Bearings to provide high strength and low friction at a minimum weight. Extruded Aluminum Car has removable end caps, for easy ball replacement. Car is 145mm (5 3/4") long x 61mm (2 3/8") wide. Outhaul Car uses eighty-six (86) Delrin ball bearings.







Long Outhaul Car w/ pivoting Shackle & Slide Rods: Z-95-147DR: XXX
Outhaul Car for Booms using Z-733 25mm wide Recirculating Ball Track. Car incorporates a pivoting Sheave Carriage, Z-600A, and an 8mm pivoting shackle for dead end of Outhaul line. Car rides on Torlon Slide Rods (not Ball Bearings), making it easy to install. Car is 5 3/4" (147mm) long x 2 3/8" (61mm) wide.
This item is no longer available, but replacement parts are listed below. R6.4x5.25



  Ball Bearing Set for Long Outhaul Cars: Z-BP6M-T100:




Replacement ball bearing pack for Long Ball Bearing Outhaul Cars. Cars require eighty-six (86) or ninety-two (92) 6.4mm Torlon ball bearings, Pack contains 100 pcs.







Sheave Carriage Ass'y for Outhaul Car: Z-600A:

Cast Aluminum Sheave Carriage Assembly as used in a variety of Z-Spar Outhaul Cars, rides on 8mm Pin and includes 35mm (1 3/8") OD plastic Sheave, Z-1617.







End Cap for Outhaul Car - 1 screw: Z-EC25-1P:

Replacement End Cap for Old-style Outhaul Cars for 25mm RCB Track. End Cap is 62mm (2 7/16") wide x 41mm (1 5/8") high x 13mm (1/2") thick, and attaches to Car with (1) 5mm thru-bolt. 4044




End Cap for Outhaul Car - 2 screw: Z-EC25-2:

Replacement End Cap for Old-style Outhaul Cars for 25mm RCB Track. Cast Aluminum End Cap is 62mm (2 7/16") wide x 21mm (13/16") high x 13mm (1/2") thick, and attaches to Car with (2) 4mm screws. 43







7" Car Loader for Ball Bearing Cars: Z-733-CL7:

Short piece of Z-Spar Z-733 RCB Track is modified for Outhaul Car transport and Ball loading. This item is shipped (in various lengths) with all Z-Spar Ball-bearing Outhaul Cars, used to transfer the Car to the Boom Track. RCB Track is 7" long with one end stopped.




Extra Long Outhaul Car for RCB Track: Z-95-225C:

Ball bearing Outhaul Car for Booms using Z-733 25mm wide Recirculating Ball Track. Car incorporates a pivoting Sheave Carriage Z-600A, for outhaul line. Extruded Aluminum Car has removable end caps, for easy ball replacement. Car rides on Torlon Ball Bearings to provide high strength and low friction at a minimum weight. Car is 225mm (8 7/8") long x 61mm (2 3/8") wide. Outhaul Car uses one hundred thirty-eight (138) Delrin ball bearings.







  Ball Bearing Set for Z-95-225C Outhaul Car: Z-BP6M-T150:




Replacement ball bearing pack for Extra Long Ball Bearing Outhaul Cars. Cars require one hundred thirty-eight (138) ball bearings, Pack contains 150 pcs.







Sheave Carriage Ass'y for Outhaul Car: Z-600A:

Cast Aluminum Sheave Carriage Assembly as used in a variety of Z-Spar Outhaul Cars, rides on 8mm Pin and includes 35mm (1 3/8") OD plastic Sheave, Z-1617.







End Cap for Outhaul Car - 2 screw: Z-EC25-2:

Replacement End Cap for Old-style Outhaul Cars for 25mm RCB Track. Cast Aluminum End Cap is 62mm (2 7/16") wide x 21mm (13/16") high x 13mm (1/2") thick, and attaches to Car with (2) 4mm screws. 43







10" Car Loader for Ball Bearing Cars: Z-733-CL10:

Short piece of Z-Spar Z-733 RCB Track is modified for Outhaul Car transport and Ball loading. This item is shipped (in various lengths) with all Z-Spar Ball-bearing Outhaul Cars, used to transfer the Car to the Boom Track. RCB Track is 10" long with one end stopped.
