Double Shroud Clevis Tangs


Double Shroud Clevis Tangs
Clevis Tangs come with a Clevis Pin and are used to attach rigging which uses Eye fittings. Double Clevis Tangs are used on rigs with Double Lower Shrouds, and come with (2) Clevis Pins. See also, Tangs Main Page.

Pivoting Tangs - mount on a single bolt, with or without a Flange Bushing.
Fixed Tangs - attach to the Mast with multiple fasteners, allowing no fore and aft movement.


Pivoting Double Clevis Tangs
Pivoting Double Clevis Tangs are commonly used in Double Lower Shroud applications. They mount on a single Bolt of the size indicated, or with a Flange Bushing and a smaller Bolt. Larger Pivoting Tangs will, in many applications, require use of Flange Bushings and/or Tang Bearing Plates.

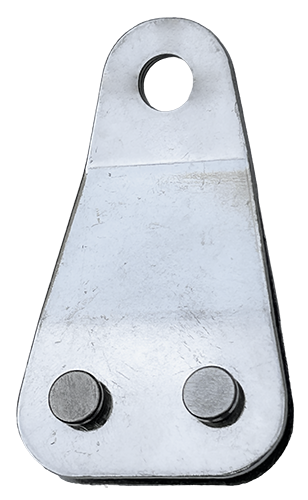

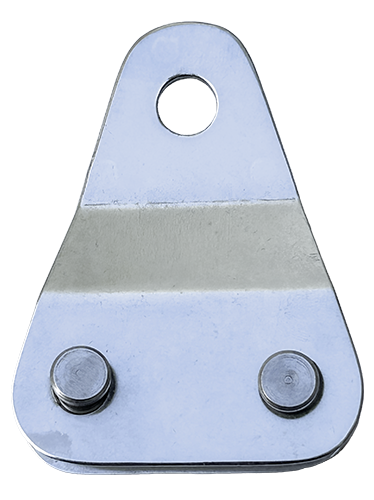

Tapered Double Clevis Tang w/ 1/4" Pins - 5/16" mount: RR 84-2105-4D:
Tapered SS Double Clevis Tang was designed for use with (2) Lower Shrouds up to 5/32" diameter using standard Eyes. Triangular Double Tang is 2 3/4" long x 1 9/16" wide (at bottom) x .60" with (1) 5/16" mounting hole, and includes (2) 1/4" Clevis Pins. Pin centers are 2" from mounting hole and are 1 3/8" (horizontal) apart. Mounts with (1) 5/16" bolt. SC

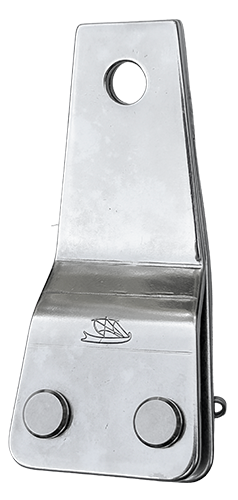

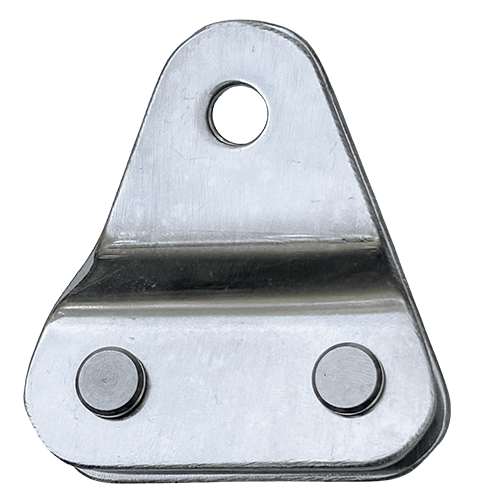

Tapered Double Clevis Tang w/ 5/16" Pins - 3/8" mount: RR 84-2106-5D:
Tapered SS Double Clevis Tang was designed for use with (2) Lower Shrouds up to 3/16" diameter using standard Eyes. Triangular Double Tang is 4 1/4" long x 1" wide (at top) x 1 3/4" wide (at bottom) x .120" with (1) 3/8" mounting hole, and includes (2) 5/16" Clevis Pins. Pin centers are 3" from mounting hole and are 1 1/16" (horizontal) apart. Mounts with (1) 3/8" bolt. SP




Tapered Double Clevis Tang w/ 7/16" Pins - 1/2" mount: K-84-2108-7D:
Tapered SS Double Clevis Tang was designed for use with (2) Lower Shrouds up to 7/32" diameter using standard Marine Eyes. Triangular Double Tang is 3 7/8" long x 1" wide (at top) x 2 1/2" wide (at bottom) x .120" with (1) 1/2" mounting hole, and includes (2) 7/16" Clevis Pins. Pin centers are 2 3/4" from mounting hole and are 1 3/8" (horizontal) apart. Mounts with (1) 1/2" bolt.



Double Clevis Tang w/ 7/16" Pins - 1/2" mount: RR 84-2108-7A:
Tapered SS Double Clevis Tang was designed for use with (2) Lower Shrouds up to 1/2" diameter using standard Marine Eyes. Triangular Double Tang is 4 3/4" long x 1 1/2" wide (at top) x 2 7/8" wide (at bottom) x .120" with (1) 1/2" mounting hole, and includes (2) 7/16" Clevis Pins. Pin centers are 3 1/4" from mounting hole and are 1 1/4" (horizontal) apart. Mounts with (1) 1/2" bolt.




Double Lower Shroud Clevis Tang Set w/ 7/16" Pins - 5/8" mount: RC 84-2110-7S:
SS Double Clevis Tang Set was designed for use with (4) Lower Shrouds up to 7/32" diameter using standard Marine Eyes. Set includes (2) Double Tangs and (4) 7/16" Clevis Pins. Double Tang is 9" long x 2 1/8" wide x .120" with (1) 5/8" mounting hole. Pin centers are 5" (upper) and 6 3/4" (lower) from mounting hole and are 2" (diagonally) apart. Mounts with (1) 5/8" bolt. RC as used by Columbia.







Double Clevis Tang w/ 1/2" Pins - 1/2" mount: RR 84-2108-8A:
Tapered SS Double Clevis Tang was designed for use with (2) Lower Shrouds up to 9/32" diameter using standard Marine Eyes. Welded Triangular Double Tang is 4 3/4" long x 1 1/2" wide (at top) x 2 7/8" wide (at bottom) x .120" with (1) 1/2" mounting hole, and includes (2) 1/2" Clevis Pins. Pin centers are 3 1/4" from mounting hole and are 1 1/4" (horizontal) apart. Mounts with (1) 1/2" bolt.



RR 84-2108-8A
Double Lower Shroud Clevis Tang Set w/ 1/2" Pins - 5/8" mount: RC 84-2110-8S:
SS Double Clevis Tang Set was designed for use with (4) Lower Shrouds up to 9/32" diameter using standard Marine Eyes. Set includes (2) Double Tangs and (4) 1/2" Clevis Pins. Double Tang is 9" long x 2 1/8" wide x .120" with (1) 5/8" mounting hole. Pin centers are 5" (upper) and 6 3/4" (lower) from mounting hole and are 2" (diagonally) apart. Mounts with (1) 5/8" bolt. RC as used by Columbia.



Double Clevis Tang w/ 1/2" Pins - 3/4" mount: K-10498A:
SS Double Clevis Tang was designed for use with (2) Lower Shrouds up to 9/32" diameter using standard Marine Eyes. Double Tang is 6" long x 3" wide x .120" with (1) 3/4" mounting hole, and includes (2) 1/2" Clevis Pins. Pin centers are 3 3/4" from mounting hole and are 1 5/16" (horizontal) apart. Mounts with (1) 3/4" bolt, or with Flange Bushing (K-10455) and a 1/2" bolt for applications where weight is a concern.  was D/K-40544A



K-10498A

Double Lower Shroud Clevis Tang Set w/ 1/2" Pins - 3/4" mount: SP-753K:
SS Double Lower Shroud Tang Set was designed for use with (4) Lower Shrouds up to 9/32" diameter using standard Marine Eyes. Set includes (2) Double Tangs and (4) 1/2" Clevis Pins. Double Tang is 6" long x 2 1/4" wide x .120" with (1) 3/4" mounting hole. Pin centers are 3 1/8" (upper) and 4 1/4" (lower) from mounting hole and are 1 1/2" (diagonally) apart. Mounts with (1) 3/4" bolt, or with Flange Bushings (K-10455) and a 1/2" bolt for applications where weight is a concern. Used on a variety of Cape Dory Yachts, and others. Commonly used with Tapered Bearing Plates and Flange Bushings, allowing for attachment to the mast with (2) 1/2" bolts. See SP-753BPA, below.



  Backing Plate Ass'y w/ Flange Bushings: SP-753BPA:
Recommended for standard applications, this Assembly allows for attachment of SP-753K Tang Set with (2) 1/2" bolts. Includes (2) Tapered Bearing Plates (K-11216-S1), and (2) 3/4" OD Flange Bushings (K-10455S). Mounting requires (1) 1/2" and (1) 3/4" hole in each side of mast. Used with SP-765 and SP-766 Spreader Bases, and SP-753K, Lower Shroud Tangs, and in a variety of other applications.





  Tapered SS Bearing Plate w/ 3/4" hole: K-11216-S1:
Tapered SS Bearing Plate has (1) 1/2" hole and (1) 3/4" hole for use with bolts of those sizes, or with SS Flange Bushings and smaller bolts. Tapered Plate is 3 1/2" long x 1" wide (at top) x 2" wide (at bottom) x 3/32" (.098") thick, with (2) holes on 1 3/4" centers, and is contoured for use with most Mast Sections. Used with SP-765 and SP-766 Spreader Bases and SP-753K Lower Shroud Tangs.



K-11216-S1

  Flange Bushing – 3/4" OD x 1/2" ID: K-10455S:
SS Flange Bushing is 3/4" OD x 1/2" ID. Used with a 1/2" bolt it replaces a 3/4" bolt in Shroud Tang applications to achieve significant weight reduction without any attendant reduction in bearing surface. 3/4" OD Flange Bushing is 3/4" long, Flange Head is 7/8" diameter x 1/8" thick. XXP



K-10455LS

Double Lower Shroud Clevis Tang Set w/ 1/2" Pins: Sch 84-27K:
SS Double Lower Shroud Tang Set was designed for use with (4) Lower Shrouds up to 9/32" diameter using standard Marine Eyes. Set includes (2) Double Tangs with Pins, (2) Tapered Bearing Plates (K-11216-S3), and (2) 3/4" OD Flange Bushings (K-10455S). Tapered Bearing Plates are 3 1/2" long x 2" wide, with (3) 1/4" (upper) and (1) 3/4" (lower) holes. Double Tang is 7 1/8" long x 2" wide x .120" with (1) 3/4" mounting hole. Pin centers are 4 3/8" (upper) and 5 1/2" (lower) from mounting hole and are 1 3/8" (diagonally) apart. Flange Bushings and Tapered Bearing Plates allow for attachment to the mast with (1) 1/2" bolt and (3) 1/4" screws. Mounting requires (3) 1/4" and (1) 3/4" hole in each side of mast.




Double Clevis Tang w/ 5/8" Pins - 3/4" mount: K-10779A:
Tapered SS Double Clevis Tang Assembly was designed for use with (2) Lower Shrouds up to 3/8" diameter using standard Marine Eyes. Tapered Double Tang is 7 1/2" long x 2" wide (at top) x 4" wide (at bottom) x 3/16" (.186") with (1) 3/4" mounting hole, and includes (2) 5/8" Clevis Pins. Pin centers are 5 3/8" from mounting hole and are 2" (horizontal) apart. Mounts with (1) 3/4" bolt, or with Flange Bushings (K-10455) and a 1/2" bolt for applications where weight is a concern.



K-10779A

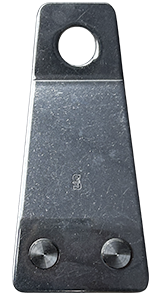

Double Lower Shroud Clevis Tang w/ 5/8" Pins - 1" mount: Sch 84-29:
Tang Ass'y w/ Bearing Plate & Flange Bushing - 3/4" mount: Sch 84-29A:
Tapered SS Double Lower Shroud Tang was designed for use with (2) Lower Shrouds up to 3/8" diameter using standard Marine Eyes. Tapered Double Tang is 7 1/2" long x 3 1/2" wide x 3/16" thick w/ (1) 1" mounting hole. Pin centers are 5 1/2" from mounting hole & are 1 7/8" apart.
Assembly mounts with a 3/4" bolt and (2) 3/8" bolts, and includes (1 ea.) Sch 84-29 Tang with Pins, Tapered Bearing Plate Sch 84-29BP, and 1" OD Flange Bushing K-10455-1, listed below.

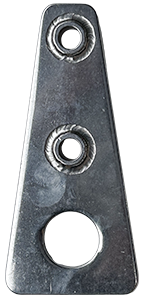

  Tapered SS Bearing Plate w/ 1" hole: Sch 84-29BP:
Heavy-duty Tapered SS Bearing Plate has (2) 5/8" OD x 3/8" ID welded bushings that protrude internally to increase bearing surface on Mast wall. Mounts with 1" bolt, and (2) 3/8" bolts, or with SS Flange Bushing (K-10455-1) and a 3/4" and (2) 3/8" bolts. Triangular SS Plate is 5 1/4" long x 1" wide (at top) x 2 1/2" wide (at bottom) x 3/16" thick, and is slightly contoured for use with most Mast Sections. Mounting requires (1) 1" and (2) 5/8" holes. Commonly used with Sch 84-29 Double Clevis Tang assembly, and other Tangs with a 1" hole.



  Flange Bushing – 1" OD x 3/4" ID: K-10455-1:
SS Flange Bushing is 1" OD x 3/4" ID. Used with a 3/4" bolt it replaces a 1" bolt in Shroud Tang applications to achieve significant weight reduction without any attendant reduction in bearing surface while eliminating stress on the mounting bolt thread. 1" OD Flange Bushing is 1 7/16" long, Flange Head is 1 1/4" diameter x 3/16" thick.



K-10455LS


Double Clevis Tang w/ 3/4" Pins - 3/4" mount: K-11158A:
Tapered SS Double Clevis Tang Assembly was designed for use with (2) Lower Shrouds up to 7/16" diameter using standard Marine Eyes. Tapered Double Tang is 7 1/2" long x 2" wide (at top) x 4" wide (at bottom) x 3/16" (.186") with (1) 3/4" mounting hole, and includes (2) 3/4" Clevis Pins. Pin centers are 5 3/8" from mounting hole and are 2" (horizontal) apart. Mounts with (1) 3/4" bolt, or with Flange Bushings (K-10455) and a 1/2" bolt for applications where weight is a concern.



K-10779A


Fixed Double Clevis Tangs
Fixed Double Clevis Tang Set w/ 1/2" Pins: RR 84-2712-8AS:
SS Double Lower Shroud Tang Assembly Set was designed for use with (4) Lower Shrouds up to 9/32" diameter using standard Marine Eyes. Set includes (2) Tangs, and (4) 1/2" Clevis Pins. Original S&S Design Double Tapered Tangs are 8" long x 1 3/4" wide (at top) x 2 1/2" wide (at bottom) x .120" with (6) 5/16" (upper) and (1) 3/4" (lower) mounting holes. Pin centers are 3 1/4" (upper) and 4" (lower) from lower mounting hole and are 1 3/8" (diagonally) apart. Mounts with (6) 5/16" screws and (1) 3/4" bolt, or with Flange Bushings (K-10455) and a 1/2" bolt for applications where weight is a concern.



Fixed Double Clevis Tang Set w/ 5/8" Pins: RR 84-2712-10AS:
SS Double Lower Shroud Tang Assembly Set was designed for use with (4) Lower Shrouds up to 3/8" diameter using standard Marine Eyes. Set includes (2) Tangs, and (4) 5/8" Clevis Pins. Original S&S Design Double Tapered Tangs are 11" long x 2 1/4" wide (at top) x 2 3/4" wide (at bottom) x .120" with (6) 5/16" (upper) and (1) 3/4" (lower) mounting holes. Pin centers are 4 3/4" (upper) and 5 3/4" (lower) from lower mounting hole and are 1 11/16" (diagonally) apart. Mounts with (6) 5/16" screws and (1) 3/4" bolt, or with Flange Bushings (K-10455) and a 1/2" bolt for applications where weight is a concern.



Fixed Double Clevis Tang w/ 3/4" Pins: K-74212A:
Heavy SS Double Clevis Tang Assembly was designed for use with (2) Shrouds up to 7/16" diameter using standard Marine Eyes. Double Tang is 14 3/4" long x 4" wide x .120" with (9) 5/16" (upper), (1) 7/8" (center) and (1) 1 1/4" (lower) mounting holes. Pin Hole centers are 5 3/4" (vertical) from lower mounting hole and are 2" (horizontal) apart. Mounts with (9) 5/16" FH screws, (1) 7/8", and (1) 1 1/4" bolt.



K-74212A
