Moonlight Hatches & Hatch Parts

Moonlight Hatch Parts Series 62/63 Offshore Hatch Parts Series 55 Lowline Hatch Parts Compact Flush Hatch Parts For parts not listed please contact us with measurements and details. To identify your specific Hatch measure the maximum overall dimensions.

Moonlight Series 62/63 'Offshore' Hatch Parts Replacement parts for Moonlight Series 62/63 'Offshore' Hatches are listed below. For Right and Left components, Hatches are viewed from inside facing toward the opening side. To identify your specific Hatch measure the maximum overall dimensions.
Handle Ass'y - Left Complete, Series 62/63: Moon 62HA-L:
Left side Black plastic Handle Assembly includes Outer and Inner (locking) Handle with all components and screw. Used on all Moonlight Series 62/63 Hatches, Inner (locking) Handle with Red locking slide is 5 1/4" (133mm) long, Outer Handle is 3 5/8" (92mm) long x 1 1/8" wide.
	Inside Handle w/ Button, Left, Series 55/62/63: Moon 62H-HIL:
	Inside Left Handle w/ Locking Slide Button as used in Series 55/62/63 Hatches. Inner (locking) Handle with Red locking slide is 5 1/4" (133mm) long.	Moon 62H-HIL
	Locking Button for Left Handle, Series 62/63: Moon 62H-LBL:
	Locking Slide Button fits in Series 62/63 Left Hatch Handle. Red plastic Locking Button is 33mm (1 1/4") long x 12mm (1/2") wide.
Handle Ass'y - Right Complete, Series 62/63: Moon 62HA-R:
Right side Black plastic Handle Assembly includes Outer and Inner (locking) Handle with all components and screw. Used on all Moonlight Series 62/63 Hatches, Inner (locking) Handle with Red locking slide is 5 1/4" (133mm) long, Outer Handle is 3 5/8" (92mm) long x 1 1/8" wide.
	Inside Handle w/ Button, Right, Series 55/62/63: Moon 62H-HIR:
	Inside Right Handle w/ Locking Slide Button as used in Series 55/62/63 Hatches. Inner (locking) Handle with Red locking slide is 5 1/4" (133mm) long.	Moon 62H-HIR
	Locking Button for Right Handle, Series 62/63: Moon 62H-LBR:
	Locking Slide Button fits in Series 62/63 Right Hatch Handle. Red plastic Locking Button is 33mm (1 1/4") long x 12mm (1/2") wide.
	Outside Handle for Hatch, Series 62/63: Moon 62H-HOS:
	Outside Handle for Hatch allows opening from the outside. Black plastic Handle has square stud that mates with inside Handle. Unit is is 3 9/16" (91mm) long x (maximum) 30mm (1 1/8") wide and includes O-Ring.
	Outside Cap for Hatch, Series 62/63: Moon 62H-OC: Optional Top Cap is used in place of the standard Outside Handle. Black plastic Cap is 35mm (1 3/8") in diameter and includes O-Ring.
	O-Ring for Top Cap & Outside Handle: Moon 62H-OR4:
	O-Ring for Hatch Handle Top Cap and Outside Handle. Used on all Moonlight 62/63 & 55 Series Hatches, O-Rings are sold in packs of four (4) pieces.
Handle Seat, Series 62/63: Moon 62H-S: Black plastic Handle Seat is used on all Moonlight Series 62/63 Hatches. Handle Seat is 2 3/4" long x 5/8" high x 1/2" deep.

Fly Screen for Series 62/63 Hatches: Moon 62-__-FS: Fly Screen for Series 62 Round Hatches: Moon 62-__R-FS: Fly Screens are available for most Moonlight Hatches, Screw and Tab Set and instructions are included. For replacement Hatch Fly Screens please contact us with measurements.
	Fly Screen Screw & Tab Set: Moon 62FS-SS-4: Fly Screen Screw and Tab Set includes (4 ea.) screws, seats, washers, white plastic swiveling Tabs and screw covers. Used on all Moonlight Series 62/63 and 55 Hatches. Larger Hatches (620mm (24 1/2") square glass) use 8 pieces, requiring 2 Sets. Installation requires drilling holes in the interior plastic Trim Ring.

*Replacement Hatch Gasket, per ft.: Moon 62-G:* Replacement Neoprene Gasket is available for all Moonlight Series 62/63 Hatches.
*Gasket Glue for Moonlight Hatches & Ports: Moon 62-GGlue:*
Special Gasket Glue is used for Gasket attachment on all Moonlight Hatches and Ports. Enough Glue is included for re-gasketing 2 mid-size Hatches or 4-5 Ports.

Replacement Acrylic Lenses (Glass): Moon 6_-__-ARL: Replacement Acrylic Lenses (Glass) are available for all Moonlight Series 62-68 Offshore Hatches. For replacement Acrylic Lenses please contact us with Hatch Part numbers, or Deck cut-out or Glass size and details.
Adhesive for Moonlight Hatch Lenses: Moon 62-ADH: Special Black UV-resistant elastomer adhesive as used in the factory to attach the Acrylic Lens on Moonlight Hatches. Supplied in 290ml (10 oz.) cartridges, enough to attach 2-3 mid-size Hatch Lenses.

Interior Plastic Trim Ring: Moon 62-__-TR: Replacement White plastic Interior Trim Rings are available for all Moonlight Series 62/63 Hatches. For replacement Hatch Trim Rings please contact us with Hatch Part numbers, or Deck cut-out or Glass size and details.

Moonlight Series 55 'Lowline' Hatch Parts Replacement parts for Moonlight Series 55 'Lowline' Hatches, also commonly found on Powerboats, are listed below. Lowline Hatches are in that the Hatch Lid is supported by Stay Arms. For Right and Left components, Hatches are viewed from inside facing toward the opening side. For parts not listed please contact us with measurements and details. To identify your specific Hatch measure the maximum overall dimensions.
Handle Ass'y, Series 55 Lowline - Left: Moon 55HA-L: Left side Black plastic Handle Assembly includes Outer and Inner (locking) Handle with Stay Arm base and screw. Used on Moonlight Series 55 Hatches, Inner (locking) Handle with Red locking slide is 5 1/4" (133mm) long, Outer Handle is 2 3/8" (60mm) long x 1 3/8" wide.		Moon 55HA-L
	Inside Handle w/ Button, Left, Series 55/62/63: Moon 62H-HIL:
	Inside Left Handle w/ Locking Slide Button as used in Series 55/62/63 Hatches. Inner (locking) Handle with Red locking slide is 5 1/4" (133mm) long.	Moon 62H-HIL
	Locking Button for Left Handle, Series 55 Lowline: Moon 62H-LBL:
	Locking Slide Button fits in Series 62/63 Left Hatch Handle. Red plastic Locking Button is 33mm (1 1/4") long x 12mm (1/2") wide.
Handle Ass'y, Series 55 Lowline - Right: Moon 55HA-R: Right side Black plastic Handle Assembly includes Outer and Inner (locking) Handle with with Stay Arm base and screw. Used on Moonlight Series 55 Hatches, Inner (locking) Handle with Red locking slide is 5 1/4" (133mm) long, Outer Handle is 2 3/8" (60mm) long x 1 3/8" wide.		Moon 55HA-R
	Inside Handle w/ Button, Right, Series 55/62/63: Moon 62H-HIR:
	Inside Right Handle w/ Locking Slide Button as used in Series 55/62/63 Hatches. Inner (locking) Handle with Red locking slide is 5 1/4" (133mm) long.	Moon 62H-HIR
	Locking Button for Right Handle, Series 55 Lowline: Moon 62H-LBR:
	Locking Slide Button fits in Series 62/63 Right Hatch Handle. Red plastic Locking Button is 33mm (1 1/4") long x 12mm (1/2") wide.
	Outside Handle for Hatch, Series 55 Lowline: Moon 55H-HOS:
	Outside Handle for Hatch allows opening from the outside. Black plastic Handle has square stud that mates with inside Handle. Unit is 2 3/8" (60mm) long x (maximum) 1 3/8" wide and includes O-Ring.
	O-Ring for Outside Handle: Moon 62H-OR4: O-Ring for Hatch Handle Top Cap and Outside Handle. Used on all Moonlight 62/63 & 55 Series Hatches, O-Rings are sold in packs of four (4) pieces.

Stay Arm for Lowline Hatch, A= 4 3/8": Moon 55SA-25S: Stay Arm for Lowline Hatch, A= 6 3/8": Moon 55SA-34R: Replacement Stay Arm Assembly for smaller Moonlight Series 55 Lowline Hatches has no bend in the Rod. Hatch Stay has friction lock mechanism on 10mm Aluminum Rod to support the Hatch lid. Black plastic is 5" (127mm) long. A= maximum length of the Aluminum Rod.
Stay Arm for Lowline Hatch, A= 8": Moon 55SA-45R: Stay Arm for Lowline Hatch, A= 9 3/4": Moon 55SA-50R: Stay Arm for Lowline Hatch, A= 12": Moon 55SA-42S: Stay Arm for Lowline Hatch, A= 14": Moon 55SA-47S: Stay Arm for Lowline Hatch, A= 14 3/4": Moon 55SA-49S: Stay Arm for Lowline Hatch, A= 15": Moon 55SA-50S: Replacement Stay Arm Assembly for larger Moonlight Series 55 Lowline Hatches. Hatch Stay has friction lock mechanism on 10mm Aluminum Rod to support the Hatch lid. Black plastic is 8 3/8" (213mm) long. A= maximum length of the Aluminum Rod.
Hatch Hinge for Series 55 Lowline Hatches: Moon 55-Hinge:
Hinge Assembly for Series 55 Hatch includes plastic cover, SS Hinge and screws. Black plastic Hinge Seat is 70mm (2 3/4") long x 28mm (1 1/8") wide.
Fly Screen for Lowline 250x250mm Hatch: Moon 55FS-25S: Fly Screen for Lowline 340x200mm Hatch: Moon 55FS-34R: Fly Screen for Lowline 420x420mm Hatch: Moon 55FS-42S: Fly Screen for Lowline 432x432mm Hatch: Moon 55FS-43S: Fly Screen for Lowline 450x320mm Hatch: Moon 55FS-45R: Fly Screen for Lowline 500x370mm Hatch: Moon 55FS-50R: Fly Screen for Lowline 500x500mm Hatch: Moon 55FS-50S: Fly Screen for Lowline 620x620mm Hatch: Moon 55FS-62S: Fly Screens are available for most Moonlight Lowline Hatches, Numbers are Hatch Cut-out size. Screw and Tab Set, Moon 62FS-SS-4, below, and instructions are included.
	Fly Screen Screw & Tab Set: Moon 62FS-SS-4: Fly Screen Screw and Tab Set includes (4 ea.) screws, seats, washers, white plastic swiveling Tabs and screw covers. Used on all Moonlight Series 62/63 and 55 Hatches. Larger Hatches (620mm (24 1/2") square glass) use 8 pieces, requiring 2 Sets. Installation requires drilling holes in the interior plastic Trim Ring.

*Replacement Hatch Gasket, per ft.: Moon 55-G:* Replacement Neoprene Gasket is available for all Moonlight Series 55 Hatches. Extruded Gasket is (maximum) 10.5mm x 20mm. Replacement Gasket is sold by the foot. Replacement Gasket is sold by the foot. 75M
*Gasket Glue for Moonlight Hatches & Ports: Moon 62-GGlue:*
Special Gasket Glue is used for Gasket attachment on all Moonlight Hatches and Ports. Enough Glue is included for re-gasketing 2 mid-size Hatches or 4-5 Ports.

Replacement Acrylic Lenses (Glass): Moon 55-__-ARL: Replacement Acrylic Lenses (Glass) are available for all Moonlight Series 55 Lowline Hatches. For replacement Acrylic Lenses please contact us with Hatch Part numbers, or Deck cut-out or Glass size and details.
Adhesive for Moonlight Hatch Lenses: Moon 62-ADH: Special Black UV-resistant elastomer adhesive as used in the factory to attach the Acrylic Lens on Moonlight Hatches. Supplied in 290ml (10 oz.) cartridges, enough to attach 2-3 mid-size Hatch Lenses.

Interior Plastic Trim Ring: Moon 55-__-TR: Replacement White plastic Interior Trim Rings are available for all Moonlight Series 55 Lowline Hatches. For replacement Hatch Trim Rings please contact us with Hatch Part numbers, or Deck cut-out or Glass size and details.

Moonlight 'Compact Flush' Hatch Parts Commonly requested replacement parts for Moonlight 'Compact Flush' Hatches, commonly found on larger yachts, are listed below. These Hatches are distinct from other Moonlight Hatches, in that the Hatch Lid is completely Flush with the Deck. The one-piece acrylic Hatch Lid is supported by one or more Stay Arms. For Right and Left components, Hatches are viewed from inside facing toward the opening side. For parts not listed please contact us with measurements and details. To identify your specific Hatch measure the maximum overall dimensions.

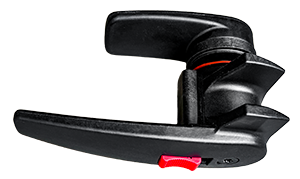

Handle Ass'y, Compact Flush II - Left: Moon CF2HA-L: Left side Black plastic Handle Assembly includes Outer and Inner (locking) Handle with all components and screws. Used on all Moonlight Compact Flush II Hatches, Inner (locking) Handle with Red locking slide is 4 3/8" (110mm) long, Outer Handle is 3 1/16" (78mm) long x 1 3/8" (35mm) wide.

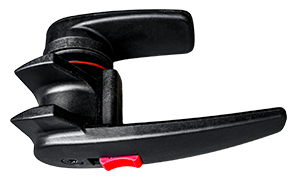

Handle Ass'y, Compact Flush II - Right: Moon CF2HA-R: Right side Black plastic Handle Assembly includes Outer and Inner (locking) Handle with all components and screws. Used on all Moonlight Compact Flush II Hatches, Inner (locking) Handle with Red locking slide is 4 3/8" (110mm) long, Outer Handle is 3 1/16" (78mm) long x 1 3/8" (35mm) wide.

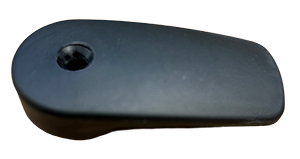

	Outside Handle for Compact Flush II Hatch: Moon CF2HA-HOS:
	Outside Handle for Hatch allows opening from the outside. Black plastic Handle has square stud that mates with inside Handle. Unit is 2 3/8" (60mm) long x (maximum) 1 3/8" wide and includes O-Ring.
Stay Arm for Compact Flush II Hatch: Moon CF2SA-____: Replacement Hatch Stay Arm Assemblies are available for all Moonlight Compact Flush II Hatches. Hatch Stay has twist-lock mechanism and 10mm Rod to support the Hatch lid. For replacement Stay Arms please contact us with Hatch Lid size, Stay Arm length (in shortest position), or Hatch Part numbers.

Moonlight Hatches and Hatch Parts Moonlight has been making high quality Modern Extruded Aluminum Hatches and Ports in Denmark since 1979. They are common on a wide range of European and US built yachts since then.


Moonlight 'Offshore' Hatches The popular Moonlight Series 62/63 Offshore Hatches are available in the standard Rectangular configuration (with a variety of corner radiuses) as well as Trapezoidal, Round, Elliptical, and Oval versions. For replacement Parts, See 'Offshore' Hatch Parts. See 'Offshore' Hatches for new or replacement Hatches. To identify your specific Offshore Hatch measure the maximum overall dimensions.
Moonlight 'Lowline' Hatches The Moonlight Series 55 Lowline Hatches, commonly found on Powerboats, are available in Square and Rectangular versions. All Lowline Hatches use Stay Arms to support the Hatch lid. For replacement Parts, See 'Lowline' Hatch Parts. See 'Lowline' Hatches for new or replacement Hatches. To identify your specific Lowline Hatch measure the maximum overall dimensions.
Moonlight 'Compact Flush' Hatches Moonlight Compact Flush Hatches, commonly found on larger yachts, are available in several Square sizes. Compact Flush Hatches have a one-piece acrylic Lens that is completely Flush with the Deck, and use Stay Arms to support the Hatch lid. For replacement Parts, See 'Compact Flush' Hatch Parts. See 'Compact Flush' Hatches for new or replacement Hatches. To identify your specific Compact Flush Hatch measure the maximum overall dimensions.
