Rig-Rite stocks a variety of 'standard' and undrilled (Blank) Backing Plates for Stanchion
and Rail Bases (or anything else), allowing for a more secure installation in any application.
Standard Backing Plates match the shape and size of their respective Stanchion Bases. Round Blank Backing Plates (or Base Plates) are also used in a variety of other applications. Custom Backing Plates are available on Special Order, Please provide complete specifications. |
|
|
|
Standard (non-Round) Backing Plates A variety of Backing Plates in SS or Aluminum are available in drilled or Blank format to fit all Standard Stanchion Bases. These units are also suitable for welded applications. |
||
|
Blank Aluminum Backing Plate, 4.5" x 3.5": SB 36-BPA:
Blank (undrilled) Aluminum Backing Plate is 4 1/2" long x 3 1/2" wide x 1/8" thick. Rectangular 6061-T6 Aluminum Plate can easily be drilled to match most Stanchion Bases.
|
||
|
Blank SS Backing Plate, 4.37" x 3.5": SB 36-BPS-B:
Blank (undrilled) Stainless Steel Backing Plate is 4 3/8" long x 3 1/2" wide x .104" thick (12 gauge). Rectangular Type 304 SS Plate can be drilled to match most Stanchion Bases.
|
SB 36-BPS-B
|
|
|
Blank SS Backing Plate, 7.37" x 4.5": SB 36-BPS-C:
Blank (undrilled) Stainless Steel Backing Plate is 7 3/8" long x 4 1/2" wide x .073" thick. Rectangular Type 304 SS Plate can be drilled to match most anything.
|
||
|
Blank SS Backing Plate, 8.25" x 5": SB 36-BPS-D:
Blank (undrilled) Stainless Steel Backing Plate is 8 1/4" long x 5" wide x .104" thick. Rectangular Type 304 SS Plate can be drilled to match most anything.
|
||
|
|
||
| "H" Pattern Stanchion Base Backing Plate: SB 36-BPS-H: | ||
|
Stainless Steel Backing Plate for 'H' Pattern Stanchion Bases is (maximum) 3 3/4" long x 2
7/8" wide x 1/8" thick, with (4) 1/4" holes on 2 1/2" (fore and aft) x 1 5/8" (athwartships) hole centers.
|
 |
|
|
"T" Pattern Stanchion Base Backing Plate: SB 36-BPS-T:
Stainless Steel Backing Plate for 'T' Pattern Stanchion Bases is 4" long x 3" wide x 1/8" thick, with (4) 1/4" holes on 2 1/2" (fore and aft) x 2" (athwartships) hole centers.
|
 |
|
| Schaefer Pattern Stanchion Base Backing Plate: SB 36-BPS-S: | ||
|
SS Backing Plate for SB 36-S2T-5° Schaefer Trapezoidal SS Stanchion Base with Double
Bails. 'S' Pattern Trapezoidal Backing Plate is (maximum) 5" long x 2 3/4" wide x 1/8" thick,
with (4) 1/4" holes on 4" (inboard) x 2 3/4" (outboard) hole centers.
|
 |
|

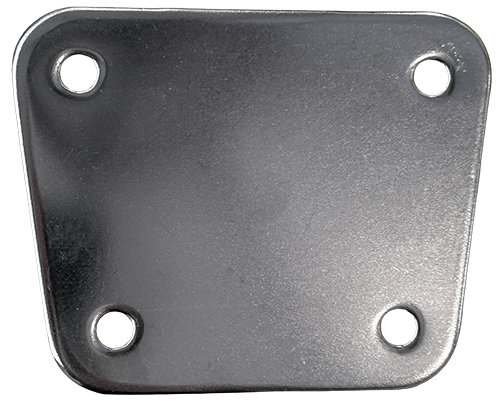

| Trapezoidal Stanchion Base Backing Plate: SB 36-BPS-TR1: | ||
|
SS Backing Plate for Trapezoidal SS Stanchion Base. Trapezoidal Backing Plate is (maximum) 3 7/8" long
x 3" wide x 1/8" thick, with (4) 1/4" holes on 2 13/16" (inboard) x 2 1/4" (outboard) hole centers.
Inboard and Outboard hole centers are 2" apart.
|
||
|
|
||
|
Round SS Backing Plates A variety of Round SS Backing Plates are available in drilled or Blank format to fit 'standard' and Custom applications. These units are also suitable for welded applications. |
||
| 2 1/4" Round SS Backing Plate - Blank: SB 36-BPS-R2.2B: | ||
|
2 1/4" Round Stainless Steel Backing Plate is .062" thick, with NO holes.
|
||
| 2 1/2" Round SS Backing Plate - Blank: SB 36-BPS-R2.5BT: | ||
|
2 1/2" Round Thin Stainless Steel Backing Plate is .035" thick, with NO holes.
|
||
| 2 1/2" Round Heavy SS Backing Plate - Blank: SB 36-BPS-R2.5BHH: | ||
|
2 1/2" Round Heavy Stainless Steel Backing Plate is 1/4" thick, with NO holes. 304
|
||
|
3" Round SS Backing Plate - Blank: SB 36-BPS-R3B:
3" Round Stainless Steel Backing Plate is .062" thick, with NO holes.
|
SB 36-BPS-R3B
|
|
| 3" Round Heavy SS Backing Plate - Blank: SB 36-BPS-R3BHH: | ||
|
3" Round Heavy Stainless Steel Backing Plate is 1/4" thick, with NO holes.
|
||
| 3 1/2" Round Heavy SS Backing Plate - Blank: SB 36-BPS-R3.5BHH: | ||
|
3 1/2" Round Heavy Stainless Steel Backing Plate is 1/4" thick, with NO holes.
|
||
| 4" Round Heavy SS Backing Plate - Blank: SB 36-BPS-R4BHH: | ||
|
4" Round Heavy Stainless Steel Backing Plate is 1/4" thick, with NO holes.
|
||
|
|
||
| 2 1/2" Round SS Backing Plate w/ 3 holes: SB 36-BPS-R2.5H: | ||
|
2 1/2" Round Stainless Steel Backing Plate is 1/8" thick, with (3) 1/4" holes on a 1 7/8" circle
diameter (1 5/8" between hole centers).
|
||
| 3" Round SS Backing Plate w/ 3 holes: SB 36-BPS-R3H: | ||
|
3" Round Stainless Steel Backing Plate is 1/8" thick, with (3) 1/4" holes on a 2" circle
diameter (1 23/32" between hole centers). X
|
||
| 3 1/8" Round SS Backing Plate w/ 3 holes: SB 36-BPS-R3.12H: | ||
|
3 1/8" Round Stainless Steel Backing Plate is 1/8" thick, with (3) 1/4" holes on a 2 1/8" circle
diameter (1 27/32" between hole centers), and a central 1/2" hole.
|
||
|
3 1/4" Round SS Backing Plate w/ 3 holes: SB 36-BPS-R3.25H:
3 1/4" Round Stainless Steel Backing Plate is 1/8" thick, with (3) 1/4" holes on a 2 1/8" circle diameter (1 27/32" between hole centers). |
SB 36-BPS-R3.25H
|
