Winch Handles
Winch Handles have evolved over the past 120 years. From the Original Merriman Slide-in
Winch Handles, copied by many others, to the now Standard Top-mount 11/16" Octagonal
(or Square) Stud popularized by Barlow, Barient and others
(and finally adopted by Lewmar in 1973).
Currently available varieties are listed here, as well as older, out of production styles.
|
|
Standard Winch Handles - 11/16" Stud
Lewmar (pre-1973) Winch Handles - 3/4" Stud
Side-Action Winch Handles
Special Winch Handles
|
|
Standard Winch Handles - 11/16" Stud
Top-action Winches starting in the late 1950's were produced with a socket for an
11/16" Octagonal Stud popularized by Barlow, Barient and others.
Lewmar had been developed on a 3/4" Stud, and held out until 1972,
when they switched to the now Standard 11/16" Octagonal Stud.
Standard Winch Handles have a Handle suitable for one hand, Double Winch Handles have
either a double stacked Handle or a Standard Handle with a wide circular top suitable
for two hand operation.
|
|
8" Standard Winch Handles
|
|
8" Aluminum Winch Handle: Enkes WH8:
|
|
Super-strong Forged 8" Aluminum Winch Handle is Black anodized with a Black handle,
and is the strongest 8" Handle available.
Limited Availability.
|
|
|
8" Cast Alu. Locking Winch Handle: Antal WH-8L:
|
|
8" Black Cast Aluminum Locking Winch Handle is Black anodized with a Black handle.
|
|
|
8" Lightweight Carbon Fiber Locking Winch Handle: Sch WH-8:
|
|
Super-lightweight 8" Black Carbon Fiber Locking Winch Handle features a
Ball-Bearing Handle for easy control. Corrosion-proof unit weighs only .55 lbs (1.2kg).
-8CFL
|
|
|
8 1/2" Aluminum Winch Handle: Gibb 568:
|
|
Basic 8 1/2" Cast Aluminum Winch Handle is Black anodized with a Black handle.
|
|
|
8 1/2" Aluminum Locking Winch Handle: Gibb 566:
|
|
8 1/2" Cast Aluminum Locking Winch Handle is Black anodized with a Black handle.
|
|
|
10" Standard Winch Handles
|
|
10" Aluminum Winch Handle: Sch WH-10: |
|
Basic 10" Aluminum Winch Handle is Cast and Black anodized with a Black handle.
|
|
|
10" Aluminum Locking Winch Handle: Bart WH-10L:
|
|
10" Locking Aluminum Winch Handle is Cast and Black anodized with a Black handle.
|
|
|
10" Aluminum Double Locking Winch Handle: Sch WHL-10:
|
|
10" Locking Aluminum Winch Handle is Cast and Clear anodized with a Black
handle with a wide circular top designed for two hand operation.
|
|
|
10 1/2" Aluminum Winch Handle: Gibb 569:
|
|
10 1/2" Cast Aluminum Winch Handle is Black anodized with a Black handle.
|
|
|
10 1/2" Aluminum Locking Winch Handle: Gibb 567:
|
|
10 1/2" Locking Cast Aluminum Winch Handle is Black anodized with a Black handle.
|
Gibb 567
|
|
Lewmar Winch Handles (pre-1973) - 3/4" Stud
Lewmar produced Top-action Winches with a socket for a 3/4" Square Stud from it's
inception. In 1972 they finally adopted the international Standard 11/16" Octagonal Stud,
popularized by Barlow, Barient and others.
Lewmar Winches produced after 1972 have a socket for the now Standard 11/16"
Octagonal Stud.
|
|
10" Lewmar (pre-1973) 10" Locking Chrome Bronze Winch Handle: Lew 29141251X:
|
|
Lewmar (pre-1973) 10" Locking Winch Handle is Cast Chromed Bronze with a
3/4" Stud to fit Lewmar winches made before 1973. Unit features Grey
Ball-bearing handle and Lock-in button.
|
|
| |
|
|
Side-Action Winch Handles
A variety of Manufacturers since Merriman have produced Winches with Side-action Handles,
in both Top and Bottom Handle configurations.
|
|

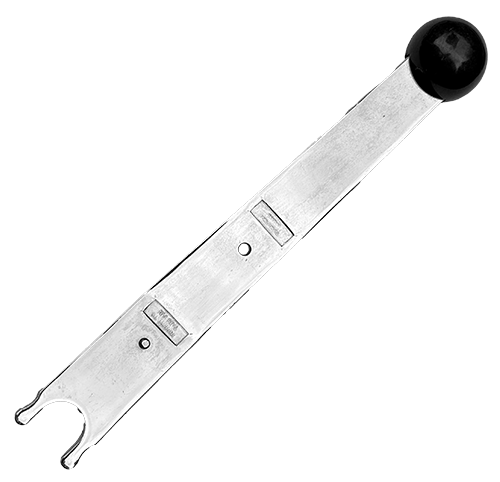

Barton Bottom Action Winch Handle - 1 1/2" wide: Bart 602H:
|
|
Special Winch Handle for Barton and Tuphblock Bottom-Action Sheet Winches. Flat, Slide-in
Winch Handle is 1 1/2" wide x 1/4" thick with black plastic knob and C-shaped
recess with prongs to engage winch. Chromed cast Bronze Handle is 12 1/2" long.
|
Bart 602H
|
|
W/C #1 Locking Winch Handle - 8": WC 18841A-8:
|
|
Aluminum Locking Winch Handle Assembly for Wilcox-Crittenden #1 Marinium Sheet Winch.
Special Flat, Slide-in Winch Handle is 1 7/32" wide x 3/8" thick with spring
locking mechanism, handle extends 2 1/2" into winch from underside stops.
Handle is (maximum) 8" long with clear anodized Satin finish and black grip.
Special Length as used on Pearson 23C and others.
This item is no longer available and is shown here for identification only.
|
|
|

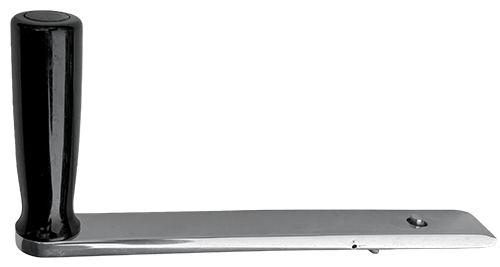

W/C #1 Locking Winch Handle - 10": WC 18841A-10:
|
|
Aluminum Locking Winch Handle Assembly for Wilcox-Crittenden #1 Marinium Sheet Winch.
Special Flat, Slide-in Winch Handle is 1 7/32" wide x 3/8" thick with spring
locking mechanism, handle extends 2 1/2" into winch from underside stops.
Handle is (maximum) 10" long with clear anodized Satin finish and black grip.
|
|
|
Special Winch Handles
A variety of older Manufacturers produced many non-standard Winch Handle variations not
yet listed here. Some are available from stock. Please forward all data.
|
|
