| Sheave Axle Pins Sheaves ride on Axle Pins. Axle Pins in most Masts, Booms and many Exit Blocks are removable for ease of Sheave replacement. SS Sheave Axle Pins with Tab are listed below, but Clevis Pins and Rigging Pins are also commonly used as Sheave Axles. Rigging Pins and plain Straight Pins require use of removable Cover Plates, below, to keep them in place. In addition, many Masts and Booms have proprietary fittings that use specialized Sheave Axles. These are listed by manufacturer under the particular fitting they are used in, See Spars. |
|
|
|
|
|
Sheave Axle Pins with Tab A variety of SS Sheave Axle Pins with Tabs are used in masts with welded-in mastheads and sheave boxes. Pins are welded to SS Tabs, which are screwed to the mast and allow for easy removal. Most Kenyon Sheave Axle Pins have a thin stem where they are welded to the tab, which allows the tab to be bent to fit the mast contour where it attaches to mast. Most others are welded at a fixed angle. Listed below are standard sizes, but others are available. |
|
|
|
|
| 1/4" Sheave Axle Pins Kenyon 1/4" Sheave Axle Pins are welded to a round tab which attaches to mast with (2) #10 (3/16") screws. Round tab is 1 1/8" diameter with 2 holes on 3/4" centers. |
|
|
1/4" Sheave Axle Pin - 1 1/2" long: K-1297-1X: SS Sheave Axle Pin has thin stem welded to round tab which attaches to mast with (2) #10 (3/16") screws. Pin is 1/4" diameter, unit is (maximum) 1 1/2" long. |
 |
|
1/4" Sheave Axle Pin - 1 3/4" long: K-1297-3X: SS Sheave Axle Pin has thin stem welded to round tab which attaches to mast with (2) #10 (3/16") screws. Axle Pin is 1/4" diameter, unit is (maximum) 1 3/4" long. As used on J/24 for main halyard sheave, and on E-22 for spinnaker halyard sheave. d
|
|
|
1/4" Sheave Axle Pin - 2" long: K-1297-5:
SS Sheave Axle Pin has thin stem welded to round tab which attaches to mast with (2) #10 (3/16") screws. Axle Pin is 1/4" diameter, unit is (maximum) 2" long. As used on some J/24's for jib halyard sheave.
|
|
|
1/4" Sheave Axle Pin - 2 1/4" long: K-1297-7X:
SS Sheave Axle Pin has thin stem welded to round tab which attaches to mast with (2) #10 (3/16") screws. Axle Pin is 1/4" diameter, unit is (maximum) 2 1/4" long. As used on some J/24's for jib halyard sheave.
|
|
|
1/4" Sheave Axle Pin - 2 1/2" long: K-1297-4:
SS Sheave Axle Pin has thin stem welded to round tab which attaches to mast with (2) #10 (3/16") screws. Axle Pin is 1/4" diameter, unit is (maximum) 2 1/2" long. As used on E-22, and some J/24's for spinnaker halyard sheave.
|
|
|
1/4" Sheave Axle Pin - 2 7/8" long: K-1297-6X:
SS Sheave Axle Pin has thin stem welded to round tab which attaches to mast with (2) #10 (3/16") screws. Axle Pin is 1/4" diameter, unit is (maximum) 2 7/8" long. As used on J/24's with old-style double spinnaker halyard box.
|
|
|
|
|
| 5/16" Sheave Axle Pins | |
|
5/16" Sheave Axle Pin - 2 3/4" long: K-10680-9S:
SS Sheave Axle Pin is welded at 90 degrees to tab which attaches to mast or other flat surfaces with (1) #10 (3/16") screw. Axle Pin is 5/16" diameter, shaft is (maximum) 2 3/4" long, Tab is 1 3/8" long x 7/16" wide. Sch HS PR-
|
|
|
5/16" Sheave Axle Pin - 5" long: HS PR-9639:
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) 3/16" screw. Axle Pin is 5/16" diameter, full diameter shaft is (maximum) 5" long, Tab is 1 1/4" long x 1/2" wide. Used in a variety of Hall Spar Masts and other assemblies. HS PR-9639
|
|
|
|
|
|
3/8" Sheave Axle Pins Kenyon 3/8" Sheave Axle Pins have a thin bendable stem where they are welded to the tab, which allows the tab to be bent to fit the mast contour where it attaches to mast. Axles are welded to a Teardrop shaped tab, which attaches to mast with (1) #10 (3/16") screw. Teardrop Tab is 2 1/8" overall x 1 1/4" wide. Screw hole is 1 1/4" from axle center. Hall Spar, Schaefer, and other Sheave Axle Pins usually have Tabs welded to an Axle cut at a specific angle, and attach to mast with a #10 (3/16") or 1/4" screw. |
|
|
3/8" Sheave Axle Pin - 2 1/2" long: K-10680-1:
SS Sheave Axle Pin has thin bendable stem welded to Teardrop tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 3/8" diameter, unit is (maximum) 2 1/2" long.
|
|
|
3/8" Sheave Axle Pin - 3" long: K-10680:
SS Sheave Axle Pin has a thin bendable stem welded to Teardrop tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 3/8" diameter, unit is (maximum) 3" long.
|
|
|
3/8" Sheave Axle Pin - 3 1/2" long: K-10680-2:
SS Sheave Axle Pin has thin bendable stem welded to Teardrop tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 3/8" diameter, unit is (maximum) 3 1/2" long.
|
|
|
3/8" Sheave Axle Pin - 5" long: HS PR-9639-1:
SS Sheave Axle Pin is welded at 15 degrees to thin tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 3/8" diameter, full diameter shaft is (maximum) 5" long, and commonly cut to shorter lengths. Tab is 1 1/4" long x 1/2" wide, screw hole is 3/4" from Pin center. Thin Tab is often bent to larger angles to fit a variety of Mast Sections. Used in a variety of Hall Spar Masts and other assemblies.
|
|
|
|
|
| 7/16" Sheave Axle Pins | |
|
Kenyon 7/16" Sheave Axle Pins bendable are welded to a Teardrop shaped tab, which attaches to
mast with (1) #10 (3/16") screw. Teardrop Tab is 2 1/8" overall x 1 1/4" wide.
Screw hole is 1 1/4" from axle center. Hall Spar, Schaefer, and other Sheave Axle Pins usually have Tabs welded to an Axle cut at a specific angle, and attach to mast with a #10 (3/16") or 1/4" screw. |
|
|
7/16" Sheave Axle Pin - 2 1/4" long: K-11659:
SS Sheave Axle Pin has thin stem welded to Teardrop shaped tab which attaches to mast with (1) #10 (3/16") screw. Teardrop tab is 2 1/8" overall x 1 1/4" wide. Axle Pin is 7/16" diameter, unit is (maximum) 2 1/4" long. As used on some Soverel 33's, and others.
|
|
|
|
|
| 12mm Sheave Axle Pins | |
|
12mm Sheave Axle Pin w/ Tab - 3" long: K-11129-12mm:
SS Sheave Axle Pin has thin bendable stem welded to Teardrop tab which attaches to mast with (1) #10 (3/16") screw. Teardrop tab is 2 1/8" overall x 1 1/4" wide. Axle Pin is 12mm diameter x 75mm (3" long). As used on J/109.
|
 |
|
|
|
|
1/2" Sheave Axle Pins Most Kenyon 1/2" Sheave Axle Pins are welded to a Teardrop shaped tab, which attaches to mast with (1) #10 (3/16") screw. Teardrop Tab is 2 1/8" overall x 1 1/4" wide, screw hole is 1 1/4" from axle center. |
|
|
1/2" Fixed Mast Base Sheave Axle Pin - 2 1/8" long: K-11669:
SS Mast Base Sheave Axle Pin is welded at 90 degrees to tab which attaches to mast exit block and other flat surfaces with (1) #10 screw. Axle Pin is 1/2" diameter, unit is (maximum) 2 1/8" long, Oval tab measures 1" x 1 1/2". Used in Masts with welded-in deck-level exit blocks. As used on Hunter 34 and others.
|
|
|
1/2" Sheave Axle Pin - 3" long: K-11129-1:
SS Sheave Axle Pin has thin bendable stem welded to Teardrop tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 1/2" diameter, unit is (maximum) 3" long. P208-97
|
|
|
1/2" Sheave Axle Pin - 3 1/2" long: K-11129-2:
SS Sheave Axle Pin has thin bendable stem welded to Teardrop tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 1/2" diameter, unit is (maximum) 3 1/2" long.
|
|
|
1/2" Sheave Axle Pin - 3 3/4" long: K-11129-3:
SS Sheave Axle Pin has thin bendable stem welded to Teardrop tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 1/2" diameter, unit is (maximum) 3 3/4" long.
|
|
|
1/2" Sheave Axle Pin - 4 1/2" long: K-11129-4:
SS Sheave Axle Pin has thin bendable stem welded to Teardrop tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 1/2" diameter, unit is (maximum) 4 1/2" long.
|
|
|
1/2" Sheave Axle Pin - 5 3/4" long: K-11129-5:
SS Sheave Axle Pin has thin bendable stem welded to Teardrop tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 1/2" diameter, unit is (maximum) 5 3/4" long. |
|
|
|
|
|
1/2" Sheave Axle Pin - 4" long: HS PR-9639-2A:
SS Sheave Axle Pin is welded at 90 degrees to tab which attaches to mast or other flat surfaces with (1) #10 (3/16") screw. Axle Pin is 1/2" diameter, shaft is (maximum) 4" long, Tab is 1 1/2" long x 5/8" wide. Sch HS PR-9639-2A
|
|
|
1/2" Sheave Axle Pin - 5" long: HS PR-9639-2:
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) #10 (3/16") screw. Axle Pin is 1/2" diameter, full diameter shaft is (maximum) 5" long, Tab is 1 1/2" long x 5/8" wide. Sch HS PR-9639-2
|
|
|
|
|
|
5/8" Sheave Axle Pins A variety of 5/8" Sheave Axle Pins, produced by Hall Spars, Southern Spars, and others are available. Unlike the flexible angle Kenyon variety, most Tabs are welded to an Axle cut at a specific angle, and attach to mast with a #10 (3/16") or 1/4" screw. |
|
| 5/8" Sheave Axle Pin - 2 7/8" long - Melges 24: SouS SAP58-3: | |
|
Special SS Sheave Axle Pin is welded at approx. 15 degrees to tab in vertical orientation.
Pin is angled fore & aft on both sides. Tab has 1/2" long slot for attachment to mast with (1) 3/16" screw.
Axle Pin is 5/8" diameter, unit is (maximum) 2 7/8" long, Tab measures 11/16" x 1 9/16".
As used on Southern Spars Carbon Melges 24 (revised, long).
|
|
|
5/8" Sheave Axle Pin - 3" long: HS PR-9639-58-3:
SS Sheave Axle Pin is welded at 90 degrees to tab which attaches to mast or other flat surfaces with (1) 1/4" screw. Axle Pin is 5/8" diameter, shaft is (maximum) 3" long, Teardrop tab measures 1" x 2 1/8". Used in a variety of Hall Spar Masts and other assemblies.
|
|
|
5/8" Sheave Axle Pin - 5" long: HS PR-9639-58-5:
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) 3/16" screw. Axle Pin is 5/8" diameter, full diameter shaft is (maximum) 5" long, Oval tab measures 3/4" x 1 1/2". Used in a variety of Hall Spar Masts and other assemblies.
|
|
|
5/8" Sheave Axle Pin - 7" long: HS PR-9639-3A:
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) 3/16" screw. Axle Pin is 5/8" diameter, full diameter shaft is (maximum) 7" long, Oval tab measures 3/4" x 1 1/2". Used in a variety of Hall Spar Masts, 7" unit can easily be cut to shorter lengths. Hall Spars PR-9639-3A.
|
|
|
|
|
|
11/16" Sheave Axle Pins A variety of 11/16" Sheave Axle Pins, were produced by Hall Spars. Unlike the flexible angle Kenyon variety, most Tabs are welded to an Axle cut at a specific angle, and attach to mast with a #10 (3/16") or 1/4" screw. |
|
| 11/16" Fixed Sheave Axle Pin - 3 3/4" long: HS PR-SAP1116-3.75: | |
|
SS Sheave Axle Pin is welded at 90 degrees to tab which attaches to mast or other flat surfaces
with (1) 3/16" screw. Axle Pin is 11/16" diameter, shaft is 3 3/4" long, Oval tab measures 3/4" x 1 7/8".
Used in a variety of Hall Spar Masts.
|
|
|
11/16" Fixed Sheave Axle Pin - 5" long: HS PR-SAP1116-5:
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) 3/16" screw. Axle Pin is 11/16" diameter, full diameter shaft is (maximum) 5" long, Oval tab measures 3/4" x 1 7/8". Used in a variety of Hall Spar Masts.
|
|
| 11/16" Fixed Sheave Axle Pin - 5 1/8" long: HS PR-11372-1116: | |
|
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) 3/16" screw.
Axle Pin is 11/16" diameter, full diameter shaft is (maximum) 5 1/8" long, Teardrop tab is 2" x 1" wide.
Special as used on Hall Spar Swan 42 Boom.
|
|
| 11/16" Fixed Sheave Axle Pin - 6 1/2" long: HS PR-SAP1116-6.5: | |
|
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) 3/16" screw.
Axle Pin is 11/16" diameter, full diameter shaft is (maximum) 6 1/2" long, Tab is 1 7/8" x 3/4" wide.
Used in a variety of Hall Spar Masts.
|
|
| 11/16" Fixed Sheave Axle Pin - 7 1/4" long: HS PR-9639-4M: | |
|
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) 3/16" screw.
Axle Pin is 11/16" diameter, full diameter shaft is (maximum) 7 1/4" long, Tab is 1 1/2" x 7/8" wide.
Used in a variety of Hall Spar Masts, unit can easily be cut to shorter lengths.
|
|
| 11/16" Fixed Sheave Axle Pin - 7 1/2" long: HS PR-SAP1116-7.75: | |
|
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) 3/16" screw.
Axle Pin is 11/16" diameter, full diameter shaft is (maximum) 7 1/2" long, Tab is 1 1/2" x 7/8" wide.
Used in a variety of Hall Spar Masts, unit can easily be cut to shorter lengths.
|
|
|
|
|
|
3/4" Sheave Axle Pins A variety of 3/4" Sheave Axle Pins, were produced by Hall Spars, Sound Spars, and others. Large Sheave Axle Pins with Teardrop, Oval, or Diamond shaped Tabs are welded to an Axle cut at a specific angle, and attach to mast with 1 or 2 RH or FH screws. Some are in stock, others are available on a Custom basis. Inquire with Boat type and measurement details. |
|
|
3/4" Fixed Sheave Axle Pin - 8" long: HS PR-9639-348:
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) 3/16" screw. Axle Pin is 3/4" diameter, full diameter shaft is (maximum) 8" long, Tab is 1 5/8" x 3/4" wide. Used in a variety of Hall Spar Masts. HS PR-9639-
|
|
|
|
|
|
1" Sheave Axle Pins A variety of 1" Sheave Axle Pins, were produced by Hall Spars and others. Large Sheave Axle Pins with Teardrop, Oval, or Diamond shaped Tabs are welded to an Axle cut at a specific angle, and attach to mast with 1 or 2 RH or FH screws. Some are in stock, others are available on a Custom basis. Inquire with Boat type and measurement details. |
|
|
1" Fixed Sheave Axle Pin - 9" long: HS PR-9639-7:
SS Sheave Axle Pin is welded at 15 degrees to tab which attaches to mast with (1) 1/4" screw. Axle Pin is 1" diameter, full diameter shaft is (maximum) 9" long, Tab is 2" x 1" wide. Used in a variety of Hall Spar Masts. HS PR-9639-7
|
|
|
|
|
|
1 1/4" Sheave Axle Pins A variety of 1 1/4" Sheave Axle Pins, were produced by Hall Spars and others. Large Sheave Axle Pins with Teardrop, Oval, or Diamond shaped Tabs are welded to an Axle cut at a specific angle, and attach to mast with 1 or 2 RH or FH screws. Some are in stock, others are available on a Custom basis. Inquire with Boat type and measurement details. |
|
|
|
|
|
1 1/2" Sheave Axle Pins A variety of 1 1/2" Sheave Axle Pins, were produced by Hall Spars and others. Large Sheave Axle Pins with Teardrop, Oval, or Diamond shaped Tabs are welded to an Axle cut at a specific angle, and attach to mast with 1 or 2 RH or FH screws. Some are in stock, others are available on a Custom basis. Inquire with Boat type and measurement details. |
|
|
|
|
|
Straight Sheave Axle Pins Straight Sheave Axle Pins are used with welded-in mastheads, and welded-in Jib and Sheave Boxes where Axle Pin length might vary. Used in all Diameters and a variety of Lengths, any size is available if standard Rigging Pins will not do. Usually inserted from one side, the entry hole is covered by a Sheave Axle Cover Plate. In proper installation, there is a small hole opposite the Cover Plate, allowing the Axle Pin to be easily knocked out. For Custom Pins, specify diameter and maximum length. |
|
|
|
|
|
Sheave Axle Cover Plates A variety of SS Sheave Axle Cover Plates are used on Spars with welded-in mastheads and with sheave boxes to keep a Sheave Axle Pin, usually a Rigging Pin or other plain Straight Pin in place. It is common for there to be a small hole opposite the Cover Plate, allowing the Axle Pin to be knocked out. Cover Plates are usually attached to the Mast or Boom with (2) screws allowing for easy removal. A variety of the most common ones are listed here. |
|
|
|
|
|

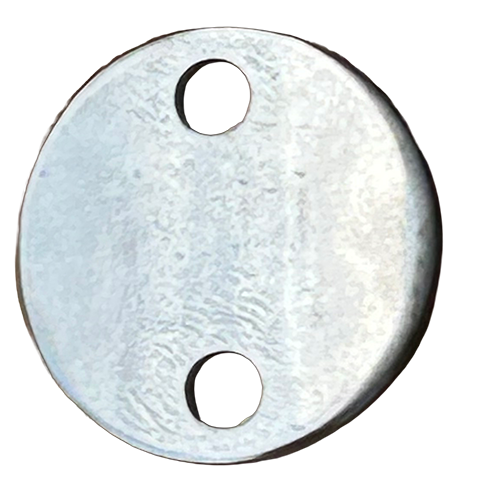

SS Axle Pin Cover Plate, 1 1/8" Round: K-9259:
SS Sheave Axle Pin Cover Plate is 1 1/8" Round with (2) 3/16" (5mm) holes on 3/4" centers. Plate is slightly curved to fit most Mast and Boom sections, and is also used as the welded Tab for Kenyon 1/4" Sheave Axle Pins with Tab. As used on a variety of Kenyon, Isomat and Sparcraft Spars for Masthead and Jib Box Axle Pins.
|
|
|

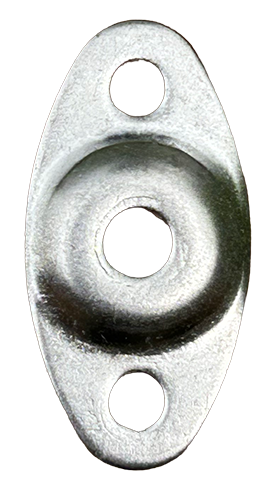

SS Axle Pin Cover Plate, Small Diamond: NGA-16CPS:
SS Sheave Axle Pin Cover Plate is 1 3/4" long x 7/8" wide (44x22mm) with (2) 3/16" (5mm) holes on 30mm (1 3/16") centers with a 1/4" center hole. Formed Diamond shaped Tab allows use with Pins that protrude slightly from the Mast surface. As used on a variety of Isomat and Sparcraft Spars for Masthead and Jib Box Axle Pins.
|
|
|

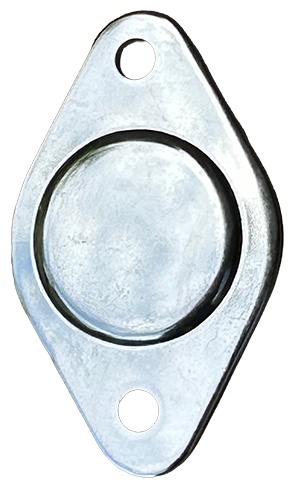

SS Axle Pin Cover Plate, Large Diamond: NGA-16CPL:
SS Sheave Axle Pin Cover Plate is 2 3/8" long x 1 7/16" wide (60x36mm) with (2) 3/16" (5mm) holes on 45mm (1 3/4") centers. Formed Diamond shaped Tab allows use with Pins that protrude slightly from the Mast surface. As used on a variety of Isomat and Sparcraft Spars for Masthead and Jib Box Axle Pins. |
|
