Mast Boot Clamps


Mast Boot Clamps

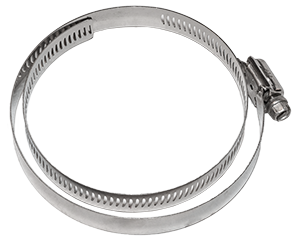

Mast Boot Clamps are used to secure the Mast Boot to the Mast, and to the Deck Collar to minimize water leakage. See also, Mast Boots, Mast Boot Tape, Deck Collars, and Mast Wedges.

The all Stainless Steel Clamps listed here have special alloy screws to eliminate corrosion in the harshest of environments. Clamp screw can be tightened with a slotted screwdriver or a 5/16" (8mm) hex driver, Clamp band is 9/16" (14mm) wide. All clamps have an adjustment range of approximately 10" (250mm).

To select the proper Clamp, use a tape measure to determine the circumference (C) of the Mast, and/or the Deck Collar. Add a minimum of 2"-3" (50-75mm) to that length to allow for the thickness of the Boot and ease of installation.
In the table below, select a Maximum Circumference equal or larger than that number (C + 2-3").

When necessary, Stainless Steel Mast Boot Clamps longer than those listed below are available on a Custom basis, please specify circumference of part they are to fit.



Part Number  Max. Circumference Min. Circumference   Range

 MBC 05-15 15 1/2"   (400mm) 5 1/2"   (140mm) 5 1/2" - 15 1/2" (140 - 400mm)
 MBC 08-18 18 1/2"   (475mm) 8 1/2"   (215mm) 8 1/2" - 18 1/2" (215 - 475mm)
 MBC 10-20  20"        (500mm) 10"       (250mm) 10" - 20"           (250 - 500mm)
 MBC 12-22  22"        (550mm) 12"       (300mm) 12" - 22"           (300 - 550mm)
 MBC 16-26  26"        (650mm) 16"       (400mm) 16" - 26"           (400 - 650mm)
 MBC 21-31  31"        (775mm) 21"       (525mm) 21" - 31"           (525 - 775mm)
 MBC 28-38  38"        (950mm)   28"       (700mm)  28" - 38"           (700 - 950mm)
