| NF 841 Traveller Systems |
|
|
| NF 841 Traveller Systems Nicro-Fico's NF 841 series Travellers are designed around a hardcote anodized X-Track that measures 3/4" across the top. Although primarily designed for dinghies, this Track is often found on smaller keelboats. |
|
| NF 841 Traveller Track is now out of production, but other System components are still available. |
|
|
Nicro-Fico 3/4" X-Track: NF 841: NF 841 Traveller Track is a hardcote anodized Aluminum X-Track that measures 3/4" (19mm) across the top, 3/4" (19mm) across the base and is 3/4" high. Track is drilled for #10 (3/16") FH screws on 4" (102mm) centers. NF 841 X-Track is no longer available.
|
 |
|
|

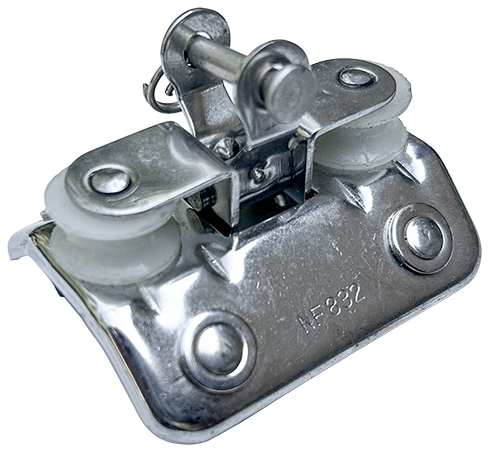

Standard 4-wheel Traveller Car w/ 2 Control Sheaves: NF 832:
Standard Traveller Car for NF 841 X-Track is stamped SS with (2) 3/4" OD Control Sheaves for 1/4" line, and a permanently attached pivoting shackle. Car rides on black Delrin wheels and is 2 9/16" long with a maximum width of 2" (51mm).
|
|
|
|
Replacement Wheel for NF 832 Traveller Car: NF 583W:
Special replacement wheel for NF 832 Traveller Cars. Black Delrin wheel is <11/16" diameter x <3/8" wide x 1/4" ID. As used on NF 832 Cars, above.
|
||
|

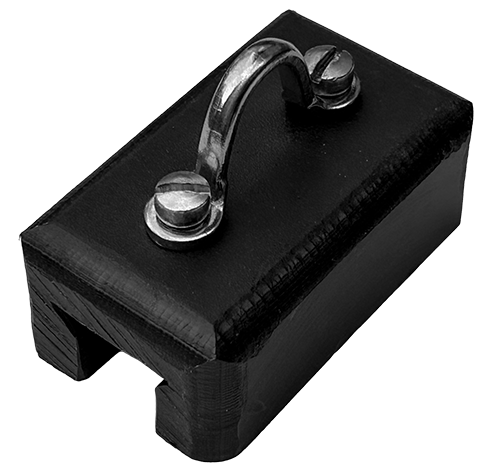

Polyethylene Track Slide w/ Eyestrap: NF 16667:
Track Slide for NF 841 X-Track is machined from a solid piece of Black Polyethylene for minimum friction without wheels. Slide has removable SS Eyestrap for attachment of mainsheet block. Slide is 2 1/2" long with a maximum width of 1 1/2".
|
||
|

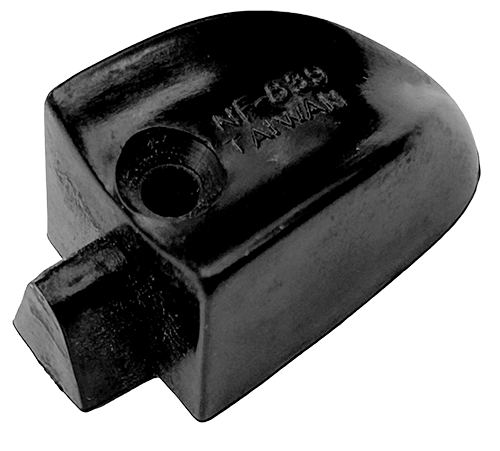

Plastic Track End: NF 839:
Hard molded plastic Track End for NF 841 X-Track covers track end and attaches to deck with (1) #6 (1/8") FH screw. Extends 1 1/4" beyond track end. |
||
