Goiot Hatches

Goiot Hatches
Goiot Hatches and Ports, made in France, are found on a variety of Yachts built around the world. Their original Cast Aluminum, now "Tradition" series, are among the most respected anywhere.
Goiot now manufactures a wider selection of Aluminum Hatches in a variety of configurations to suit any application. Current production includes Tradition, Cristal, Opal, and Integration series, as well as Escape Hatches and Flush-mount configurations.

Replacement Parts for these Hatches are listed separately, See Goiot Hatch Parts.
The easiest way to determine which Hatches you have, is by identifying the Handles.

Tradition Hatches
Cristal Hatches
Evolution Hatches - (Discontinued)
Opal Hatches
Opal Flush Hatches
Integration Hatches
Escape Hatches

Goiot Tradition Hatches
Goiot Tradition Hatches feature a Traditional High-profile Cast Aluminum Lid and a Hinge with an integral spring to support the lid. Besides models 34.20 and 80.80, the Tradition range includes a compensating spring which allows the lid to be held open in any position up to 90°. Note the locking hole in the Lid for use with Outside Handle and a Padlock.

Tradition Hatches
Goiot Tradition Hatches are stocked as Standard with a Grey Acrylic Lens and Black plastic Handles. Corners have a 41mm radius (80.80 has a 25mm radius). Other sizes have been produced, and may be available on special order.
To Order a Non-Standard Hatch specify Options.
- Options: Blue Acrylic Lens, Outside Handles or Aluminum Handles (except for 34.20).
Parts for Tradition Hatches are listed separately, See Tradition Hatch Parts.

Hatch # Size (max. overall) Cutout Size Lens Size Height Weight

34.20 395x272mm 340x195mm 351x207mm 40mm 2.4 Kg

45.32 504x402mm 450x320mm 456x326mm 44mm 5.3 Kg

50.37 554x451mm 500x370mm 506x376mm 46mm 6.7 Kg

50.50 582x554mm 500x500mm 506x506mm 46mm 8 Kg

62.62 701x674mm 620x620mm 626x626mm 48mm 12 Kg

80.80 960x900mm 800x800mm 835x835mm 48mm 28.5 Kg

Goiot Original Hatches
Original Goiot Hatches preceded the Tradition Hatch and were produced until 1982.
Original Hatches use Stay Arms to support the lid, the Hatch is secured using female Knobs, Goi PT-KF8, see Tradition Hatch Parts.
For complete Replacement Hatches use the Goiot Tradition Hatch Equivalent, above.
Fly Screens are NOT available for Original Hatches.

Hatch # Tradition Equivalent Lens Size Lens (Blue) Lens (Grey) Gasket

114 34.20 333x188mm Goi 105630 Goi 105630G Goi PT-G8

115 45.32 462x333mm Goi 105631 Goi 105631G

115.0 50.37 527x397mm Goi 105632 Goi 105632G Goi HT-GL

116 50.50 524x524mm Goi 101143 Goi 101143G

117 62.62 644x644mm Goi 101144 Goi 101144G

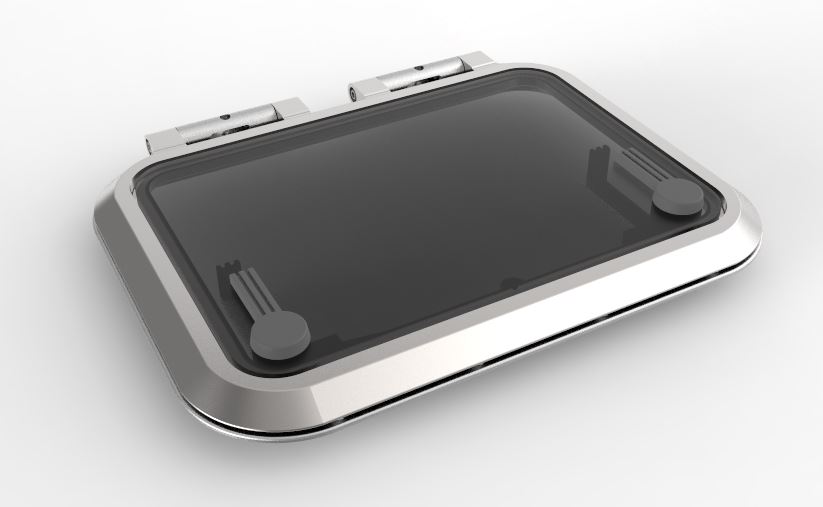

Goiot Cristal Hatches Goiot Cristal Hatches feature a Low-profile Cast Aluminum Lid with an adjustable Friction Hinge. T60, T70 & T80 models feature an integral Spring allowing the Lid to be held open in any position up to 90° (maximum opening 180°).

Cristal Hatches
Goiot Cristal Hatches are stocked as Standard with a Grey Acrylic Lens, a 12mm Spigot depth, and Grey plastic Handles. Corners have a 53mm radius. Other sizes have been produced, and may be available on special order.
To Order a Non-Standard Hatch specify Options.
- Options: Blue Acrylic Lens, 24mm Spigot depth, Outside Handles or Aluminum Handles (44.31 and Larger).
Parts for Cristal Hatches are listed separately, See Cristal Hatch Parts.

Hatch # Size (max.) Cutout Size Lens Size Height Weight

24.19 - T01 308x269mm 263x213mm 233x183mm 23mm 1.6 Kg

24.24 - T10 308x319mm 263x263mm 233x233mm       " 1.8 Kg

35.21 - T20 394x260mm 349x204mm 319x174mm       " 1.6 Kg

36.19 - T23 424x259m 387x213mm 357x183mm       " 2.1 Kg

36.24 - T24 432x319mm 387x263mm 357x233mm       " 2.3 Kg

49.19 554x259mm 515x211mm 487x183mm 26mm 2.7 Kg

44.31 - T30 509x402mm 464x334mm 428x298mm       " 5 Kg

42.42 - T40 483x463mm 423x423mm 390x390mm       " 3 Kg

T44 487x510mm 444x444mm       " 4.7 Kg

44.44 - T46 532x509mm 464x464mm 428x428mm       " 6.5 Kg

49.36 - T50 559x452mm 514x384mm 478x348mm       " 6.2 Kg

T54

49.49 - T60 579x555mm 510x510mm 470x470mm 31mm 8.1 Kg

61.61 - T70 699x675mm 630x630mm 590x590mm 33mm 12 Kg

79.61

79.79 - T80 865x846mm 800x800mm 762x762mm 36mm 24 Kg

61.49 Trapezoid 674x573x533 645x508x494 603x472mm 31mm 9 Kg

75.61 Trapezoid 780x693x504 762x628x468 718x593mm 33mm 12 Kg

44C - T19 520mm Round 476mm 440mm 28mm 5.8 Kg

49C 518mm 482mm

Goiot Evolution Hatches
Goiot Evolution Hatches preceded the Cristal Hatch and were produced from 1993 to 2001.
Grey plastic Handles were standard, Outside Handles were available as options on larger models. Corners had a 52mm radius.
Parts for Evolution Hatches are listed separately, See Evolution Hatch Parts.
For complete Replacement Hatches use the Goiot Cristal Hatch Equivalent, above.

Hatch # Cristal Equivalent Size (max.) Cutout Size Lens Size Height Gasket

23.23 24.24 318x309mm 260x260mm 254x254mm 27mm Goi PC-G

32.18 35.21 396x260mm 347x202mm 341x197mm 27mm

43.30 44.31 511x400mm 457x327mm 442x312mm 34mm Goi HC-GL

40.40 42.42 421x421mm 421x421mm 406x406mm 34mm

48.35 49.36 494x475mm 508x371mm 493x363mm 34mm

48.48 49.49 581x562mm 508x508mm 493x493mm 34mm

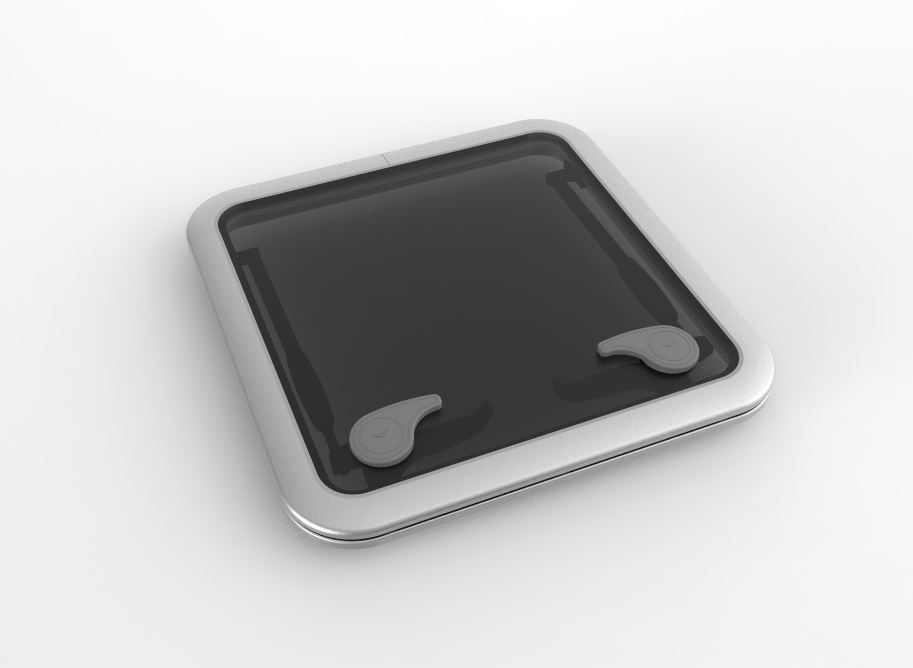

Goiot Opal Hatches
Goiot Opal Hatches are made from extruded Aluminum for a minimum-profile height. Opal Hatches feature an invisible Hinge and use Stay Arm(s) to support the Lid. Two-stage Locking Handles allow the Hatch to be locked in ventilation mode. All models are equipped with adjustable stay up to 160°. Opening to 180° is as simple as releasing the stay to obtain the right position.
Opal Round Hatches feature an external Friction-adjustable Hinge and do not use Stay Arms.

Opal Hatches
Goiot Opal Hatches are stocked as Standard with a Grey Acrylic Lens. Spigot depth is 15mm. Corners have a 42.5mm radius.
To Order a Non-Standard Hatch specify Options.
- Options: Blue or Green Acrylic Lens.
Parts for Opal Hatches are listed separately, See Opal Hatch Parts.

Hatch # Size (max. overall) Cutout Size Lens Size Height Weight

T00 265x265mm 211x211mm 193x193mm 30mm 2.5 Kg

T03 285x230mm 231x176mm 213x158mm       " 2.6 Kg

T10 314x314mm 260x260mm 242x242mm       " 3.2 Kg

T20 401x256mm 347x202mm 329x184mm       " 3.5 Kg

T30 511x381mm 457x327mm 440x310mm 30mm 5.6 Kg

T40 475x475mm 421x421mm 403x403mm       " 6.2 Kg

T44 496x496mm 442x442mm 425x425mm       " 6.7 Kg

T50 561x431mm 507x377mm 489x359mm       " 5.4 Kg

T54 561x446mm 507x392mm 489x373mm       " 7.2 Kg

T60 561x561mm 507x507mm 491x491mm       " 7.9 Kg

T70 681x681mm 627x627mm 609x609mm       " 10.8 Kg

T80 851x851mm 797x797mm 777x777mm       " 14.5 Kg

T51D D-shaped 572x432mm 518x378mm       " 5.6 Kg

T64D D-shaped 584x484mm 530x430mm       " 6.4 Kg

T65T Trapezoid 655x544mm 603x485mm 587x470mm       " 9.4 Kg

T12C Round 332mm 276mm Round 30mm 3.1 Kg

T18C Round 474mm 420mm Round 402mm       " 4.9 Kg

T19C Round 530mm 474mm Round       " 6 Kg

T22C Round 572mm 518mm Round 503mm       " 7.3 Kg

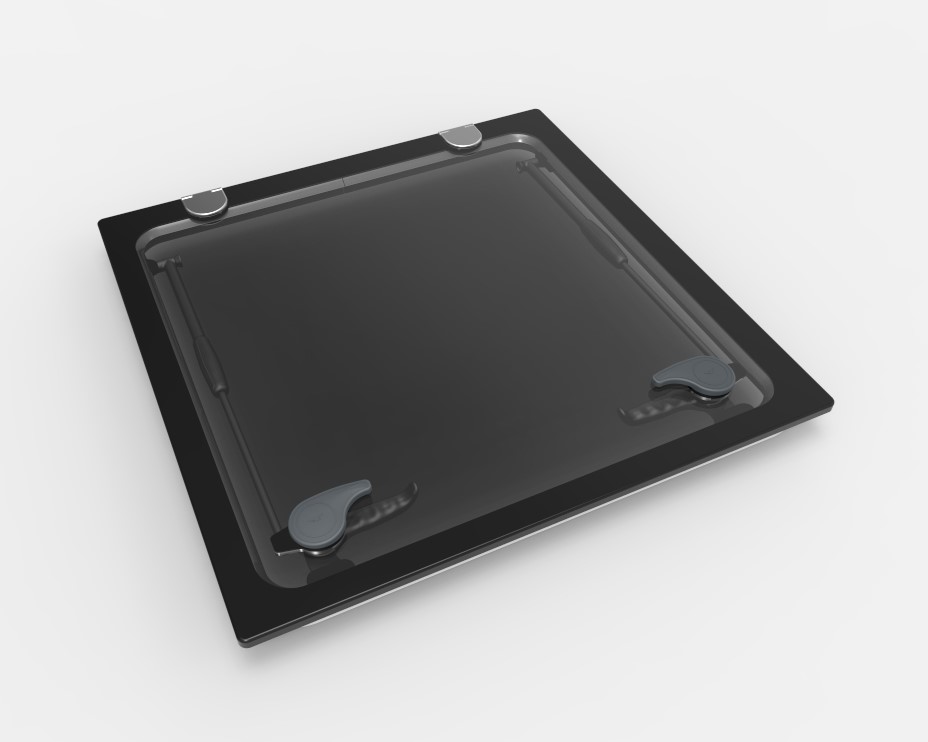

Goiot Opal Flush Hatches
Goiot Opal Flush Hatches are designed to fit flush with the Deck and feature special Stainless Steel Hinges. All models are equipped with adjustable stay up to 130°.
Premium Flush (/P) Hatches are completely flush with recessed Hinges and SS Winch Handle Caps that are flush with the Lens. Stay Arms and other components are as standard Opal Hatches.

Opal Flush Hatches
Opal Flush Hatches are shipped as Standard with a Grey Acrylic Lens and a glossy White lower frame. Spigot depth is 15mm. Corners have a 42.5mm radius.
Premium Flush (/P) Hatches are completely flush with recessed Hinges and SS Winch Handle Caps that are flush with the Lens.
To Order a Non-Standard Hatch specify Options.
- Options: Black Acrylic Lens (for privacy), Black lower frame, Gas Piston Stay Arms.
Parts for Opal Hatches are listed separately, See Opal Hatch Parts.

Hatch # Cutout Size Lens Size Height Weight

T10F / P 260x260mm 330x330mm 0mm - "Flush" 5.6 Kg

T20F / P 347x202mm 417x272mm       " 6 Kg

T30F 457x327mm 527x397mm       " 6.4 Kg

T44F / P 442x442mm 512x512mm       " 7.6 Kg

T54F / P 507x392mm 577x462mm       " 7.6 Kg*

T60F / P 507x507mm 577x577mm       " 9 Kg

T70F / P 627x627mm 697x697mm       " 11 Kg

T18CF 420mm Round 490mm       " 6.5 Kg

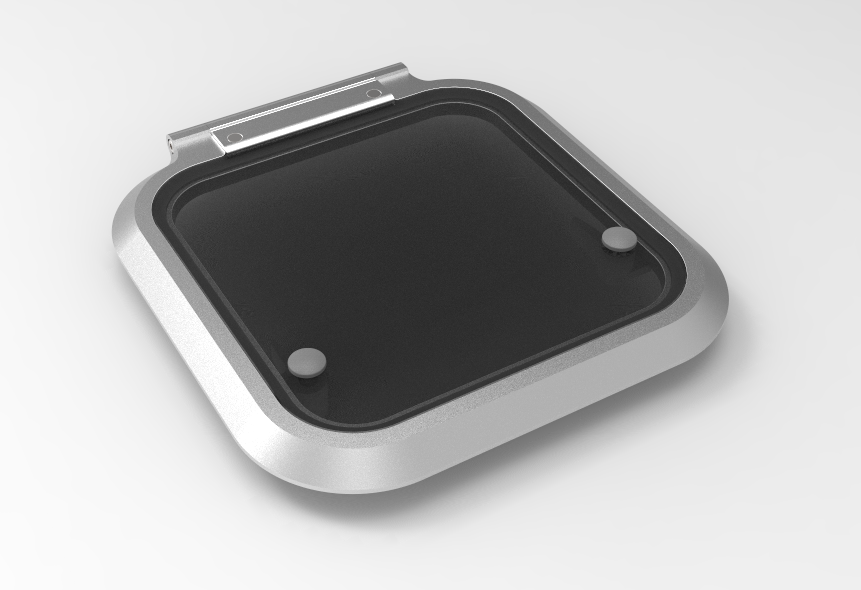

Goiot Integration Hatches
Goiot Integration Hatches are unique in that they are designed to be glued (integrated) into the hull - no fasteners are used. Hatches feature a solid Cast Aluminum Base with an Acrylic Lid and an external Friction-adjustable Hinge. The Friction-adjustable Hinge allows the hatch to be held open in any position, up to 180°. They are easily identified by the Acrylic Lens which has no separate frame.

Integration Hatches
Goiot Integration Hatches are stocked as Standard with a Grey Acrylic Lens. Spigot depth is 15mm. Corners have a 52mm radius.
To Order specify Grey (Standard), or Blue Acrylic Lens.
Note: Hatches with an X in the Part Number are discontinued, and are no longer available.
Parts for Integration Hatches are listed separately, See Integration Hatch Parts.

Hatch # Size (max. overall) Cutout Size Lens Size (max.) Height Weight

25.25 300x315mm 260x260mm 268x248mm 19mm 1.9 Kg

33.14X 335x164mm 347x156mm 335x164mm 19mm 1.8 Kg

33.19X - Discontinued 347x202mm 335x210mm

41.17X 461x231mm 421x176mm 409x185mm 19mm 2.2 Kg

46.33X 497x382mm 457x327mm 445x335mm 21mm 4.2 Kg

20.10 233x138mm Oval 200x100mm 190x105mm 15mm 0.85 Kg

26.13 283x168mm Oval 260x130mm 250x135mm 15mm 1 Kg

27C 318mm Round 278mm 280x266mm 19mm 1.6 Kg

33EX 387x208mm Elliptical 347x156mm 335x177mm 19mm 1.5 Kg


Goiot Escape Hatches Goiot Escape Hatches are designed for mounting on the sides of Multihulls, and can be opened from outside as well as from inside in the event of a capsizing. A lockable security bar is included which must be removed when sailing. Hatches feature a solid Cast Aluminum Base and Lid.

Tradition Escape Hatches Goiot Tradition Escape Hatches feature a solid Cast Aluminum Lid and a Hinge with an integral spring to support the lid. All Handles are Aluminum, locking Bar (for use in port) is included.

Tradition Escape Hatches
Goiot Tradition Escape Hatches are stocked as Standard with a Grey Acrylic Lens. Corners have a 41mm radius.
To Order specify Grey (Standard), or Blue Acrylic Lens.
Parts for Tradition Escape Hatches are listed separately, See Tradition Hatch Parts.

Hatch # Size (max. overall) Cutout Size Lens Size (max.) Height Weight

45.32E 504x402mm 450x320mm 456x326mm 44mm 5.6 Kg

50.37E 554x451mm 500x370mm 506x376mm 46mm 7 Kg

50.50E 559x485mm 500x500mm 506x506mm 46mm 8.3 Kg

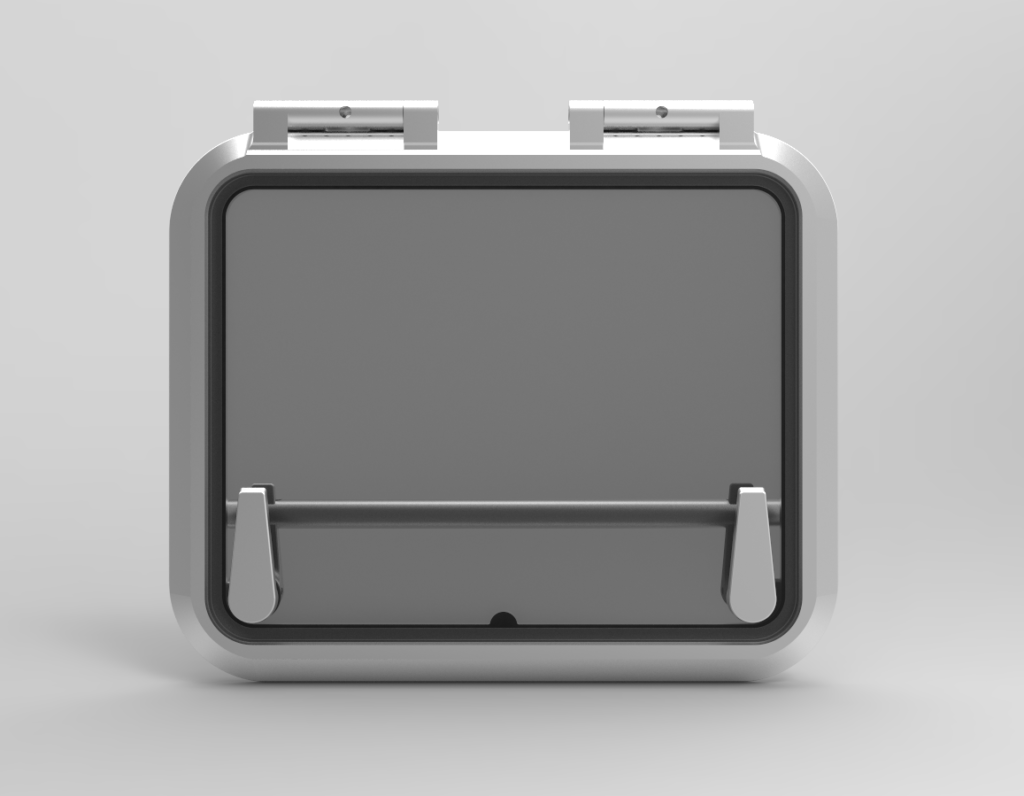

Cristal Escape Hatches Goiot Cristal Escape Hatches feature a Low-profile Cast Aluminum Lid and a Hinge with an integral spring to assist with opening. All Handles are Aluminum, locking Bar (for use in port) is included.

Cristal Escape Hatches
Goiot Cristal Escape Hatches are stocked as Standard with a Grey Acrylic Lens and a 12mm Spigot depth. Cristal 49.42E Corners have a 52mm radius.
To Order a Non-Standard Hatch specify Options.
- Options: Blue Acrylic Lens, 24mm Spigot depth.
Parts for Cristal Escape Hatches are listed separately, See Cristal Hatch Parts.

Hatch # Size (max. overall) Cutout Size Lens Size (max.) Height Weight

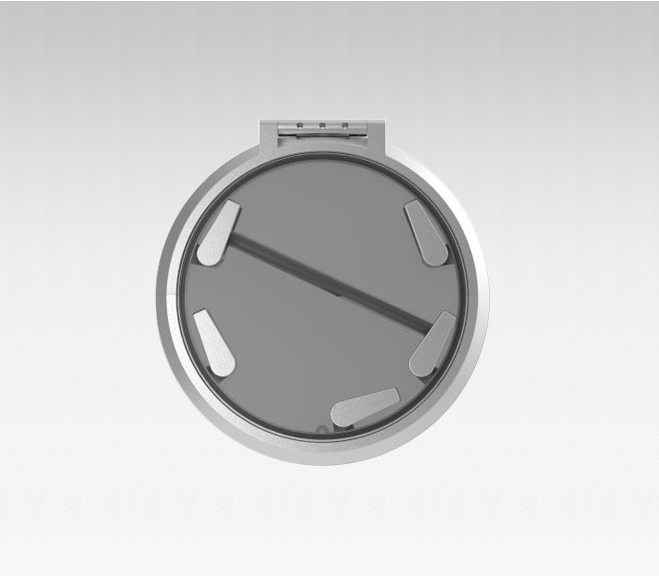

44CE 520mm Round 474mm 440mm OD 28mm 5.8 Kg

49.42E 559x485mm 512x413mm 480x390mm 23mm 7.2 Kg
