Goiot Ports

Tradition Ports
Goiot Tradition Ports are are shipped as Standard with a Grey Acrylic Lens. Black plastic Dog Knobs are used to secure them. Corners have a 20mm radius (34.18 & 44.22 have a 24mm radius, 54.32 has a 35mm radius).
To Order specify Grey (Standard), or Blue Acrylic Lens.
Parts for Tradition Ports are listed separately, See Tradition Port Parts.

Port #	Size (max.)	Cutout Size	Lens Size	Notes	Weight	Gasket
24.11	305x175mm	252x122mm	240x110mm		1.8 Kg	Goi PT-G8
34.14	404x201mm	353x150mm	339x135mm	Dead light Option	2.4 Kg
34.18	405x245mm	350x191mm	340x180mm	.6 DL Option	2.6 Kg
44.22	507x289mm	473x255mm	434x216mm		3.8 Kg
54.32	635x415mm	555x336mm	512x291mm		7.8 Kg	Goi HT-GL

34.15O	406x206mm	359x159mm	335x135mm	Oval, .6 DL Opt	2.1 Kg	Goi PT-G8
13.13C	180mm	140mm	120mm	Round	0.8 Kg
18.18C	235mm	190mm	165mm	Round, .6 DL Opt	1.2 Kg
21.21C	265mm	220mm	200mm	Round, .6 DL Opt	1.6 Kg

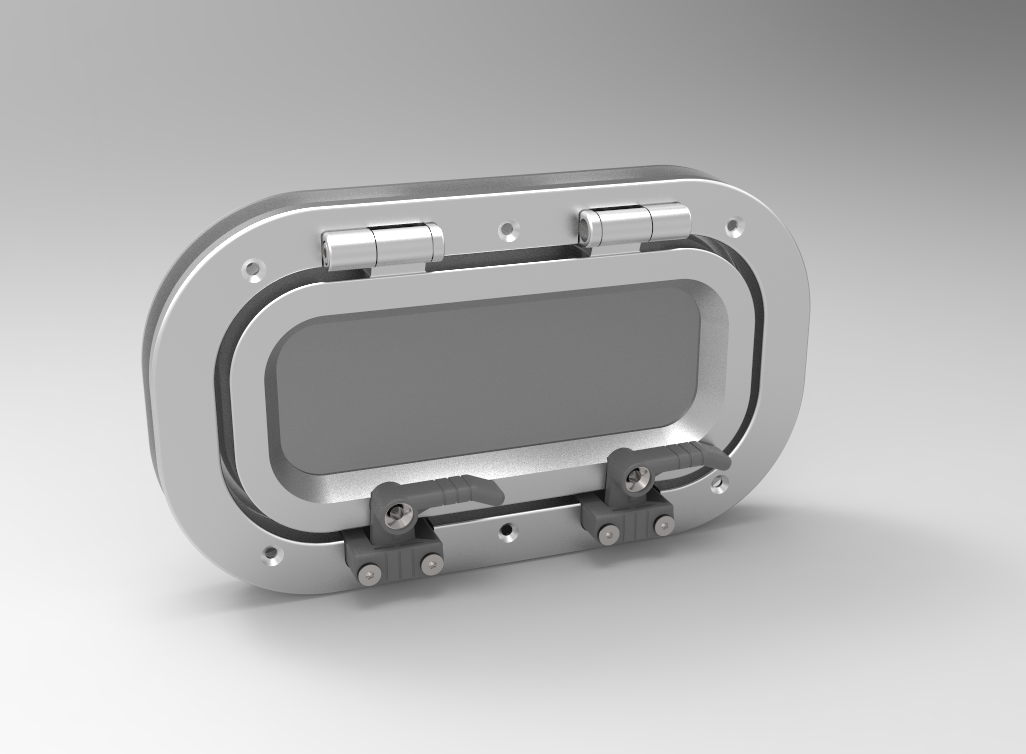

Goiot Cristal Ports
Goiot Cristal Ports have Cast Aluminum Frames (note there is No seam in the Frame) and extruded interior Trim Rings. All models feature adjustable Friction Hinges. Frames offer drainage at up to 40 degrees, easy to install units adapt to hull thickness (Spigot depth) of 8 to 28mm without modification.

Cristal Ports
Goiot Cristal Ports are shipped as Standard with a Grey Acrylic Lens. Corners have a 62mm radius. -- Ports marked * are available in Fixed (non-opening) versions.
To Order specify Grey (Standard), or Blue Acrylic Lens, and Spigot depth (hull thickness): 5-15mm, 16-24mm, or 20-28mm.
Parts for Cristal Ports are listed separately, See Cristal Port Parts.

Port #	Size (max.)	Cutout Size	Lens Size	Notes	Weight	Gasket
23.10R	303x173mm	281x151mm	240x110mm	Rectangular	1.8 Kg	Goi PC-G
33.13R	402x202mm	380x180mm	320x120mm	Rectangular	2.5 Kg
43.18R	502x252mm	480x230mm	420x170mm	Rectangular	3.5 Kg
40.20R				Nautor Special
40.24R				Nautor Special

33.13O	402x202mm	380x180mm	320x120mm	Oval	2.4 Kg
39.05O	484x142mm	462x120mm	405x65mm	Oval	2.8 Kg
43.18O	502x252mm	480x230mm	420x170mm	Oval	3 Kg

Goiot Opal Ports
Goiot Opal Ports are made from light-weight extruded Aluminum (note the seam in the Frame). All models feature adjustable Friction Hinges and Lever-action Handles. Frames offer drainage at up to 46 degrees, easy to install units adapt to hull thickness of 5 to 33mm without modification.

Opal Port

Opal Ports
Goiot Opal Ports are easily distinguished by their Lever-action Handles.
Shipped as Standard with a Grey Acrylic Lens. Corners have a 56mm radius.
-- Ports marked * are available in Fixed (non-opening) versions.
To Order specify Grey (Standard), Blue or Green Acrylic Lens.
Parts for Opal Ports are listed separately, See Opal Port Parts.

Port #	Size (max.)	Cutout Size	Lens Size (max.)	Notes	Weight	Gasket
T00*	325x178mm	303x156mm	258x125mm	Rectangular	1.8 Kg	Goi PO-G
T01	369x193mm	347x101mm		Rectangular	2 Kg
T02*	427x178mm	405x156mm		Rectangular	2 Kg
T03*	451x193mm	429x171mm		Rectangular	2.7 Kg
T04*	649x193mm	627x171mm	583x141mm	Rectangular	3.8 Kg
T05	451x266mm	429x244mm		Rectangular	3.4 Kg
T50	369x273mm	347x251mm		Rectangular	3 Kg

T32O*	397x197mm	375x175mm	329x144mm	Oval	2 Kg
T06OF	622x197mm	600x175mm	--------------	Fixed only	4.1 Kg

Goiot Evolution Ports
Goiot Evolution Ports are made from light-weight extruded Aluminum (note the seam in the Frame). All models feature adjustable Friction Hinges and Grey plastic Handles. Frames offer drainage at up to 40 degrees, easy to install units adapt to hull thickness (Spigot depth) of 5-15 (standard) or 16-26mm (Optional) without modification.

Evolution Ports
Goiot Evolution Ports are easily distinguished by their Ribbed Handles.
Shipped as Standard with a Grey Acrylic Lens and an adjustable Spigot depth (hull thickness) of 5-15mm. Corners have a 65mm radius. -- Ports marked * are available in Fixed (non-opening) versions.
To Order a Non-Standard Port specify Options.
- Options: Blue or Green Acrylic Lens, 16-26mm adjustable Spigot depth.
Parts for Evolution Ports are listed separately, See Evolution Port Parts.

Port #	Size (max.)	Cutout Size	Lens Size	Notes	Weight	Gasket
26.11R	330x180mm	310x160mm	274x124mm	Rectangular	1.7 Kg	Goi PE-G
33.13R*	400x200mm	380x180mm	344x144mm	Rectangular	2.2 Kg
58.13R*	650x200mm	630x180mm	595x144mm	Rectangular	3.6 Kg

33.10O	400x165mm	380x145mm	344x109mm	Oval	1.7 Kg
33.13O*	400x200mm	380x180mm	344x144mm	Oval	2.1 Kg

Your cart

Spars, Rigging, and Hardware for Sailboats

Goiot Ports Goiot Ports and Hatches, made in France, are found on a variety of Yachts built around the world. Their original Cast Aluminum, now "Tradition" series, are among the most respected anywhere. In addition to the Tradition series, Goiot manufactures a wide range of more modern Ports including the Cristal, Opal, and Evolution series in a variety of finishes. Replacement Parts for these Ports are listed separately, See Goiot Port Parts. Tradition Ports Cristal Ports Opal Ports Evolution Ports


Goiot Tradition Ports Goiot Tradition Ports have Cast Aluminum Lids, Bodies, and exterior Frames. All Rectangular and Oval models (except 44.22 & 54.32) feature adjustable Friction Hinges. Separately mounted Rubber Knob(s) are used to keep them open. Dead lights are available on some models.
