Genoa (Jib) Cars for 1 1/4" T-Track |
|
|
|
These Genoa Cars or Slides (Jib Slides, Jib Cars, Jib or Genoa Lead Blocks) are designed
to fit on US Standard 1 1/4" T-Track (1 1/4" x 3/16") and are held in position on the track
either by a Spring or Screw Pin, or by means of a line control system. Racing boats, will often use
a line control system, for ease of use and precise adjustment. Genoa Cars are of two primary varieties: Loop Cars (with Bail) for attachment of blocks or lines, and Genoa Lead Blocks (Cars with an integral Sheave). For Genoa Cars or Slides for other Tracks, See Genoa Cars. See also: Track. |
||||
| ||||
|
|
||||
| Genoa Eye / Loop Cars for 1 1/4" T-Track | ||||
|
Genoa Eye / Loop Cars include an Eye or Bail (most commonly) used with a separate Swivel Block
for a Genoa or Jib sheet lead, but have many other uses including attachment
of fenders, dock lines, preventers etc.. |
||||
|
Genoa Car w/ Spring Pin for 1 1/4" T-Track: ABI 72-50CX:
Cast SS Genoa Car with Spring Pin stop to fit 1 1/4" T-Track. Unique design allows Spring Pin to be locked in up or down position. Investment Cast SS Slide has 3/8" x 1" ID Bail. Slide is 3 1/2" long x 1 11/16" wide.
|
 |
|||
| Bronze Genoa Car w/ Spring Pin for 1 1/4" T-Track: ABI 72-50B: | ||||
|
Cast Bronze Genoa Car with Spring Pin stop to fit 1 1/4" T-Track. Unique design allows Spring Pin to
be locked in up or down position. Cast Bronze Slide has 3/8" x 1" ID Bail.
Slide is 3 1/2" long x 1 11/16" wide. Limited Availability.
|
||||
| Genoa Car w/ Spring Pin & Liners for 1 1/4" T-Track: Sch 72-49: | ||||
|
Welded SS Genoa Car with Spring Pin stop to fit 1 1/4" T-Track. Formed SS Slide with plastic liners
is welded to 3/8" x 1" ID Bail. Slide is 4" long x 1 11/16" wide. In production, this item used two
different Plastic Liners, Sch 172LP-T4, and Sch 172LP-4X, detailed below. Replacement Liners (for current version) are: Sch 172LP-T4:
|
 |
|||
| Genoa Car w/ Spring Pin, Angled Bail & Liners for 1 1/4" T-Track: Sch 17-72X: | ||||
|
Welded SS Genoa Car with Spring Pin stop to fit 1 1/4" T-Track. Formed SS Slide with plastic liners
is welded to large 3/8" angled Bail. Slide is 4" long x 1 11/16" wide. Limited Availability. Replacement Liners are: Sch 172LP-4X:
|
||||
|
Liners for Sch 1 1/4" Genoa Cars: Sch 172LP-T4:
Replacement Liners for Sch 72-49 and other 4" long Genoa Cars for 1 1/4" T-Track. Black plastic liners are 3 15/16" long with bottom protrusions and side tabs to hold them in place when Car is removed from track. Sold in pairs only.
|
 |
|||
|
Liners for Sch 1 1/4" Genoa Cars: Sch 172LP-4X:
Replacement Liners for Schaefer 4" long Track Slides for 1 1/4" T-Track extend beyond the end of the Slide. For old-style Slides without underside notches. Black plastic liners are (maximum) 4 1/4" long. Sold in pairs only.
|
|
|||
|
Replacement Screw Pin for Sch 1 1/4" Cars: Sch 172SP:
Replacement Thumb Screw Pin for Sch 11-91X and other Schaefer SS Cars and Slides for 1 1/4" T-Track. SS Screw Pin has 7/8" knurled head with a 7/16-20 thread and a 3/8" tip. Screw is 9/16" long beneath the Head.
|
||||

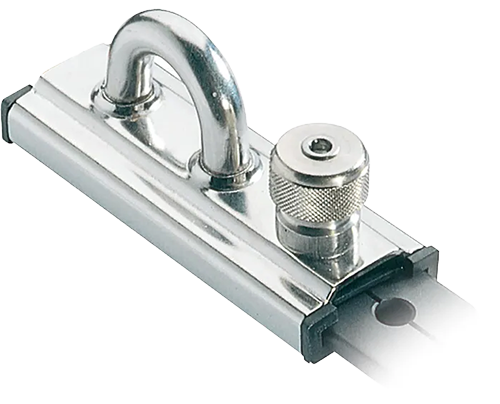

| Genoa Car w/ Spring Pin & Liners for 1 1/4" T-Track: RF 699X: | ||||
|
Welded SS Genoa Car with Spring Pin stop to fit 1 1/4" T-Track. Formed SS Slide with plastic liners
is welded to large 7/16" x 7/8" ID Bail. Slide is 4" long x 1 11/16" wide. In production, this item
used two different Plastic Liners, the current version fits both Cars. Now RC73202 Replacement Liners for both versions are: RF 723-4LP:
|
|
|||
| Genoa Car w/ Spring Pin, Angled Bail for 1 1/4" T-Track: Sch 73-51X: | ||||
|
Welded SS Genoa Car with Spring Pin stop to fit 1 1/4" T-Track. Formed SS Slide is welded to large
3/8" angled Bail. Slide is 4" long x 1 11/16" wide.
|
||||
|
|
||||
| Genoa Lead Blocks for 1 1/4" T-Track | ||||
|
Genoa Lead Blocks for 1 1/4" T-Track are available in a variety of
configurations, including Stand-up, Half-Moon, Twin-Sheet and Towable Block varieties.
|
||||
| 07 SS Genoa Lead Block w/ Spring Pin & Liners for 1 1/4" T-Track: Sch 705-92: | ||||
|
SS Genoa Lead Block on stand-up spring has Stainless Steel cheeks. Unit locks in place on
T-Track with a Spring Pin stop and features plastic liners to reduce sliding friction.
Formed SS Slide is 4" long x 1 11/16" wide, SS 07 Block has a 2 3/8" delrin sheave for line up to
1/2" diameter. Unit has a Safe Working Load of 2250 lbs (1020 kg), and is suitable for use on most
boats up to 33' (10M) LOA. Replacement Liners are: Sch 172LP-T4:
|
|
|||

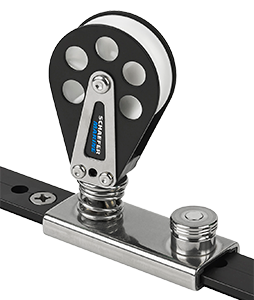

| 07 Genoa Lead Block w/ Spring Pin & Liners for 1 1/4" T-Track: Sch 704-92: | ||||
|
SS Genoa Lead Block on stand-up spring has Black Aluminum cheeks. Unit locks in place on
T-Track with a Spring Pin stop and features plastic liners to reduce sliding friction.
Formed SS Slide is 4" long x 1 11/16" wide, Black Aluminum 07 Block has a 2 3/8" delrin sheave for
line up to 1/2" diameter. Unit has a Safe Working Load of 2250 lbs (1020 kg), and is suitable for
use on most boats up to 33' (10M) LOA. Replacement Liners are: Sch 172LP-T4:
|
|
|||

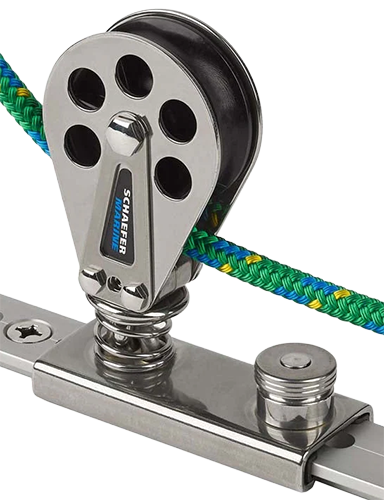

| 08 SS Genoa Lead Block w/ Spring Pin & Liners for 1 1/4" T-Track: Sch 08-92: | ||||
|
SS Genoa Lead Block on stand-up spring has Stainless Steel cheeks. Unit locks in place on T-Track with
a Spring Pin stop and features plastic liners to reduce sliding friction. Formed SS Slide is 4" long
x 1 11/16" wide, SS 08 Block has a 2 3/8" delrin sheave for line up to 1/2" diameter. Unit has a Safe
Working Load of 2750 lbs (1250 kg), and is suitable for use on most boats up to 38' (11.5M) LOA. Replacement Liners are: Sch 172LP-T4:
|
|
|||

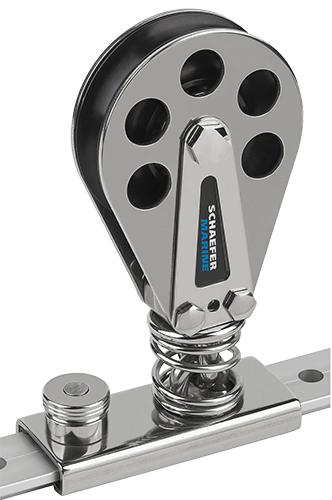

| 010 SS Genoa Lead Block w/ Spring Pin & Liners for 1 1/4" T-Track: Sch 10-92UC: | ||||
|
SS Genoa Lead Block on stand-up spring has Stainless Steel cheeks. Unit locks in place on T-Track
with a Spring Pin stop and features plastic liners to reduce sliding friction.
Formed SS Slide is 4" long x 1 11/16" wide, SS 010 Block has a 3 1/4" Aluminum
UC Sheave with Torlon ball bearings for line up to 3/4" diameter.
Unit has a Safe Working Load of 3750 lbs (1700 kg), and is suitable for use on most boats up to 44'
(13.5M) LOA. Replacement Liners are: Sch 172LP-T4:
|
|
|||
|
Liners for Sch 1 1/4" Genoa Cars: Sch 172LP-T4:
Replacement Liners for Sch 705-92 and other 4" long Genoa Cars for 1 1/4" T-Track. Black plastic liners are 3 15/16" long with bottom protrusions and side tabs to hold them in place when Car is removed from track. Sold in pairs only.
|
 |
|||
| 011 Genoa Lead Block w/ Screw Pin for 1 1/4" T-Track: Sch 11-91X: | ||||
|
SS Genoa Lead Block on stand-up spring has Black Aluminum cheeks.
Unit locks in place on 1 1/4" T-Track or Flat Track with a Screw Pin stop.
Formed SS Slide is 4" long x 1 1/2" wide, Black 011 Aluminum Block has a 3 1/4" delrin sheave for
line up to 5/8" diameter. Unit has a Safe Working Load of 3750 lbs (1700 kg), and is suitable for use
on most boats up to 44' (13.5M) LOA. Limited Availability
|
 |
|||
|
Replacement Screw Pin for Sch 1 1/4" Cars: Sch 172SP:
Replacement Thumb Screw Pin for Sch 11-91X and other Schaefer SS Cars and Slides for 1 1/4" T-Track. SS Screw Pin has 7/8" knurled head with a 7/16-20 thread and a 3/8" tip. Screw is 9/16" long beneath the Head.
|
||||
|
|
||||
| Small Half-Moon Genoa Lead Block for 1 1/4" T-Track: Sch 32-03UCX: | ||||
|
Small Hinged Half-Moon Block has rugged, 'offshore' design providing a low winch lead while spreading
sheet loads over several track fasteners. Spring Pin stop location in the center of the block
prevents snagging and accidental release. Designed to articulate up to 45° to either side of the track,
Half-Moon lead blocks are often used to provide a proper lead angle to foot or turning blocks near the cockpit.
Stainless, bolted construction allows complete disassembly for inspection or maintenance.
SS Slide is 4" long x 1 11/16" wide and features plastic liners to reduce sliding friction.
Heavy-Duty SS Cage is spring supported and houses 2 3/8" Aluminum
UC Sheave with Torlon ball bearings for line up to 5/8" diameter.
Unit has a Safe Working Load of 3000 lbs (1360 kg) and is suitable for use on most boats up to 33' (10M) LOA. This item is no longer available, having been replaced by the larger Sch 32-33UC, below.
|
||||
| Stand-up Spring for Half-Moon Blocks w/ 2 3/8" Sheave: Sch 32-03SP: | ||||
|
Replacement Spring Only for Sch 32-03's, Sch 32-15's and other Half-Moon Lead Blocks with a 2 3/8" Sheave.
Stand-up Springs (2 per Block) hold the Sheave Carriage upright when not under load. Sold each.
|
||||
| Half-Moon Genoa Lead Block for 1 1/4" T-Track: Sch 32-33X: | ||||
|
Hinged Half-Moon Block has rugged, 'offshore' design providing a low winch lead while spreading sheet
loads over several track fasteners. Spring Pin stop location in the center of the block prevents
snagging and accidental release. Designed to articulate up to 45° to either side of the track,
Half-Moon lead blocks are often used to provide a proper lead angle to foot or turning blocks near
the cockpit. Stainless, bolted construction allows complete disassembly for inspection or maintenance.
SS Slide is 5 1/2" long x 1 9/16" wide, Heavy-Duty SS Cage is spring supported and houses
3 1/4" Aluminum Sheave for line up to 3/4" diameter. Unit has a Safe Working Load of 5000 lbs
(2270 kg) and is suitable for use on most boats up to 44' (10M) LOA. Limited Availability.
|
|
|||
| Stand-up Spring for Half-Moon Blocks w/ 3 1/4" Sheave: Sch 32-33SP: | ||||
|
Replacement Spring Only for Sch 32-33's and other Half-Moon Lead Blocks with a 3 1/4" Sheave.
Stand-up Springs (2 per Block) hold the Sheave Carriage upright when not under load. Sold each.
|
||||

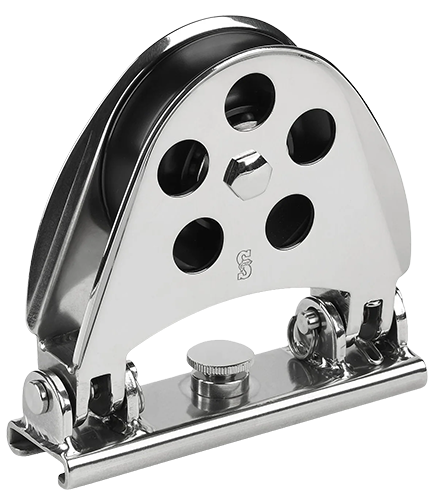

| Half-Moon Genoa Lead Block for 1 1/4" T-Track: Sch 32-33UC: | ||||
|
Hinged Half-Moon Block has rugged, 'offshore' design providing a low winch lead while spreading
sheet loads over several track fasteners. Screw Pin stop location in the center of the block prevents
snagging and accidental release. Designed to articulate up to 45° to either side of the track,
Half-Moon lead blocks are often used to provide a proper lead angle to foot or turning blocks near the
cockpit. Stainless, bolted construction allows complete disassembly for inspection or maintenance.
Heavy-Duty SS Cage is spring supported and houses 3 1/4" Aluminum
UC Sheave with Torlon ball bearings for line up to 3/4" diameter.
SS Slide is 5 1/2" long x 1 9/16" wide, unit has a Safe Working Load of 5000 lbs (2270 kg) and is
suitable for use on most boats up to 44' (10M) LOA.
|
|
|||
| Stand-up Spring for Half-Moon Blocks w/ 3 1/4" Sheave: Sch 32-33SP: | ||||
|
Replacement Spring Only for Sch 32-33's and other Half-Moon Lead Blocks with a 3 1/4" Sheave.
Stand-up Springs (2 per Block) hold the Sheave Carriage upright when not under load. Sold each.
|
||||
|
Replacement Screw Pin for Sch 1 1/4" Cars: Sch 172SP:
Replacement Thumb Screw Pin for Sch 32-33UC, Sch 11-91X and other Schaefer SS Cars and Slides for 1 1/4" T-Track. SS Screw Pin has 7/8" knurled head with a 7/16-20 thread and a 3/8" tip. Screw is 9/16" long beneath the Head.
|
||||
|
|
||||
|
Twin-Sheet Genoa Lead Blocks for 1 1/4" T-Track Twin-Sheet Lead Blocks allow for use of two (2) sheets going through a wide flared sheave, permitting easy sail changes. Blocks provide a low profile articulating sheave for a proper lead from the sail through the block and into cockpit. |
||||

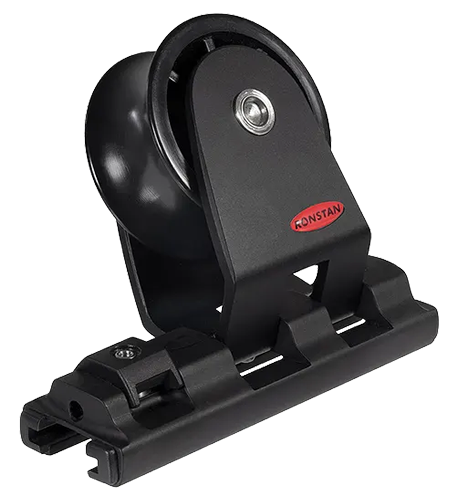

| Twin-sheet Genoa Car w/ Liners for 1 1/4" T-Track: RF 3186X: | ||||
|
Twin-Sheet Lead Block for 1 1/4" T-Track has Black Anodized finish and 2" wide molded Delrin
sheave and rides on plastic liners for low-friction movement. Sheave allows for 2 Sheets up to 5/8"
diameter. Extruded Aluminum Slide is (maximum) 6" long x 1 3/4" wide and locks in place on T-Track
with a Spring Pin stop that can be locked in the up position.
Unit has a Safe Working Load of 3300 lbs. (1500 kg), and is suitable for use on most boats up to
40' (12M) LOA. Now RC73231 Replacement Liners are: RF 722XLP:
|
|
|||
|

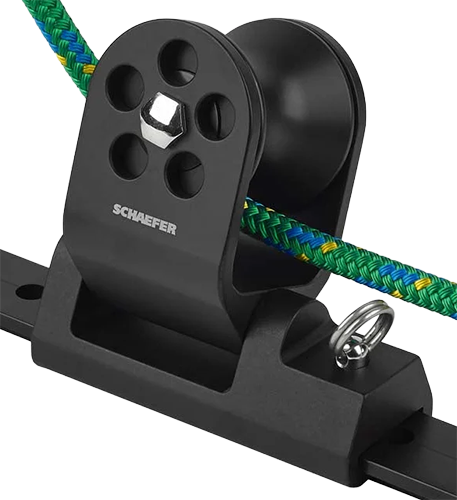

Twin-sheet Genoa Car for 1 1/4" T-Track - Black: Sch 32-97:
Twin-Sheet Lead Block for 1 1/4" T-Track has Black Anodized finish and 2" wide Aluminum sheave on Nomex/Teflon Bearing for low-friction and high-strength. Extruded Aluminum Slide is (maximum) 4 1/2" long x 1 3/4" wide and locks in place on T-Track with a SS Spring Pin stop. Unit has a Safe Working Load of 3500 lbs. (1590 kg), and is suitable for use on most boats up to 38' (11.5M) LOA.
|
|
|||
|

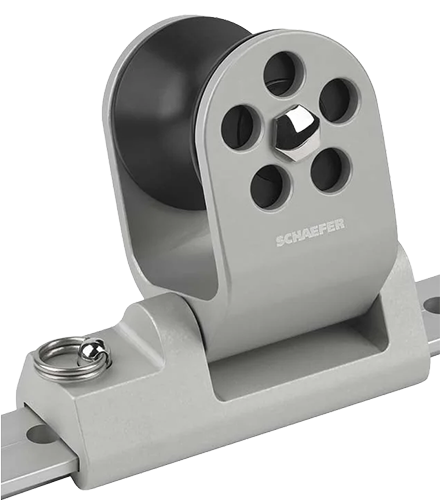

Twin-sheet Genoa Car for 1 1/4" T-Track - Silver: Sch 32-98:
Twin-Sheet Lead Block for 1 1/4" T-Track has clear Anodized finish and 2" wide Aluminum sheave on Nomex/Teflon Bearing for low-friction and high-strength. Extruded Aluminum Slide is (maximum) 4 1/2" long x 1 3/4" wide and locks in place on T-Track with a Spring Pin stop. Unit has a Safe Working Load of 3500 lbs. (1590 kg), and is suitable for use on most boats up to 38' (11.5M) LOA.
|
|
|||
|
|
||||
| Towable Twin-sheet Genoa Car w/ Liners for 1 1/4" T-Track: Sch 17-68: | ||||
|
Heavy-duty Towable Twin-sheet Genoa Car for 1 1/4" T-Track. Formed SS Slide with plastic liners
has articulating Aluminum carriage with a 2" wide Aluminum sheave, a welded towing bail (aft) and a
Clevis (forward) for attachment of a Schaefer 05 Block.
Normally used with a purchase to bring it forward (under load) and a bungee cord aft to keep it taut.
Slide (with bail) is (maximum) 5 3/4" long x 1 11/16" wide.
Replacement Liners are: Sch 172LP-T5:
|
|
|||
| Towable Twin-sheet Genoa Car w/ Liners for 1 1/4" T-Track: Sch 17-51X: | ||||
|
Heavy-duty Towable Twin-sheet Genoa Car for 1 1/4" T-Track. Formed SS Slide with plastic liners
and welded towing bails has articulating Aluminum carriage with a 2" wide Aluminum sheave.
Normally used with a purchase to bring it forward (under load) and a bungee cord aft to keep it taut.
Slide (with bails) is (maximum) 6 1/2" long x 1 11/16" wide.
This item is no longer available, having been replaced by Sch 17-68.
In production, this item used two different Plastic Liners, Sch 172LP-T5,
and Sch 172LP-5X, detailed below.
|
 |
|||
|
Liners for Sch 1 1/4" Genoa Cars: Sch 172LP-T5:
Replacement Liners for Sch 17-51X, Sch 17-68 and other 5" long Schaefer Genoa Cars for 1 1/4" T-Track. Black plastic liners are 4 15/16" long with bottom protrusions and side tabs to hold them in place when Car is removed from track. Sold in pairs only.
|
 |
|||
|
Liners for Sch 1 1/4" Genoa Cars: Sch 172LP-5X:
Replacement Liners for Old-style Sch 17-51X Genoa Cars (and other 5" slides) for 1 1/4" T-Track. Black plastic liners are (maximum) 5 1/4" long. Sold in pairs only. |
 |
|||
