| Traveller Slides & Stops |
|
|
|
Before the advent of modern, controllable Traveller Systems, it was common
to use T-Track, Flat Track or Sailtrack with a Traveler Slide to adjust the
mainsheet attachment point. Although it lacks the ability to be adjusted
under load, the Traveler Slide can be moved while tacking. The Traveler
Slide is normally used with an Adjustable Stop on each side to keep it in position. Traveler Slides are sometimes used on the boom as Outhaul Slides. Traveler Slides with integral Mainsheet Blocks are listed separately. See also, Track, and Traveller Systems. |
||
|
|
||
| Traveller Slides
For 5/8" Sailtrack
For 3/4" T-Track or Flat Track For 7/8" T-Track or Flat TrackFor 1" T-Track or Flat Track For 1 1/4" T-Track or Flat Track For 1 1/2" T-Track or Flat Track |
|
|
|
|
||
| Traveller Slides for 5/8" Sailtrack | ||
|
Traveller Slide for 5/8" Sailtrack: K-95-51L:
Traveller/Outhaul Slide features 1/4" welded ring with 3/4" ID for mainsheet attachment. Formed Stainless Steel Slide is 1 3/4" long. For use with 5/8" Sailtrack. 71-05X
|
|
|
|

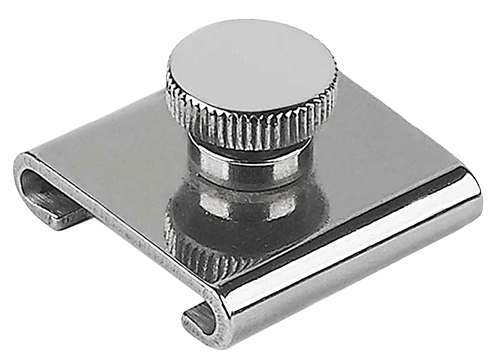

Adjustable Slide Stop for 5/8" SS Sailtrack: Sch 74-45:
Stainless Steel Adjustable Stop for 5/8" Sailtrack incorporates a captive SS thumb screw Pin to limit its position. SS Adjustable Stop is 7/8" wide x 5/8" long.
|
||
| Replacement Screw Pin for Sch 5/8" Sailtrack Cars: Sch 175SP: | ||
|
Replacement Thumb Screw Pin for Sch 72-45 and other Schaefer Cars and Slides
for 5/8" and 7/8" Sailtrack. SS Screw Pin has 1/2" knurled head with a 10-32 thread.
|
||
|
SS End Stop for 5/8" Sailtrack: Sch 74-05:
Formed Stainless Steel End Stop for 5/8" SS Sailtrack is 7/8" wide x 5/8" long. SS End Stop slides on to Track and attaches through the Track with (1) #8 (5/32") RH screw, generally using the last screw in the Track.
|
||
|
|
||
| Traveller Slides for 7/8" Sailtrack | ||
|
Traveller Slide for 7/8" Sailtrack: RL-477X: Traveller/Outhaul Slide features 1/4" welded loop with 5/8" ID for mainsheet attachment. Formed Stainless Steel Slide is 1 3/4" long. For use with 7/8" Sailtrack.
|
|
|
|
Adjustable Slide Stop for 7/8" SS Sailtrack: Sch 74-42:
Stainless Steel Adjustable Stop for 7/8" Sailtrack incorporates a captive SS thumb screw to limit its position. SS Adjustable Stop is 1" wide x 1" long.
|
||
| Replacement Screw Pin for Sch 7/8" Sailtrack Cars: Sch 175SP: | ||
|
Replacement Thumb Screw Pin for Sch 72-45 and other Schaefer Cars and Slides
for 5/8" and 7/8" Sailtrack. SS Screw Pin has 1/2" knurled head with a 10-32 thread.
|
||
|
SS End Stop for 7/8" Sailtrack: Sch 74-02:
Formed Stainless Steel End Stop for 7/8" SS Sailtrack is 1" wide x 1" long. SS End Stop slides on to Track and attaches through the Track with (1) #10 (3/16") RH screw, generally using the last screw in the Track.
|
||
|
|
||
| Traveller Slides for 3/4" T-Track or Flat Track | ||
|
Traveller Slide for 3/4" T-Track: Sch 71-06X: Traveller/Outhaul Slide features 1/4" welded loop with 9/16" ID for mainsheet attachment. Formed Stainless Steel Slide is 2" long. For use with 3/4" x 1/8" T-Track or Flat Track.
|
||
|

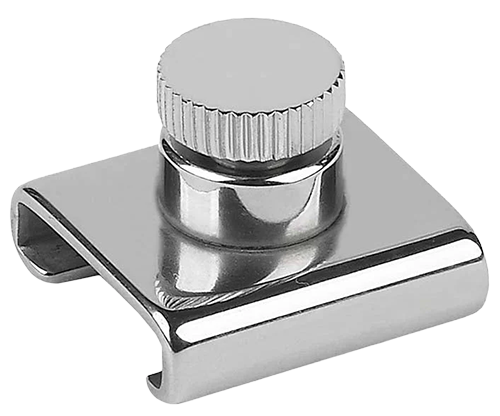

Adjustable Slide Stop for 3/4" T-Track: Sch 74-46:
Stainless Steel Adjustable Stop incorporates a captive SS thumb screw to limit its position, and fits 3/4" T-Track and SS Flat Track. SS Adjustable Stop is 1" long x 15/16" wide.
|
||
|
|
||
| Traveller Slides for 7/8" T-Track or Flat Track | ||
|
Traveller Slide for 7/8" T-Track: Sch 71-07X:
Traveller/Outhaul Slide features 1/4" welded loop with 5/8" ID for mainsheet attachment. Formed Stainless Steel Slide is 1 3/4" long. For use with 7/8" x 1/8" T-Track or Flat Track. +R
|
||
|
Adjustable Slide Stop for 7/8" SS Flat Track: Sch 74-47X:
Stainless Steel Adjustable Stop incorporates a captive SS thumb screw to limit its position, and fits 7/8" SS Flat Track or T-Track. SS Adjustable Stop is 1" long x 1 1/16" wide.
|
||
|
|
||
| Traveller Slides for 1" T-Track or Flat Track | ||
|
Traveller Slide for 1" T-Track: Sch 71-08X: Traveller/Outhaul Slide features 3/8" welded loop with 1" ID for mainsheet attachment. Formed Stainless Steel Slide is 3" long. For use with 1" x 1/8" T-Track or Flat Track. **
|
m | |
|
Traveller Slide w/ Liners for 1" T-Track: Sch 17-80X: Traveller/Outhaul Slide with plastic liners features 3/8" welded loop with 1" ID for mainsheet attachment. Formed Stainless Steel Slide body (without welded bumpers) is 3" long. Replacement plastic liners, Sch 171LP-3, are available separately. For use with 1" x 1/8" T-Track or Flat Track. This item is no longer available. Replacement Liners are: Sch 171LP-3:
|
||
| Replacement Liners for Sch 17-80X Traveller Slide: Sch 171LP-3: | ||
|
Replacement Liners for Sch 17-80X Traveller Slide for 1" T-Track.
Black plastic liners are (maximum) 3 1/4" long. Sold in pairs only.
|
|
|
|
Bronze Traveller Slide for 1" T-Track: Mer 443B-1X:
Cast Bronze Traveller/Outhaul Slide features 3/8" loop with 5/8" x 1 3/8" ID for mainsheet attachment. Bronze Slide is 2 3/4" long x (maximum) 1 3/8" wide. For use with 1" x 1/8" T-Track or Flat Track.
|
||
|
|
||

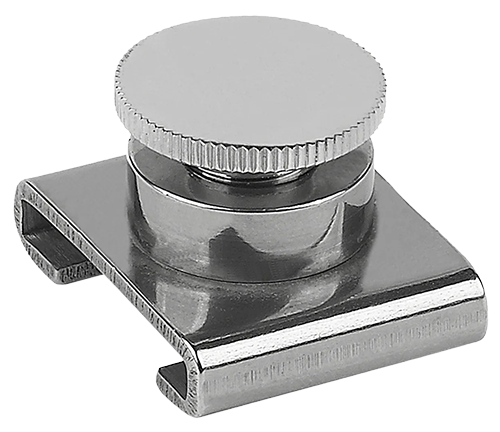

| Adjustable Slide Stop for 1" T-Track w/ Screw Pin: Sch 74-48: | ||
|
Stainless Steel Adjustable Stop incorporates a captive SS thumb Screw Pin to limit its
position, and fits 1" T-Track and SS Flat Track. SS Adjustable Stop is 1" long x 1 1/4" wide.
|
||
|
Replacement Screw Pin for Sch 1" Cars: Sch 171SP:
Replacement Thumb Screw Pin for Sch 74-48 and other Schaefer Cars and Slides for 1" T-Track. SS Screw Pin has 7/8" knurled head with a 7/16-20 thread and a 1/4" tip. Screw is 1/2" long beneath the Head.
|
||
| Adjustable Slide Stop for 1" T-Track w/ Spring Pin: Sch 74-48SP: | ||
|
Stainless Steel Adjustable Stop incorporates a SS Spring Pin to limit its position,
and fits 1" T-Track and SS Flat Track. SS Adjustable Stop is 1" long x 1 1/4" wide.
Limited availability.
|
||
|
|
||
| Traveller Slides for 1 1/4" T-Track or Flat Track | ||
|
Traveller Slide for 1 1/4" T-Track: Sch 71-10X:
Traveller/Outhaul Slide features 3/8" welded loop with 1" ID for mainsheet attachment. Formed Stainless Steel Slide is 3" long. For use with 1 1/4" x 3/16" T-Track or Flat Track.
|
|
|
|
Traveller Slide w/ Liners for 1 1/4" T-Track: Sch 17-81X:
Traveller/Outhaul Slide with plastic liners features 3/8" welded loop with 1" ID for mainsheet attachment. Formed Stainless Steel Slide body (without welded bumpers) is 3" long. Replacement plastic liners, Sch 172LP-3, are available separately. For use with 1 1/4" x 3/16" T-Track or Flat Track. Replacement Liners are: Sch 172LP-3:
|
|
|
| Replacement Liners for Sch 17-81X Slide: Sch 172LP-3: | ||
|
Replacement Liners for Sch 17-81X Traveller Slide. Black plastic liners are (maximum)
3 1/4" long. Sold in pairs only.
|
|
|
|
Traveller Slide w/ Liners for 1 1/4" T-Track: RF 698X:
Traveller/Outhaul Slide with plastic liners features 7/16" welded loop with 7/8" ID for mainsheet attachment. Formed Stainless Steel Slide body is 4" long. Replacement plastic liners, RF 723-4LP, are available separately. For use with 1 1/4" x 3/16" T-Track or Flat Track. This item is no longer available. Replacement Liners are: RF 723-4LP:
|
|
|
| Replacement Liners for RF 698X Traveller Slide: RF 723-4LP: | ||
|
Replacement Liners for RF 698X Traveller Slide. Black plastic liners are (maximum)
4 1/4" long. Sold in pairs only. 1.2x4X
|
||
| Bronze Traveller Slide for 1 1/4" T-Track: Mer 443BC-1.2X: | ||
|
Cast Bronze Traveller/Outhaul Slide features 1/2" loop with 3/4" x 1 1/4" ID for mainsheet attachment.
Chrome-plated Bronze Slide is 2 5/16" long x (maximum) 1 11/16" wide.
For use with 1 1/4" x 3/16" T-Track or Flat Track.
|
|
|
| Long Bronze Traveller Slide for 1 1/4" T-Track: Mer 443BC-1.2XL: | ||
|
Cast Bronze Traveller/Outhaul Slide features 1/2" loop with 3/4" x 2" ID for mainsheet attachment.
Chrome-plated Bronze Slide is 3 3/8" long x (maximum) 1 11/16" wide.
For use with 1 1/4" x 3/16" T-Track or Flat Track.
|
||
|
|
||

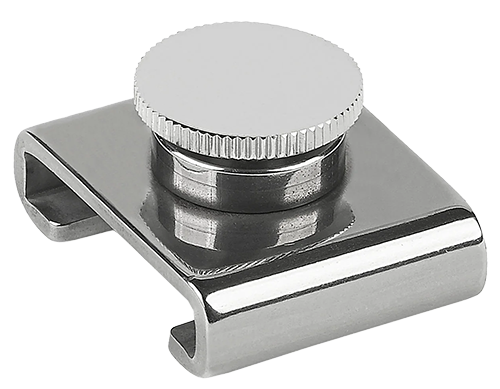

| Adjustable Slide Stop for 1 1/4" T-Track w/ Screw Pin: Sch 74-51: | ||
|
Stainless Steel Adjustable Stop incorporates a captive SS thumb Screw Pin,
and fits 1 1/4" T-Track and SS Flat Track. SS Adjustable Stop is 1 1/4" long x 1 9/16" wide.
|
||
|
Screw Pin for Sch 1 1/4" Cars: Sch 172SP:
Replacement Thumb Screw Pin for Sch 74-51 and other Schaefer Cars and Slides for 1 1/4" T-Track. SS Screw Pin has 7/8" knurled head with a 7/16-20 thread and a 3/8" tip. Screw is 9/16" long beneath the Head.
|
||
| Adjustable Slide Stop for 1 1/4" T-Track w/ Spring Pin: Sch 74-50X: | ||
|
Stainless Steel Adjustable Stop incorporates a SS Spring Pin to limit its position,
and fits 1 1/4" T-Track and SS Flat Track. SS Adjustable Stop is 1 1/4" long x 1 9/16" wide.
|
||
| Adjustable Slide Stop w/ Liners for 1 1/4" T-Track: RF 697X: | ||
|
Stainless Steel Adjustable Stop with plastic liners features a SS Spring Pin to limit its
position, and fits 1 1/4" T-Track and SS Flat Track. SS Adjustable Stop is 1 1/4" long x 1 9/16" wide.
This item is no longer available. Replacement Liners are: RF 721X-1LP:
|
||
| Replacement Liners for RF 697X Adjustable Slide Stop: RF 721X-1LP: | ||
|
Replacement Liners for RF 697X Adjustable Slide Stop for 1 1/4" T-Track.
Black plastic liners are (maximum) 1 1/2" long. Sold in pairs only.
|
||
|
|
||
| Traveller Slides for 1 1/2" T-Track or Flat Track | ||
| Cast Bronze Traveller Slide for 1 1/2" T-Track: Mer 443BC-1.5X: | ||
|
Cast Bronze Traveller/Outhaul Slide features 1/2" loop with 3/4" x 1 1/4" ID for mainsheet
attachment. Chrome-plated Bronze Slide is 2 5/16" long x (maximum) 1 15/16" wide.
For use with 1 1/2" x 1/4" T-Track or Flat Track.
|
||

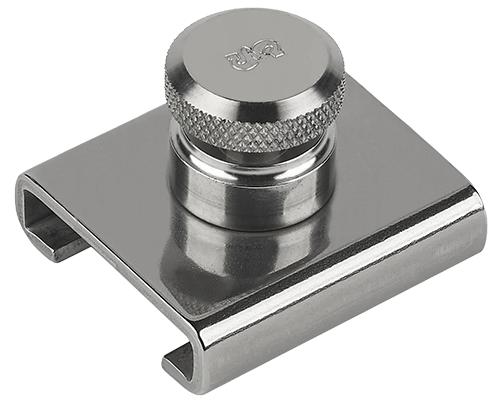

| Adjustable Slide Stop for 1 1/2" T-Track w/ Screw Pin: Sch 74-52: | ||
|
Stainless Steel Adjustable Stop incorporates a captive SS thumb Screw Pin to limit its position,
and fits 1 1/2" T-Track and SS Flat Track. SS Adjustable Stop is 2" long x 1 13/16" wide.
|
||
|
Screw Pin for Sch 1 1/2" Cars: Sch 173SP:
Replacement Thumb Screw Pin for Sch 73-52, Sch 74-52, Sch 32-89 and other Schaefer Cars and Slides for 1 1/2" T-Track. SS Screw Pin has 1" knurled head with a 7/16-20 thread.
|
||
| Adjustable Slide Stop for 1 1/2" T-Track w/ Spring Pin: Sch 74-52XSP: | ||
| Stainless Steel Adjustable Stop incorporates a SS Spring Pin to limit its position, and fits 1 1/2" T-Track and SS Flat Track. SS Adjustable Stop is 2" long x 1 13/16" wide. Limited availability. * | ||
