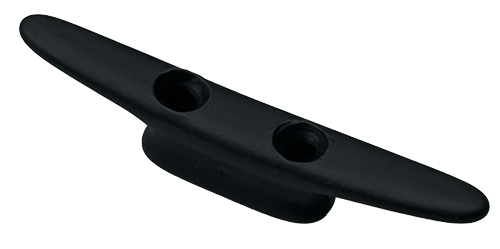

Spar Cleat - 3 1/4" long, Black: K-1617:
Cast Aluminum Cleat is a low-profile design with a narrow base suitable for
use with line up to 5/16" diameter. Black Epoxy coated Cleat is 3 1/4" long,
and fastens to spar with (2) 5/32" (#8) FH screws on 7/8" centers. |
|
|

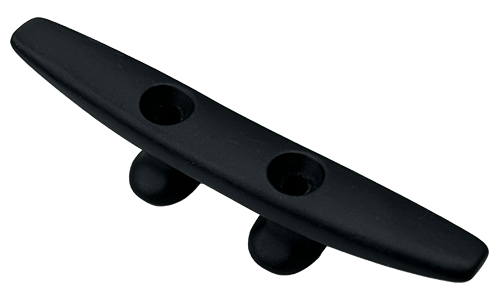

Spar Cleat - 4" long: D-10324:
Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable
for use with line up to 3/8" diameter. Black Epoxy coated Cleat is 4" long,
and fastens to spar with (2) 3/16" (#10) FH screws on 1 3/16" centers. |
|
Spar Cleat - 5" long: D-10325:
Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable
for use with line up to 1/2" diameter. Black Epoxy coated Cleat is 5" long,
and fastens to spar with (2) 7/32" (#12) FH screws on 1 1/2" centers. |
|

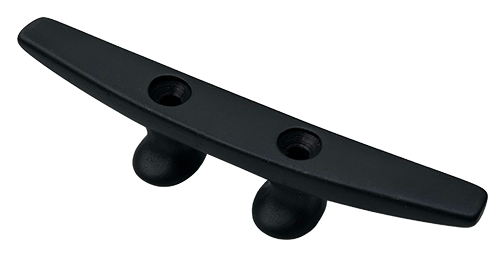

Spar Cleat - 6" long Kenyon: D-10326:
Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable
for use with line up to 5/8" diameter. Black Anodized Cleat is 6" long, and
fastens to spar with (2) 1/4" FH screws on 1 3/4" centers.
sasch7?
|
|

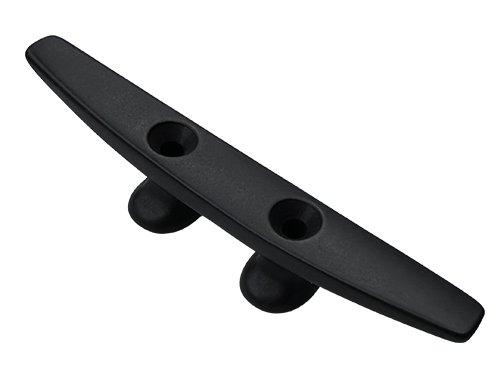

Spar Cleat - 7" long Kenyon: D-10327:
Cast Aluminum Spar Cleat is a low-profile design with a narrow base suitable
for use with line up to 5/8" diameter. Black Anodized Cleat is 7" long, and
fastens to spar with (2) 5/16" FH screws on 2 1/16" centers. |
|
|
|
Downhaul Cleats |
Downhaul Cleat Ass'y - 3 1/4" long: K-1108:
Aluminum Downhaul Cleat mounts in luff groove of Mast Sections with 1/2" (or larger) Boltrope
Groove. Unit consists of K-1617-1 3 1/4" Cleat mounted on a 3 1/2" length of
1/2" OD anodized Aluminum tube.
Tube slides into luff groove, screws are tightened to lock Cleat in desired position.
Long tube with off-center cleat prevents Gooseneck Slide from hitting Cleat. |
|
Downhaul Cleat Ass'y - 4" long: K-1414:
Aluminum Downhaul Cleat mounts in luff groove of Mast Sections with 1/2" (or larger) Boltrope
Groove. Unit consists of K-10324 4" Spar Cleat mounted on a 3 1/2" length of
1/2" OD anodized Aluminum tube.
Tube slides into luff groove, screws are tightened to lock Cleat in desired position.
Long tube with off-center cleat prevents Gooseneck Slide from hitting Cleat. |
|
