Bowsprit Poles & Fittings |
||
|
Modern Bowsprit Poles are used to extend the tack forward on asymmetric Spinnakers,
Gennakers, and Code Zero sails, most are extendable, allowing for a range of tack positions.
Many newer 'racing' boats are equipped with them from the factory, and have built in receptacles and
extension mechanisms for them. A large variety of Deck-mount Bowsprit Pole Assemblies have followed,
allowing their use on older Boats. Many modern Catamarans have a fixed, non-retractable Pole for
use with a Code Zero furler.
These are Not to be confused with Traditional Bowsprits which are permanent Spars, an integral part of the Rig, used to extend the attachment point of the Forestay or Headstay beyond the length of the Hull. As such, and under constant tension, they require a permanent opposing Bobstay and sometimes, Whisker Stays. Parts for tubular Bowsprits are listed here. For fittings for Traditional (non-tubular) Bowsprits, See: Stemheads for Bowsprits. See Also: Spinnaker Poles & Fittings Bowsprit Poles are commonly made from both Aluminum and Carbon tubes. Parts for both are listed here. Aluminum Tubes are (mostly) Standard Imperial and Metric Tube, Parts for them are sized by the Aluminum Tube OD. Carbon Tubes are commonly built on mandrels made from Standard Aluminum Tube and are measured by the Carbon Tube ID. |
||
|
|
||
| Deck-mount Bowsprit Pole Assemblies | ||
|
|
||
| Bowsprit Pole End Fittings | ||
|
|
||
|
Bowsprit Pole End Fittings for Aluminum Tube |
||

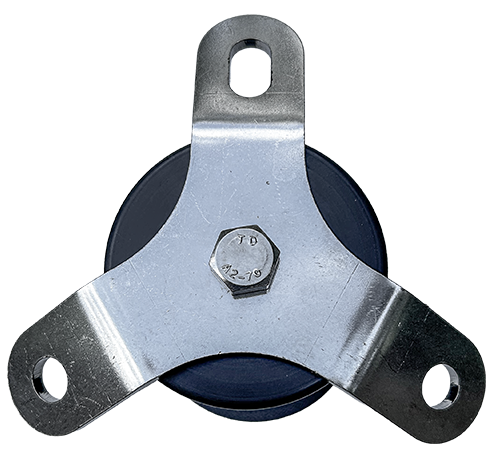

| Bowsprit Pole End Ass'y for 80mm OD Aluminum Tube: SPC BSM-80A: | ||
|
Black Delrin Bowsprit Pole End Assembly fits 80mm OD (76mm ID) Aluminum Tube.
Assembly includes a triangular SS plate with attachment holes. Delrin plug is 80mm OD and extends
25mm (1") into Bowsprit Pole.
|
|
|
|
|
||
| Bowsprit Pole End Fittings for Carbon Tube | ||

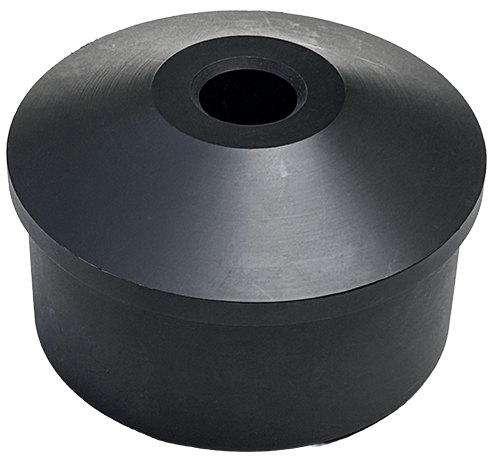

| Bowsprit Pole End for 3 1/2" ID Carbon Tube: HS PR-10157: | ||
|
Black Delrin Bowsprit Pole End fits 3 1/2" ID Carbon Tube.
Black Delrin unit is 3 3/4" OD for a (maximum) 3 1/2" ID Tube with a 3/4" (.760) center hole for
attachment of fittings. Unit is (maximum) 2 1/4" long and extends 3/4" beyond tube end.
|
|
|

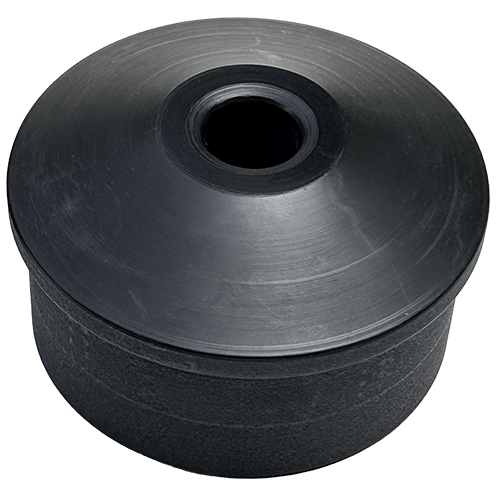

| Bowsprit Pole End for 95mm ID Tube: HS PR-10157-95: | ||
|
Black Delrin Bowsprit Pole End fits 95mm ID Carbon Tube.
Black Delrin unit is 102mm (4.1") OD for a (maximum) 95mm (3.74") ID Tube with a 3/4" (.760) center
hole for attachment of fittings. Unit is (maximum) 2 1/4" long and extends 3/4" beyond tube end.
|
|
|

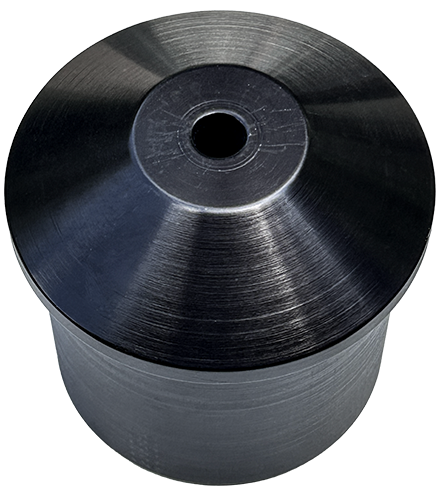

| Bowsprit Pole End for 4 1/4" OD Tube, Aluminum: HS PR-11303-2A: | ||
|
Machined Aluminum Bowsprit Pole End fits 3 3/4" ID / 4 1/4" OD Tube.
Black Hardcoat anodized unit is 4 1/4" 4.212" 107mm OD for a (maximum) 3 3/4" 3.735" 95mm ID Tube
with a 12mm (.485") center hole for attachment of fittings.
Unit is (maximum) 102mm (4") long and extends 22mm beyond tube end.
|
|
|
