Mast Steps, or Mast Feet, are used on Deck or Keel to secure the base of the Mast.
Mast Steps are usually bolted through the Deck, or into the Keel.
Some Deck Steps incorporate a means of attaching Turning Blocks for Halyards and other Control lines.
Some Keel Steps incorporate a means of attaching various Tie Rods or Deck Tie-down
Turnbuckles, attaching to the Deck or Deck Collar, to prevent Deck rise due to Rig Tension. See, also Deck Collars, Mast Wedges, Mast Boots, and the unrelated, but oft-confused, Mast Stairs, for climbing. Rig-Rite stocks a wide selection of Mast Steps originally supplied by a variety of Manufacturers, as noted below, and is able to supply any type of Custom Mast Step, as required. Kenyon Mast Steps are listed by specific Mast Section, See
Kenyon Mast Sections.
Special Mast Steps, for Sections
not listed elsewhere on-site are shown below. If you require a Mast Step Not listed here, please forward details on
your Mast Section, See: Identifying
your Spar Section.
We will also need measurements, and full details of the part, boat model and year.
If an original Step is not available, we are able to supply any type of
Custom Mast Step, as noted below. Mast Step Hinge Plates are available separately, See: Mast Step Hinge Assemblies. Turning Blocks to attach to standard Mast Steps Bails are available, See:
Mast Step / Deck Collar Turning Blocks. |
|
|
|
Special Mast Steps
Mast Steps for Sections not listed elsewhere on-site are shown below. |
||
|
Annapolis Spars Mast Steps |
||
|
Mast Step for Annapolis Spars 7446 Section: AS 7446-MS:
Cast Aluminum Mast Step for use with Annapolis Spars 7446 Mast Section. Oval Mast Section is 7 3/8" x 4 9/16", Mast Step is 7 3/8" long x 4 5/8" wide with NO holes for attachment. Unit is marked 17446.
|
|
|
|
Mast Step for Annapolis Spars 8553 Section: AS 8553-MS:
Cast Aluminum Mast Step for use with Annapolis Spars 8553 Mast Section. Oval Mast Section is 8 1/2" x 5 1/4", Mast Step is 8 1/2" long x 5 1/4" wide with NO holes for attachment. Unit is marked 18553.
|
|
|
|
|
||
|
Columbia Yachts Mast Steps |
||
| Mast Step for Columbia 6" x 4" Oval Section: Col 6040M-S: | ||
|
Cast Aluminum Mast Step for use with Columbia Yachts 6" x 4" Oval Mast Section. Anodized, Oval
Deck-mounted Mast Step is 6 1/4" long x 4 1/4" wide and attaches to deck with (4) 1/4" screws on
2 1/2" x 1 1/2" centers. Unit features drainage slots, 2" x 1" center slot, and is marked 50-623.
As used on a variety of Columbia's.
|
|
|
| Mast Step for Columbia 7 1/4" x 4 1/2" Oval Section: Col 7245M-DS: | ||
|
Cast Aluminum Mast Step for use with Columbia Yachts 7 1/4" x 4 1/2" Oval Mast Section.
Anodized, Oval Deck-mounted Mast Step is 7 7/16" long x 4 9/16" wide and attaches to
deck with (4) 1/4" screws on 3" x 2" centers. Unit features drainage slots and 1" center hole.
As used on a variety of Columbia's.
|
|
|
| Keel Step for Columbia 7 1/4" x 4 1/2" Oval Mast Section: Col 7245M-KS: | ||
|
Cast Aluminum Mast Step for use with Columbia Yachts 7 1/4" x 4 1/2" Oval Mast Section.
Anodized, Rectangular Keel-mounted Mast Step is 8 1/2" long x 6 7/8" wide and attaches to Keel
with (2) 1/2" bolts, and (2) 5/16" screws in 2 1/4" long slots. Unit features
drainage slots, 2 1/4" x 1 1/2" center slot, and is marked 50-623.
As used on some Columbia 9.6, 32, 32.7, and others.
|
|
|
| Keel Step for Columbia 8 1/2" x 5 3/4" Oval Mast Section: Col 8557M-KS: | ||
|
Cast Aluminum Mast Step for use with Columbia Yachts 8 1/2" x 5 3/4" Oval Mast Section.
Anodized, Rectangular Mast Step is 11" long x 6 7/8" wide and attaches to Keel with (4) 1/4" bolts in
1" long slots. Unit is marked 51/133. As used on a variety of Columbia's.
mms
|
|
|
| Keel Step for Columbia 391 Mast Section: Col 391-KS: | ||
|
Aluminum Mast Step for use with Columbia Yachts Mast Section. Rectangular Keel-mounted Mast Step is
9 3/8" long x 6" wide and attaches to Keel with (4) 1/2" bolts in 1 3/4" long slots. Welded Mast Step
has Black epoxy coating. As used on Columbia 391, and others.
|
|
|
|
|
||
|
Famet Mast Steps |
||
|
Mast Step for Famet 4530 Section: Fam 4530M-MS: Cast Aluminum Mast Step for Famet 4530 (4 1/2" x 3") Flat Oval Mast Section. Mast Step measures 4 1/2" long x 3" wide x 1 1/4" high, with NO holes for attachment. Cast in 356 Aluminum with anodized finish. As used on Balboa, Columbia 22, Ensenada 20, Morgan 22, and others.
|
|
|
| Hinged Mast Step Ass'y for Famet 4530 Section: Fam 4530M-MSH: | ||
|
Hinged tabernacle assembly for Famet 4530 section allows for easy mast-stepping. Consists of
Fam 4530M-MS Mast Step casting bolted to
K-1374 Mast Hinge Assembly.
When replacing the original 2-piece Aluminum Tabernacle used on Balboa, Ensenada 20, and others, a 1/2" Spacer,
K-1374S-.5, (below) is required to maintain original Mast height.
|
||
|
1/2" Riser for K-1374 Hinged Mast Plate: K-1374S-.5:
Spacer Plate or Riser for K-1374 Hinged Mast Plate Assembly is 1/2" thick, and fits under Bottom Hinge plate to increase Mast height by 1/2" or multiples of 1/2". Useful where mast needs to be cut, or as an easy way to solve rigging stretch problems. High-density Plastic Spacer Plate is 6 1/2" long x 3 3/4" wide x 1/2" thick, and is drilled to match the K-1374 Bottom Plate (K-9517).
|
||
|
Mast Step for Famet 5032 Section: Fam 5032M-MS:
Cast Aluminum Mast Step for Famet 5032, L-106 (5" x 3 1/4") Flat Oval Mast Section. Mast Step is 5" long x 3 1/2" wide x 1 1/4" high, with NO holes for attachment. Cast in 356 Aluminum with anodized finish.
|
||
| Hinged Mast Step Ass'y for Famet 5032 Section: Fam 5032M-MSH: | ||
|
Hinged tabernacle assembly for Famet 5032 section allows for easy mast-stepping. Consists of Fam 5032M-MS
Mast Step casting bolted to
K-1374 Mast Hinge Assembly.
|
||
|
Mast Step for Famet 6535 Section: Fam 6535M-MS: Cast Aluminum Mast Step for Famet 6535 (6 1/2" x 3 1/2") Flat Oval Mast Section. Mast Step measures 6 5/8" long x 3 5/8" wide x 1 1/4" high, with NO holes for attachment. Cast in 356 Aluminum with anodized finish. FM-1
|
|
|
|
|
||
|
Forespar Mast Steps |
||
| Mast Step for Forespar 6210 Section: For 6210M-DS: | ||
|
Mast Step for Forespar 6210 Mast Section (10" x 6 1/4") fastens to deck, keel or keelson with (4) 3/8" bolts in
internal adjustment slots to allow for precise positioning. Mast Step is 10 1/2" long x 6 7/8" wide,
slots allow for 1" fore and aft adjustment. Slot centers are 2 1/4" athwartships, and 4" fore & aft,
unit has 1 1/4" Center hole. Part is marked Forespar 6210 and 831253.
Cast in 356 Aluminum with anodized finish.
|
||
|
|
||
|
Hall Spars / Schaefer Spar Mast Steps |
||
| J/22 Mast Step Ass'y, w/o SS Plate, Hall 095: HS PR-7626A: | ||
|
Mast Step Assembly for Hall Spars 095 Mast Section (3.75 x 2.75) fastens to various SS plates w/ (4) 3/8" bolts.
New-style Assembly includes sheaves with removable Axles and Cover Plates, and SS Vang Bail.
Mast Step Base is 6 1/2" long x 4" wide, Casting is marked Hall Spars.
Cast in 356 Aluminum with anodized finish. As used on J/22.
|
||
|
J/22 Mast Step Casting Only, Hall 095: HS PR-7626:
New-style J/22 Mast Step Casting Only has tapped holes for Sheave Cover Plates (w/ new removable Axles), and hole for SS Vang Bail. Mast Step Casting Only for Hall Spars 095 Mast Section (3.75 x 2.75) fastens to various SS plates w/ (4) 3/8" bolts. Cast in 356 Aluminum with anodized finish. As used on J/22.
|
|
|
| Keel Step for Hall Spars 128 Mast Section: HS 128M-KS: | ||
|
Mast Step for Hall Spars 128 Mast Section (5" x 3.2") fastens to keel or keelson w/ (4) 3/8"
bolts in external adjustment slots to allow for precise positioning without unsteping the mast.
Mast Step measures 9" long x 3 1/2" wide, slots allow for 1" fore & aft adjustment.
Slot centers are 1 5/8" athwartships, & 7" fore & aft. Part is marked Hall Spar 8129.
Cast in 356 Aluminum with anodized finish. As used on J/27, Alerion 28, & others.
PR8096 / PR8129
|
|
|
| Keel Step for Hall Spars 152 Mast Section: HS 152M-KS: | ||
|
Mast Step for Hall Spars 152 Mast Section (6" x 4") fastens to keel or keelson with (4) 3/8" bolts in
external adjustment slots to allow for precise positioning without unstepping the mast. Mast Step
measures 9 3/8" long x 4 3/8" wide, slots allow for 1 1/2" fore and aft adjustment. Slot centers are
3 3/8" athwartships, and 7" fore & aft, unit has 1 1/2" Center hole. Cast in 356 Aluminum with
anodized finish. As used on J/28, and others.
PR7189
|
|
|

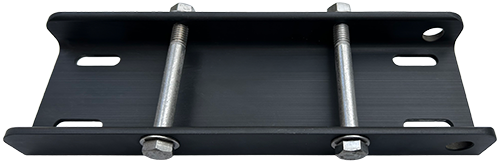

| Keel Step Base Plate - Special for Mumm 30: HS PR-Mumm30-KSP: | ||
|
Special Base Plate for Mumm 30 attaches to keel and receives Plug attached to Carbon Mast.
Extruded Aluminum Channel Plate attaches to keelson with (4) 5/16" bolts in
external adjustment slots to allow for precise positioning without unstepping the mast.
Hardcoat anodized unit is 9 3/4" long x 3" wide, slots allow for 1" fore and aft adjustment. Slot centers
are 1 3/4" athwartships, and 7 3/4" fore & aft, unit includes (2) 3/8" SS bolts to secure Mast.
As used on Mumm 30 (Farr 30).
|
||
| Keel Step for Hall Spars 166 Mast Section: HS 166M-KS: | ||
|
Mast Step for Hall Spars 166 Mast Section (6.50" x 4") fastens to keel or keelson with (4) 3/8" bolts
in external adjustment slots to allow for precise positioning without unstepping the mast.
Mast Step measures 7 1/2" long x 6" wide, slots allow for 2" fore and aft adjustment. Slot centers
are 5" athwartships, and 4 1/2" fore & aft. Part is marked PR 8322.
Cast in 356 Aluminum with anodized finish. As used on Frers 33, J/34, J/105, and others.
|
|
|
| Mast Step for Hall/ Schaefer Spars 180, 181, 185 Sections: Sch 55-19X: | ||
|
Mast Step for Schaefer Spars 180 Mast Section (7 1/8" x 4 1/2") fastens to deck with (4) 1/4" bolts
in internal adjustment slots to allow for precise positioning. Mast Step is (maximum) 7 7/8"
long x 5 1/4" wide, slots allow for 1" fore and aft adjustment. Slot centers are 2" athwartships,
and 3" fore & aft, unit has 1 1/2" Center hole. Cast in 356 Aluminum with anodized finish.
As used on some Columbia 27.9, 9.6, Tartan 33's, and others.
|
 |
|
| Keel Step for Hall/ Schaefer Spars 180, 181, 185 Mast Sections: Sch 55-20X: | ||
|
Mast Step for Schaefer Spars 180 Mast Section (7 1/8" x 4 1/2") fastens to keel or keelson with
(4) 3/8" bolts in external adjustment slots to allow for precise positioning without unstepping the mast.
Mast Step measures 9 1/2" long x 5 5/8" wide, slots allow for 1" fore and aft adjustment.
Slot centers are 4 5/16" athwartships, and 7 1/4" fore & aft, unit has 1 1/2" Center hole.
Cast in 356 Aluminum with anodized finish.
|
|
|
| Mast Step for Hall/ Schaefer Spars 200 Section: Sch 55-22X: | ||
|
Mast Step for Schaefer Spars 200 Mast Section (7.685" x 4.86") fastens to deck with (4) 3/8" bolts in
internal adjustment slots to allow for precise positioning. Mast Step is (maximum) 8 1/2" long x
5 9/16" wide, slots allow for 1" fore and aft adjustment. Slot centers are 1 3/4" (fwd.) and 2" (aft)
athwartships, and 3" fore & aft, unit has 1 1/2" Center hole. Part is marked 55-22 and SEC 200.
Cast in 356 Aluminum with anodized finish.
As used on some Columbia 29.9's, and others. 60-082 PF
|
|
|
| Keel Step for Hall/ Schaefer Spars 200 Mast Section: Sch 55-23X: | ||
|
Mast Step for Schaefer Spars 200 Mast Section (7.685" x 4.86") fastens to keel or keelson with
(4) 3/8" bolts in external adjustment slots to allow for precise positioning without unstepping the mast.
Mast Step measures 10" long x 7 1/4" wide, slots allow for 1" fore and aft adjustment. Slot centers are
6" athwartships, and 7 3/4" fore & aft, unit has 1 1/2" Center hole. Part is marked 55-23 and SEC 200.
Cast in 356 Aluminum with anodized finish. As used on some San Juan 34's, and others.
60-084
|
|
|

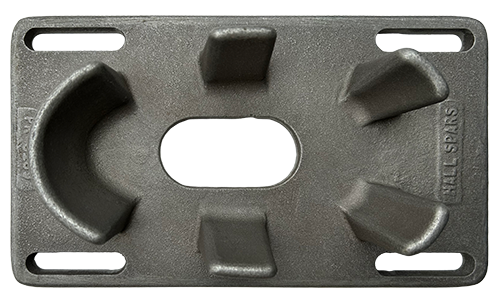

| Keel Step for Hall/ Schaefer Spars 205 Mast Section: HS PR-8169: | ||
|
Mast Step for Schaefer Spars 205 Mast Section (8.06" x 4.88") fastens to deck or keel
with (4) 3/8" bolts in external adjustment slots to allow for precise positioning without
unstepping the mast. Mast Step is (maximum) 10 1/2" long x 6" wide, slots allow for
2" fore and aft adjustment. Slot centers are 4 7/8" athwartships, and 7 1/2"
fore & aft. With 1 1/2" x 3" Center slot. Cast in 356 Aluminum with anodized finish.
As used on Sabre 38 and others.
|
||
| Mast Step for Hall/ Schaefer Spars 220, 221 Sections: Sch 56-94X: | ||
|
Mast Step for Schaefer Spars 220 Mast Section (8.55" x 5.40") fastens to deck or keel
with (4) 3/8" bolts in internal adjustment slots to allow for precise
positioning. Mast Step is (maximum) 9 3/8" long x 5 15/16" wide, slots allow for
1" fore and aft adjustment. Slot centers are 2 1/2" athwartships, and 4 1/8"
fore & aft. With 1 1/2" Center hole. Cast in 356 Aluminum with anodized finish.
MMM SLC
|
|
|
| Mast Step for Hall/ Schaefer Spars 230, 231 Sections: Sch 56-96X: | ||
|
Mast Step for Schaefer Spars 230 Mast Section (9.233" x 5.82") fastens to deck or keel
with (4) 1/2" bolts in internal adjustment slots to allow for precise
positioning. Mast Step is (maximum) 10" long x 6 5/8" wide, slots allow for
1" fore and aft adjustment. Slot centers are 2 1/4" athwartships, and 4 1/4"
fore & aft. With 1 1/2" Center hole. Cast in 356 Aluminum with anodized finish.
|
||
| Mast Step for Hall/ Schaefer Spars 240 Section: Sch 56-98X: | ||
|
Mast Step for Schaefer Spars 240 Mast Section (9.91" x 6.20") fastens to deck or keel
with (4) 1/2" bolts in internal adjustment slots to allow for precise
positioning. Mast Step is (maximum) 10 5/8" long x 7 1/16" wide, slots allow for
1" fore and aft adjustment. Slot centers are 2 3/4" athwartships, and 4 3/4"
fore & aft. With 1 1/2" Center hole. Cast in 356 Aluminum with anodized finish.
|
|
|
| Keel Step for Hall/ Schaefer Spars 240 Mast Section: Sch 56-99X: | ||
|
Mast Step for Schaefer Spars 240 Mast Section (9.91" x 6.20") fastens to keel or keelson with
(4) 1/2" bolts in external adjustment slots to allow for precise positioning without unstepping the mast.
Mast Step is (maximum) 13" long x 9" wide, slots allow for 1 1/2" fore and aft adjustment.
Slot centers are 7 1/2" athwartships, and 10" fore & aft. With 1 1/2" Center hole.
Cast in 356 Aluminum with anodized finish. As used on some Gulfstar 44's, and others.
|
||
| Keel Step for Hall Spars 9641, 9642 Mast Sections: HS 9641M-KS: |
Mast Step for Hall Spars 9641 and 9642 Mast Sections fastens to keel or keelson with (4) 1/2" bolts
in external adjustment slots to allow for precise positioning without unstepping the mast.
Mast Step is 12 1/2" long x 7" wide, slots allow for 2" fore and aft adjustment. Slot centers
are 5 1/2" athwartships, and 9" fore & aft. Part is marked Hall Spar 9641 9642.
Cast in 356 Aluminum with anodized finish.
|
|
|
|
||
|
Hood Spars Mast Steps |
||
| Mast Step for Hood Stoway 9555 Section: Hood Stow9555-MS: | ||
|
Mast Step for Hood Stoway 9555 Section (9 1/2" x 5 1/2"). Cast Aluminum Mast Step is (maximum) 10 1/2"
long x 6 1/2" wide x 1 3/4" high with 1 1/4" ID Electrical stand pipe and Black anodized finish.
Marked 6271-004.
|
||
| Mast Step for Hood Stoway 1267 Section: Hood Stow1267-MS: | ||
|
Mast Step for Hood Stoway 1267 Section (12.3" x 6.75"). Cast Aluminum Mast Step is (maximum) 14 1/2"
long x 11 7/8" wide x 2 1/2" high with 1 1/2" ID Electrical stand pipe hole (3 1/2" high) and anodized finish.
Unit mounts with 1/2" bolts in (4) 9/16" x 3" slots on 10 1/4" athwartships centers x 8 1/2" fore & aft centers.
Marked HYS 6161 04.
|
||
|
|
||
|
MetalMast Marine Mast Steps |
||

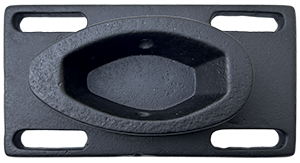

| Mast Step for MetalMast 6035 Teardrop Section: MM 6035M-S1T: | ||
|
Mast Step for MetalMast 6035 Teardrop Mast Section (6" x 3 1/2") has (2) Tenons (1 1/8" square x
1 1/8" deep) to fit in special deck receiver. Cast Aluminum Mast Step is (maximum) 6" long x 3 1/2"
wide with clear anodized finish. As used on Pearson Ariel, Commander, Renegade, Triton, and others.
|
|
|
| Mast Step for MetalMast 6641 Oval Section: MM 6641M-S1: | ||
|
Mast Step for MetalMast 6641 Oval Mast Section (6.62" x 4.12") is undrilled to adapt to any mounting
hole configuration. Cast Aluminum Mast Step is (maximum) 6 1/4" long x 4 1/8" wide with Light Gray
Awlgrip finish. As used on Pearson 26, Pearson 365K and 424K Mizzen Masts, and others.
|
||
| Mast Step for MetalMast 6641 Oval Section: MM 6641M-S2: | ||
|
Mast Step for MetalMast 6641 Oval Mast Section (6.62" x 4.12") fastens to keel or deck with (2) 3/8" bolts
on 3 1/2" centers. Welded Aluminum Mast Step is (maximum) 8 1/4" long x 5 5/8" wide with clear anodized finish.
Replaces earlier Cast version.
|
||
| Mast Step for MetalMast 6641 Oval Section: MM 6641M-S26P: | ||
|
Mast Step for MetalMast 6641 Oval Mast Section (6.62" x 4.12") fastens to deck with (2) 5/16" bolts
on 3 7/8" centers. Cast Aluminum Mast Step is (maximum) 7" long x 4 1/2" wide with clear
anodized finish. Unit is marked P-26. As used on Pearson 26, and others.
Fits MM 6641 Mast Section, and other variations of this section.
PP-22184?
|
|
|
| Keel Step for MetalMast 7041 Teardrop Section, Pearson 28: MM 7041M-SKP: | ||
|
Mast Step for MetalMast 7041 Teardrop Mast Section (7" x 4.11") fastens to keel or keelson with (2)
3/8" bolts on 8 1/4" centers. Mast Step is (maximum) 10" long x 4 3/8" wide. Cast in 356 Aluminum,
fully machined with a clear anodized finish. As used on earlier Pearson 28, and others.
PP-2185X, A-9711
|
|
|
| Keel Step for MetalMast 7244 Oval Section, Pearson 28-2: MM 7244M-SKP: | ||
|
Mast Step for MetalMast 7244 Oval Mast Section (7.31" x 4 1/2") fastens to keel or keelson with (2)
3/8" bolts on 8 3/4" centers. Mast Step is (maximum) 10 1/2" long x 4 3/4" wide. Cast in 356 Aluminum,
fully machined with a clear anodized finish. Unit is marked P-28. Can be modified for use as Deck Step,
as on Bristol 28, 29.9 and others. As used on Pearson 28-2.
PP-2185, A-10264
|
|
|
| Keel Step w/ Riser for MetalMast 7244 Oval Section - Special: MM 7244M-SKP-R4: | ||
|
Mast Step for MetalMast 7244 Oval Mast Section (7.31" x 4 1/2") with Custom 4" Riser fastens to keel or
keelson with (2) 3/8" bolts on 8 3/4" centers. Custom Riser is welded from 6061-T6 Aluminum Plate with
a clear anodized finish and is designed to fit footprint of MM 7244M-SKP Mast Step.
Shown at 4" high, but Riser can be made in any height to allow for trimming of corroded Mast bottom.
|
|
|
| Mast Step for MetalMast 7845 Teardrop Section: MM 7845M-S1: | ||
|
Mast Step for MetalMast 7845 (-1 & -2) Teardrop Mast Sections (7.8" x 4.51") fastens to keel or deck
with (2) 3/8" bolts on 3 1/4" centers. Welded Aluminum Mast Step is (maximum) 8 3/8" long x 5 5/8" wide
with clear anodized finish. Replaces earlier Cast version.
|
|
|
| Domed Mast Step Plug for MetalMast 7845-1 Teardrop Section: MM 7845M-1DP: | ||
|
Domed Mast Step Plug for MetalMast 7845-1 (w/ 1 wiring groove) Mast Section (7.8" x 4.51")
fastens to mast with (4) 1/4" screws. Anodized, cast Aluminum Mast Plug is (maximum) 8" long x
4 5/8" wide, with 1" center hole. As used on a variety of Bristol and Pearson Yachts.
|
||
| Domed Mast Step Plug for MetalMast 7845-2 Teardrop Section: MM 7845M-2DP: | ||
|
Domed Mast Step Plug for MetalMast 7845-2 (w/ 2 wiring grooves) Mast Section (7.8" x 4.51")
fastens to mast with (4) 1/4" screws. Anodized, cast Aluminum Mast Plug is (maximum) 8" long x
4 5/8" wide, with 1" center hole. As used on a variety of Bristol and Pearson Yachts.
|
|
|
| Deck Receiver Plate for Domed Mast Plug: MM 7845M-DPR: | ||
|
Oval Deck Step receiver for Domed Mast Step Plug is (maximum) 9 5/8" long x 6" wide x 2" high,
with 1" center hole. Anodized casting has no fastener holes but was originally attached with
(6 or 8) 1/4" FH screws in various patterns. As used on a variety of Bristol Yachts and
Pearson 30, 33, 35, and others.
|
|
|
| Mast Step for MetalMast 8348 Teardrop Section: MM 8348M-S1RR: | ||
|
Mast Step for MetalMast 8348 Teardrop Mast Section (8.3" x 4.81") fastens to
keel or deck and is undrilled to adapt to any mounting hole configuration.
Cast Aluminum Mast Step is (maximum) 9 3/16" long x 5 13/16" wide with unfinished surface.
RR
|
|
|
| Keel Step for MetalMast 8348 Teardrop Mast Section: MM 8348M-MSK-P1: | ||
|
Aluminum Keel-mount Mast Step for MM 8348 Mast replaces Steel original, as used on
(some) Pearson 365's. Anodized aluminum Mast Step is 15" long x 6 1/2"
wide, with (4) 7/8" x 2 1/2" slots on 3 5/8" centers and 7/16" bridged hole for deck tie down rod.
As original Steel Steps varied widely, mounting may require new holes.
Similar to SS 8755M-MSK-P1 as pictured here. As used on Pearson 365 and others.
|
|
|
| Mast Step for MetalMast 8655 Oval Section: MM 8655M-S1RR: | ||
|
Mast Step for MetalMast 8655 Oval Mast Section (8.6" x 5.5") fastens to keel or deck with (4) 1/4"
screws on 7 1/2" x 4 3/4" centers. Cast Aluminum Mast Step is (maximum) 9 1/2" long x 6 3/4" wide
with clear anodized finish.
|
|
|
|
|
||
|
Sound Spar Mast Steps |
||
|
Mast Step for Sound Spar 7747 Section: SS 7747M-S1:
Cast Aluminum Mast Step for use with Sound Spar 7747 Mast Section. Oval Mast Section is 7 3/4" x 4 3/4", Mast Step is 7 3/4" long x 4 3/4" wide and attaches to deck or keel with (2) 3/8" bolts in 1 1/2" long slots on 4" centers. As used on Pearson 32, 323; Tartan 30, and others.
|
|
|
| Keel Step for Sound Spar 7747 Mast Section: SS 7747M-MSK-P1: | ||
|
Aluminum Keel-mount Mast Step for Sound Spar SS 7747 Mast (7 3/4" x 4 3/4") replaces Steel original,
as used on (some) Pearson 323's. Anodized aluminum Mast Step is 15" long x 6 1/2" wide, with (4)
1/2" x 2 3/8" slots on 4 1/2" centers and 7/16" bridged hole for deck tie down rod.
As original Steel Steps varied widely, mounting may require new holes. Similar to
SS 8755M-MSK-P1 as pictured here. As used on Pearson 323 and others.
|
|
|
|
Mast Step for Sound Spar 8755 Section: SS 8755M-S-T37:
Cast Aluminum Mast Step for use with Sound Spar 8755 Mast Section. Oval Mast Section is 8 3/4" x 5 1/2", Mast Step is 11 1/4" long x 7 1/8" wide and attaches to keel with (4) 1/4" bolts in 3 1/4" long slots on 6", and 3 1/4" centers. Unit features drainage slots, 4" x 1 1/2" center slot, and is marked AMS.9877. As used on some Tartan 37's. ****
|
|
|
| Keel Step for Sound Spar 8755 Mast Section: SS 8755M-MSK-P1: | ||
|
Aluminum Keel-mount Mast Step for Sound Spar SS 8755 Mast (8 3/4" x 5 1/2") replaces Steel original,
as used on (some) Pearson 424's. Anodized aluminum Mast Step is 15" long x 6 1/2"
wide, with (4) 1/2" x 2 3/8" slots on 4 1/2" centers and 7/16" bridged hole for deck tie down rod.
As original Steel Steps varied widely, mounting may require new holes.
As used on Pearson 424, 10M, and others.
|
|
|
|
|
||
|
Sparcraft (California) Mast Steps |
||
|
Mast Step for Sparcraft (CA) S-108 Mast Section: SPC S-108MS: Cast Aluminum Mast Step for use with Sparcraft (California) S-108 Mast Section. S-108 Flat-sided Oval Mast Section is (maximum) 4 1/2" long x 3" wide. As used on Ensenada 20, Col 22, and others.
|
||
| Mast Step for Sparcraft (CA) S-107 Section: SPC S-107MS: | ||
|
Cast Aluminum Mast Step for use with Sparcraft (California) S-107 Mast Section.
S-107 Teardrop-shaped Mast Section is (maximum) 5 5/8" long x 4" wide.
As used on Ericson 27, and others.
|
|
|
|
|
||
|
Custom Mast Steps Custom Mast Steps are available in any number of varieties and materials. Common arrangements are detailed below, or specify any other configuration. We now commonly make Custom Aluminum Keel-mounted Mast Steps, with an integral Riser (of varying heights). For older Rigs with corrosion problems, this allows the removal of the bottom several inches of Mast Section without affecting Rig height.
|
||
|
Custom Mast Step, Aluminum: RR MS-CustomD-__: Simple Custom Aluminum Deck-mount Mast Step. For Quotation, Specify Mast Section, fastener size and spacing, and other requirements.
|
||
|
Custom Keel-mount Mast Step, Aluminum: RR MS-CustomK-__: Custom Aluminum Keel-mount Mast Step. For Quotation, Specify Mast Section, and other requirements. Design is similar to NG70-1SK, as pictured here and as used on Pearson 422 and others.
|
|
|
| Custom Keel-mount Mast Step w/ Riser, Aluminum: RR MS-CustomD-KR-__: | ||
|
Custom Aluminum Keel-mount Mast Step with Riser. For Quotation, Specify Mast Section, and other requirements.
Commonly used on replacements for original Pearson Steel Mast Steps, where corrosion forces removal of several
inches of Mast Section. Design is similar to custom Kenyon 6092 Mast Step as pictured here.
|
|
|
|
|
|
|
Mast Step - Keel Base Plate Adapters Mast Step Base Plate Adapters are used to adapt a standard Mast Step for use in an externally adjustable Keel-stepped application. Standard items are detailed below, any others are available on a Custom basis, please supply details.
|
|
|
Mast Step Base Plate Adapter - 8 1/2" x 5": K-10868KP: Mast Step Base Plate Adapter converts standard mast step for use with external adjustment screws, on keel-stepped rigs. Fastens with (2) 5/16" FH screws in standard holes of E, 2740, 3049, 3350, 3550, 3656, and other Kenyon mast steps. Allows for precise positioning without unstepping the mast. Anodized aluminum plate is 5/16" thick, and measures 8 1/2" long x 5" wide. Fastens to keelson with (4) 3/8" bolts in Slots that allow for 1 1/2" adjustment. Slot centers are 3 5/8" athwartships, and 5 3/4" fore & aft. As used on Wavelength 24, and others.
|
|
|
Mast Step Base Plate Adapter - 9 1/4" x 5 1/2": K-11780:
Mast Step Base Plate Adapter converts standard mast step for use with external adjustment screws, on keel-stepped rigs. Fastens with (4) 3/8" FH screws in internal adjustment slots of 4066 mast step, K-11451. Allows for precise positioning without un-stepping the mast. Anodized aluminum plate is 5/16" thick, and measures 9 1/4" long x 5 1/2" wide. Fastens to keelson with (4) 3/8" bolts in Slots that allow for 1 1/8" adjustment. Slot centers are 4 1/4" athwartships, and 7" fore & aft. As used with Kenyon 4066 Mast, and others.
|
|
|
Mast Step Base Plate Adapter - 10 1/2" x 6": K-11824: Mast Step Base Plate Adapter converts standard mast step for use with external adjustment screws, on keel-stepped rigs. Fastens with (4) 3/8" FH screws in internal adjustment slots of 4270, and 4477 mast steps. Allows for precise positioning without un-stepping the mast. Anodized aluminum plate is 3/8" thick, and measures 10 1/2" long x 6" wide. Fastens to keelson with (4) 3/8" bolts in Slots that allow for 1 1/4" adjustment. Slot centers are 4 3/4" athwartships, and 8 1/8" fore & aft. As used with Kenyon 4270 and 4477 Masts, and others, and on Schock 35 and Wavelength 35, and others.
|
|
|
Mast Step Base Plate Adapter - 11" x 7": K-11305: Mast Step Base Plate Adapter converts standard mast step for use with external adjustment screws, on keel-stepped rigs. Fastens with (4) 3/8" FH screws in internal adjustment slots of 4873 mast step, K-10942. Allows for precise positioning without un-stepping the mast. Anodized aluminum plate is 1/4" thick, and measures 11" long x 7" wide. Fastens to keelson with (4) 3/8" bolts in Slots that allow for 2" adjustment. Slot centers are 5 1/2" athwartships, and 7 1/2" fore & aft. As used with Kenyon 4873 Masts, and others, and on early Pearson 303, and others. |
|
~ Home ~
