| Outhaul Slides & Cars for Booms w/ an Integral
Track For Boltrope Groove For 3/4" Internal Flat Track For 7/8" Internal Flat Track For 15/16" Internal Flat Track For 1" Internal Flat Track Outhaul Cars for Isomat, Sparcraft & Francespar Booms Outhaul Slides for Isomat, Sparcraft & Francespar Booms See also: Outhaul Slides & Cars for Booms with an Add-on Track |
|
|
|
|
| Outhaul Slides for Boltrope Groove | |
|
Simple Outhaul Slide for Boltrope Groove: Sch 95-02X:
Simple SS Outhaul Slide has formed body and 1/4" welded loop with 3/4" ID for attachment of clew and outhaul pennant. Slide fits Kenyon B, D, and E Boom Sections, and other Boom Sections with a boltrope groove that is 9/16" ID or larger. Slide is 1 1/2" long x (maximum) 1 5/8" high. # sc254
|
 |
| Low-profile Outhaul Slide for Boltrope Groove: PP 95-03BE: | |
|
Heavy-duty Cast Bronze Outhaul Slide has slot (7/8" x 3/16") for attachment of webbing or
shackle, and black epoxy coating to reduce friction. Slide fits all Boom Sections with a
boltrope groove that is 1/2" ID or larger. Slide is 3" long x (maximum) 1 1/16" high.
|
 |
|
Outhaul Slide for Boltrope Groove: RR 95-05:
Simple SS Outhaul Slide features welded Tab with 3/8" x 1" slot for attachment of clew shackle and outhaul pennant or block. Slide fits all Boom Sections with a boltrope groove that is 9/16" ID or larger. Slide is 2 3/4" long x (maximum) 1/2" wide and 1 1/2" high.
|
 |
|
Outhaul Slide for Boltrope Groove: Sch 95-11X: Simple SS Outhaul Slide features welded triangular Tab with 3/8" hole for clew attachment and welded eye for attachment of outhaul pennant. Slide fits all Boom Sections with a boltrope groove that is 9/16" ID or larger. Slide is 2 1/2" long x (maximum) 1/2" wide and 2" high.
|
 |
| Outhaul Slide w/ Key Pin for Boltrope Groove: Sch 95-22X: | |
|
Light-duty Outhaul Slide features channel with 1/4" captive Key Pin for clew
attachment, and a welded SS Eye for attachment of Outhaul line or Block.
Slide body is formed SS with welded Eye and 1/2" ID channel for Clew. Slide
fits all Boom Sections with a boltrope groove that is 7/16" ID or larger.
Slide is 2 1/2" long x (maximum) 3/4" wide and 2" high.
|
 |
|
Outhaul Slide w/ Key Pin for Boltrope Groove: Sch 95-21X: Light-duty Outhaul Slide features channel with 1/4" captive Key Pin for clew attachment, and a welded SS Eye for attachment of Outhaul line or Block. Slide body is formed SS with welded Eye and 1/2" ID channel for Clew. Slide fits all Boom Sections with a boltrope groove that is 9/16" ID or larger. Slide is 2 1/2" long x (maximum) 5/8" wide and 2 5/8" high. ***
|
 |
|
Outhaul Slide w/ Sheave for Boltrope Groove: Sch 95-52X: Outhaul Slide features welded eye for clew attachment, and 3/4" diameter SS Sheave for a 2-part purchase using up to a 1/8" wire pennant. When additional purchase is not desired, sheave can be used for direct attachment of outhaul pennant. Slide body is formed SS with welded sheave cage and welded Eye for Clew. Slide fits all Boom Sections with a boltrope groove that is 9/16" ID or larger. Slide is 2 1/2" long x 3/4" wide, and 2 1/2" (maximum) high.
|
|
| Outhaul Slide w/ Sheave for Boltrope Groove: Sch 95-53X: | |
|
Outhaul Slide features channel with 1/4" captive Key Pin for clew attachment, and
3/4" diameter SS Sheave for a 2-part purchase using up to a 1/8" wire pennant. When additional
purchase is not desired, sheave can be used for direct attachment of outhaul pennant. Slide body
is formed SS with welded sheave cage and 5/8" ID channel for Clew. Slide fits all Boom
Sections with a boltrope groove that is 9/16" ID or larger. Slide is 2 1/2"
long x 3/4" wide, and 2 1/2" (maximum) high.
|
 |
| Bronze Outhaul Slide for Boltrope Groove w/ wire ball Attachment: Fam 3159: | |
|
Heavy-duty Cast Bronze Outhaul Slide Ass'y features channel with clew attachment using 5/16" clevis pin,
(included) and a hole for attachment of Outhaul pennant with 1/8" wire ball.
Slide has a 3/4" ID channel for Clew and measures 2 1/4" long x 1 1/4" wide (max) & 2 1/4" high.
For Boom sections w/ a 1/2" or larger Boltrope groove. RC30 |
|
|
Bronze Outhaul Slide for Boltrope Groove: Fam 3160M:
Heavy-duty Cast Bronze Outhaul Slide features channel with clew attachment using 3/8" clevis pin (included) and a 1/2" hole for attachment of Outhaul pennant or Block. Slide has a 9/16" ID channel for Clew and measures 3 1/2" long x 1" wide (maximum) and 2 3/8" high. Slide fits all Boom Sections with a boltrope groove that is 9/16" ID or larger. RC30
|
 |
|
Outhaul Slide for Boltrope Groove: Sch 95-57X: Heavy-duty Outhaul Slide features channel with 2-position clew attachment using 5/16" clevis pin, and a welded SS Eye for attachment of Outhaul pennant or Block. Slide body is welded SS with a 9/16" ID channel for Clew and a heavy delrin liner to minimize friction. Slide fits all Boom Sections with a boltrope groove that is 9/16" ID or larger. Slide is 3 3/4" long x 3/4" wide x 2 3/4" (maximum) high.
|
|
| Outhaul Slide w/ Sheave for Boltrope Groove: Sch 95-56X: | |
|
Heavy-duty Outhaul Slide features channel with 2-position clew
attachment using 5/16" clevis pin, and 1 1/16" diameter delrin Sheave for a 2
part purchase using up to a 3/8" rope pennant. Slide body is welded SS with welded
sheave cage, a 9/16" ID channel for Clew and a heavy delrin liner to minimize
friction. Slide fits all Boom Sections with a boltrope groove that is 9/16"
ID or larger. Slide is 3 3/4" long x 3/4" wide, and 2 5/8" (maximum) high.
|
 |
| Large Outhaul Slide w/ Sheave for Boltrope Groove: RCS 95-56C: | |
|
Heavy-duty Outhaul Slide features channel with 2-position clew
attachment using 3/8" clevis pin, and 1 5/8" diameter micarta Sheave for a 2
part purchase using up to a 3/8" rope pennant. Slide body is cast
Chrome-plated Bronze with SS sheave cage plate and 3/4" ID channel for Clew.
Slide body is 5 1/4" long x 1 3/16" wide, and 3 5/8" (maximum) high. Slide
fits all Boom Sections with a boltrope groove that is 7/16" ID or larger.
|
 |
| Outhaul Slide for internal wire Pennant in Boltrope Groove: NF 10230S: | |
|
Special Outhaul Slide for use with an internal wire pennant inside
the luff groove. SS Slide features a pivoting Toggle with 3/8" Pin for clew attachment.
Wire Outhaul pennant passes through tubular portion of Slide that is in the Luff groove, and is
terminated with a stop sleeve. Slide is (maximum) 3" long x 15/16" wide x 2 3/8" high, Toggle has
3/4" ID with clevis pin center @ 2" above Boom surface. Slide fits all Boom Sections with
a boltrope groove that is 9/16" ID or larger.
|
 |
|
|
|
| Outhaul Slides for 3/4" Internal Flat Track | |
| Simple Outhaul Slide for 3/4" Internal Track: PP 95-341: | |
|
Simple Aluminum Outhaul Slide has (2) 5/16" holes for attachment of shackles for Outhaul pennant
and Clew. Anodized, machined Slide is 3 1/2" long x 3/4" (.700) wide x 1 5/16" high. Fits Kenyon
3550, 3756 and many other Boom sections with 3/4" Internal Track.
Will Not fit CD-4,
Sch 150, and similar Sections.
|
|
| Simple Outhaul Slide for 3/4" Internal Track: PP 95-342S: | |
|
Simple SS Outhaul Slide has 7/16" hole for attachment of shackle for Outhaul pennant and large
5/16" bail for Clew shackle. Welded SS Slide is 3" long x 3/4" (.750) wide x 1 5/8" high.
MetalMast Slide fits all Boom sections with 3/4" Internal Track.
|
 |
|
Outhaul Slide w/ Toggle for 3/4" Internal Track: K-43009: Outhaul Slide features pivoting toggle with 2-position clew attachment using 5/16" clevis pin, and separate pin for attachment of outhaul pennant. Slide is (maximum) 3 3/4" long x 3/4" wide, and 3 1/4" high. For 3550, 3756 and other Boom sections with 3/4" Internal Flat Track.
|
|
| Outhaul Slide w/ Toggle for 3/4" Internal Track: PP-95-345T: | |
|
Outhaul Slide features pivoting toggle with clew attachment using 3/8" clevis pin, and hole
for attachment of wire outhaul pennant. Slide body is cast Chrome-plated Bronze, SS Toggle has 3/4" ID.
Slide body is 3 7/8" long x (maximum) 11/16" wide, Toggle is (maximum) 3 1/4" wide, with Pin center
2 5/8" from bottom. For 3550, 3756 and other Boom sections with 3/4" Internal Flat Track.
As used on a variety of Pearson and Sound Spar Booms.
|
 |
| Outhaul Slide w/ Toggle for 3/4" Internal Track: PP-95-346T: | |
|
Heavy-duty SS Outhaul Slide features SS Toggle for clew attachment using
1/2" clevis pin. Pivoting SS Toggle has 3/4" ID for Clew ring, horizontal pin (1/2") has shackle for
attachment of outhaul pennant. Slide body is 4" long x 13/16" wide. Investment Cast SS Slide w/
Toggle is 3 5/8" (maximum) high. Fits all Boom sections with 3/4" Internal Flat Track.
|
 |
| Outhaul Slide w/ Sheave for 3/4" Internal Track: Sch 95-54X: | |
|
Heavy-duty Outhaul Slide features channel with 2-position clew
attachment using 5/16" clevis pin, and 1 1/16" diameter SS Sheave for a 2 part
purchase using up to a 5/32" wire pennant. When additional purchase is not desired,
sheave can be used for direct attachment of outhaul pennant. Slide body is cast SS with
welded sheave cage and 9/16" ID channel for Clew. Slide is 3 3/4" long x 3/4" wide, and 2 5/8"
(maximum) high. For 3550, 3756 and other Boom sections with 3/4" Internal Flat Track.
|
 |
| Outhaul Slide w/ Toggle for 3/4" Internal Track: Sch 95-55X: | |
|
Heavy-duty Outhaul Slide features pivoting toggle with 2-position clew
attachment using 5/16" clevis pin, and eye for attachment of wire outhaul pennant. Slide body is
cast SS with a pivoting toggle with 7/8" ID for Clew. Slide is 3 3/4" long x 3/4" wide, and 3 1/8"
(maximum) high. For 3550, 3756 and other Boom sections with 3/4" Internal Flat Track. |
 |
| Outhaul Slide w/ Sheave & Toggle for 3/4" Internal Track: Sch 95-82X: | |
|
Heavy-duty Outhaul Slide features pivoting toggle with 2-position clew
attachment using 5/16" clevis pin, and 1 1/16" diameter SS Sheave for a 2 part
purchase using up to a 5/32" wire pennant. Sheave is angled 15 degrees downward to
help counter upward leech tension. Slide body is cast SS with welded sheave cage and
pivoting toggle with 7/8" ID for Clew. Slide is 4 3/4" long x 3/4" wide,
and 3 1/8" (maximum) high. For 3550, 3756 and other Boom sections with 3/4" Internal Flat Track.
|
 |
|
|
|
| Outhaul Slides for 7/8" Internal Track Booms | |
|
Outhaul Slide for 7/8" Internal Track: K-11071:
SS Outhaul Slide features 1/2" hole for attachment of outhaul pennant and a 7/16" slot for use with a D-shackle to attach the tack of the sail. Slide is (maximum) 3 1/2" long x 1 3/8" high. For 5072 and other Boom sections with 7/8" Internal Flat Track.
|
 |
|
Outhaul Slide w/ Toggle for 7/8" Internal Track: PP-95-782T: Heavy-duty SS Outhaul Slide features SS Toggle for clew attachment using 1/2" clevis pin. Pivoting SS Toggle has 3/4" ID for Clew ring, horizontal pin (1/2") has shackle for attachment of outhaul pennant. Slide body is 4" long x 13/16" wide. Investment Cast SS Slide w/ Toggle is 3 5/8" (maximum) high. Fits all Boom sections with 7/8" Internal Flat Track.
|
 |
| Outhaul Slide w/ Sheave & Toggle for 7/8" Internal Track: PP-95-781T: | |
|
Heavy-duty Outhaul Slide features SS Toggle for clew attachment using 7/16"
clevis pin, and 1 1/4" diameter Aluminum Sheave for a 2 part purchase using up to a
3/16" wire pennant. Sheave is angled 10 degrees downward to help counter upward leech
tension. Pivoting SS Toggle has 1 1/8" ID for Clew ring. Aluminum Slide body is 5
1/8" long x 7/8" wide (maximum), Slide w/ Toggle is 3 1/4" (maximum) high.
Fits most Boom sections with 7/8" Internal Flat Track.
|
|
|
|
|
| Outhaul Slides for 15/16" Internal Track Booms | |
| Simple Outhaul Slide for 15/16" Internal Track: PP 95-1516-2S: | |
|
Simple SS Outhaul Slide has 7/16" hole for attachment of shackle for Outhaul pennant and large
5/16" bail for Clew shackle. Welded SS Slide is 3" long x 15/16" wide x 1 5/8" high.
MetalMast Slide fits all Boom sections with 15/16" Internal Track.
|
 |
| Outhaul Slide w/ Toggle for 15/16" Internal Track: PP 95-1516-1T: | |
|
Heavy-duty Outhaul Slide Assembly features SS Toggle for clew attachment using 7/16"
clevis pin, and unique, trim attachment for a 1/8" wire pennant using Ball Swage w/
shank (MS20664-4) or Nicopress Stop sleeves. Pivoting SS Toggle has 1 1/8" ID for
Clew ring. Aluminum Slide body is 3 3/4" long x 1" wide (maximum), Slide w/
Toggle is 3 1/4" (maximum) high. Fits most Boom sections with 15/16" Internal
Flat Track, and many sections with a 1" Internal Flat Track.
|
|
|
|
|
| Outhaul Slides for 1" Internal Track Booms | |
|
Outhaul Slide w/ Toggle for 1" Internal Track: NF 10260S: SS Outhaul Slide features SS Toggle for clew attachment using 3/8" clevis pin. Pivoting SS Toggle has 3/4" ID for Clew ring, wire outhaul pennant is attached with stop sleeve. Slide is 3" long x 15/16" wide. Formed SS Slide w/ Toggle is 2 3/8" (maximum) high. For Booms using NF 10290 internal Track, as well as Rig-Rite RR#8 and all other Boom sections with 1" Internal Flat Track.
|
|
|
Outhaul Slide w/ Toggle for 1" Internal Track: PP 95-101T: Heavy-duty SS Outhaul Slide features SS Toggle for clew attachment using 1/2" clevis pin. Pivoting SS Toggle has 3/4" ID for Clew ring, horizontal pin (1/2") has shackle for attachment of outhaul pennant. Slide body is 4" long x 31/32" wide. Investment Cast SS Slide w/ Toggle is 3 5/8" (maximum) high. For Rig-Rite RR#8 and all other Boom sections with 1" Internal Flat Track.
|
 |
| Outhaul Slide w/ Sheave & Toggle for 1" Internal Track: Mer 409C-3IT-1: | |
|
Heavy-duty Outhaul Slide features toggle with 2-position clew attachment using
3/8" clevis pin, and 1 3/16" diameter Chromed Bronze Sheave for a 2 part
purchase using up to a 3/16" wire pennant. Sheave is angled 10 degrees downward to
help counter upward leech tension. Slide body and toggle are cast Chrome-plated Bronze,
slide bottom is SS. Pivoting toggle has 3/4" ID for Clew. Slide is 4 3/8" long x
1 3/16" wide (maximum), and 3 1/4" (maximum) high. For Rig-Rite RR#8 and other
Boom sections with 1" Internal Flat Track.
|
 |
|
|
||
|
Outhaul Cars for Isomat, Francespar & Sparcraft
Booms A number of Sparbuilders including Isomat, Sparcraft, and Francespar used Boom Sections with a rectangular sail groove tunnel that is 20mm (13/16") high x 26mm (1") wide. Outhaul Cars & Slides, listed below, fit all such Sections, Including: Sparcraft FB-60 & larger Booms, Isomat NB-32 & NB-40, but only some NB-55 Booms. See NB-55 Outhaul Cars for NB-55 Booms with a sail groove tunnel that is only 20mm (13/16") wide. Note that Sparcraft & Isomat Booms used with Furling Masts sometimes use upgraded Outhaul Systems with special Add-on Track and Ball-bearing Outhaul Cars, See: Sparcraft Booms for Furling Masts. |
||
|
|
||
|

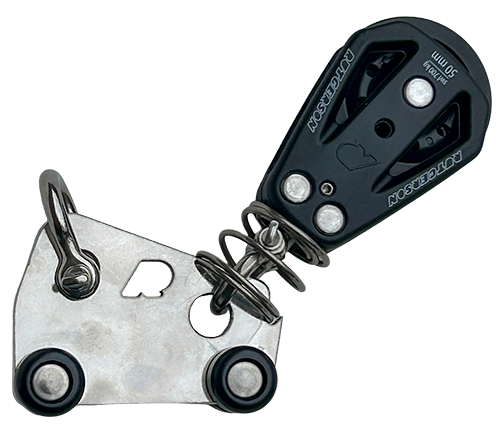

NB2 Outhaul Car: NB2-17A: SS Outhaul Car designed to fit larger Isomat, Sparcraft, and Francespar Booms. Outhaul Car rides on 4 delrin wheels, NB2-18W. Car is attached to the mainsail with an 8mm (5/16") shackle, Outhaul pennant is attached to the shackle pin. Car is 85mm (3 3/8") long and includes NB2-2 Shackle. This item is no longer available and is shown here for identification only.
|
 |
|
|
NB2 Outhaul Car: NB2-18A:
SS Outhaul Car designed to fit larger Isomat, Sparcraft, and Francespar Booms with a sail tunnel that is 25mm (1") wide. Assembly is 92mm (3 5/8") long. Car rides on 4 delrin wheels, NB2-18W, and features a 12mm (7/16") clew attachment pin and a 10mm (3/8") pin for attachment of the outhaul pennant. Note: This unit will Not fit some NB-55 Booms, See NB-55 Outhaul Cars for details.
|
 |
|
|
NB-2 Outhaul Car Wheel: NB2-18W:
Delrin Wheel for NB2 Outhaul Cars is 19mm (3/4") OD x 10mm (3/8") wide x 10mm (3/8") ID.
|
||
|
NB-2 Outhaul Car Axle: NB2-18X:
SS Outhaul Car Axle is 10mm (3/8") OD x 24mm (15/16") long.
|
 |
|
|
|
||
|
NB-55 Narrow Outhaul Car - Special: NB2-18AS:
SS Outhaul Car is as NB2-18A, above, but designed to fit in older Isomat NB-55 Booms with a sail tunnel that is 20mm high, but only 20mm wide. Assembly is 92mm (3 5/8") long. Car rides on 4 Special Narrow wheels, below, and features a 12mm (7/16") clew attachment pin and a 10mm (3/8") pin for attachment of the outhaul pennant.
|
||
| NB-55 Narrow Outhaul Car Wheel - Delrin: NB2-18WDS: | ||
|
Delrin Wheel for Special Narrow NB-55 Outhaul Car is 19mm (3/4") OD x 7mm (1/4") wide
x 10mm (3/8") ID.
|
||
|
NB-55 Narrow Outhaul Car Wheel - Stainless: NB2-18WSS: SS Wheel for Special Narrow NB-55 Outhaul Car is 19mm (3/4") OD x 7mm (1/4") wide x 10mm (3/8") ID. *
|
||
|
NB-55 Narrow Outhaul Car Axle: NB2-18XS:
SS Axle for Special Narrow NB-55 Outhaul Car is 10mm (3/8") OD x 19mm (3/4") long.
|
 |
|
|
|
||
|
Outhaul Slides for Isomat,
Francespar & Sparcraft Booms Outhaul Slides use Slide Rods or Delrin inserts, Outhaul Cars use Wheels or Ball Bearings. Outhaul Slides listed below fit Isomat, Sparcraft, and Francespar Booms with a rectangular sail groove tunnel that is 20mm (13/16") high x 26mm (1") wide, Including: Sparcraft FB-60 & larger Booms, Isomat NB-32, NB-40, but only some NB-55 Booms. Note that Sparcraft and Isomat Booms used with Furling Masts sometimes
use upgraded Outhaul Systems with special Add-on Track and Ball-bearing Outhaul Cars,
See: Sparcraft Booms for Furling Masts.
|
||
|
|
||
|
FB-2 Outhaul Slide, Short: FB2-18AS:
Aluminum Outhaul Car Assembly is 100mm (4") long. Car rides on 4 Torlon rods to minimize friction, and features a 8mm (5/16") removable shackle for attachment of the clew and outhaul pennant. Slide fits Sparcraft FB-60 and larger FB Boom Sections, Isomat NB-32 and larger NB Boom Sections * and a variety of Francespar and other Booms with a rectangular sail groove that is 20mm (13/16") high x 26mm (1") wide.
|
 |
|
| Torlon Rods for FB-2 Short Outhaul Car: FB2-18ASR: | ||
|
Torlon Rod Set for Short FB-2 Outhaul Car includes (4) 6.5mm Torlon rods x 100mm (4") long.
|
||
|
FB-2 Outhaul Slide, Short - Double: FB2-18ASD:
Heavy-duty Outhaul Car Assembly is 230mm (9") long. Car consists of (2) FB2-18AS Short Outhaul Cars, above, joined with a SS coupler, and features a 16mm (5/8") Pin for attachment of the clew and a 14mm (9/16") Pin for attachment of the outhaul pennant. Slide fits Sparcraft FB-60 and larger FB Boom Sections, Isomat NB-32 and larger NB Boom Sections* and a variety of Francespar and other Booms with a rectangular sail groove that is 20mm (13/16") high x 26mm (1") wide.
|
||
|
FB-2 Outhaul Car Coupler: FB2-18DC:
Heavy-duty SS Coupler Assembly is used to connect two FB2-18AS Short Outhaul Cars for high load applications. SS Coupler Assembly attaches to Car shackles with 12mm (7/16") Pins, and features a 16mm (5/8") Pin for attachment of the clew and an 14mm (9/16") Pin for attachment of the outhaul pennant. Heavy-duty welded SS Channel is made from 5mm stock and is 230mm (9") long x 36mm (1 7/16") wide with 25mm (1") inside clearance.
|
|
|
|
|
||
|
FB-2 Outhaul Slide, Long: FB2-18AL: Aluminum Outhaul Car Assembly is 150mm (6") long. Car rides on 4 Torlon rods to minimize friction, and features a 8mm (5/16") shackle for attachment of the clew and outhaul pennant. Slide fits Sparcraft FB-60 and larger FB Boom Sections, Isomat NB-32 and larger NB Boom Sections* and a variety of Francespar and other Booms with a rectangular sail groove that is 20mm (13/16") high x 26mm (1") wide. This item is no longer available and is shown here for identification only.
|
 |
|
|
Torlon Rods for FB2 Long Outhaul Car: FB2-18ALR:
Torlon Rod Set for Long FB-2 Outhaul Car includes (4) 6.5mm Torlon rods x 150mm (6") long. |
||
