Spinnaker Cars for 1" T-Track


These Spinnaker Cars are designed to fit on US Standard 1" T-Track, or SS Flat Track, (1" x 1/8") unless otherwise noted, and are held in place on the track either by a spring or screw pin, or by means of a line control system. Racing boats, large boats and those stowing their poles on the mast will generally use a line control system, for its ease and handling convenience.

Spinnaker Cars are of three primary varieties: Ring Cars for standard Piston pole ends, Toggle Cars for standard Piston pole ends in heavy duty or mast storage applications, and Special Cars to fit the variety of specific inboard Spinnaker Pole Ends available.

Ring Cars are not recommended for vertical pole stowage applications.



Spinnaker Cars for 1" T-Track

Standard Spinnaker Cars (w/ Pin Stop) for 1" T-Track
Spinnaker Car for 1" T-Track: Sch 73-28X:
Light duty SS Spinnaker Car with Ring to fit 1" T-Track. Formed SS Slide with Spring Pin is welded to 1/4" x 1" ID Ring. Slide is 3" long x 1 1/8" wide, and projects 1 1/2" (maximum) from Track surface.



Sch 73-28X
Spinnaker Car for 1" T-Track: K-300-8:

Welded SS Spinnaker Car with large Ring to fit 1" T-Track. Formed SS Slide with SS Spring Pin is welded to 1/4" x 1 1/4" ID Ring. Slide is 3" long x 1 3/16" wide, and projects 1 3/4" (maximum) from Track surface.

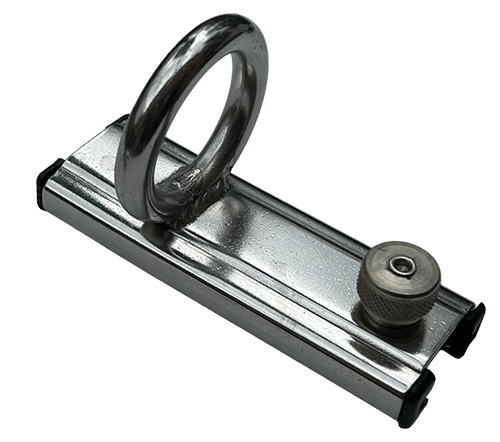

Spinnaker Car w/ Liners for 1" T-Track: RF 994X:

Welded SS Spinnaker Car with plastic liners to fit 1" T-Track. Formed SS Slide with SS Spring Pin is welded to 5/16" x 1 1/4" ID Ring. Slide is 3 5/8" long x 1 5/16" wide, and projects 1 7/8" (maximum) from Track surface. Replacement Liners are: RF 987LP:








Liners for RF 994 Spinnaker Car: RF 987LP:

Replacement Liners for RF 994 Spinnaker Car. Black plastic liners are 3 13/16" long to fit 3 5/8" long Car, and are sold in pairs only.




Spinnaker Car w/ Liners for 1" T-Track: Sch 73-38:

Welded SS Spinnaker Ring Car with SS Spring Pin (1/4") and plastic liners to fit 1" T-Track. Formed SS Slide is welded to 5/16" x 1 1/2" ID Ring. Slide is 3" long x 1 3/8" wide, and projects 2 1/4" (maximum) from Track surface. Replacement Liners are: Sch 171LP-T3:



  Liners for Sch 73-38 Spinnaker Car: Sch 171LP-T3:




Replacement Liners for Sch 73-38 Spinnaker Cars. Black plastic liners are 3" long with bottom protrusions and side tabs to hold them in place when Car is removed from track. Sold in pairs only.




Heavy-Duty Spinnaker Car for 1" T-Track: NF 10680:

Heavy-duty Cast Spinnaker Car with Ring to fit 1" T-Track. Heavy-duty Car is Cast in one piece and has SS Spring Pin (1/4"). Integral Ring is (minimum) 7/16" x 1 5/16" ID. Slide is 3" long x 1 5/16" wide, and projects 2 1/8" (maximum) from Track surface. Heavy-duty Chrome plated cast Bronze Car is far stronger than welded SS units.



Spinnaker Car for 1" T-Track: PP 73-32W:

SS Spinnaker Car to fit 1" T-Track. Cast SS Slide has welded 5/16" x 1 1/2" ID Ring and SS Spring stop Pin which can be locked in the retracted position. Slide is 3 1/8" long x 1 5/16" wide, and projects 2 3/8" (maximum) from Track surface.



Heavy-Duty Spinnaker Car for 1" T-Track: Sch 73-32:

Heavy-duty Cast SS Spinnaker Car with Ring to fit 1" T-Track. Heavy-duty SS Car is investment Cast in one piece and has SS Spring Pin. Integral Ring is (minimum) 5/16" x 1 3/8" ID. Slide is 3" long x 1 5/16" wide, and projects 2 1/4" (maximum) from Track surface.



Heavy-Duty Spinnaker Car w/ Liners for 1" T-Track: NF 16698S:
Heavy-duty Cast SS Spinnaker Car with Ring to fit 1" T-Track. Heavy-duty SS Car is investment Cast in one piece and has SS Spring Pin (5/16") which can be locked in the retracted position, and plastic liners to minimize sliding friction. Integral Ring is (minimum) 1/2" x 1 3/4" ID. Slide is 4 9/16" long x 1 11/16" wide, and projects 3" (maximum) from Track surface. Replacement Liners, NF 10653LP, below, are also available. This unit is the strongest Car available for 1" T-Track.



Liners for NF 16698 Spinnaker Cars: NF 10653LP:

Replacement Liners for NF 16698 Spinnaker Cars, for 1" T-Track, above. Plastic liners are 4 1/2" long and are sold in pairs only.



NF 10653LP

Towable Spinnaker Cars for 1" T-Track
Towable Spinnaker Car for 1" T-Track: Sch 17-78:

Welded SS Spinnaker Car with Towing bails and plastic liners to fit 1" T-Track. Formed SS Slide is welded to 5/16" x 1 1/2" ID Ring. Slide is 3" long (4 5/8" w/ bails) x 1 3/8" wide, and projects 2 1/4" (maximum) from Track surface. Note: Car can only be positioned with control lines. Replacement Liners are: Sch 171LP-T3:



Sch 17-78




Liners for Sch 17-78 Spinnaker Car: Sch 171LP-T3:

Replacement Liners for Sch 17-78 Spinnaker Cars. Black plastic liners are 3" long with bottom protrusions and side tabs to hold them in place when Car is removed from track. Sold in pairs only.



Heavy-Duty Towable Spinnaker Car for 1" T-Track: NF 10698C:
Heavy-duty Cast Spinnaker Car with Towing bails and plastic liners to fit 1" T-Track. Cast Chrome Bronze Spinnaker Car has heavy 1/2" x 1 3/4" ID Ring. Car is 4 1/2" long x 1 5/8" wide, and projects 2 3/4" (maximum) from Track surface. Large 1/2" ID bails allow for use with shackles, or line can be spliced directly to Car. Replacement plastic liners, NF 10653LP, below, are also available. Note: Car can only be positioned with control lines.








Liners for NF 10698 Spinnaker Cars: NF 10653LP:

Replacement Liners for NF 10698 Spinnaker Cars, for 1" T-Track, above. Plastic liners are 4 1/2" long and are sold in pairs only.



NF 10653LP

Towable Spinnaker Cars with Toggle for 1" T-Track
Towable Spinnaker Car w/ Toggle for 1" T-Track: NF 16696:
Towable Heavy-duty Aluminum Spinnaker Car with Toggle to fit 1" T-Track. Cast Aluminum Slide has plastic liners to minimize sliding friction and includes towing shackles, as well as SS Spring Pin (5/16") which can be locked in the retracted position. Toggle has 1 3/8" ID and 7/8" bar. Slide is 4 9/16" long x 1 11/16" wide, and projects 4 1/2" (maximum) from Track surface. Replacement Liners, NF 10653LP, below, are also available.



Liners for NF 16696 Spinnaker Cars: NF 10653LP:

Replacement Liners for NF 16696 Spinnaker Cars, for 1" T-Track, above. Plastic liners are 4 1/2" long and are sold in pairs only.



NF 10653LP

Cars with Bayonet Pins for 1" T-Track
Cars with Nicro-Fico Pins    ------------------------------
Aluminum Spinnaker Car w/ Nicro-Fico 1/2" Pin: NF 16696-P1:
Heavy-duty Aluminum Spinnaker Car for 1" T-Track has Pivoting Toggle with Nicro-Fico 1/2" Bayonet Pin. Cast Aluminum Slide has plastic liners to minimize sliding friction and includes towing shackles, as well as SS Spring Pin (5/16") which can be locked in the retracted position. Slide is 4 9/16" long x 1 11/16" wide, and projects 3" (maximum) from Track surface. Replacement Liners, NF 10653LP, below, are also available. Nicro-Fico 1/2" Bayonet Pin (1/2" OD x 3 1/8" long, beneath head) fits all Nicro-Fico 1/2" Bayonet type Spinnaker Pole ends. When used with Standard T-Track and Nicro-Fico Spinnaker Pole end, 3 3/8" must be subtracted from Pole length to maintain "J" measurement.



Nicro-Fico 1/2" Bayonet Pin only: NF 73-P1:

Replacement Nicro-Fico 1/2" Bayonet Pin only, fits all Nicro-Fico 1/2" Bayonet type Spinnaker Pole ends. Stainless Steel Bayonet Pin is 1/2" OD x 3 1/8" long (beneath head), head is 3/8" thick with hole for 3/8" pin. Unit is (maximum) 4 3/8" long.



Nicro-Fico 1/2" Bayonet Pin Toggle only: NF 73-T1:

Replacement Nicro-Fico 1/2" Bayonet Pin only, fits all Nicro-Fico 1/2" Bayonet type Spinnaker Pole ends. Stainless Steel Nicro-Fico 1/2" Bayonet Pin is 1/2" OD x 3 1/8" long (beneath head), head is 3/8" thick with hole for 3/8" pin. Unit is (maximum) 4 3/8" long.



Aluminum Spinnaker Car w/ Nicro-Fico 5/8" Pin: NF 16696-P2:
Heavy-duty Aluminum Spinnaker Car for 1" T-Track has Pivoting Toggle with Nicro-Fico 5/8" Bayonet Pin. Cast Aluminum Slide has plastic liners to minimize sliding friction and includes towing shackles, as well as SS Spring Pin (5/16") which can be locked in the retracted position. Slide is 4 9/16" long x 1 11/16" wide, and projects 3" (maximum) from Track surface. Replacement Liners, NF 10653LP, below, are also available. Nicro-Fico 5/8" Bayonet Pin (5/8" OD x 3 1/8" long, beneath head) fits all Nicro-Fico 5/8" Bayonet type Spinnaker Pole ends. When used with Standard T-Track and Nicro-Fico Spinnaker Pole end, 3 3/4" must be subtracted from Pole length to maintain "J" measurement.




Nicro-Fico 5/8" Bayonet Pin only: NF 73-P2:

Replacement Nicro-Fico 5/8" Bayonet Pin only, fits all Nicro-Fico 5/8" Bayonet type Spinnaker Pole ends. Stainless Steel Nicro-Fico 5/8" Bayonet Pin is 5/8" OD x 3 1/8" long (beneath head), head is 7/16" thick with hole for 3/8" pin. Unit is (maximum) 4 5/8" long.



Liners for NF 16696 Spinnaker Cars: NF 10653LP:

Replacement Liners for NF 16696 Spinnaker Cars, for 1" T-Track, above. Plastic liners are 4 1/2" long and are sold in pairs only.
NF 10653LP
