Z-Spar uses its own Recirculating Ball-Bearing (RCB) and Slide Rod Batten Cars on 2 sizes
of special Mast Tracks. Clear anodized Recirculating Ball Tracks are 25mm (>1"), or
32mm (1 1/4") wide.
Ball-Bearing Cars are shipped on a piece of Car Loader track, and must not be
removed from Mast track without Car loader, as ball loading is difficult. Note: These Cars have been produced in a variety of different lengths and configurations. When ordering parts, be sure to check measurements! |
|
|
||
|
Cars & Parts for 25mm Track Cars & Parts for 32mm Track
|
||
|
|
||
|
Cars & Parts for 25mm Track |
||
|

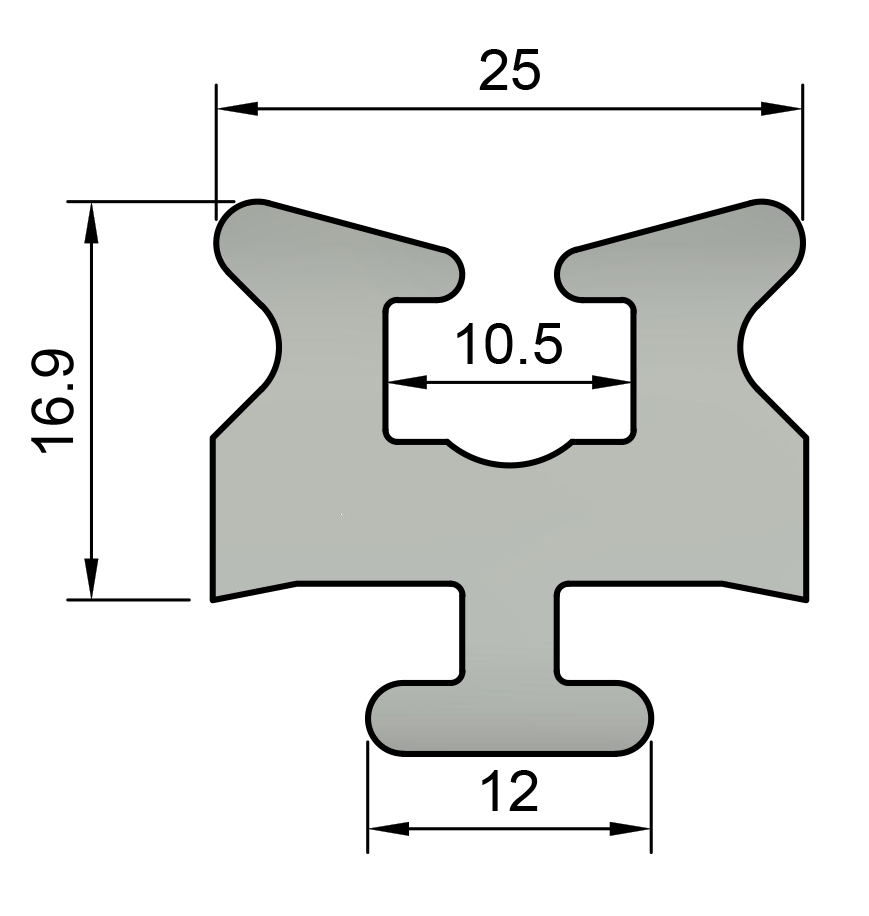

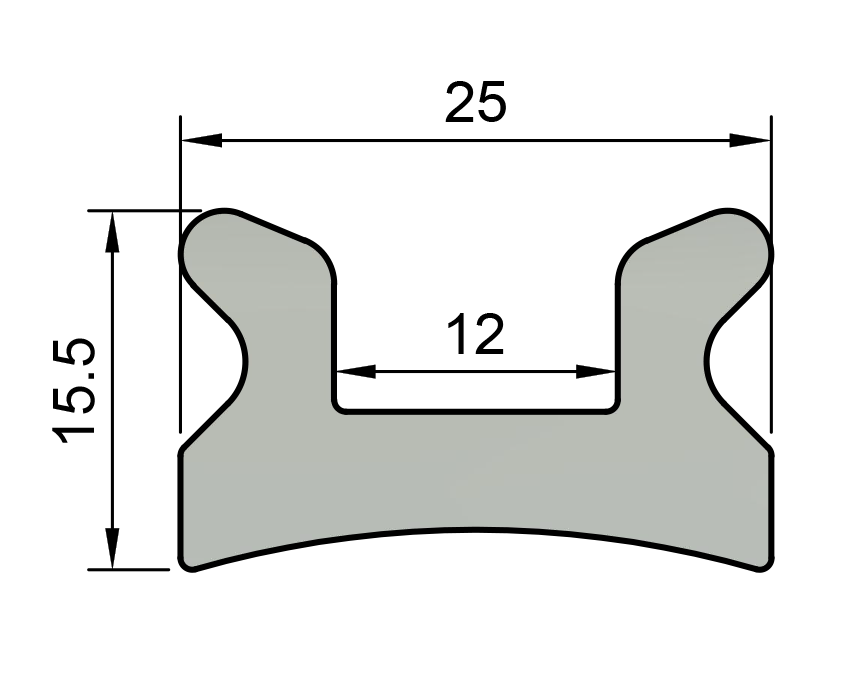

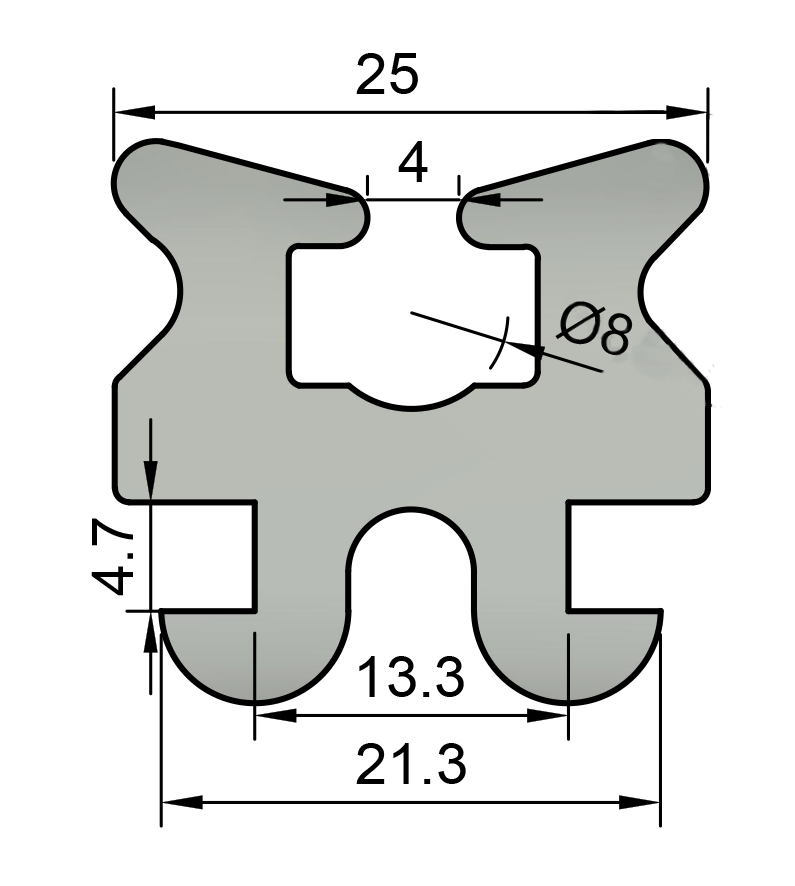

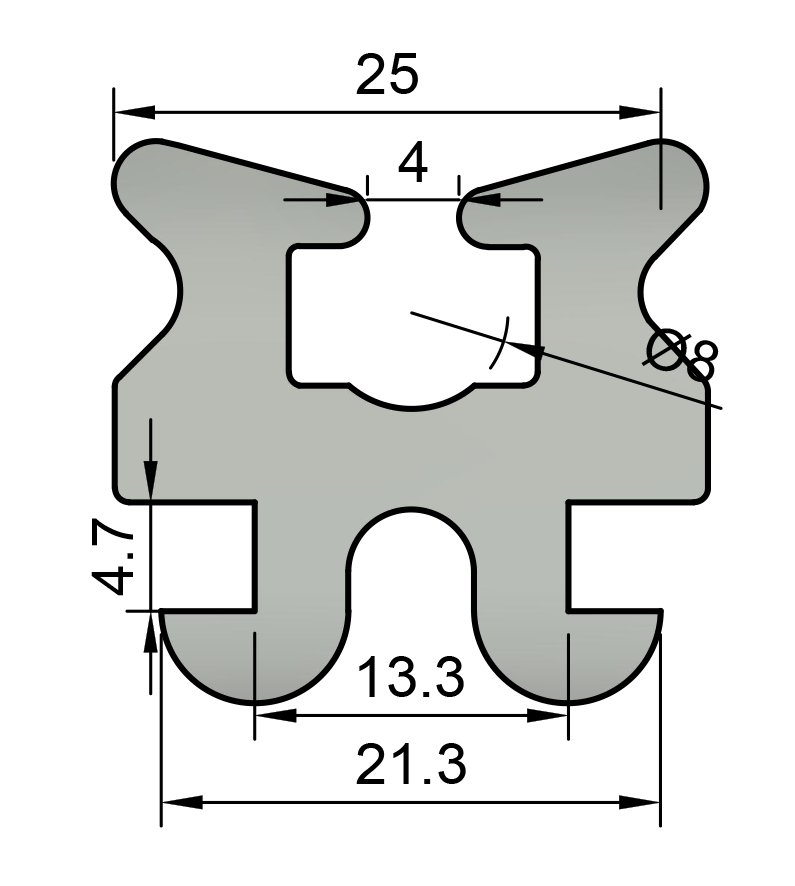

Z-Spar Slide-in 25mm Batten Track for Z401+ Mast: Z-932-__: Z-Spar Slide-in 25mm Batten Track for Z902+ Mast: Z-934-__: Z-Spar Rivet-on 25mm Batten Track: Z-931-4M: Z-Spar uses a variety of 25mm RCB Tracks on Masts (Tracks are 25mm (1") wide at the Top). Z-932 Track has grooves to to fit Mainsail Track in Z-401 and larger Mast Sections. Z-934 Track has grooves to fit into Mainsail Track in Z-902 and larger Mast Sections. b16.4 Z-931 Track has 6mm (1/4") holes for attachment to Mast with rivets or screws, and is commonly used as Spinnaker Track on Z-401 and larger Mast Sections. Clear anodized Recirculating Ball (RCB) Tracks are also available in shorter than listed lengths, please specify. See: Z-Spar Mast Specifications & Components.
|
||
|
Plastic End Stop for Z-Spar 25mm Batten Track: Z-733-01:
Plastic End Cap for use with Z-Spar 25mm RCB Tracks is 47mm (1 7/8") long x 35mm (1 3/8") wide, and attaches to Track with (1) 6mm (1/4") AH screw.
|
||
|
Alu. End Stop for Z-Spar 25mm Batten Track: Z-1138A:
End Cap for use with Z-Spar 25mm RCB Tracks incorporates a rubber bumper, Z-150, to reduce impact stress. Cast aluminum End Cap is 49mm (1 15/16") long x 35mm (1 3/8") wide, and attaches to Track with (1) 6mm (1/4") screw.
|
||
|
|
||
|
Batten Car w/ 10mm Stud & Slide Rods: Z-3485ATR:
New-style Batten Car for use with Masts using Z-Spar RCB Track that is 25mm (<1") wide. Car incorporates fully articulating SS toggle with 10mm SS threaded stud (22mm thread) for batten attachment. Car rides on Torlon Slide Rods to provide high strength and low friction and will take higher loads than ball bearing versions. Delrin washers protect Car from Toggle wear. Car is 85mm (3 3/8") long x 61mm (2 3/8") wide. SS Toggles are marked 4977.
|
|
|
| Slide Rod Set for Z-3485ATR Batten Car: Z-SR6M-T75: | ||
|
|
Replacement Slide Rod Set for Z-3485ATR Batten Car.
Torlon Slide Rods (2) are 6.4mm x 75mm (3") long.
|
|
|

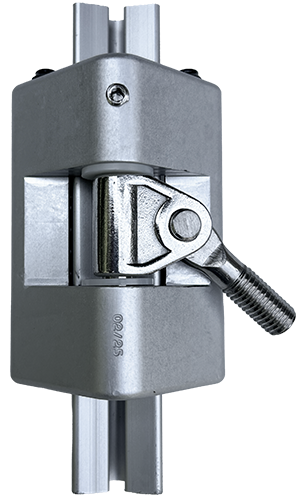

Batten Car w/ 10mm Stud & Ball Bearings: Z-3485AT:
Ball Bearing Batten Car for use with Masts using Z-Spar RCB Track that is 25mm (<1") wide. Car incorporates fully articulating SS toggle with 10mm SS threaded stud (22mm thread) for batten attachment. Car rides on Torlon Ball Bearings to provide high strength and a minimum of rolling friction. Delrin washers protect Car from Toggle wear. Car is 85mm (3 3/8") long x 61mm (2 3/8") wide. Batten Car uses forty-four (44) Torlon ball bearings. Ball-Bearing Cars are shipped on a piece of Car Loader track.
|
|
|
|
|
Ball Bearing Set for 85mm Batten Cars: Z-BP6M-T50:
Replacement ball bearing pack for Z-3481AT and Z-3485AT Batten Cars. Cars require forty-four (44) 6.4mm Torlon ball bearings, Pack contains 50 pcs.
|
|
|
|
Vertical Toggle Pin for 85mm Batten Cars: Z-3485-P85:
Vertical Toggle Pin for Z-3485AT Batten Car is 8mm x 85mm long. Attachment screws (both versions) are included. Other parts for the Z-3485 Batten Cars are listed below.
|
|
|
Old-style Batten Car w/ 10mm Stud: Z-3481AT: Old-style Ball Bearing Batten Car for use with Masts using Z-Spar RCB Track that is 25mm (<1") wide. Car incorporates fully articulating toggle with 10mm threaded stud (22mm long) for batten attachment. Car rides on Torlon Ball Bearings to provide high strength and low friction at a minimum weight. Old-style Batten Car has removable end caps, for easy ball replacement. Car is 82mm (3 1/4") long x 60mm (2 3/8") wide. Old-style Batten Car uses forty-four (44) Torlon ball bearings. This item is no longer available, but replacement parts are listed below.
|
|
|
|
|
Ball Bearing Set for 85mm Batten Cars: Z-BP6M-T50:
Replacement ball bearing pack for Z-3481AT and Z-3485AT Batten Cars. Cars require forty-four (44) 6.4mm Torlon ball bearings, Pack includes 50 pcs.
|
|
|
|
Alu. End Cap for Z-Spar Old-style Batten Cars: Z-EC25-1:
Aluminum End Cap for Z-Spar Batten Cars for Track that is 25mm (<1") wide. End Cap is 60mm (2 3/8") wide x (maximum) 40mm (1 9/16") high x 13mm (1/2") thick, and has 5mm (3/16") hole for attachment to Car. 3481
|
|
|
|
End Cap for Z-Spar Old-style Batten Cars: Z-EC25-1P:
Plastic End Cap for Z-Spar Batten Cars for Track that is 25mm (<1") wide. End Cap is 60mm (2 3/8") wide x (maximum) 40mm (1 9/16") high x 13mm (1/2") thick, and has 5mm (3/16") hole for attachment to Car. 3481
|
|
|
|
Cast Toggle for Old-style Batten Cars: Z-3481-TCA:
Cast Aluminum Toggle as used on Z-3481AT and Z-3485AT Batten Cars. Cast Toggle is 26mm high x 18mm wide x (maximum) 36mm long with holes for 8mm vertical pin and includes 6mm screw and locknut set, Z-3481-6S.
|
|
|
|

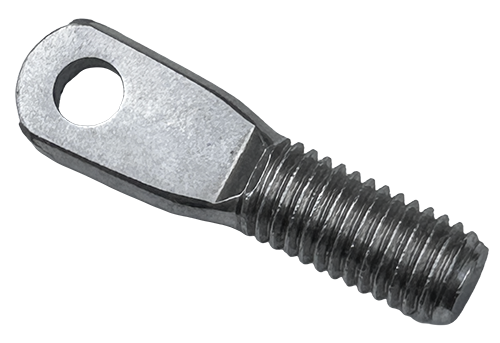

SS Stud for Z-3481 & Z-3485 Batten Cars: Z-3481-S10:
Stainless Steel Stud as used on Z-3481AT and Z-3485AT Batten Cars. Threaded Stud has 10mm thread x 20mm long, x (maximum) 50mm long with 6mm cross hole.
|
|
|
|

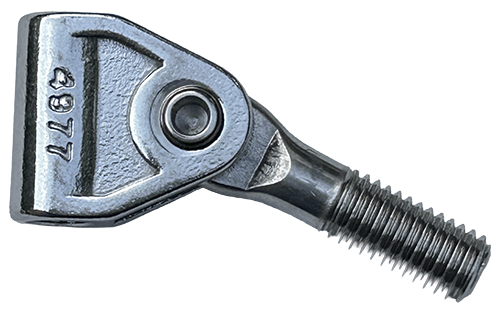

SS Toggle Ass'y w/ 10mm Stud: Z-3481-TSA-10:
SS Toggle Ass'y w/ 12mm Stud: Z-3481-TSA-12: | |
|
|
New-style Stainless Steel Toggle Assembly with integral 10mm or 12mm threaded stud is suitable for
use on all 25mm Batten Cars. Cast SS Toggle is 26mm high x 12mm wide with hole for 8mm vertical pin.
10mm Threaded Stud is (maximum) 50mm long with 20mm long thread.
12mm Threaded Stud has 30mm long thread. SS Toggles are marked 4977.
|
|
|
|

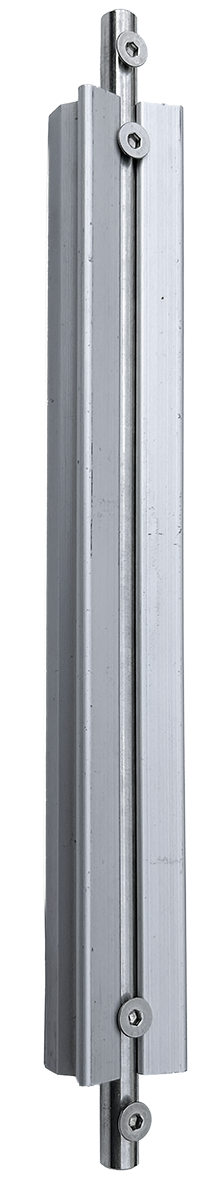

5" Car Loader for Ball Bearing Cars: Z-733-CL5:
Short piece of Z-Spar Z-733 RCB Track is modified for Car transport and Ball loading. This item is shipped (in various lengths) with all 25mm Ball Bearing Cars, used to transfer the Car to the Track. Track is 5" long with one end stopped.
|
|
|
Short Intermediate Batten Car w/ Delrin Spool: Z-3482-IS:
Ball Bearing Intermediate Batten Car for use with Masts using Z-Spar RCB Track that is 25mm (<1") wide. Car incorporates delrin Spool for attachment to Sail with webbing. Car rides on Torlon Ball Bearings to provide high strength and low friction at a minimum weight. Short Cars allow reduced stack height. Car is 60mm (2 3/8") long x 61mm (2 3/8") wide. Short Batten Car uses twenty-eight (28) Torlon ball bearings. Ball-Bearing Cars are shipped on a piece of Car Loader track.
|
|
|
|
Long Intermediate Batten Car w/ Delrin Spool: Z-3485-ISL:
Ball Bearing Intermediate Batten Car for use with Masts using Z-Spar RCB Track that is 25mm (<1") wide. Car incorporates delrin Spool for attachment to Sail with webbing. Car rides on Torlon Ball Bearings to provide high strength and low friction at a minimum weight. Car is 85mm (3 3/8") long x 61mm (2 3/8") wide. Batten Car uses forty-four (44) Torlon ball bearings. Ball-Bearing Cars are shipped on a piece of Car Loader track.
|
||
|
|
Ball Bearing Set for 85mm Batten Cars: Z-BP6M-T50:
Replacement ball bearing pack for Z-3481 and Z-3485 Batten Cars. Cars require forty-four (44) 6.4mm Torlon ball bearings, Pack contains 50 pcs.
|
|
|
|
Vertical Toggle Pin for 85mm Batten Cars: Z-3485-P85:
Vertical Toggle Pin for Z-3485 Batten Cars is 8mm x 85mm long. Attachment screws (both versions) are included.
|
|
|
|
||
|
Headboard Car w/ Slide Rods for 25mm Track: Z-3489ATR:
Headboard Car for use with Masts using Z-Spar RCB Track that is 25mm (<1") wide. Car incorporates pivoting Aluminum channel with shackle for Headboard and Halyard attachment. New-style Car rides on 7.9mm Torlon Slide Rods to provide high strength and low friction at a minimum weight. Delrin washers protect Car from Toggle wear. Car is 156mm (6 1/8") long x 61mm (2 3/8") wide.
|
|
|
|
|
Slide Rod Set for Z-3489ATR Batten Car: Z-SR8M-T135:
Replacement Slide Rod Set for Z-3489ATR Batten Car. Torlon Slide Rods (2) are 7.9mm x 135mm (5 5/16") long.
|
|
|
Ball Bearing Headboard Car for 25mm Track: Z-3489AT: Ball Bearing Headboard Car for use with Masts using Z-Spar RCB Track that is 25mm (<1") wide. Car incorporates pivoting Aluminum channel with shackle for Headboard and Halyard attachment. Car rides on Torlon Ball Bearings to provide high strength and a minimum of rolling friction. Headboard Car is 156mm (6 1/8") long x 61mm (2 3/8") wide, and uses ninety-two (92) 6.4mm Torlon ball bearings. This item is no longer available, but replacement parts are listed below.
|
|
|
|
|
Ball Bearing Set for Headboard Car: Z-BP6M-T100:
Replacement ball bearing pack for Z-3489AT and other Ball Bearing Headboard Cars. Cars require ninety-two (92) 6.4mm Torlon ball bearings, Pack contains 100 pcs.
|
|
|
Old-style Headboard Car for 25mm RCB Track: Z-3482AT: Old-style ball bearing Headboard Car for use with Masts using Z-Spar RCB Track that is 25mm (<1") wide. Car incorporates pivoting SS channel with shackle for Headboard and Halyard attachment. Car rides on Torlon Ball Bearings to provide high strength and low friction at a minimum weight. Extruded Aluminum Car has removable end caps, for easy ball replacement. Car is 127mm (5") long x 60mm (2 3/8") wide. Headboard Car uses sixty-eight (68) Torlon ball bearings. This item is no longer available, but replacement parts are listed below.
|
||
|
|
Ball Bearing Set for Z-3482AT Cars: Z-BP6M-T75:
Replacement ball bearing pack for Z-3482AT and other Ball Bearing Cars. Car requires sixty-eight (68) 6.4mm Torlon ball bearings, Pack contains 75 pcs..
|
|
|
|
Alu. End Cap for Z-Spar Old-style Batten Cars: Z-EC25-1:
Aluminum End Cap for Z-Spar Batten Cars for Track that is 25mm (<1") wide. End Cap is 60mm (2 3/8") wide x (maximum) 40mm (1 9/16") high x 13mm (1/2") thick, and has 5mm (3/16") hole for attachment to Car. 3481
|
|
|
|
End Cap for Z-Spar Old-style Batten Cars: Z-EC25-1P:
Plastic End Cap for Z-Spar Batten Cars for Track that is 25mm (<1") wide. End Cap is 60mm (2 3/8") wide x (maximum) 40mm (1 9/16") high x 13mm (1/2") thick, and has 5mm (3/16") hole for attachment to Car. 3481
|
|
|
|
7" Car Loader for Ball Bearing Cars: Z-733-CL7:
Short piece of Z-Spar Z-733 RCB Track is modified for Car transport and Ball loading. This item is shipped (in various lengths) with all 25mm Ball Bearing Cars, used to transfer the Car to the Track. Track is 7" long with one end stopped.
|
|
|
Double Headboard Car for 25mm RCB Track: Z-3489AT-2BB:
Ball Bearing Double Headboard Car for use with Masts using Z-Spar 25mm RCB Track. Clear anodized Recirculating Ball Track is 25mm (<1") wide. Double Car incorporates pivoting channel with 8mm Shackle for Halyard and Headboard attachment. Car rides on Torlon Ball Bearings to provide high strength and a minimum of rolling friction. Delrin washers protect Car from Toggle wear. Aluminum Car is 178mm (7") long x 60mm (2 3/8") wide. Each Car uses forty-four (44) Torlon ball bearings, Double Car uses 88 Balls total.
|
||
|
|
Ball Bearing Set for 85mm Batten Cars: Z-BP6M-T50:
Replacement ball bearing pack for 85mm long Batten Cars. Cars require forty-four (44) 6.4mm Torlon ball bearings, Pack contains 50 pcs. Double Car requires two (2) packs.
|
|
|
|
10" Car Loader for Ball Bearing Cars: Z-733-CL10:
Short piece of Z-Spar Z-733 RCB Track is modified for Car transport and Ball loading. This item is shipped (in various lengths) with all 25mm Ball Bearing Cars, used to transfer the Car to the Track. Track is 10" long with one end stopped.
|
|
|
|
||
|
Cars & Parts for 32mm Track |
||
|

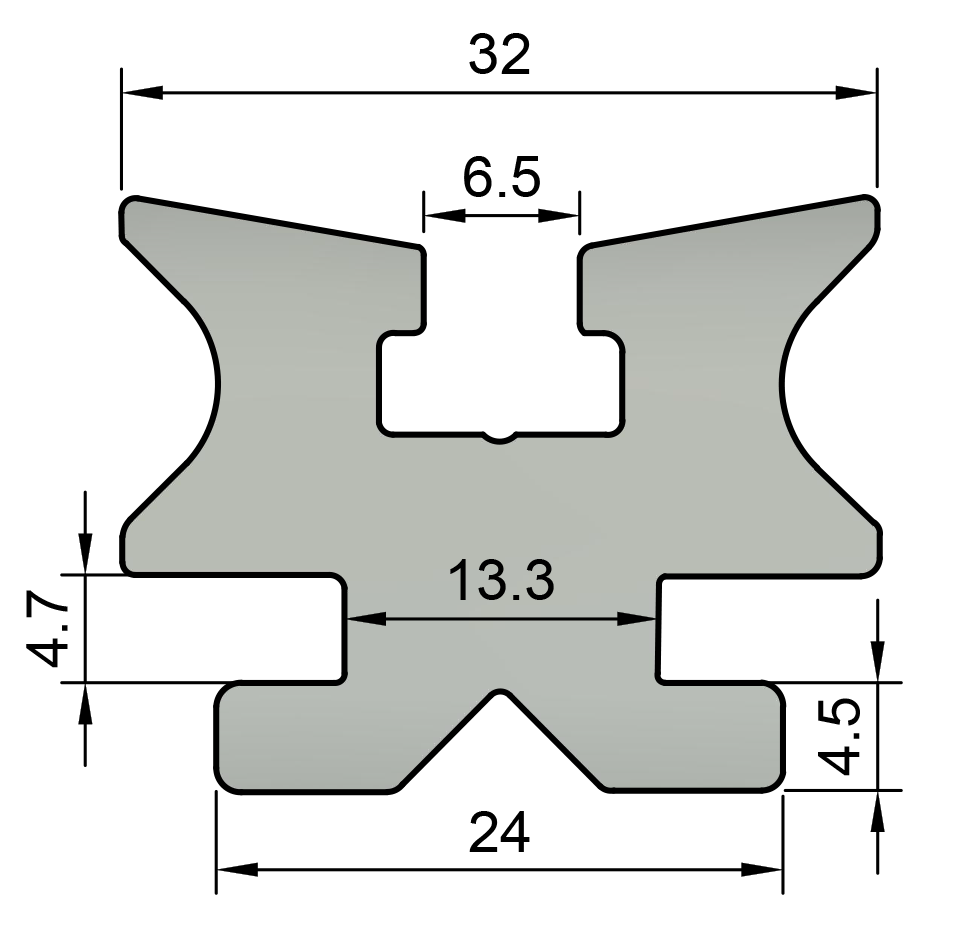

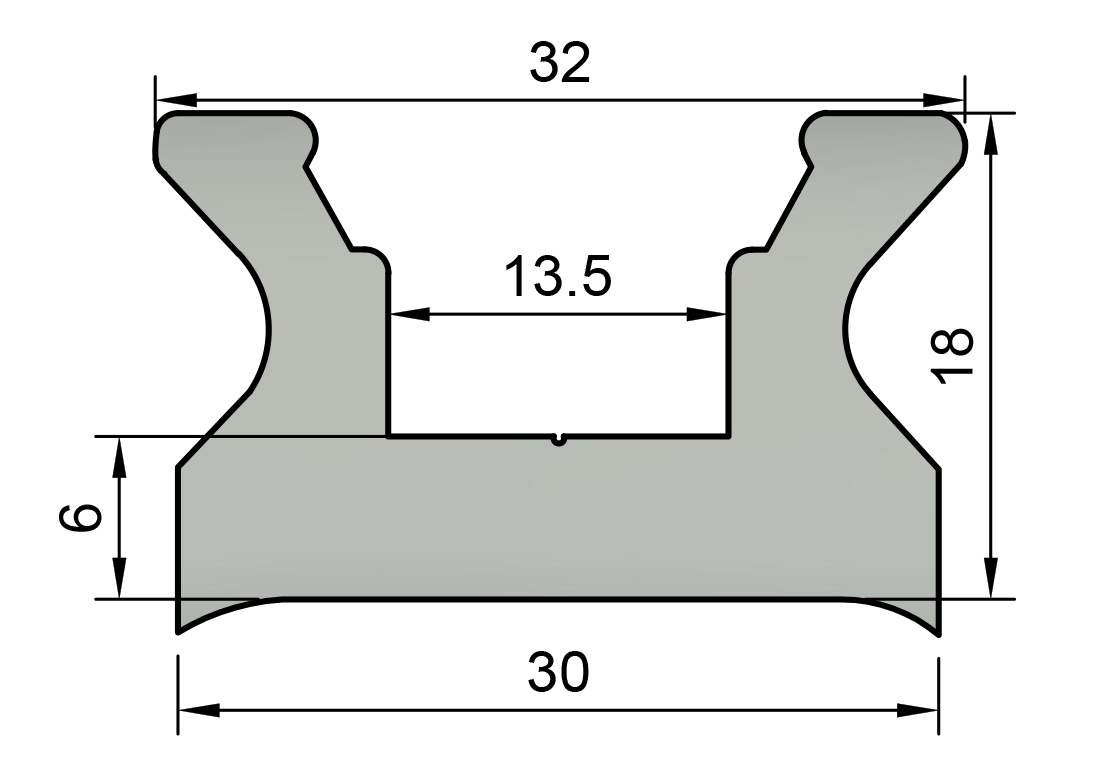

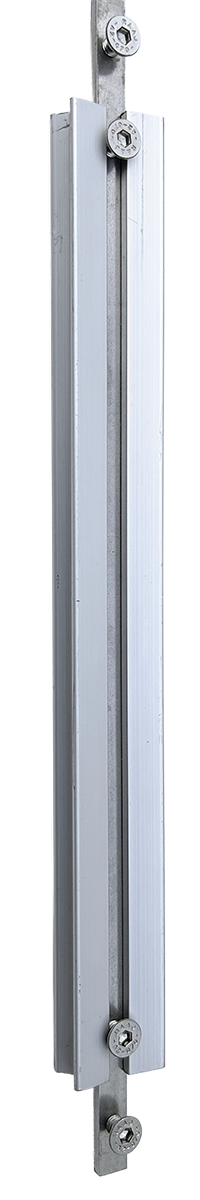

Z-Spar Slide-in 32mm Batten Track for Z-1001+ Masts: Z-663-10M: Z-Spar Rivet-on 32mm Batten Track: Z-943-6M: For larger boats Z-Spar uses 32mm RCB Track on Masts (Tracks are 32mm (1 1/4") wide at the Top). Z-663 Track has an integral "T" which slides into 25mm internal channel in Z-1001 and larger Mast Sections. Z-943 Track has 6mm (1/4") holes for attachment to Mast with rivets or screws, and is commonly used as Spinnaker Track on Z-901 and larger Mast Sections. Clear anodized Recirculating Ball (RCB) Tracks are also available in shorter than listed lengths, please specify. See: Z-Spar Mast Specifications & Components.
|
||
|
Batten Car w/ 10mm Stud for 32mm Track: Z-32BC-TC10:
Batten Car w/ 12mm Stud for 32mm Track: Z-32BC-TC12: Ball Bearing Batten Car for use with Masts using Z-Spar RCB Track that is 32mm (1 1/4") wide. Car incorporates fully articulating toggle with 10mm or 12mm threaded stud for batten attachment. Car rides on Torlon Ball Bearings to provide high strength and low friction at a minimum weight. Delrin washers protect Car from Toggle wear. Aluminum Car is 140mm (5 1/2") long x 85mm (3 3/8") wide. Batten Car uses fifty-four (54) Torlon ball bearings. SS Toggles are marked 4472.
|
|
|
|
|
Ball Bearing Set for Long 32mm Cars: Z-BP10M-T75:
Replacement ball bearing pack for Z-32BC-TC Long Batten Cars. Cars require fifty-four (54) 9.5mm Torlon ball bearings, Pack contains 75 pcs.
|
|
|
|

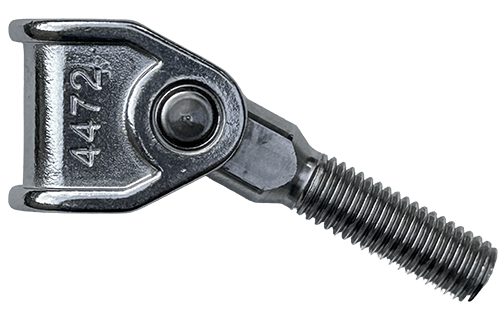

Toggle Ass'y w/ 10mm Stud for 32mm Batten Car: Z-32BC-TS10:
Toggle Ass'y w/ 12mm Stud for 32mm Batten Car: Z-32BC-TS12: | |
|
|
Stainless Steel Toggle Assembly with 10mm or 12mm Stud as used on
Z-32BC-TC Batten Cars. SS Toggles are 32mm high with hole for 12mm vertical pin.
SS Toggles are marked 4472.
|
|
|
Intermediate Batten Car for 32mm RCB Track: Z-32BC-IC:
Intermediate Batten Car for use with Masts using Z-Spar RCB Track that is 32mm (1 1/4") wide. Car incorporates delrin bushings for attachment to Sail with 32mm webbing. Car rides on Torlon Ball Bearings to provide high strength and low friction at a minimum weight. Aluminum Car is 95mm (3 3/4") long x 85mm (3 3/8") wide. Intermediate Batten Car uses thirty-six (36) Torlon ball bearings.
|
|
|
|
|
Ball Bearing Set for 32mm Short Cars: Z-BP10M-T50:
Replacement ball bearing pack for Z-32BC-IC Batten Car. Each Car uses thirty-six (36) Torlon ball bearings, Pack contains 50 pcs.
|
|
|
Headboard Batten Car for 32mm RCB Track: Z-32BC-HB:
Double Headboard Batten Car for use with Masts using Z-Spar RCB Track that is 32mm (1 1/4") wide. Car incorporates Heavy-duty pivoting SS channel with 16mm Clevis Pins for Headboard and Halyard attachment. Delrin washers protect Car from Toggle wear. Aluminum Cars are 110mm (4 5/16") long x 85mm (3 3/8") wide, Car is 240mm (9 1/2") long overall. Cars slide on Torlon Rods for smooth operation and long life.
|
|
|
|
|
Slide Rod Pair for 32mm Headboard Batten Car: Z-SR10M-T95: | |
|
|
Replacement Slide Rod Pair for Z-32BC-HB Headboard Batten Car.
Torlon Slide Rods are sold in pairs, Headboard Batten Car requires two (2) Pairs.
|
|
