| Z-Spar Exit Plates |
|
Exit Plates are used to lead any control line (internal halyards, pole lifts, etc.) through a
spar wall,
where No directional change is required. An Exit Plate is installed in a slot, to
prevent the line
going through it from coming in contact with the spar wall. This prevents any abrasion of the spar
wall,
as well as minimizing chafe on the line. All Z-Spar Exit Plates are attached with (1) 3/16" (5mm)
rivet or screw. See also, Exit Plates - Main Page. |
|
|
|
Plastic Exit Plates Z-Spar Plastic Halyard Exit Plates were originally produced in Black, they are available now only in Grey, or White. |
|
|

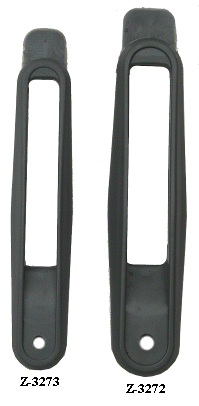

Plastic Exit Plate - Small Gray: Z-3273:
Plastic Exit Plate - Small White: Z-3273W: Molded Plastic Exit Plate is (visible when installed) 4 1/2" long x 7/8" wide (115 x 22mm), and fits in mast cut-out 90mm long x 16mm wide (3 5/8" x 5/8"). Unit is attached with (1) 3/16" (5mm) rivet and is suitable for use with line up to 3/8" (10mm) diameter. |
|
|
Plastic Exit Plate - Large Gray: Z-3272:
Plastic Exit Plate - Large White: Z-3272W: Molded Plastic Halyard Exit Plate is (visible when installed) 5" long x 1 1/8" wide (125 x 30mm), and fits in mast cut-out 96mm long x 20mm wide (3 7/8" x 13/16"). Unit is attached with (1) 3/16" (5mm) rivet and is suitable for use with line up to 1/2" (13mm) diameter. |
|
|
|
|
|
Stainless Steel Exit Plates Stainless Steel Halyard Exit Plates are attached with rivets or screws. |
|
|
Cast SS Exit Plate - Small: Z-1241:
Stainless Steel Exit Plate is 3 3/4" long x 11/16" wide (96 x 18mm) and will handle line up to 5/16" (9mm) diameter. Cast SS plate fits in mast cutout 64mm high x 13mm wide (2 1/2" x 1/2") and fastens with (1) 3/16" (5mm) rivet. |
|
|
Cast SS Exit Plate - Large: Z-1242:
Stainless Steel Exit Plate is 5 5/8" long x 1 1/4" wide (144 x 32mm) and will handle line up to 5/8" (18mm) diameter. Cast SS plate fits in mast cutout 112mm high x 23mm wide (4 3/8" x 7/8") and fastens with (1) 3/16" (5mm) rivet.
|
|
