| Z-Spar uses a variety of cast aluminum Gooseneck Brackets, and on smaller sections,
Stainless Steel ones. Most of these Gooseneck Brackets are also used as Vang Brackets.
Select a Bracket based on your Mast Section, if you also
require a Toggle, See Z-Spar Gooseneck Toggles, or
Z-Spar Vang Toggles. To order a Gooseneck or Vang Bracket not listed below please specify Mast Section, and Bracket dimensions when inquiring. |
|
|
||
| Standard Gooseneck Brackets | ||
|
Gooseneck Bracket Ass'y for Z105 & Z125: Z-1150XAC:
Gooseneck Bracket Assembly is used on Z105 and Z125 Mast Sections with Z120 Boom. Assembly includes cast Bracket, Z-1121X Gooseneck Toggle Shaft, and Z-1495AX Gooseneck Hook Pin with nut. Bracket fastens to mast with (4) 3/16" (5mm) rivets.
|
|
|
|
|
Gooseneck Bracket for Z105 & Z125 Masts: Z-1150X:
Cast aluminum Gooseneck Bracket is used on Z105 and Z125 Mast Sections with Z-1121X Gooseneck Toggle Shaft, and Z-1495AX Gooseneck Hook Pin with nut. Bracket is 1 3/4" (46mm) high x 1 3/4" (46mm) wide, and fastens to mast with (4) 3/16" (5mm) rivets.
|
|
|
|
Z120 Toggle Shaft w/ Ball for Dinghy Gooseneck: Z-1121X: | |
|
Bronze Toggle Shaft with 5/8" Ball end and 10mm (3/8") shaft is used on Z-120 Boom with
Z-105 and Z-125 Masts. Unit is 46mm (1 13/16") long. Used with
Z120 Boom. As used on Capri 16.5 (1995), & others.
|
|
|
|
|
Vertical Gooseneck Hook Pin w/ Locknut: Z-1495AX:
Vertical Gooseneck Pin / Tack Hook is used with Z-1150X Gooseneck Bracket and Z-1121X Gooseneck Toggle Shaft. Stainless Steel Pin is 5mm (3/16") diameter x (maximum) 70mm (2 3/4") long, with a SS locknut.
|
|
|
|
||
|
Gooseneck Bracket Half, Small: Z-1061X:
Unique cast aluminum Gooseneck Bracket is used in pairs with Z-1188X Gooseneck Toggle and the Z-1766 Gooseneck Toggle Bushings. Used on Z170, Z190, Z230, Z265, Z301, Z320 and other mast sections, Bracket Half measures 2 5/8" (67mm) high x 1 5/8" (42mm) wide, with 15mm recess for pin (lug). Fastens to mast with (4) 1/4" (6mm) rivets on 45mm (1 3/4") vertical centers. As used on Beneteau First 235, (some) First 285, O'Day 272, and others. CK**
|
|
|
|

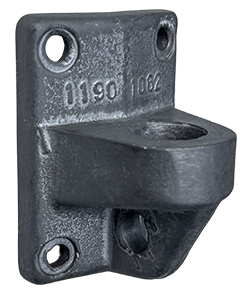

Gooseneck Bracket Half, Large: Z-1190X:
A larger version of Z-1061X (above), this cast aluminum Gooseneck Bracket is used in pairs with Z-1189X Gooseneck Toggle and the Z-1766L Gooseneck Toggle Bushings. Used on Z401, Z501 and other mast sections, Bracket Half measures 3" (77mm) high x 2 1/4" (56mm) wide, with 18mm recess for pin (lug). Fastens to mast with (4) 1/4" (6mm) rivets. Unit is marked 1190/1062. As used on (some) Beneteau First 285, Hunter 280, and others. CK**
|
||
|
|
||
|
SS Gooseneck Bracket, Short: Z-1478:
Formed SS Gooseneck Bracket is used on Z145 and larger mast sections with Z-1034 Gooseneck Toggle, and Z-560 or Z-4066 Vang Toggles. Bracket takes 8mm vertical pin and has clearance for 2 1/8" (55mm) Toggle. Used on Z145, Z170, Z190, Z230, Z265, Z290, Z301 and other mast sections, Bracket measures 2 7/16" (61mm) high x 2" (50mm) wide. Fastens to mast with (8) 3/16" (5mm) rivets.
|
||
|
SS Gooseneck/ Vang Bracket, Long: Z-1787:
Formed SS Gooseneck/ Vang Bracket is identical to Z-1478 (above), but measures 3" (72mm) high with clearance for 2 3/4" (70mm) toggle. Bracket takes 8mm vertical bolt and fastens to mast with (8) 3/16" (5mm) rivets.
|
|
|
|
Gooseneck Bracket for Z145 - Z301 Masts: Z-1478C:
Cast aluminum Gooseneck Bracket is used on Z145 and larger mast sections with Z-1034 Gooseneck Toggle, and Z-560 or Z-4066 Vang Toggle. Bracket takes 8mm vertical pin and has clearance for up to 2 1/4" (57mm) toggle. Used on Z145, Z170, Z190, Z230, Z265, Z290, Z301, Z320, and other mast sections, Bracket measures 3 1/2" (88mm) high x 2 1/8" (54mm) wide. Fastens to mast with (8) 1/4" (6mm) rivets.
|
|
|
|
|
Vertical Gooseneck Bolt Ass'y - 8mm: Z-1478BA:
8mm SS Gooseneck Bolt Assembly is used to connect Mast Bracket to Gooseneck Toggle, Z-1247X. Vertical Bolt is 8mm (5/16") x 100mm (4") long, Assembly includes nylon washers and locknut. -5
|
|
|
|
||
|
Gooseneck Bracket for Z401 - Z701 Masts: Z-1062N:
Small cast aluminum Gooseneck Bracket is used on Z401, Z501, Z531, Z601, Z701 and other mast sections with Z-1075X or Z-4010 Gooseneck Toggles, or Z-1195 Vang Toggle. Bracket takes 12mm vertical pin (Z-1291) with clearance for 3" (76mm) toggle, and measures 4 9/16" (115mm) high x 3" (76mm) wide. New-style version fastens to mast with (6) 1/4" (6mm) rivets and (2) 5/16" (8mm) RH screws.
|
 |
|
| Gooseneck Bracket for Z401 - Z701 Masts, 10 rivet: Z-1062: | ||
|
Small cast aluminum Gooseneck Bracket is used on Z401, Z501, Z531, Z601, Z701 and other mast sections
with Z-1075X or Z-4010 Gooseneck Toggles,
or Z-1195 Vang Toggle.
Bracket takes 12mm vertical pin (Z-1291) with clearance for 3" (76mm) toggle,
and measures 4 9/16" (115mm) high x 3" (76mm) wide.
Old-style version fastens to mast with (10) 1/4" (6mm) rivets and (2) 5/16" (8mm) RH screws,
as well as (2) integral Lugs that fit in 14mm holes in the Mast track.
|
|
|
|
Gooseneck Bracket for Z601 - Z901 Masts: Z-4096:
Large cast aluminum Gooseneck Bracket is used on Z601, Z701, Z901 and other mast sections with Z-1075X or Z-4010 Gooseneck Toggles, or Z-1195 Vang Toggle. Bracket takes 12mm vertical pin (Z-1291) and has clearance for 3" (76mm) toggle, and measures 4 5/8" (118mm) high x 3 1/8" (80mm) wide. Fastens to mast with (8) 1/4" (6mm) rivets and (2) 5/16" (8mm) RH screws. On Z901 Mast Section, use with SS Reinforcing Plate, Z-1461K (below), for additional strength.
|
|
|
| Gooseneck Bracket for Z601 - Z901 Masts, 14mm Pin: Z-4096-14: | ||
|
Large cast aluminum Gooseneck Bracket is used on Z601, Z701, Z901 and other mast sections with
modified or Custom Gooseneck Toggles or Vang Toggles using a 14mm vertical Pin.
Bracket takes a 14mm vertical pin and has clearance for 3" (76mm) toggle, and is 4 5/8"
(118mm) high x 3 1/8" (80mm) wide. Fastens to mast with
(8) 1/4" (6mm) rivets and (2) 5/16" (8mm) RH screws. On Z901 Mast Section, use with SS
Reinforcing Plate, Z-1461K (below), for additional strength.
|
|
|
|
|
Vertical Gooseneck Pin - 12mm: Z-1291:
12mm Vertical Gooseneck Pin is used with Z-1062, and Z-4096 and other Gooseneck Brackets. SS Pin is 12mm (7/16") diameter x 118mm (4 5/8") long, with a hole for a cotter pin near the center which holds the Toggle in place. h@54
|
|
|
|

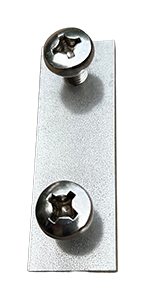

Bracket Reinforcing Plate w/ Screws: Z-1461K:
SS Reinforcing Plate for use with larger Gooseneck Brackets. Unit slides in track under Gooseneck Bracket, 8mm screws (included) go through holes in Bracket and thread into tapped plate. SS Plate is 25mm wide x 76mm long x 5mm thick, with (2) 8mm tapped holes on 30mm centers. Used with Gooseneck Brackets on Z901 and larger Mast Sections, and on Z600E and larger furling sections.
|
|
|
|
||
| Gooseneck Bracket for Z901 - Z1400 Masts: Z-138E: | ||
|
Large extruded aluminum Gooseneck Bracket is used on Z901, Z902, Z1001, Z1101, Z1400 and other mast
sections with Z-1187 Gooseneck Toggle or
Z-1178 Vang Toggle.
Bracket takes 14mm vertical bolt and has clearance for 3 1/8" (80mm) Toggle.
Unit measures 5 5/16" (135mm) high x 3 1/2" (89mm) wide. Fastens to mast with (8) 1/4" (6mm) rivets
and (2) 8mm (5/16") RH screws or use with SS Reinforcing Plate, Z-1461K (below),
for additional strength.
|
|
|
|
|
Bracket Reinforcing Plate w/ Screws: Z-1461K:
SS Reinforcing Plate for use with larger Gooseneck Brackets. Unit slides in track under Gooseneck Bracket, 8mm screws (included) go through holes in Bracket and thread into tapped plate. SS Plate is 25mm wide x 76mm long x 5mm thick, with (2) 8mm tapped holes on 30mm centers. Used with Gooseneck Brackets on Z901 and larger Mast Sections, and on Z600E and larger furling sections.
|
|
|
|
Vertical Gooseneck Bolt Ass'y - 14mm: Z-138BA:
14mm SS Gooseneck Bolt Assembly is used to connect Mast Bracket to Gooseneck Toggle, Z-1187. Vertical Bolt is 14mm (9/16") x 160mm (6 1/4") long, Assembly includes nylon washers and locknut.
|
|
|
|
||
| Gooseneck Brackets for Furling Masts
|
||
| Gooseneck Bracket for Z300E - Z500E Furling Masts: Z-1063F: | ||
|
Cast aluminum Gooseneck Bracket is used on Z300E, Z400E, Z500E and other mast sections with
Z-1083X, Z-1075X or Z-4010
Gooseneck Toggles, or
Z-1195 Vang Toggle.
Bracket takes 12mm vertical pin and has clearance for 3" (76mm) toggle, and measures 4 9/16"
(115mm) high x 3" (76mm) wide. Fastens to mast with (6) 1/4" (6mm) rivets and (2) 5/16" (8mm) RH screws.
|
||

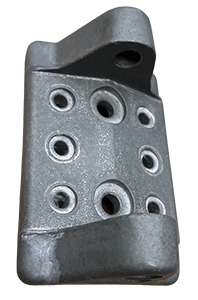

| Gooseneck Bracket for Z600E - Z900E Furling Masts: Z-1074FN: | ||
|
Small cast aluminum Gooseneck Bracket is used on Z600E, Z700E, Z800E, Z900E and other mast sections
with Z-1075X or Z-4010 Gooseneck Toggles,
or Z-1195 Vang Toggle.
Bracket takes 12mm vertical pin and has clearance for 3" (76mm) toggle, and measures 4 9/16"
(115mm) high x 3" (76mm) wide. New-style version fastens to mast with (6) 1/4" (6mm) rivets and (2) 5/16"
(8mm) RH screws or use with SS Reinforcing Plate, Z-1461K (below), for additional strength.
|
 |
|
| Gooseneck Bracket for Z600E - Z900E Furling Masts, 10 rivet: Z-1074F: | ||
|
Small cast aluminum Gooseneck Bracket is used on Z600E, Z700E, Z800E, Z900E and other mast sections
with Z-1075X or Z-4010 Gooseneck Toggles,
or Z-1195 Vang Toggle.
Bracket takes 12mm vertical pin and has clearance for 3" (76mm) toggle, and measures
4 9/16" (115mm) high x 3" (76mm) wide. Fastens to mast with (10) 1/4" (6mm) rivets and (2) 5/16"
(8mm) RH screws or use with SS Reinforcing Plate, Z-1461K (below), for additional strength.
|
|
|
| Gooseneck Bracket for Z600E - Z900E Furling Masts: Z-4008F: | ||
|
Large cast aluminum Gooseneck Bracket is used on Z600E, Z700E, Z800E and Z900E mast sections with
Z-1075X or Z-4010 Gooseneck Toggles,
or Z-1195 Vang Toggle.
Bracket takes 12mm vertical pin and has clearance for 3" (76mm) toggle, and measures
4 5/8" (118mm) high x 3 1/8" (80mm) wide. Fastens to mast with (8) 1/4" (6mm) rivets and (2) 5/16"
(8mm) RH screws or use with SS Reinforcing Plate, Z-1461K (below), for additional strength.
|
|
|
|
|
Vertical Gooseneck Pin - 12mm: Z-1291:
12mm Vertical Gooseneck Pin is used with Z-1063F, Z-1074F, Z-4008F and other Gooseneck Brackets. SS Pin is 12mm (7/16") diameter x 118mm (4 5/8") long, with a hole for a cotter pin near the center which holds the Toggle in place.
|
|
|
|
Bracket Reinforcing Plate w/ Screws: Z-1461K:
SS Reinforcing Plate for use with larger Gooseneck Brackets. Unit slides in track under Gooseneck Bracket, 8mm screws (included) go through holes in Bracket and thread into tapped plate. SS Plate is 25mm wide x 76mm long x 5mm thick, with (2) 8mm tapped holes on 30mm centers. Used with Gooseneck Brackets on Z901 and larger Mast Sections, and on Z600E and larger furling sections.
|
|
|
|
||
| Gooseneck Bracket for Z1100E - Z1400E Furling Masts: Z-138E: | ||
|
Large extruded aluminum Gooseneck Bracket is used on Z1100E and Z1400E and other mast sections with
Z-1187 Gooseneck Toggle or
Z-1178 Vang Toggle. Bracket takes 14mm
vertical bolt and has clearance for 3 1/8" (80mm) Toggle. Unit measures 5 5/16" (135mm) high x
3 1/2" (89mm) wide. Fastens to mast with (8) 1/4" (6mm) rivets and (2) 8mm (5/16") RH screws or
use with SS Reinforcing Plate, Z-1461K (below), for additional strength.
|
|
|
|
|
Bracket Reinforcing Plate w/ Screws: Z-1461K:
SS Reinforcing Plate for use with larger Gooseneck Brackets. Unit slides in track under Gooseneck Bracket, 8mm screws (included) go through holes in Bracket and thread into tapped plate. SS Plate is 25mm wide x 76mm long x 5mm thick, with (2) 8mm tapped holes on 30mm centers. Used with Gooseneck Brackets on Z901 and larger Mast Sections, and on Z600E and larger furling sections.
|
|
|
|
Vertical Gooseneck Bolt Ass'y - 14mm: Z-138BA:
14mm SS Gooseneck Bolt Assembly is used to connect Mast Bracket to Gooseneck Toggle, Z-1187. Vertical Bolt is 14mm (9/16") x 160mm (6 1/4") long, Assembly includes nylon washers and locknut. |
|
