| Z-Spar Single Line Reefing Fairleads |
|

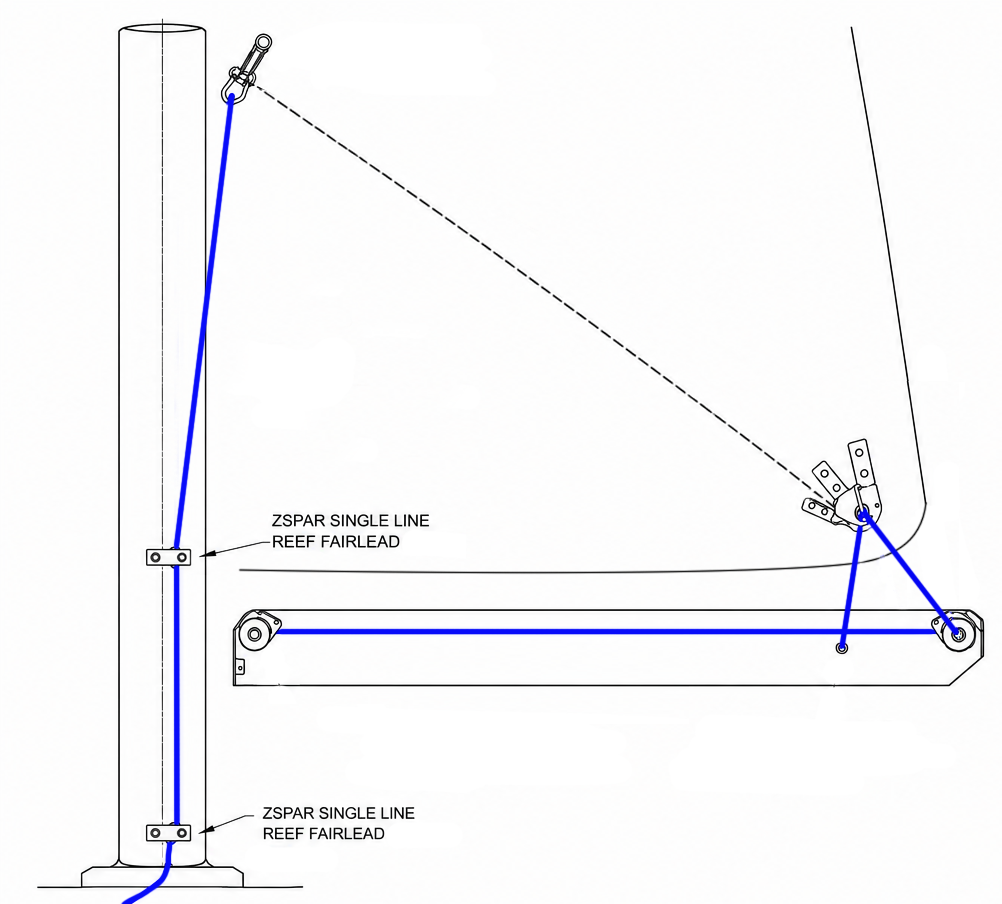

Single Line Reef Fairleads are used to lead up to 2 Single Reef Lines down from the
Reef Block at the Sail Tack to the Deck. Cast units are specific to particular Mast Sections, if your unit is not marked, ID your Mast Section @ Z-SPAR Mast Specifications. |
|
|
|
Single Line Reefing Fairleads Cast units are specific to particular Mast Sections, if your unit is not marked, ID your Mast Section @ Z-SPAR Mast Specifications. |
|
|

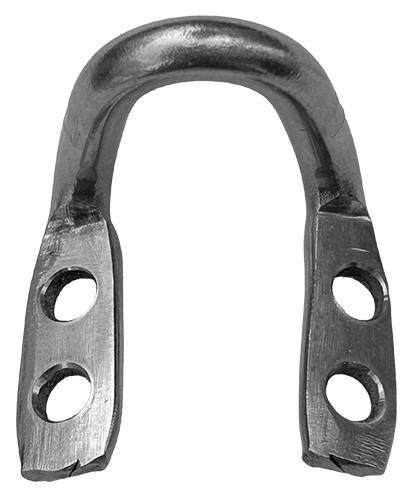

Single Line Reefing Fairlead, SS - Z145 thru Z501 Masts: Z-5079:
|
|
|
Formed SS Fairlead for Z145-Z501 Mast Sections made from 6mm SS rod fastens to Mast with (4) 5mm
(3/16") screws or rivets, it is suitable for use with Reef Lines up to 7/16" (12mm) diameter.
These units can be bent to fit a variety of Sections and are suitable for line fairleads in a
variety of other applications. Replaces some earlier Cast Aluminum units.
|
 |
|

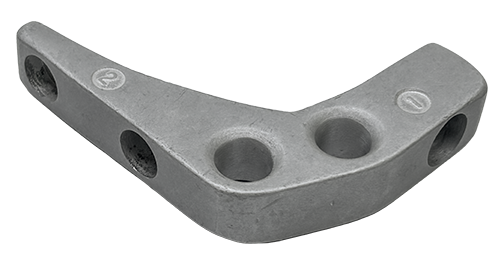

Single Line Reefing Fairlead - Z401 thru Z531/Z532 Masts: Z-4079:
|
|
|
Cast Aluminum 2-Line Fairlead for Z401-Z532 Mast Sections is (maximum) 5 1/8" (131mm) long x 3/4"
(19mm) thick and fastens to Mast with (3) 6mm (1/4") screws, 14mm holes make it suitable for use
with Reef Lines up to 7/16" (12mm) diameter.
|
 |
|
Single Line Reefing Fairlead - Z601 thru Z702 Masts: Z-4068:
|
|
|
Cast Aluminum 2-Line Fairlead for Z601-Z7022 Mast Sections is (maximum) 5 1/8" (131mm) long x 3/4"
(19mm) thick and fastens to Mast with (3) 6mm (1/4") screws, 14mm holes make it suitable for use
with Reef Lines up to 7/16" (12mm) diameter.
|
|
|

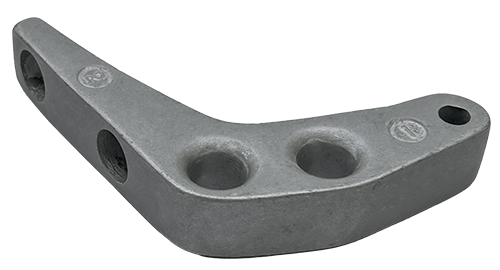

Single Line Reefing Fairlead - Z901 thru Z1250 Masts: Z-4064:
|
|
| Cast Aluminum 2-Line Fairlead for Z901, Z902, Z1001, and Z1250 Mast Sections is (maximum) 5 1/8" (131mm) long x 3/4" (19mm) thick and fastens to Mast with (2) 6mm (1/4") screws, 14mm holes make it suitable for use with Reef Lines up to 7/16" (12mm) diameter. |  |
