Rod Turnbuckle Studs - RH
Stainless Steel Turnbuckle Studs below are designed for use with all standard Center Body Turnbuckles (Stainless or Bronze, Open or Closed Body) with a standard UNF (imperial) thread. All Studs listed here have a Right-hand (RH) thread.
Rod Studs for Navtec Center Screw type Turnbuckles are listed separately, See: Navtec Series 500 Turnbuckle Rod Body Ends.
See also, other Rod Rigging Components.


Standard Rod Turnbuckle Studs

Removable Rod Turnbuckle Studs

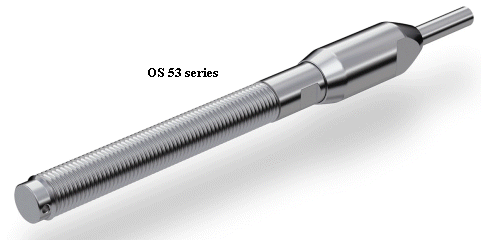

  Rod Turnbuckle Studs - OS / BSI 53 series
Stainless Steel Turnbuckle Studs below are suitable for use with all standard Center Body Turnbuckles (Stainless or Bronze, Open or Closed Body) with a standard UNF (imperial) thread. All OS Sockets feature a pre-drilled dimple to simplify 'dinging'.
*All with RH (Right Hand) UNF thread.

 Part #  Rod Size  Thread Size*  Length OA  Socket OD
: OS 53380045:
 -4 (.172")  3/8"  125mm  14mm *
: OS 53710650:
 -6 (.198")  7/16"  128mm  16mm *
: OS 53710657:
 -8 (.172")  7/16"  128mm  16mm *
: OS 53120057:  -8  1/2"  136mm  18mm
: OS 53120064:  -10 (.250")  1/2"  136mm  18mm
: OS 53120071:
 -12 (.281")  1/2"  136mm  18mm *
: OS 53580071:
 -12  5/8"  178mm  22mm *
: OS 53580075:  -15 (.296")  5/8"  178mm  22mm
: OS 53580084:  -17 (.330")  5/8"  178mm  22mm
: OS 53340084:
 -17  3/4"  205mm  26mm *
: OS 53340095:
 -22 (.375")  3/4"  205mm  26mm *
: OS 53780111:  -30 (.437")  7/8"  263mm  30mm
: OS 53100127:
 -40 (.500")  1"  275mm  35mm *
: OS 53114143:  -48 (.562")  1 1/8"  mm  38.5mm
: OS 53114168:  -60 (.660")  1 1/4"  316mm  44mm

  Removable Rod Turnbuckle Studs - Merriman 5255 series
Stainless Steel Turnbuckle Studs below are suitable for use with all standard Center Body Turnbuckles (Stainless or Bronze, Open or Closed Body) with a standard UNF (imperial) thread. As with all components of the Merriman Rod system, Removable Socket is secured with a machine screw, allowing for inspection of the rod head at any time, as well as complete reusability.
*All with RH (Right Hand) UNF thread.


 Part #  Rod Size  Thread Size*  Length OA  Socket OD
: Mer 5255-0412:
 -4  3/8"  4"  5/8"
: Mer 5255-0612:  -6  3/8"  4 1/8"  5/8"
: Mer 5255-0816:  -8  1/2"  5"  3/4"
: Mer 5255-1016:  -10  1/2"  5 1/8"  3/4"
: Mer 5255-1216:  -12  1/2"  5 5/8"  3/4"
: Mer 5255-1220:  -12  5/8"  6 3/8"  15/16"
: Mer 5255-1720:  -17  5/8"  6 1/2"  15/16"
: Mer 5255-2224:  -22  3/4"  "  1 1/8"
: Mer 5255-3028:  -30  7/8"  "  1.2"
