| Isomat/Sparcraft Exit Plates |
|
Exit Plates are used to lead any control line (internal halyards, pole lifts, etc.)
through a spar wall, where No directional change is required.
An Exit Plate is installed in a slot, to prevent the line going through it from coming
in contact with the spar wall. This prevents any abrasion of the spar wall, as well as
minimizing chafe on the line. All Isomat/Sparcraft Exit Plates are listed below. See also, Exit Plates - Main Page.
|
|
|
|
Plastic Exit Plates Isomat Plastic Exit Plates come in 2 varieties, those that Snap-in and those that are attached with a rivet. |
|
|
NG1 Snap-in Exit Plate: NG1-7:
Isomat Plastic Snap-in Halyard Exit Plates are molded in Black Plastic and "snap" into place. Unit measures (visible when installed) 3 1/2" long x 1" wide (87 x 25mm), and fits in mast cut-out 74mm long x 20mm wide (2 7/8" x 13/16"). Suitable for use with line up to 7/16" (12mm) diameter.
|
|
|
NG2 Snap-in Exit Plate: NG2-7:
Isomat Plastic Snap-in Halyard Exit Plates are molded in Black Plastic and "snap" into place. Unit measures (visible when installed) 4 1/2" long x 1 5/16" wide (115 x 34mm), and fits in mast cut-out 112mm long x 26mm wide (4 1/4" x 1"). Suitable for use with line up to 5/8" (16mm) diameter.
|
|
|
|
|
|
NG1 Plastic Riveted Exit Plate: NG1-8:
Molded Black Plastic Halyard Exit Plates are attached with (1) 3/16" (5mm) rivet. Unit measures (visible when installed) 4 1/2" long x 15/16" wide (115 x 25mm), and fits in mast cut-out 90mm long x 19mm wide (3 1/2" x 3/4"). Suitable for use with line up to 7/16" (12mm) diameter.
|
|
|
NG2 Plastic Riveted Exit Plate: NG2-8:
Molded Black Plastic Halyard Exit Plates are attached with (1) 3/16" (5mm) rivet. Unit measures (visible when installed) 5 1/2" long x 1 5/16" wide (138 x 34mm), and fits in mast cut-out 110mm long x 24mm wide (4 1/4" x 15/16"). Suitable for use with line up to 5/8" (18mm) diameter.
|
|
|
|
|
|
Stainless Steel Exit Plates Stainless Steel Halyard Exit Plates are attached with rivets or screws. |
|
|
Mini SS Exit Plate: NG0-7S4:
Mini Stainless Steel Exit Plate is just 1 3/4" long x 15/16" wide (45 x 25mm) and will handle line up to 5/16" (8mm) diameter. One of the smallest we've ever seen, commonly found on High- performance Dinghies. Formed SS plate fits in ovoid mast cutout 1 1/2" high x (maximum) 1/2" (13mm) wide. Unit is attached with (4) 4mm (5/32", #8) fasteners on 1 7/16" x 5/8" hole centers. Some units are marked A7520013. |
 |
|
Special Short SS Exit Plate: NG2-7S4:
Special Short Stainless Steel Exit Plate is 2 3/4" long x 1 3/8" wide (70 x 35mm) and will handle line up to 3/4" (19mm) diameter. Formed SS plate fits in mast cutout 2" high x 1" wide and fastens with (4) #10 (3/16") fasteners on 2 5/16" x 15/16" hole centers. As used on a variety of Isomat and Pearson Masts. PP 34-47
|
|
|
NG1 Small Cast SS Exit Plate: NG1-8S:
Stainless Steel Exit Plate is 4 3/4" long x 15/16" wide (121 x 25mm) and will handle line up to 7/16" (12mm) diameter. Cast SS plate fits in mast cutout 86mm high x 19mm wide (3 3/8" x 3/4") and fastens with (1) 3/16" (5mm) rivet. Unit is marked 34003116244.
|
|
|
NG2 Large Cast SS Exit Plate: NG2-8S:
Stainless Steel Exit Plate is 5 5/8" long x 1 1/4" wide (144 x 32mm) and will handle line up to 5/8" (18mm) diameter. Cast SS plate fits in mast cutout 112mm high x 23mm wide (4 3/8" x 7/8") and fastens with (1) 3/16" (5mm) rivet. Unit is marked 34003108184.
|
|
|
NG3 Extra Large Cast SS Exit Plate: NG3-8S:
Stainless Steel Exit Plate is 7 1/2" long x 1 9/16" wide (190 x 40mm) and will handle line up to 7/8" (24mm) diameter. Cast SS plate fits in mast cutout 140mm high x 29mm wide (5 1/2" x 1 3/16") and fastens with (1) 1/4" (6mm) rivet. Unit is marked 34003108284.
|
|
|
NG2 Formed SS Exit Plate: NG2-8SF:
Stainless Steel Exit Plate is 6" long x 1" wide (152 x 25mm) and will handle line up to 9/16" (14mm) diameter. Formed SS plate fits in mast cutout 110mm high x 19mm wide (4 1/4" x 3/4") and fastens with (1) 3/16" (5mm) rivet.
|
|
|

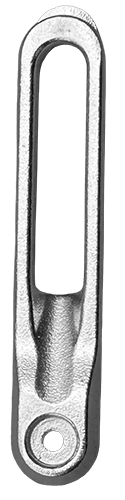

NG2 Cast SS Exit Plate: NG2-8SCX: Stainless Steel Exit Plate is 5 5/8" long x 1 1/4" wide (144 x 32mm) and will handle line up to 5/8" (18mm) diameter. Cast SS plate fits in mast cutout 112mm high x 23mm wide (4 3/8" x 7/8") and fastens with (1) 3/16" (5mm) rivet.
|
|
