Vang Toggles pivot on a Vertical Pin or Bolt attached to a Mast Bracket, and have a
Horizontal hole for attachment of the Vang. Some Toggles for Hard Vangs have additional holes to
attach Blocks for a Vang purchase. Hole size should be the same as the Vang Pin size. Vang Toggles listed below fit standard Imperial size Vertical Pins. Note: Vang Toggles with a single hole aft are sometimes used as Gooseneck Toggles. See, also: Gooseneck Toggles. For Vang Toggles to fit Metric Pins, See: Isomat/ Sparcraft Vang Brackets & Toggles, and Z-Spar Vang Toggles. For Vang Attachments for Booms, See: Boom Bails & Vang Attachments. |
|
|
|
|
|
Vang Toggles for 1/4" Vertical Pin Vang Toggles for a 1/4" Vertical Pin are used in a variety of semi-custom applications. |
|
|

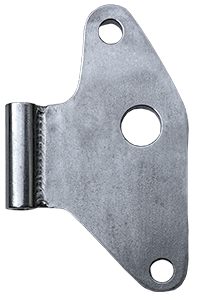

SS Vang Toggle - 1 1/2" high for 14mm Pin: K-11788S:
Used with some Kenyon (and other) Gooseneck Brackets with a 1/4" Vertical Pin, this SS toggle has a 14mm (9/16") hole for Vang attachment and (2) 8mm (5/16") holes for Vang Tackle. Welded Tube is 1 1/2" long, Tab is 5mm (3/16") thick x (maximum) 4 3/16" tall. As used with Sparcraft Pneuvang and others. |
|
|
|
|
|
Vang Toggles for 3/8" Vertical Pin Vang Toggles for a 3/8" Vertical Pin are used in a variety of production applications. |
|
|
SS Vang Toggle for Soft Vang - 1 1/2" high: K-10963:
Used with Kenyon (and other) Gooseneck Brackets with a 3/8", or 10mm Vertical Pin, this SS toggle has large 3/4" horizontal hole for attachment of Soft (block & tackle) Vangs. Welded Tube is 1 1/2" long, Tab is 5mm (3/16") thick.
|
 |

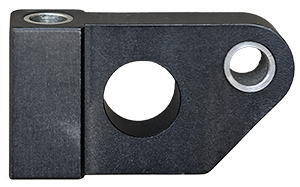

| Vang Toggle - 1 1/2" high for 3/8" Pins, 1/2" wide: K-10963-V6: | |
|
Used with Kenyon (and other) Gooseneck Brackets with a 3/8" Vertical Pin and clearance
for a 1 1/2" Toggle. Machined Aluminum Vang Toggle is 1 1/2" high x (maximum) 2 7/8" long,
Tab is 1/2" wide, holes are on 2" centers.
Unit features SS Bushed holes for Vertical and Horizontal Pins.
Original Vertex. Ver 45-1212VS
|
|
|
SS Vang Toggle - 1 1/2" high for 14mm Pin: K-10963-2:
Used with Kenyon (and other) Gooseneck Brackets with a 3/8", or 12mm Vertical Pin, this SS toggle has 14mm (9/16") hole for Vang attachment and 8mm (5/16") hole for Vang Tackle. Welded Tube with Bronze bushed hole is 1 1/2" long, Tab is 5mm (3/16") thick x (maximum) 2 3/8" tall. As used with Sparcraft Pneuvang and others.
|
 |
|
SS Vang Toggle - 1 1/2" high for 14mm Pin: K-11788:
Used with Kenyon (and other) Gooseneck Brackets with a 3/8", or 10mm Vertical Pin, this SS toggle has a 14mm (9/16") hole for Vang attachment and (3) 8mm (5/16") holes for Vang Tackle. Welded Tube is 1 1/2" long, Tab is 5mm (3/16") thick x (maximum) 4 3/4" tall. As used with Sparcraft Pneuvang and others.
|
|
|
|
|

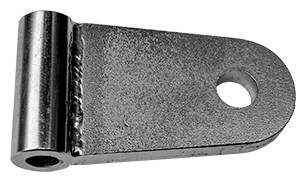

| SS Vang Toggle - 1 7/8" high for 1/2" Pin: K-11789-8B: | |
|
SS Vang Toggle fits Brackets for 1 7/8" Toggle with a 3/8" Vertical Pin, and has a
1/2" hole for Vang attachment. Unit is 1 7/8" high x (maximum) 3 1/2" long, Tab is 5/16" (8mm)
thick, Pin Holes are on 2 3/8" centers. As used on Beneteau 42 Swift Trawler, Mumm and others.
|
|
|
|
|

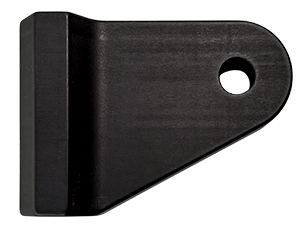

| Vang Toggle - 2 3/16" high, 3/8" wide for 3/8" Pins: HSV 45-1212AQ: | |
|
Aluminum Vang Toggle fits Brackets with a 3/8" Vertical Pin, and has a 3/8" hole for
Vang attachment. Unit is 2 3/16" high x (maximum) 3" long, Tab is 3/8" wide at horizontal Pin hole.
As used with Hall 'A' QuikVang and others. PR-8756-8
|
|

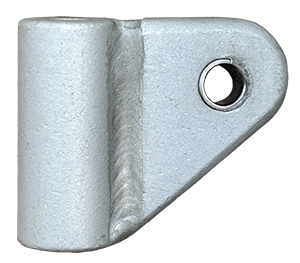

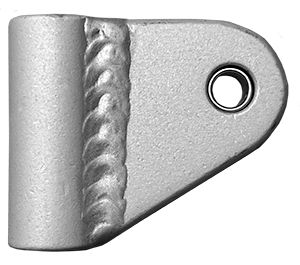

| Vang Toggle - 2 1/4" high, 3/8" wide for 3/8" Pins: SPC M1009-B6: | |
|
Aluminum Vang Toggle fits Brackets with a 3/8" Vertical Pin, and has a SS Bushed
3/8" hole for Vang attachment. Unit is 2 1/4" high x (maximum) 2 3/4" long, Tab is 3/8" wide
at horizontal Pin hole. spc
|
|
|
|
|

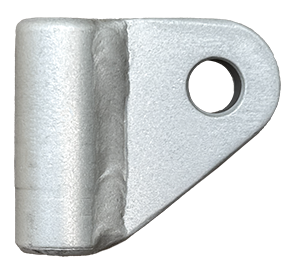

| Vang Toggle - 2 1/4" high, 3/8" wide for 1/2" Pin: SPC M1009: | |
|
Aluminum Vang Toggle fits Brackets with a 3/8" Vertical Pin, and has a 1/2" hole
for Vang attachment. Unit is 2 1/4" high x (maximum) 2 3/4" long, Tab is 3/8" wide at
horizontal Pin hole. spc
|
|
|
|
|
|
Vang Toggles for 12mm Vertical Pin Vang Toggles for a 12mm Vertical Pin are used in a variety of production and custom applications. For other Vang Toggles for a 12mm Vertical Pin, See: NG1 Vang Toggles. |
|

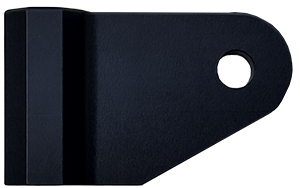

| Vang Toggle for 12mm Pin, NG1 Bracket, QuikVang A: HSV 45-12M12: | |
|
Machined Aluminum Vang Toggle Fits NG1-11 Vang Brackets. Unit is 1 7/8" (48mm) high and is
drilled for 12mm Vertical Pin, NB1-1. Tab is 3/8" thick, holes are on 2" centers.
As used with the Hall Spars 'A' QuikVang and others.
PR-8756-17 RRe
|
|
|
|
|
|
Vang Toggles for 1/2" Vertical Pin Vang Toggles for a 1/2" Vertical Pin are used in a variety of production and custom applications. |
|
|

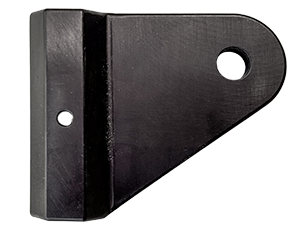

Vang Toggle - 2 1/2" high, 3/8" wide for 3/8" Pin: HSV 45-1612: Aluminum Vang Toggle fits Brackets with a 1/2" Vertical Pin, and has a 3/8" hole for Vang attachment. Unit is 2 1/2" high x (maximum) 3" long, Tab is 3/8" wide at horizontal Pin hole. PR-8756-15
|
|
| Vang Toggle - 2 1/2" high, 1/2" wide for 3/8" Pin: SPC M1010-B6: | |
|
Aluminum Vang Toggle fits Brackets with a 1/2" Vertical Pin, and has a SS bushed
3/8" hole for Vang attachment. Unit is 2 1/2" high x (maximum) 3 1/8" long,
Tab is 1/2" wide at horizontal Pin hole. spc
|
|
|
|
|

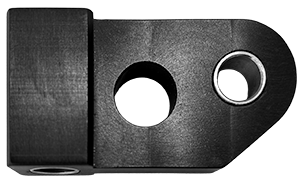

| Vang Toggle - 1 3/4" high, 1/2" wide for 1/2" Pins: Ver 45-1616VS: | |
|
Machined Aluminum Vang Toggle fits Brackets with a 1/2" Vertical Pin, and clearance
for a 1 3/4" (minimum) Toggle. Unit is 1 3/4" high x (maximum) 3 1/2" long, Tab is 1/2" wide
with SS Bushed 3/8" hole, holes are on 2 1/4" centers.
Unit features SS Bushed holes for Vertical and Horizontal Pins.
Original Vertex. K-10963-V8
|
|

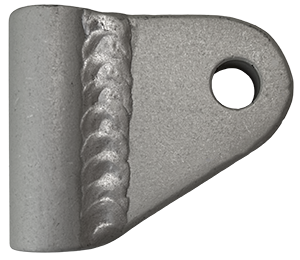

| Vang Toggle - 2 1/2" high, 1/2" wide for 1/2" Pins: SPC M1010: | |
|
Aluminum Vang Toggle fits Brackets with a 1/2" Vertical Pin, and has a 1/2" hole for
Vang attachment. Unit is 2 1/2" high x (maximum) 3 1/8" long, Tab is 1/2" wide at horizontal Pin hole. spc
|
|

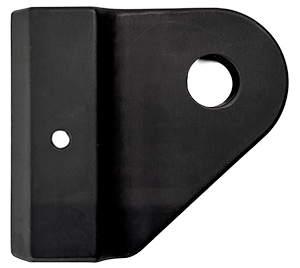

| Vang Toggle - 2 1/2" high, 5/8" wide for 1/2" Pins: HSV 45-1616S: | |
|
Aluminum Vang/ Gooseneck Toggle fits Brackets with a 1/2" Vertical Pin, and has a 1/2" hole
for Vang attachment. Unit is 2 1/2" high x (maximum) 2 7/8" long, Tab is 5/8" wide at
horizontal Pin hole, holes are on 1 1/2" centers.
PR-10730-163
|
|

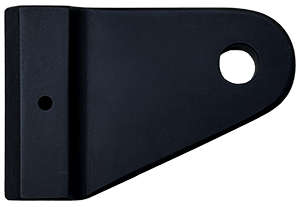

| Vang Toggle - 2 1/2" high, 5/8" wide for 1/2" Pins: HSV 45-1616SE: | |
|
Aluminum Vang/ Gooseneck Toggle fits Brackets with a 1/2" Vertical Pin, and has a 1/2" hole
for Vang attachment. Unit is 2 1/2" high x (maximum) 3 3/4" long, Tab is 5/8" wide at
horizontal Pin hole, holes are on 2 1/2" centers.
PR-10730-_
|
|

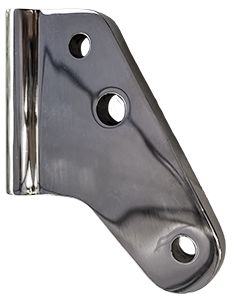

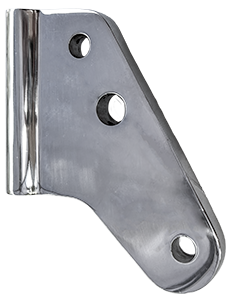

| SS Vang Toggle - 3 1/8" high, 3/8" wide for 1/2" Pins: For YRM-ST: | |
|
Cast SS Vang Toggle fits Brackets with a 1/2" Vertical Pin, and has a 1/2" hole for
Vang attachment and (2) 3/8" holes for Vang Tackle. Toggle is 3 1/8" high, SS Tab is 3/8" thick
x (maximum) 4 3/4" tall. As used w/ Forespar Yacht Rod (YR-M) and other Vangs w/ a 1/2" Pin.
|
|

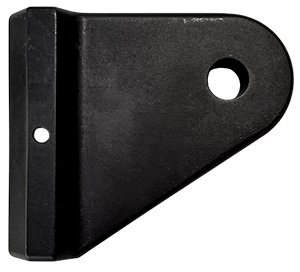

| Vang Toggle - 3 1/4" high, 1/2" wide for 1/2" Pins: HSV 45-1616BQ: | |
|
Aluminum Vang Toggle fits Brackets with a 1/2" Vertical Pin, and has a 1/2" hole for
Vang attachment. Unit is 3 1/4" high x (maximum) 3 3/4" long, holes on 2 3/8" centers, Tab is
1/2" wide at horizontal Pin hole. As used with Hall 'B' QuikVang and others.
PR-8756-4
|
|
|
|
|

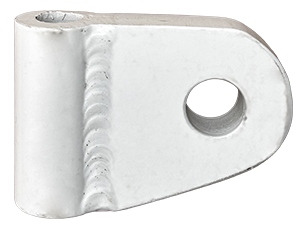

| Vang Toggle - 2 1/8" high, 5/8" wide for 5/8" Pin: K-11874-T1620: | |
|
Aluminum Vang Toggle fits Brackets with a 1/2" Vertical Pin, and has a 5/8" hole for
Vang attachment. White painted unit is 2 1/8" high x (maximum) 3 1/8" long, holes on 2 5/8" centers,
Tab is 5/8" wide at horizontal Pin hole.
|
|

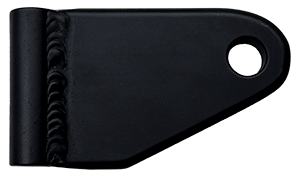

| Vang Toggle - 2 1/8" high, 5/8" wide for 5/8" Pin: CC VT1620: | |
|
Aluminum Vang Toggle fits Brackets with a 1/2" Vertical Pin, and has a 5/8" hole for
Vang attachment. Toggle is 2 7/8" high x (maximum) 5" long, holes on 3 1/2" centers,
Tab is 1/2" wide at horizontal Pin hole. As used on C&C.
|
|
|

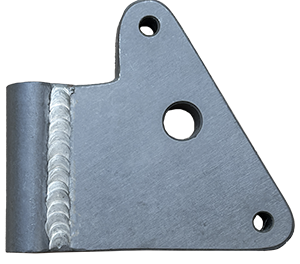

Vang Toggle - 3" high, >5/8" wide for 5/8" Pin: For YRL-AT:
|
|
|
Aluminum Vang Toggle fits Brackets with a 1/2" Vertical Pin, and has a 5/8" hole
for Vang attachment. Toggle is 3" high at Bracket, Tab features (2) 5/16" holes for attachment of Vang Tackle.
Unit is (maximum) 5" long x 4 1/2" high, Tab is >5/8" (.650") wide at horizontal Pin hole.
As used w/ Forespar Yacht Rod (L & XL) and other Vangs w/ a 5/8" Pin.
|
|

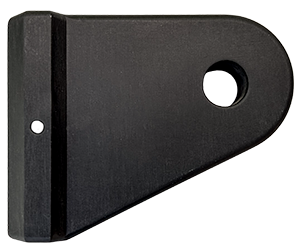

| Vang Toggle - 3 1/4" high, 5/8" wide for 5/8" Pin: HSV 45-1620CQ: | |
|
Aluminum Vang/ Gooseneck Toggle fits Brackets with a 1/2" Vertical Pin, and has a
5/8" hole for Vang attachment. Unit is 3 1/4" high x (maximum) 4 1/8" long,
Tab is 5/8" wide at horizontal Pin hole. As used with Hall 'C' & 'D' QuikVang and others.
PR-8756-5
|
|
|
|
|
|
Vang Toggles for 14mm Vertical Pin Vang Toggles for a 14mm Vertical Pin are used in a variety of production and custom applications. For Vang Toggles for a 14mm Vertical Pin, See: NG2 Vang Toggles. |
|
|
|
|
|
Vang Toggles for 5/8" Vertical Pin Vang Toggles for a 5/8" Vertical Pin are used in a variety of production and custom applications. For Vang Toggles for a 16mm Vertical Pin (which will also fit on a 5/8" Pin), See: NG3 Vang Toggles. |
|
|

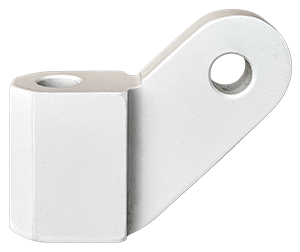

Vang Toggle - 2 5/16" high, 5/8" wide for 5/8" Pins: K-11695S: Aluminum Vang Toggle fits Brackets with a 5/8" Vertical Pin, and has a 5/8" hole for Vang attachment. Unit is 2 5/16" high x (maximum) 4 1/2" long, Tab is 5/8" wide at horizontal Pin hole. One-piece machined Toggle is painted White.
|
|
|
SS Vang Toggle - 2 3/4" high for 5/8" Pins: NG3-17:
Heavy-duty SS Vang Toggle fits Brackets with a 5/8" Vertical Pin, including the NG3-11 Vang Bracket. Tab has 5/8" (16mm) hole for attachment of Vang. SS tube is 2 3/4" (70mm) long, welded SS Tab is 8mm (5/16") thick with welded reinforcement bushing (5/8" wide) and projects 2 3/4" (70mm) out from 30mm diameter tube. Also used with Soft (block and tackle) Vangs, as the large hole will accommodate any shackle.
|
|
|

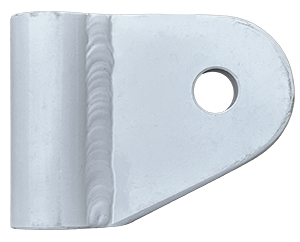

Vang Toggle - 3" high, 1/2" wide for 5/8" Pins: K-11695:
Aluminum Vang Toggle fits Brackets with a 5/8" Vertical Pin, and has a 5/8" hole for Vang attachment. Unit is 3" high x (maximum) 4" long, Tab is 1/2" wide at horizontal Pin hole. White, as used on J/40.
|
|

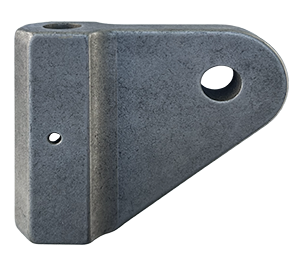

| Vang Toggle - 3 3/4" high, 5/8" wide for 5/8" Pins: HSV 45-2020DQ: | |
|
Aluminum Vang Toggle fits Brackets with a 5/8" Vertical Pin, and has a 5/8" hole for
Vang attachment. Unit is 3 3/4" high x (maximum) 4 1/2" long, Tab is 5/8" wide at horizontal Pin hole.
As used with some Hall 'D' QuikVang and others. PR-9646-12
|
|
| Vang Toggle - 4" high, 5/8" wide for 5/8" Pins: K-11695H-4S: | |
|
Heavy Duty Aluminum Vang Toggle fits Brackets with a 5/8" Vertical Pin, and has a 5/8" hole
for Vang attachment. Tab is welded to massive 1 3/4" OD body and incorporates an integral 5/8" ID
SS Bushing to virtually eliminate Toggle wear. Unit is 4" high x (maximum) 4 1/4" long, Tab is 5/8" wide.
|
|
|
|
|
|
Vang Toggles for 3/4" Vertical Pin Vang Toggles for a 3/4" Vertical Pin are used in a variety of production and custom applications. |
|

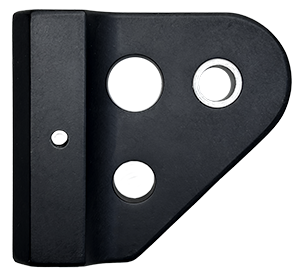

| Vang Toggle - 4 1/2" high, 3/4" wide for 5/8" Pin: HSV 45-2420B: | |
|
Aluminum Vang/ Gooseneck Toggle fits Brackets with a 3/4" Vertical Pin, and has a
SS Bushed 5/8" hole for Vang attachment. Unit is 4 1/2" high x (maximum) 5" long, Tab is
3/4" wide at horizontal Pin hole. As used with QuikVang and others.
PR-10730-17 |
|
| Vang Toggle - 4 1/2" high, 1" wide for 5/8" Pin: HSV 45-2420B-1: | |
|
Aluminum Vang/ Gooseneck Toggle fits Brackets with a 3/4" Vertical Pin, and has a
SS Bushed 5/8" hole for Vang attachment. Unit is 4 1/2" high x (maximum) 5" long, Tab is
1" wide at horizontal Pin hole. As used with QuikVang and others.
PR-10730-16
|
|
|
|
|
|
Vang Toggles for 7/8" Vertical Pin Vang Toggles for a 7/8" Vertical Pin are used in a variety of production and custom applications. |
|

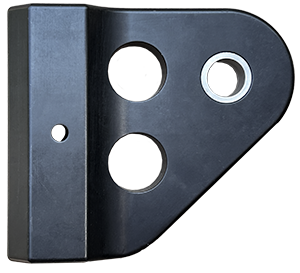

| Vang Toggle - 4 7/8" high, 3/4" wide for 3/4" Pin: HSV 45-2824B: | |
|
Aluminum Vang/ Gooseneck Toggle fits Brackets with a 7/8" Vertical Pin, and has a
SS Bushed 3/4" hole for Vang attachment. Unit is 4 7/8" high x (maximum) 5 5/8" long, Tab is
3/4" wide at horizontal Pin hole.
PR-10730-121B
|
|
