Boom Bails

Boom Bails
Boom Bails are mounted to the Boom and are used to attach Blocks for the Mainsheet and Vang. For most applications Standard Pivoting Boom Bails, which attach with a single Bolt, are used. To select a Standard Bail you will need to know the maximum width of the Boom Section. On smaller boats, Standard and Small Boom Bails are frequently mounted on the Mast for attachment of a (soft) Boom Vang Block and Tackle. Pivoting (Standard) Boom Bails for attachment with a single Bolt. - Reinforcing Plates for Pivoting (Standard) Boom Bails for high-load applications. Small Boom Bails for attachment with screws or rivets. Internally Mounted Boom Bails for attachment with screws or rivets. Special Boom Bails for Round and other Specific Boom Sections. Track Mounted Boom Bails for Booms with an integral Bail track. Track Mounted Vang Lugs for Booms with an integral Bail track. Weld-in Boom Vang Lugs for Custom applications. Boom Vang Ball Attachment Plates for Small Boat removable Boom Vangs using a wire swage ball.

Pivoting (Standard) Boom Bails are listed by the size of the bolt they attach with. In heavy-duty applications they are sometimes used with Flange Bushings, and/or Compression Tubes.
*Boom Bail - 1/4" x 3/4" wide: NF 526:* SS Boom Bail made from 5/8" x 1/16" strap is designed to be attached with (1) 1/4" SS bolt and nut. Formed at 3/4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 1 1/2". For use with "T" booms and in numerous other applications.
	*Boom Bail Bolt Ass'y - 1/4" for NF 526: NF 526BA:* Boom Bail bolt Assembly includes 1/4" SS bolt x 1 1/8", with locknut, and nylon washers to prevent bail from damaging boom surface as it pivots.
*Boom Bail - 1/4" x 1 3/4" wide: K-S9001:* SS Boom Bail made from 1/2" x 1/16" strap is designed to be attached with (1) 1/4" SS bolt and nut. Formed at 1 3/4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 2 1/2". As used on Kenyon B-section and similar Boom Sections.
	*Boom Bail Bolt Ass'y - 1/4", B-section: K-S9001BA:* Boom Bail bolt Assembly includes 1/4" SS bolt x 2 1/4", with locknut, and nylon washers to prevent bail from damaging boom surface as it pivots.
Boom Bail – 1/4" x 2 1/4" wide: K-10456: Heavy SS Boom Bail made from 1/4" rod is designed to be attached with (1) 1/4" SS bolt and nut. Formed at 2 1/4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 2 1/2". Design allows bail to pivot fore and aft for optimal alignment with load. As used on Kenyon 2331 and D-Section and similar Boom Sections.
	Boom Bail Bolt Ass'y - 1/4" for 2331: K-10456BA: Boom Bail bolt assembly includes 1/4" SS bolt x 2 3/4", with locknut, and nylon washers to prevent bail from damaging boom surface as it pivots.

Boom Bail - 5/16" x 3 1/4" wide: NF 10512: SS Boom Bail made from 5/16" rod is designed to be attached with (1) 5/16" SS bolt and nut. Formed at 3 1/4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 4 1/8".
	*Boom Bail Bolt Ass'y - 5/16" for NF Bail: NF 10512BA:* Boom Bail bolt assembly for NF-10512 Bail includes 5/16" SS bolt x 4", with locknut, and nylon washers to prevent bail from damaging boom surface as it pivots.

Boom Bail - 3/8" x 2 1/4" wide: K-10456H: Heavy SS Boom Bail made from 3/8" rod is designed to be attached with (1) 3/8" SS bolt and nut. Formed at 2 1/4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 3 1/2". As used on Kenyon D-Section and similar Boom Sections. 10
	*Boom Bail Bolt Ass'y - 3/8", D-Section: K-10456HBA:* Boom Bail bolt assembly includes 3/8" SS bolt x 3", with locknut, and nylon washers to prevent bail from damaging boom surface as it pivots.
Boom Bail - 3/8" x 3" wide: K-2223: Heavy SS Boom Bail made from 3/8" rod is designed to be attached with (1) 3/8" SS bolt and nut. Formed at 3" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 3 1/2". As used on Kenyon E-section and similar Boom Sections. 9
Boom Bail, Long - 3/8" x 3" wide: K-2223L: Long Heavy SS Boom Bail made from 3/8" rod is designed to be attached with (1) 3/8" SS bolt and nut. Formed at 3" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 5 3/4". Especially suitable for use with Boom Vang on E-section boom and mast and similar Sections. 7
	Boom Bail Bolt Ass'y - 3/8" for E-section: K-2223BA: Boom Bail bolt assembly includes 3/8" SS bolt x 3 1/2", with locknut and nylon washers to prevent bail from damaging boom surface as it pivots. For use with K-2223 Boom Bails on E-section boom.
Boom Bail - 3/8" x 3 1/2" wide: K-2172: Heavy SS Boom Bail made from 3/8" rod is designed to be attached with (1) 3/8" SS bolt and nut. Formed at 3 1/2" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 3 1/2". As used on Kenyon 3550 and similar Boom Sections. 8
	Boom Bail Bolt Ass'y - 3/8" for 3 1/2": K-2172BA: Boom Bail bolt assembly for *K-2172* Bail includes 3/8" SS bolt x 4 1/2", with locknut and nylon washers to prevent bail from damaging boom surface as it pivots.
*Boom Bail - 3/8" x 4" wide: K-11325:* Heavy SS Boom Bail made from 3/8" rod is designed to be attached with (1) 3/8" SS bolt and nut. Formed at 4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 5". As used on Kenyon 3756 and similar Boom Sections. 7m
*Boom Bail, Long - 3/8" x 4" wide: K-11325L:* Heavy SS Boom Bail made from 3/8" rod is designed to be attached with (1) 3/8" SS bolt and nut. Formed at 4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 7". As used on Kenyon 4060 and similar Boom Sections.
	Boom Bail Bolt Ass'y - 3/8" for 4" Boom: K-11325BA: Boom Bail bolt assembly includes 3/8" SS bolt x 5", with locknut and nylon washers to prevent bail from damaging boom surface as it pivots.
*Boom Bail - 3/8" x 5 3/4" wide: K-11325W:* Heavy SS Boom Bail made from 3/8" rod is designed to be attached with (1) 3/8" SS bolt and nut. Formed at 5 3/4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 8 1/2". 12
	Boom Bail Bolt Ass'y - 3/8" x 6 1/2": K-11325WBA: Boom Bail bolt assembly includes 3/8" SS bolt x 6 1/2", with locknut and nylon washers to prevent bail from damaging boom surface as it pivots. For use with K-11325W Boom Bail.

*Boom Bail - 1/2" x 1 7/8" wide: K-11066-2:* Special Large Heavy-duty SS Boom Bail made from 3/8" rod is designed to be attached with (1) 1/2" SS bolt and nut. Formed at 1 7/8" wide, width can be varied to fit slightly larger or smaller sections. Bail length, from bolt center, is 3 3/8". For special applications.
	Boom Bail Bolt Ass'y - 1/2" for K-11066-2 Bail: K-11066-2BA:
	Boom Bail bolt assembly includes 1/2" SS bolt x 3", with locknut and nylon washers to prevent bail from damaging boom surface as it pivots.
*Boom Bail - 1/2" x 5 1/4" wide: K-11066:* Large Heavy SS Boom Bail made from 1/2" rod is designed to be attached with (1) 1/2" SS bolt and nut. Formed at 5 1/4" wide, width can be varied to fit slightly larger or smaller sections. Bail length, from bolt center, is 5 1/2". As used on Kenyon 5072 and similar Boom Sections.
	Boom Bail Bolt Ass'y - 1/2" for 5072: K-11066BA:
	Boom Bail bolt assembly includes 1/2" SS bolt x 6 1/2", with locknut and nylon washers to prevent bail from damaging boom surface as it pivots.

Reinforcing Plates for Standard Boom Bails Boom Bail Bearing Plates are used to reinforce the boom wall, spreading the load of a single bolt attachment out over a greater area and increasing the bearing surface by using additional fasteners. Used with Standard (Pivoting) Boom Bails, they reinforce this most highly loaded part of the Boom and are especially critical on bolts for Vang Bails. Please Note that the larger Reinforcing Plates can be used with Flange Bushings (and a smaller Bolt) to achieve the same strength with maximum weight reduction. In heavy-duty applications they are sometimes used with Compression Tubes.
*Boom Bail Bearing Plate for 1/4" Bolt: K-10456RP:* SS Reinforcing Plate is used to add Bearing Surface to highly loaded bolts for Standard Boom Bails. Diamond-shaped SS Reinforcing Plate is 2" long x 7/8" high and attaches to Boom with (2) 3/16" (5mm) screws or rivets as well as the 1/4" Boom Bail Bolt. Slightly curved Plate is suitable for most Boom Sections. Pressed center hole is formed to fit in 3/8" center hole providing a bearing surface through the Boom wall maximizing bolt bearing surface. Unit is designed for mainsheet and Vang Bails on J/22, J/24 and other boats with 1/4" Bails. Two (2) Plates (1 on each side) are required for normal applications.		K-10456RP
*Boom Bail Bearing Plate for 5/16" Bolt: K-2172RP-5:* SS Reinforcing Plate is used to add Bearing Surface to highly loaded bolts for Standard Boom Bails. Diamond-shaped SS Reinforcing Plate is 3 3/16" long x 2" high and attaches to Boom with (3) 3/16" (5mm) screws or rivets as well as the 5/16" Boom Bail Bolt. Slightly curved Plate is suitable for most Boom Sections, and can be easily contoured to fit others. Two (2) Plates (1 on each side) are required for normal applications.
*Boom Bail Bearing Plate for 3/8" Bolt: K-2172RP:* SS Reinforcing Plate is used to add Bearing Surface to highly loaded bolts for Standard Boom Bails. Rectangular SS Reinforcing Plate is 3" long x 2" high and attaches to Boom with (4) 3/16" (5mm) screws or rivets (on 2 5/16" x 1 5/16" centers) as well as the 3/8" Boom Bail Bolt. Slightly curved Plate is suitable for most Boom Sections, and can be easily contoured to fit others. Two (2) Plates (1 on each side) are required for normal applications.
*Boom Bail Bearing Plate for 1/2" Bolt: K-2172RP-8:* SS Reinforcing Plate is used to add Bearing Surface to highly loaded bolts for Standard Boom Bails. Rectangular SS Reinforcing Plate is 3" long x 2" high and attaches to Boom with (4) 3/16" (5mm) screws or rivets (on 2 5/16" x 1 5/16" centers) as well as the 1/2" Boom Bail Bolt. Slightly curved Plate is suitable for most Boom Sections, and can be easily contoured to fit others. Two (2) Plates (1 on each side) are required for normal applications.
*Boom Bail Bearing Plate for 1/2" Bolt: K-11066RP:* SS Reinforcing Plate is used to add Bearing Surface to highly loaded bolts for Standard Boom Bails. Diamond-shaped SS Reinforcing Plate is 3 7/8" long x 2 1/2" high and attaches to Boom with (3) 3/16" (5mm) screws or rivets as well as the 1/2" Boom Bail Bolt. Slightly curved Plate is suitable for most Boom Sections, and can be easily contoured to fit others. Two (2) Plates (1 on each side) are required for normal applications.
*Boom Bail Bearing Plate for 5/8" Bolt: K-19010RP:* SS Reinforcing Plate is used to add Bearing Surface to highly loaded bolts for Standard Boom Bails. Diamond-shaped SS Reinforcing Plate is 3 7/8" long x 2 1/2" high and attaches to Boom with (3) 3/16" (5mm) screws or rivets as well as the 5/8" Boom Bail Bolt. Slightly curved Plate is suitable for most Boom Sections, and can be easily contoured to fit others. Two (2) Plates (1 on each side) are required for normal applications.

Small Boom Bails
*Boom Bail - 1/4" x 3/4" wide: NF 526:* SS Boom Bail made from 5/8" x 1/16" strap is designed to be attached with (1) 1/4" SS bolt and nut. Formed at 3/4" wide, width can be varied to fit larger or smaller sections. Bail length, from bolt center, is 1 1/2". For use with "T" booms and in numerous other applications.

*Lightweight Boom Bail - 3/8" Strap x 2 1/2" long: K-290A:* Low load version of K-291A, below, made from thinner strap. Lightweight SS Boom Bail is a formed-strap design, which can be easily contoured to fit a variety of smaller sections. Bail is 3/8" wide x 1/16" thick, and 2 1/2" long. Fastens with (4) 3/16" (#10) fasteners on 3/4" centers.
*Lightweight Boom Bail - 3/8" Strap x 3 1/2" long: K-290B:* Low load version of K-291B, below, made from thinner strap. Lightweight SS Boom Bail is a formed-strap design, which can be easily contoured to fit a variety of smaller sections. Bail is 3/8" wide x 1/16" thick, and 3 1/2" long. Fastens with (4) 3/16" (#10) fasteners on 1" centers.
*Lightweight Boom Bail - 3/8" Strap x 4 1/2" long: K-290C:* Low load version of K-291C, below, made from thinner strap. Lightweight SS Boom Bail is a formed-strap design, which can be easily contoured to fit a variety of smaller sections. Bail is 3/8" wide x 1/16" thick, and 4 1/2" long. Fastens with (4) 3/16" (#10) fasteners on 1 1/4" centers.

*Boom Bail - 7/16" Strap x 2 1/4" long: NF 474:* SS Boom Bail is a lightweight formed-strap design, which can be easily contoured to fit a variety of smaller sections. Bail is 7/16" wide x 1/16" thick, and 2 1/4" long. Fastens with (4) 3/16" (#10) fasteners on 1" centers.

*Boom Bail - 1/2" Strap x 2 1/2" long: K-291A:* SS Boom Bail is a lightweight formed-strap design, which can be easily contoured to fit a variety of smaller sections. Bail is 1/2" wide x 1/16" thick, and 2 1/2" long. Fastens with (4) 3/16" (#10) fasteners on 3/4" centers.
*Boom Bail - 1/2" Strap x 3 1/2" long: K-291B:* SS Boom Bail is a lightweight formed-strap design, which can be easily contoured to fit a variety of smaller sections. Bail is 1/2" wide x 1/16" thick, and 3 1/2" long. Fastens with (4) 3/16" (#10) fasteners on 1" centers.
*Boom Bail - 1/2" Strap x 4 1/2" long: K-291C:* SS Boom Bail is a lightweight formed-strap design, which can be easily contoured to fit a variety of smaller sections. Bail is 1/2" wide x 1/16" thick, and 4 1/2" long. Fastens with (4) 3/16" (#10) fasteners on 1 1/4" centers.

Internal Boom Bails In addition to the Internal Boom Bails listed here, some manufacturers use Boom Bails that slide in tracks that are integral to the Boom Section. These are usually specific to the particular manufacturer, See: Internal Track Mounted Boom Bails.
Internal Boom Bail - 1/4": K-11364: Internally mounted bail has a 1/4" SS bail welded to a plate formed to fit the *inside* of the boom. Unit is mounted inside the boom, bail protrudes through a 1" x 1/4" slot, and is held in place with (2) 3/16" SS rivets on 1 7/8" centers. Curved plate is 2 1/4" long x 3/4" wide. Used on Kenyon 2632, D, and similar Boom Sections. As used on Etchells 22, Sonar, and others.
Internal Boom Bail - 1/4": K-11364F: Internally mounted bail has a 1/4" SS bail welded to a Flat plate. Unit is mounted inside the boom, bail protrudes through a 1" x 1/4" slot, and is held in place with (2) 3/16" SS rivets on 1 7/8" centers. Flat plate is 2 1/4" long x 3/4" wide x 1/8" thick. Unit is sometimes used as an externally mounted Pad Eye.

Internal Boom Bail - 5/16": K-11428: Internally mounted bail has a 5/16" SS bail welded to a plate formed to fit the *inside* of the boom. Unit is mounted inside the boom, bail protrudes through a 5/16" x 1 1/2" slot and is held in place with (2) 3/16" rivets on 3 1/4" centers. Curved plate is 4" long x 1 3/8" wide. Used on Kenyon E, 3550, 3756 and similar Boom Sections.
Internal Boom Bail - 5/16" Formed Rod: K-11428F: Heavy-duty internally mounted bail is completely formed from 9mm (<5/16") SS Rod to avoid welding weaknesses. Unit is mounted inside the boom, bail protrudes through a 3/8" x 1 1/2" slot, and is held in place with (2) 1/4" rivets on 3 1/8" centers. Bail is (maximum) 3 3/4" long x 9/16" wide. Used on Kenyon 3756, 4060 and similar Boom Sections.
Heavy-duty Internal Boom Bail - 5/16": K-11428MM: Internally mounted bail has a 5/16" SS bail welded to a plate formed to fit the *inside* of the boom. Unit is mounted inside the boom, bail protrudes through a 5/16" x 1 1/2" slot, Long Curved plate is 6 1/2" long x 1 9/16" wide x 1/8" thick and is undrilled, allowing for a variety of fastener sizes on up to 6" centers. Used on smaller MetalMast, Kenyon E, 3550, 3756, and similar Boom Sections.
Heavy-duty Internal Boom Bail - 5/16": K-11428MMW: Internally mounted bail has a 5/16" SS bail welded to a plate formed to fit the *inside* of the boom. Unit is mounted inside the boom, bail protrudes through a 5/16" x 1 1/2" slot, Wide, Long Curved plate is 6 1/2" long x 1 3/4" wide x 1/8" thick and is undrilled, allowing for a variety of fastener sizes on up to 6" centers. Used on larger MetalMast, and similar Boom Sections.
Heavy-duty Internal Boom Bail - 5/16": K-19681: Heavy-duty 5/16" SS bail is welded to a SS plate that fits *inside* the boom. Unit is mounted inside the boom, where bail protrudes through a 5/16" x 1 3/4" slot, and is held in place with (2) 1/4" rivets on 4 3/8" centers. Flat plate is 5 1/2" long x 1 1/8" wide x 3/16" thick. Used on a variety of MetalMast Boom Sections. MM
Internal Boom Bail - 5/16" Double Bail: HS PR-11756-2: Heavy-duty 5/16" Double Bail unit has 2 Bails welded to a SS plate that fits *inside* of the boom. Unit is mounted inside the boom, bails protrude through (2) 5/16" x 1 3/8" slots on 2 7/8" centers. Flat plate is 180mm (7") long x 1" wide x 5mm (3/16") thick, and is held in place with (3) 6mm screws (included) in threaded holes on 75mm (2 15/16"). Used on a variety of Hall Spars Aluminum and Carbon Booms.

Internal Boom Bail - 3/8": K-19682CC: 3/8" SS bail is welded to a SS plate that fits *inside* the boom. Unit is mounted inside the boom, bail protrudes through a 3/8" x 1 7/8" slot, and is held in place with (2) 1/4" rivets on 2 3/4" centers. Flat plate is 3 1/2" long x 7/8" wide x 1/8" thick. Used on a variety of C&C Booms.
Heavy-duty Internal Boom Bail - 3/8": K-11682: Heavy-duty 3/8" SS bail is welded to a SS plate that fits *inside* of the boom. Unit is mounted inside the boom, where bail protrudes through a 3/8" x 2" slot, and is fastened with (4) 1/4" rivets on 3 1/8" and 4 5/8" centers. Flat plate measures 5 5/8" long x 1 1/8" wide x 3/16" thick. Used on Kenyon 4060 and similar Boom Sections.
*Heavy-duty Internal Boom Bail for External Eye - 3/8": HS PR-11757:*
Heavy-duty 3/8" SS bail is welded to a SS plate that fits *inside* of the boom. Unit is mounted inside the boom, bail protrudes through a 3/8" x 1 3/8" slot and is held in place with (2) 6mm screws in threaded holes on 180mm (7") centers. Flat plate is 200mm (7 7/8") long x 40mm (1 9/16") wide x 8mm (5/16") thick. Plate has (2) additional 8mm threaded holes on 32mm (1 1/4") centers for external attachment of special Eye. Used on a variety of Hall Spars Aluminum and Carbon Booms.
Heavy-duty Wide Internal Boom Bail - 3/8": K-11682MM: Internally mounted bail has a 3/8" SS bail welded to a plate formed to fit the *inside* of the boom. Unit is mounted inside the boom, bail protrudes through a 3/8" x 1 3/4" slot, Long Wide Curved plate is 6" long x 2" wide x 1/8" thick and is held in place with (2) 1/4" rivets on 5 1/4" centers. Used on a variety of larger MetalMast and other Boom Sections.

Internal Boom Bail - 1/2": K-11682HD: Heavy 1/2" SS bail is welded to a SS plate that fits *inside* of the boom. Unit is mounted inside the boom, where bail protrudes through a 1/2" x 2 1/2" slot. Flat plate measures 7" long x 1 1/2" wide x 1/4" thick and has welded nuts for (4) 5/16-18 screws on 3 1/2" and 6" centers. Used on Kenyon 5072 (Pearson 530) and similar Boom Sections.

Special Boom Bails
*Strap Bail with Welded Loop: Col-BB3:* Special Boom Bail to fit 3" wide, flat sided oval Section. Stainless Strap is 1" wide x 1/8" thick with welded 3/16" Loop running fore and aft. Bail fastens with (4) 3/16" (#10) fasteners. As used on Coronado 30, and Columbia 4 1/2" x 3" Booms.
*Bail for 3" Round Boom: MM RB300-B1:* Special Boom Bail to fit 3" diameter Round Boom Section. Shallow Bail features 5/16" SS rod welded to (2) Stainless Pads. Pads measure 2 1/4" long x 1 1/4" wide, and are contoured to fit Round Boom. Bail is 3" wide and fastens with (8) 1/4" fasteners.
*Bail for 3 3/4" Round Boom: MM RB375-B1:* Special Boom Bail to fit 3 3/4" diameter Round Boom Section. Shallow Bail features 5/16" SS rod welded to (2) Stainless Pads. Pads measure 2 1/4" long x 1 1/4" wide, and are contoured to fit Round Boom. Bail is 3 3/4" wide and fastens with (8) 1/4" fasteners.
*Bail for 4 1/2" Round Boom: MM RB450-B1:* Special Boom Bail to fit 4 1/2" diameter Round Boom Section. Shallow Bail features 5/16" SS rod welded to (2) Stainless Pads. Pads measure 2 1/4" long x 1 1/4" wide, and are contoured to fit Round Boom. Bail is 4 1/2" wide and fastens with (8) 1/4" fasteners.
*Bail for 5 1/2" Round Boom: MM RB550-B1:* Special Boom Bail to fit 5 1/2" diameter Round Boom Section. Shallow Bail features 3/8" SS rod welded to (2) Stainless Pads. Pads measure 2 1/4" long x 1 1/4" wide, and are contoured to fit Round Boom. Bail is 5 1/2" wide and fastens with (8) 1/4" fasteners.

Internal Track Mounted Boom Bails
----- Kenyon / Proctor Boom Bails
*Adjustable Boom Bail for 5/8" x 1/8" internal track: K-1265:*
SS Sliding Boom Bail for the Kenyon 2222 boom and other sections with a 5/8" x 1/8" internal track. Boom bail positions are easily adjusted for differing conditions by use of SS thumbscrew, *K-45, (included). Sliding is prevented by drilling a 1/4" hole beneath thumbscrew in desired position. Flat plate is 1/8" (3mm) thick and measures 2" (50mm) long x 5/8" (16mm) wide. As used on Thistle,* and others. Also used on some Proctor Spar Sections.

----- Isomat / Sparcraft Boom Bails For additional details and other options, See: Isomat Booms and Sparcraft Booms.
*FB0 Boom Bail Ass'y: FB0-15A:* SS Articulating Boom Bail Assembly is used for attachment of blocks and reef lines on FB-36 and FB-60 Boom sections. Bail is made from 6mm (1/4") rod. Formed plate is 1.5mm thick and measures 90mm (3 1/2") long x 23mm (7/8") wide. Fastens with (2) 3/16" (5mm) rivets.
	FB0 Boom Bail: FB0-15R: SS formed rod bail only, as used in FB0 Boom Bail Assembly FB0-15A, above. Bail is made from 6mm (1/4") rod, and is 2 1/16" (53mm) long x (maximum) 1 3/16" (30mm) high.
	FB0 Boom Bail Plate: FB0-15BP: SS formed plate only, as used in FB0 Boom Bail Assembly FB0-15A, above. Plate is 1.5mm thick and measures 90mm (3 1/2") long x 23mm (7/8") wide. Fastens with (2) 3/16" (5mm) rivets on 79mm (3 1/8") hole centers.

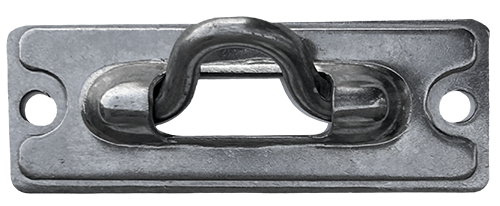

*FB1 Boom Bail Ass'y: FB1-15A:* SS Articulating Boom Bail is used for attachment of blocks and reef lines. Light-duty Narrow Bail fits in integral slot in underside of FB-125, and other boom sections with an underside boom bail slot that is 31mm wide x 3mm deep. Bail is made from 8mm (5/16") rod. Formed plate is 2mm thick and measures 115mm (4 1/2") long x 27mm (1 1/16") wide. Fastens with (2) 3/16" (5mm) rivets.
	FB-1 Boom Bail: FB1-15R: SS formed rod bail only, as used in FB1 Boom Bail Assembly FB1-15A, above. Bail is made from 8mm (5/16") rod, and is 2 3/4" (70mm) long x (maximum) 1 7/16" (36mm) high.
	FB-1 Boom Bail Plate: FB1-15BP: SS formed plate only, as used in FB1 Boom Bail Assembly FB1-15A, above. Plate is 2mm thick and measures 115mm (4 1/2") long x 27mm (1 1/16") wide. Fastens with (2) 3/16" (5mm) rivets.
*FB1 Boom Bail Ass'y - Heavy-duty: FB1-15AW:* Heavy-duty SS Articulating Boom Bail is used for attachment of blocks and reef lines. Bail fits in integral slot in underside of FB-125, and other boom sections with an underside boom bail slot that is 31mm wide x 3mm deep. Bail is made from 8mm (5/16") rod. Formed plate is 2mm thick and measures 115mm (4 1/2") long x 27mm (1 1/16") wide. Fastens with (2) 3/16" (5mm) rivets.
	FB1 Boom Bail - Heavy-duty: FB1-15RW: SS formed rod Bail only, reinforced with a welded crossbar, as used in FB1 Heavy-duty Boom Bail Assembly FB1-15AW, above. Bail is made from 8mm (5/16") rod, and is 2 3/4" (70mm) long x (maximum) 1 7/16" (36mm) high.

Isomat NB1 Boom Bail Ass'y: NB1-15A: SS Articulating Boom Bail is used for attachment of blocks and reef lines. Fits in integral slot in underside of NB-16, NB-26, and other boom sections with an underside boom bail slot that is 31mm wide x 3mm deep. Bail is made from 8mm (5/16") rod. Formed plate is 2mm thick and measures 90mm (3 1/2") long x 30mm (1 3/16") wide. Fastens with (2) 3/16" rivets.
	NB-1 Boom Bail: NB1-15R: SS formed rod bail only, as used in NB1 Boom Bail Assembly NB1-15A, above. Bail is made from 8mm (5/16") rod, and is 2 1/16" (53mm) long x (maximum) 1" (25mm) high.
	NB-1 Boom Bail Plate: NB1-15BP: SS formed plate only, as used in NB1 Boom Bail Assembly NB1-15A, above. Plate is 2mm thick and measures 90mm (3 1/2") long x 30mm (1 3/16") wide. Fastens with (2) 3/16" rivets.

Isomat NB2 Boom Bail Ass'y: NB2-15A: SS Articulating Boom Bail fits in integral slot in underside of NB-32, NB-40, NB-55, FB-220, and other boom sections with an underside boom bail slot that is 31mm wide x 4.5mm deep. Bail is made from 10mm rod. Formed plate is 3.2mm thick and measures 4 3/4" (120mm) long x 1 3/16" (30mm) wide. Fastens with (2) 1/4" rivets.
	NB2 Boom Bail: NB2-15R: SS formed rod bail only, as used in NB2 Boom Bail Assembly NB2-15A, above. Bail is made from 10mm (3/8") rod, and is 2 3/4" (70mm) long x (maximum) 1 15/16" (50mm) high.
	NB2 Boom Bail Plate: NB2-15BP: SS formed plate only, as used in NB2 Boom Bail Assembly NB2-15A, above. Plate is 3.2mm thick and measures 4 3/4" (120mm) long x 1 3/16" (30mm) wide. Fastens with (2) 1/4" rivets.
Isomat NB2 Boom Bail Ass'y - Heavy-duty: NB2-15AW: As NB2-15A (above), but Bail is reinforced with a welded crossbar. This heavy-duty option prevents the bail from compressing in extreme circumstances and is used primarily on larger boats.
	NB2 Heavy-duty Boom Bail: NB2-15RW: SS formed rod Bail only, reinforced with a welded crossbar, as used in NB2 Heavy-duty Boom Bail Assembly NB2-15AW, above. Bail is made from 10mm (3/8") rod, and is 2 3/4" (70mm) long x (maximum) 1 15/16" (50mm) high.

----- Z-Spar Boom Bails For additional details and other options, See: Z-Spar Booms.
Z-Spar Boom Bail Eyestrap: Z-3043: SS Eyestrap Boom Bail features specially flattened ends to slide in integral track in underside of Z120 boom section. Eyestrap is formed from 8mm (1/4") rod, and is fastened with (2) 3/16" rivets on 45mm (1 3/4") hole centers. 1587
Z-Spar Boom Bail Ass'y - 20mm: Z-3044A: SS Articulating Boom Bail Assembly fits in integral track in underside of Z160, Z204, and other boom sections with a 20mm wide track. Bail is made from 7mm rod. Formed plate is 2mm thick and measures 3 1/8" (80mm) long x 13/16" (20mm) wide. Fastens with (2) 3/16" rivets.
*Z-Spar Boom Bail Ass'y - 20mm Heavy-duty Fixed: Z-3044AF:*
Welded SS Boom Bail fits in integral track in underside of Z160, Z204, and other boom sections with a 20mm wide track. As Z-3044A (above), but bail is welded in position and does not articulate. Formed plate is 2mm thick and measures 3 1/8" (80mm) long x 13/16" (20mm) wide. Fastens with (2) 3/16" rivets.
Z-Spar Boom Bail Ass'y w/ Toggle - 20mm: Z-3484A: SS Boom Bail features SS Toggle Assembly with 8mm (5/16") pin and fits in integral track in underside of Z160, Z204, and other boom sections with a 20mm wide track. Formed plate is 2mm thick and measures 3 1/8" (80mm) long x 13/16" (20mm) wide. Fastens with (2) 3/16" rivets. For use with Boom Vangs requiring a pin for attachment.

Z-Spar Boom Bail Ass'y - 30mm: Z-3045A: SS Articulating Boom Bail Assembly fits in integral track in underside of Z360, Z480, and other boom sections with a 30mm (1 3/16") wide track. Bail is made from 10mm rod. Formed plate is 2.5mm thick and measures 4 3/4" (120mm) long x 1 3/16" (30mm) wide. Fastens with (2) 3/16" rivets.
*Z-Spar Boom Bail Ass'y - 30mm Heavy-duty Fixed: Z-3045AF:*
Welded SS Boom Bail fits in integral track in underside of Z360, Z480, and other boom sections with a 30mm (1 3/16") wide track. As Z-3045A (above), but bail is welded in position and does not articulate. Formed plate is 2.5mm thick and measures 4 3/4" (120mm) long x 1 3/16" (30mm) wide. Fastens with (2) 3/16" (5mm) rivets.
Z-Spar Boom Bail Ass'y w/ Toggle - 30mm: Z-3047A: SS Boom Bail Assembly features SS Toggle Assembly with 10mm (3/8") clevis pin and fits in integral track in underside of Z360, Z480, and other boom sections with a 30mm wide track. Formed plate is 2.5mm thick and measures 4 3/4" (120mm) long x 1 3/16" (30mm) wide. Fastens with (2) 3/16" rivets. For use with Boom Vangs requiring a pin for attachment.

Track Mounted Vang Lugs
*3/4" Boom Vang Attachment Lug w/ 1/2" hole: MM BVS6-8:*
SS Boom Vang Attachment Lug is also suitable for a variety of other uses. Unit slides in any 3/4" Boom (or Mast) Track and has a 1/2" attachment hole. Commonly used in integral slot in underside of MetalMast Round Booms and in other applications. Slide is (maximum) 3/4" wide x 1/8" thick and is 4" long, welded tab is 3/16" thick with a 1/2" hole, 1 3/8" from base. When required, slide is locked in place with a screw on either side.
*15/16" Boom Vang Attachment Lug w/ 1/2" hole: MM BVS9-8:*
SS Boom Vang Attachment Lug is also suitable for a variety of other uses. Unit slides in any 15/16" Boom (or Mast) Track and has a 1/2" attachment hole. Commonly used in integral slot in underside of MetalMast Round Booms and in other applications. Slide is (maximum) 15/16" wide x 1/8" thick and is 4" long, welded tab is 3/16" thick with a 1/2" hole, 1 3/8" from base. When required, slide is locked in place with a screw on either side.

*NB1 Boom Vang Attachment Lug - 14mm (9/16"): NB1-16-14:*
SS Boom Vang Attachment Lug is used for attachment of Solid (hard) Vang Struts. Fits in integral slot in underside of Isomat NB-16, NB-26, and other boom sections with an underside boom bail slot that is 31mm wide x 4.5mm deep. Slide plate (2.5mm) is 5 3/4" long, and is welded to 5mm (3/16") thick Triangle with 14mm (9/16") hole. Slides into track and fastens with (4) 3/16" (5mm) rivets. Fits NG1 Isovang.
*NB1 Boom Vang Attachment Lug - 16mm (5/8"): NB1-16-16:*
SS Boom Vang Attachment Lug is used for attachment of Solid (hard) Vang Struts. Fits in integral slot in underside of Isomat NB-16, NB-26, and other boom sections with an underside boom bail slot that is 31mm wide x 4.5mm deep. Slide plate (2.5mm) is 5 3/4" long, and is welded to 5mm (3/16") thick Triangle with 16mm (5/8") hole. Slides into track and fastens with (4) 3/16" (5mm) rivets.
*NB1 Boom Vang Attachment Lug - 14mm (9/16"): NB1-16-14:*
*Isomat NB1 Vang Attachment Lug, Easykick 1: NB1-16E1:* SS Boom Vang Attachment Lug designed specifically for use with Easykick 1 Solid Vang. Fits in integral slot in underside of Isomat NB-16, NB-26, and other boom sections with an underside boom bail slot that is 31mm wide x 3mm deep. Slide plate (2.2mm) is 3 1/2" (90mm) long, and welded to 4mm Triangular nose with hole for 6mm (1/4") pin. Slides into track and fastens in place with (2) 3/16" rivets.
*Isomat NB1 Vang Attachment Lug, Easykick 2: NB1-16E2:*
SS Boom Vang Attachment Lug designed specifically for use with Easykick 2 Solid Vang. Fits in integral slot in underside of Isomat NB-16, NB-26, and other boom sections with an underside boom bail slot that is 31mm wide x 3mm deep. Slide plate (3mm) is 3 15/16" (100mm) long, and welded to formed Triangular channel that is 13mm (1/2") wide (outside) with 8mm (5/16") clearance inside and hole for 6mm (1/4") pin. Slides into track and fastens in place with (2) 1/4" rivets.
*Iso NB1 Heavy-Duty Attachment, Easykick 2: NB1-16E2H:* SS Boom Vang Attachment Lug designed specifically for use with Easykick 2 Solid Vang. Fits in integral slot in underside of Isomat NB-16, NB-26, and other boom sections with an underside boom bail slot that is 31mm wide x 3mm deep. Slide plate (2.2mm) is 5 1/8" (130mm) long, and welded to formed Triangular channel that is 16mm (5/8") wide (outside) with 10mm (3/8") clearance inside and hole for 6mm (1/4") pin. Slides into track and fastens in place with (2) 1/4" rivets.

*NB2 Boom Vang Attachment Lug - 14mm (9/16"): NB2-16-14:* SS Boom Vang Attachment Lug is used for attachment of Solid (hard) Vang Struts. Fits in integral slot in underside of Isomat NB-32, NB-40, NB-55, and other boom sections with an underside boom bail slot that is 31mm wide x 4.5mm deep. Slide plate (2.5mm) is 6" long, and is welded to 4mm (5/32") thick Triangle with 14mm (9/16") hole. Slides into track and fastens with (4) 1/4" (6mm) rivets. Fits NG1 Isovang.
*NB2 Boom Vang Attachment Lug - 16mm (5/8"): NB2-16-16:*
SS Boom Vang Attachment Lug is used for attachment of Solid (hard) Vang Struts. Fits in integral slot in underside of Isomat NB-32, NB-40, NB-55, and other boom sections with an underside boom bail slot that is 31mm wide x 4.5mm deep. Slide plate (3mm) is 6 1/2" long, and is welded to 5mm (3/16") thick Triangle with 16mm (5/8") hole. Slides into track and fastens with (4) 1/4" (6mm) rivets.
*NB2 Boom Vang Attachment Lug - 22mm (7/8"): NB2-16-22:*
SS Boom Vang Attachment Lug is used for attachment of Solid (hard) Vang Struts. Fits in integral slot in underside of Isomat NB-32, NB-40, NB-55, and other boom sections with an underside boom bail slot that is 31mm wide x 4.5mm deep. Slide plate (3.2mm) is 8" long, and is welded to 6mm (1/4") thick Triangle with 22mm (7/8") hole. Slides into track and fastens with (4) 1/4" (6mm) rivets. Fits NG2 Isovang.

*FB3 Boom Vang Attachment Lug - 16mm (5/8"): FB3-16-16:*
Heavy-duty SS Boom Vang Attachment Lug has a 5mm (3/16") thick triangle welded *through* 5mm slide plate specially milled to fit integral slot in underside of NB2 and FB2 Boom sections. Unit is 10" (255mm) long x 1 3/16" (30mm) wide and fastens with (6) 1/4" rivets. As used with Sparcraft Pneuvang and others.
*FB3 Boom Vang Attachment Lug - 22mm (7/8"): FB3-16C-22:*
Heavy-duty Cast SS Boom Vang Attachment Lug fits in integral slot in underside of NB2 and FB2 Boom sections and has 22mm (7/8") hole for attachment of NG2 Isovang. Investment Cast SS Vang Attachment Lug is 255mm (10") long x 29mm (maximum) wide, hole center is 65mm (2 1/2") from Boom bottom. Unit slides into track and fastens with (6) 1/4" (6mm) rivets.

Weld-in Boom Vang Lugs
*Weld-in Boom Vang Lug w/ 5/8" hole, 3/8" wide: K-11700J:*
Heavy-duty Aluminum Boom Vang Attachment Lug is welded into the Boom. Vang Lug slides into Boom, drops through a 3/8" wide x 3" long slot, and is welded in place from the outside. Lug is much longer than slot it fits in to provide stiffening and reinforcement in this high-stress area. Vang Lug is cut from 6061-T6 Plate and is (maximum) 4" long x 3/8" wide x 1 3/4" high, Lug projects approximately 1 3/8" from underside of Boom when installed. Vang Lug has 5/8" hole for use with any shackle. As used on new J/24 Racing Boom.
*Weld-in Boom Vang Lug for 1/2" Pin, 1/2" wide: K-11700L:*
Heavy-duty Aluminum Boom Vang Attachment Lug is welded into the Boom for attachment of Solid (hard) Vangs and Struts with a 1/2" Pin. Vang Lug slides into Boom, drops through a 1/2" wide x 8" long slot, and is welded in place from the outside. Lug is much longer than slot it fits in to provide stiffening and reinforcement in this high-stress area. Vang Lug is cut from 6061-T6 Plate and is (maximum) 10 1/2" long x 1/2" wide x 2 7/8" high, Lug projects approximately 1 7/8" from underside of Boom when installed. In addition to 1/2" attachment hole, a 3/8" hole is provided for a shackle to attach a preventer. Fits Most Boom Vangs with a 1/2" Pin.

Boom Vang Ball Attachment Plates
A Wire Pennant with Swage Ball allows quick and easy attachment of the Vang to the Boom without use of any tools, and is common on many smaller boats. Originally developed for use on Roller-Reefing booms where a flush-mounted Vang attachment was required to prevent damage to the sail, it caught on, and Ball Attachment Plates are now produced for non-rolling booms using a raised channel to eliminate the need for a slot in the boom.

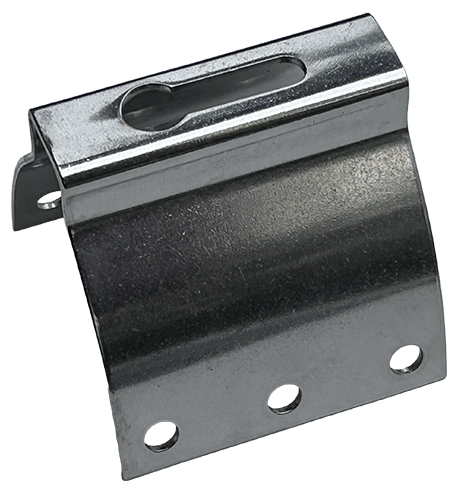

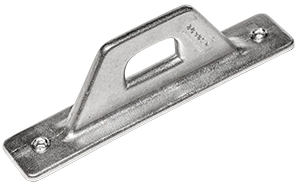

Boom Vang Ball Attachment Plate, B-Section: K-2182: Formed SS plate for attachment of Boom Vang with 1/8" wire swage ball fits B-Section, Spartan CD-1 and 1 1/2" Round Booms. Allows for quick attachment and removal of Boom Vang, raised channel design allows easy installation without milling slot in boom. Channel projects approximately 3/8" from underside of Boom when installed. Formed Stainless Steel plate is 2" long x 1 7/8" high. Fastens with (6) 3/16" (#10) screws or rivets.

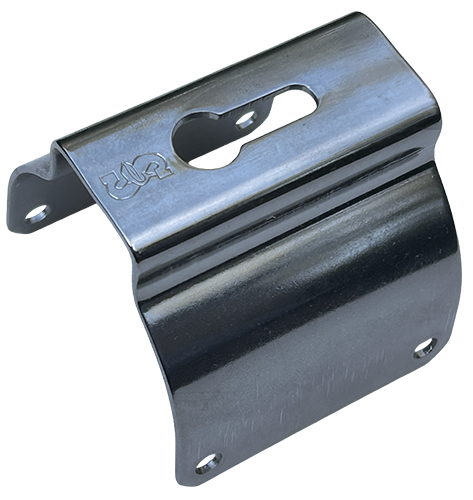

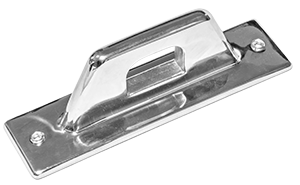

Boom Vang Ball Attachment Plate, D-Section: Sch 90-50X: Formed SS plate for attachment of Boom Vang with 1/8" wire swage ball fits D-Section and Spartan CD-2 Booms. Allows for quick attachment and removal of Boom Vang, raised channel design allows easy installation without milling slot in boom. Channel projects approximately 3/8" from underside of Boom when installed. Formed Stainless Steel plate is 2 1/8" long x 2" high. Fastens with (4) 3/16" (#10) screws or rivets.
Boom Vang Ball Attachment Plate, Flush: K-2182F: Formed SS plate for attachment of Boom Vang with 1/8" wire swage ball. Allows for quick attachment and removal of Boom Vang, flush mounting design allows use with Roller-Reefing booms. Base is curved to fit a variety of Boom Sections, narrow profile allows it to be bent to fit others. Formed Stainless Steel plate is 3" long x 1 1/2" wide. Mounting requires 3/8" wide x 1 1/4" long slot in Boom. Fastens with (6) 3/16" (#10) screws or rivets.

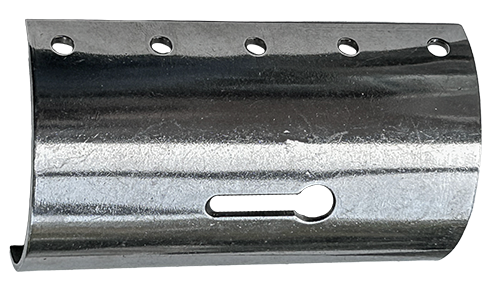

Boom Vang Ball Attachment Plate, Flush: Sch 90-54X: Large formed SS plate for attachment of Boom Vang with 1/8" wire swage ball. Allows for quick attachment and removal of Boom Vang, flush mounting design allows use with Roller-Reefing booms. Fits RR #4025 Boom, 2 3/8" Round tube, and other Boom Sections with a similar radius. Formed Stainless Steel plate is 4" long x 2 1/2" wide. Mounting requires 3/8" wide x 1 1/4" long slot in Boom. Fastens with (10) 3/16" (#10) screws or rivets.
	Boom Vang Wire Pennant w/ Swage Ball: K-2182WP: Wire Pennant for attachment of Boom Vang to Boom Vang Ball Attachment Plate. Pennant is 1/8" wire with swage ball and shank (MS20664-4) on one end and a nicopress and thimble on the other. Thimble allows attachment of any upper Vang block. Assembly is 6" long. Ball is suitable for all Ball Attachment Plates with a slot that is 1/4" wide with a 3/8" entrance hole.
