| Z-Spar Z80 Spreader Section Outside Measurements: 57mm x 25mm (2 1/4" x 1") Inside Measurements: 52mm x 17mm (2 1/16" x 11/16") Wall thickness: 2mm Weight/M.: 0.8kg. - Weight/ft.: 0.54 lbs. |
|
|
The Z80 Spreader Section has interior dimensions that are very similar to the Z95 Spreader.
Additional fittings used with this Spreader Section are listed under the Z95 Spreader Section. Please note that Z80 Spreaders can not be tapered. Z80 Spreader Assemblies are available with a variety of inboard and outboard end fittings, listed below.
|
|
|
|
|
|
Z80 Standard Spreader Assembly: Z-80AS-xxx:
Z80 Standard Spreader Assembly - Angled Aft: Z-80ASA-xxx: Standard Z80 Spreader Assembly is clear anodized and includes Z-3114NC Spreader Tip. To order specify maximum tube length, and sweepback angle (if any). If other Tip or any inboard end is required, specify Part Number(s).
|
|
|
Z80 Standard Spreader Tube only: Z-80T-xxx:
Z80 Standard Spreader Tube only - Angled Aft: Z-80TAA-xxx: For replacement purposes when using original end fittings, Z80 Spreader Tubes are available anodized and with inboard angles cut. To order specify maximum tube length, and sweepback angle (if any).
|
|
|
Z80 Spreader Section, Clear Anodized: Z-80CA-____: Z80 Spreader Section is available clear anodized, but without drilling or angles cut at lengths up to 20'. To order specify maximum length.
|
|
|
|
||
| Spreader Tips & Components for Z80 Spreaders | ||
| J-Bolt Tips
require that the Tip be removed from the Spreader to adjust Clamp tension.
|
||
|
Spreader Tip Ass'y for Z80 Spreader: Z-3114:
Gray plastic Spreader Tip for use with Z80 Spreader. Includes 6mm J-bolt with locknut, Z-1481A, to clamp shroud to the spreader tip prior to installation in the spreader tube. When used with hinged spreader bases, clamp must be tight and positioned carefully on the shroud. Tip is (maximum) 2 7/16" long x 1 1/8" wide (62mm x 29mm). This item is no longer available, having been replaced by the Z-3114NC, below.
|
|
|
|
|
J-bolt w/ Locknut for Z80 Spreader Tip: Z-1481A:
SS J-bolt is 2" (50mm) long with a 6mm thread and includes SS locknut. For use with Z-3114 Spreader Tip.
|
|
| C-Clamp type Tips
allow adjustment of Clamp tension without removing the Tip from the Spreader.
|
||
|
Spreader Tip Ass'y for Z80 Spreader: Z-3114C:
Gray plastic Spreader Tip for use with Z80 Spreader. Includes C-Clamp with screw, Z-1481CA, to clamp shroud to the spreader tip. When installed, clamp must be tight and positioned carefully on the shroud. Tip is (maximum) 2 7/16" long x 1 1/8" wide (62mm x 29mm). This item is no longer available, having been replaced by the Z-3114NC, below.
|
|
|
|
Spreader Tip Ass'y for Z80 Spreader: Z-3114NC:
New-style Gray plastic Spreader Tip for use with Z80 Spreader. Includes C-Clamp with screw, Z-1481CA, to clamp shroud to the spreader tip. When installed, clamp must be tight and positioned carefully on the shroud. Tip is (maximum) 2 7/16" long x 1 1/8" wide (62mm x 29mm).
|
|
|
|
|

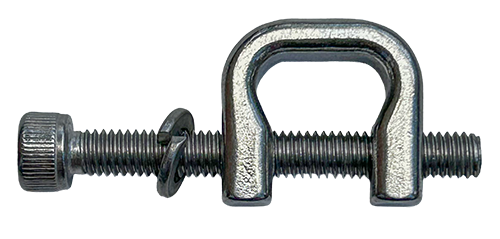

C-Clamp w/ Screw for Z80 Spreader Tip: Z-1481CA:
SS C-Clamp with 6mm socket head screw is used to clamp shroud to the spreader tip. For use with Z-3114C and Z-3114LC Spreader Tips.
|
|
| Discontinuous Tips | ||
|
Discontinuous Spreader Tip for Z80 w/ 8mm Pin: Z-1039-8A:
Discontinuous Spreader Tip for Z80 w/ 10mm Pin: Z-1039-10A: |
||
|
Assembly provides horizontal pin for attachment of Discontinuous Shrouds. Includes
anodized cast aluminum tip with horizontal pin and cotter pin. Unit projects (maximum) 1
1/16" (27mm) from end of spreader tube. Slot width (at pin) is 1 3/16" (30mm),
pin center is 5/8" (16mm) from tube end.
|
|
|
|
|
8mm Pin for Z-1039 Tip Casting: Z-1040P-8:
10mm Pin for Z-1039 Tip Casting: Z-1039P-10: SS Pins only for Z-1039 Discontinuous Spreader Tip Assemblies, above. Pins are 53mm (2 1/16") long.
|
|
|
|
||
| Spreader Bases & Bars for Z80 Spreaders | ||
|
Old-style Spreader Base for Z80 Spreaders: Z-1021-80X: Old-style Spreader Base for Z80 Spreaders accommodates a variety of spreader angles, depending on mounting. The same base is used on both sides of the mast, but spreaders must be drilled differently port and starboard to achieve a vertical angle. Spreader is attached with (1) 6mm screw. Cast aluminum Spreader Base is (maximum) 70mm (2 3/4") long, projects 60mm (2 3/8") from Mast, and attaches to Mast with (4) 6mm (1/4") rivets. Used on Z260 and other obsolete Mast Sections. Note: This is one of several different units that may be marked 1021.
|
||
| A variety of other Spreader Bases, Bars, and Inboard Spreader Ends are sometimes used with Z80 Spreaders. See: Z95 Spreaders. | ||
