| Goiot Aluminum Toerail & Components |
| Goiot Toerail has been produced in France for over 30 years
and is common on many European-built yachts, as well as some 1980's and 90's US-built yachts. Goiot Aluminum Toerails are listed below by configuration, but Goiot has produced many other varieties over the years. While Goiot Toerail not listed here is no longer available, some components for them are. If you require parts for Goiot Toerail that is not listed here, we will need a sketch or photo of the part with dimensions in order to identify it accurately. Other Goiot Stanchion Bases (Deck-mount) are listed elsewhere, See: Metric Stanchion Bases. In addition to the items listed here, Goiot also manufactures a line of Steering Systems, Traveller Systems, T-Track & Components, Cleats, and Hatches & Ports. |
| Goiot Aluminum Toerail |
|
|
| Goiot Aluminum Toerail |
|
Goiot #808 Toerail x 6M long: Goi 808-6M: Goiot 808 Toerail is a clear anodized Aluminum Toerail without slots designed for boats up to 35 feet (10.7M). Track is drilled for 6mm FH screws on 112.5mm (4 7/16") centers, and weighs 1Kg. per meter (.67 lbs. per foot). Goiot 808 Toerail is available in 19' 8" (6 meter) lengths. Optional, decorative Teak insert battens slide into notch in outboard Toerail face. See also, Goiot 808 Toerail Components.
|
|
|
Goiot #811 Slotted Toerail x 6M long: Goi 811-6M: Goiot 811 Toerail is a clear anodized, slotted Aluminum Toerail designed for boats up to 40 feet (12M). Rectangular slots are 65mm long x 29mm high (2 9/16" x 1 1/8") and 225mm (8 7/8") apart. Track is drilled for 6mm FH screws on 112.5mm (4 7/16") centers, and weighs 1Kg. per meter (.67 lbs. per foot). Goiot 811 Toerail is available in 19' 8" (6 meter) lengths. Used on some Islander 36's and others. Similar to the heavier Mer 7525 Toerail used on some Freedom Yachts, J/44's and others. Please note: Early versions of this Toerail had Oval slots, as opposed to the Rectangular slots currently supplied, and are no longer available. See also, Goiot 811 Toerail Components.
|
 |
|
Goiot #822 Slotted Toerail x 6M long: Goi 822-6M: Goiot 822 Toerail is a clear anodized, slotted Aluminum Toerail designed for boats 45 feet (13M) and larger. Rectangular slots are 70mm long x 27mm high (2 3/4" x 1 1/16") and 225mm (8 7/8") apart. Track is drilled for 6mm FH screws on 112.5mm (4 7/16") centers, and weighs 1.472 Kg. per meter (.99 lbs. per foot). Goiot 822 Toerail is available in 19' 8" (6 meter) lengths. Please note: Early versions of this Toerail had Oval slots, as opposed to the Rectangular slots currently supplied, and are no longer available. See also, Goiot 822 Toerail Components. Hxmmm
|
 |
|
Goiot #823 Slotted Toerail x 6M long: Goi 823-6M: As Goiot 822, above, but with a longer flange, Goiot 823 Slotted Toerail is designed for boats 45 feet (13M) and larger. Rectangular slots are 70mm long x 27mm high (2 3/4" x 1 1/16") and 225mm (8 7/8") apart. Track is drilled for 6mm FH screws on 112.5mm (4 7/16") centers, and weighs 1.547 Kg. per meter (1.04 lbs. per foot). Goiot 823 Toerail is available in 19' 8" (6 meter) lengths. Please note: Early versions of this Toerail had Oval slots, as opposed to the Rectangular slots currently supplied, and are no longer available. See also, Goiot 823 Toerail Components.
|
 |
|
|
|
|
Goiot #812 Slotted Toerail: Goi 812X-6M: Goiot 812 Toerail is a clear anodized, slotted Aluminum Toerail. This item is no longer available, and is shown for reference only.
|
 |
|
Goiot #825 Slotted Toerail: Goi 825X-6M: Goiot 825 Toerail is a clear anodized, slotted Aluminum Toerail that weighs 1.8 Kg. per meter (1.20 lbs. per foot). Goiot 825 Toerail was available in 6M (19' 8") lengths. This item is no longer available, and is shown for reference only.
|
 |
|
|
|
| Goiot Aluminum
Toerail Components
A variety of accessory components made to fit Goiot Toerails are listed by Toerail number. |
|
| Goiot 808 Toerail Components | |
|
Goiot Toerail End Cap - Port: Goi 808-01PA:
Goiot Toerail End Cap - Starboard: Goi 808-01SA: End Caps Goiot for Goiot 808 Toerail butt up to Toerail end to prevent snagging. Clear anodized, cast aluminum End Caps are 35mm (1 3/8") long and attach to deck with (1) 6mm FH screw. Specify Port or Starboard (as on aft end).
|
|
|
Goiot Toerail End Cap w/ Eye - Port: Goi 808-01E-PA:
Goiot Toerail End Cap w/ Eye - Star: Goi 808-01E-SA: End Caps Goiot for Goiot 808 Toerail butt up to Toerail end and incorporate a Fairlead Eye for Dock lines. Clear anodized, cast aluminum End Caps are 103mm (4") long and attach to deck with (2) 6mm FH screws. Specify Port or Starboard (as on aft end).
|
|
|
Goiot 808 Toerail End Cap w/ Chock - Port: Goi 808-02PA:
Goiot 808 Toerail End Cap w/ Chock - Star: Goi 808-02SA: Toerail End Caps for Goiot 808 Toerail have an integral Chock. Clear anodized, cast aluminum End Cap with Chock is 175mm (6 7/8") long and attaches to deck with (2) 6mm FH screws on 85mm centers. Generally used on boats 34' and smaller. Specify Port or Starboard (as on aft end).
|
|
|
Goiot 808 Toerail End Cap w/ Heavy-duty Chock - Port: Goi 808-02HPA:
Goiot 808 Toerail End Cap w/ Heavy-duty Chock - Star: Goi 808-02HSA: |
|
|
Heavy-duty Toerail End Caps for Goiot 808 Toerail have an integral Chock.
Clear anodized, cast aluminum End Cap with Chock is 230mm (9") long and has tapped holes
for (2) 8mm screws on 155mm centers.
Note: This unit attaches from underneath the deck - Fasteners are not visible from above.
Generally used on boats 35' and larger. Specify Port or Starboard (as on aft end).
|
|
|
Goiot Toerail Splice: Goi 808-03:
Short Toerail Splices allow a strong and unobtrusive means of joining separate pieces of Goiot 808 Toerail. Contoured clear anodized cast aluminum Splice piece is 120mm (4 11/16") long x 34mm high x (maximum) 12mm thick, and is threaded for attachment to Toerail interior with four (4) 6mm screws.
|
|
|
Goiot 808 Mid-rail Chock: Goi 808-04:
Mid-Toerail Chock fits between 2 separate pieces of Goiot 808 Toerail. Allows Chock placement wherever necessary as well as providing an additional means of splicing Toerail. Clear anodized, cast aluminum Chock is 135mm (5 5/16") long and attaches to deck with (2) 6mm FH screws on 85mm (3 5/16") centers. Generally used on boats 34' and smaller.
|
|
|

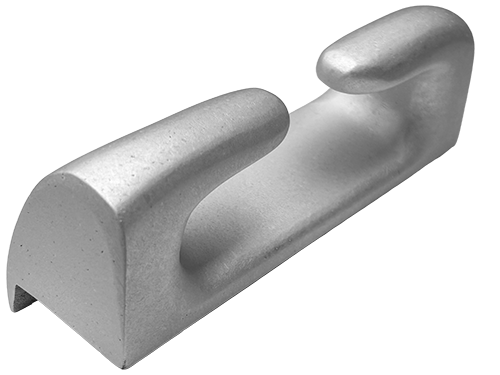

Goiot 808 Heavy-duty Mid-rail Chock: Goi 808-04H:
Mid-Toerail Chock fits between 2 separate pieces of Goiot 808 Toerail. Allows Chock placement wherever necessary as well as providing an additional means of splicing Toerail. Clear anodized, cast aluminum Chock is 180mm (7 1/16") long and has tapped holes for (2) 8mm screws on 155mm centers. Note: This unit attaches from underneath the deck - Fasteners are not visible from above. Generally used on boats 35' and larger.
|
|
|
Goiot 808 Toerail - Teak Insert Batten: Goi 808-05T:
Optional, decorative Teak insert batten for Goiot 808 Toerail slides into notch in outboard Toerail face. Battens are available in 2M (6' 8 3/4") lengths. 105538X
|
|
|
Goiot 808 Toerail Mounted Stanchion Base: Goi 808-8:
Toerail-mounted Stanchion Base for Goiot 808 Toerail. Clear anodized, extruded aluminum Stanchion Base has lug that locks into Toerail lip, and attaches to deck with (2) 6mm FH screws. Base has 6mm Clevis Pin (included) to secure stanchion, and 25mm hole for Stanchion. For use with 25mm stanchions and Goiot 808 Toerail.
|
|
|
|
|
| Goiot 811 Toerail Components | |
|
Goiot Toerail End Cap - Port: Goi 811-01PA:
Goiot Toerail End Cap - Starboard: Goi 811-01SA: Goiot Toerail End Caps fit over and cover Goiot 811 Toerail end to prevent snagging and to reinforce an otherwise weak spot for additional strength. Clear anodized, cast aluminum End Caps encapsulate Toerail end, and attach to deck with (1) 6mm FH screw. Specify Port or Starboard (as on aft end).
|
|
|
Goiot 811 Toerail End Cap w/ Chock - Port: Goi 811-02PA:
Goiot 811 Toerail End Cap w/ Chock - Star.: Goi 811-02SA: Toerail End Caps with an integral Chock add additional functionality. Clear anodized, cast aluminum End Cap with Chock is 180mm (7 1/8") long and attaches to deck with (3) 6mm FH screws. For Goiot 811 Toerail. Specify Port or Starboard (as on aft end).
|
|
|
Goiot Toerail Splice: Goi 811-03:
Short Toerail Splices allow a strong and unobtrusive means of joining separate pieces of Goiot 811 Toerail. Clear anodized, cast aluminum Splice piece encapsulates Toerail ends and attaches to deck with one (1) 6mm FH screw.
|
|
|
Goiot 811 Mid-rail Chock: Goi 811-04:
Mid-Toerail Chock fits between 2 separate pieces of Goiot 811 Toerail. Allows Chock placement wherever necessary as well as providing an additional means of splicing Toerail. Clear anodized, cast aluminum Chock is 150mm (5 15/16") long and attaches to deck with (3) 6mm FH screws.
|
|
|
Goiot Toerail Mounted Stanchion Base: Goi 810-8:
Toerail-mounted Stanchion Base adds additional support to Stanchion. Triangular-shaped Stanchion Base has lug that locks into Goiot 811 Toerail slot and attaches to deck with (2) 6mm FH screws on 57mm (2 1/4") centers. Screw holes will be 44mm (1 3/4") inboard of Toerail fasteners. Clear anodized, cast aluminum Base has 6mm tapped hole for screw to secure stanchion, and 27mm hole for Stanchion. Includes plastic stanchion sleeve, making it suitable for use with 25mm and 1" stanchions. For use with Goiot 811 Toerail. 811-27
|
|
|
|
|
|
811 Toerail End Cap w/ Chock - Port: TP 811-02PAT:
811 Toerail End Cap w/ Chock - Starboard: TP 811-02SAT: Toerail End Caps with an integral Chock for Goiot 811 and similar Toerails. Clear anodized, cast aluminum End Cap with Chock is 152mm (6") long x (maximum) 2 3/8" high x 1 3/4" wide, and fastens to deck with (2) 1/4" FH screws on 4 1/2" centers. Specify Port or Starboard (as on aft end). As used on Freedom 30, 40; J/42, J/46; Sundeer 60, and a variety of boats built by Tillotson-Pearson. SA=PF / PA=SF
|
|
|
811 Mid-rail Chock: TP 811-04T:
Mid-Toerail Chock fits between 2 separate pieces of Goiot 811 and similar Toerail. Allows Chock placement wherever necessary as well as providing an additional means of splicing Toerail. Clear anodized, cast aluminum Chock is 6" (152mm) long x (maximum) 2 " high x 1 3/4" wide, and fastens to deck with (2) 1/4" FH screws on 4 1/2" centers. As used on Freedom 30, 40; J/42, J/46; Sundeer 60, and a variety of boats built by Tillotson-Pearson.
|
|
|
|
|
| Goiot 822 / 823 Toerail Components | |
|
Goiot 822 Toerail End Cap - Port: Goi 822-01PA:
Goiot 822 Toerail End Cap - Starboard: Goi 822-01SA: Goiot 823 Toerail End Cap - Port: Goi 823-01PA: Goiot 823 Toerail End Cap - Starboard: Goi 823-01SA: Goiot Toerail End Caps fit over and cover Toerail end to prevent snagging and to reinforce an otherwise weak spot for additional strength. Clear anodized, cast aluminum End Caps encapsulate Toerail end, and attach to deck with (1) 6mm FH screw. Specify 822 or 823 Toerail, and Port or Starboard (as on aft end).
|
|
|
Goiot 822 Toerail End Cap w/ Chock - Port: Goi 822-02PA:
Goiot 822 Toerail End Cap w/ Chock - Star: Goi 822-02SA: Goiot 823 Toerail End Cap w/ Chock - Port: Goi 823-02PA: Goiot 823 Toerail End Cap w/ Chock - Star: Goi 823-02SA: Toerail End Caps with an integral Chock add additional functionality. Clear anodized, cast aluminum End Cap with Chock extends 200mm (8") beyond Toerail end and is (maximum) 225mm (8 7/8") long. Unit attaches to deck with (2) 6mm FH screws, and to Toerail with (1) 6mm screw. Specify 822 or 823 Toerail, and Port or Starboard (as on aft end).
|
|
|
Goiot 822 Toerail Splice: Goi 822-03:
Goiot 823 Toerail Splice: Goi 823-03: Short Toerail Splices allow a strong and unobtrusive means of joining separate pieces of Toerail. Clear anodized, cast aluminum Splice piece encapsulates Toerail ends and attaches to deck with one (1) 6mm FH screw. Specify 822 or 823 Toerail.
|
|
|
Goiot 822 Mid-rail Chock: Goi 822-04:
Goiot 823 Mid-rail Chock: Goi 823-04: Mid-Toerail Chock fits between 2 separate pieces of Toerail. Allows Chock placement wherever necessary as well as providing an additional means of splicing Toerail. Clear anodized, cast aluminum Chock fits in a 165mm (6 1/2") space between Toerail pieces and is (maximum) 215mm (8 1/2") long. Unit attaches to deck with (1) 6mm FH screw, and bolts to the Toerail with (2) 6mm screws on 195mm centers. Specify 822 or 823 Toerail.
|
|
|
Goiot Toerail Mounted Stanchion Base: Goi 820-8:
Toerail-mounted Stanchion Base adds additional support to Stanchion. Rectangular Stanchion Base has threaded holes for attachment to Toerail side with (2) 6mm screws on 60mm (2 5/16") centers, and through Toerail with (1) 6mm screw (under Stanchion). Clear anodized, cast aluminum Base has 6mm tapped hole for screw to secure stanchion, and 27mm hole for Stanchion. Includes plastic stanchion sleeve, making it suitable for use with 25mm and 1" stanchions. For use with Goiot 822 and 823 Toerail. 822-27 |
 |
