Flat Track
Stainless Steel Flat Track
Stainless Steel Flat Track is commonly used on Deck for Jib and Genoa lead Cars, on the Mast for Spinnaker Cars and Gooseneck Slides, and on the Boom for Outhaul Cars (Slides). It is installed on top of a riser (metal, phenolic or wood) to allow room for the lower flanges of Slides and Cars. It is the heavy-duty precursor of Aluminum T-Track which incorporates an integral riser. All Flat Track is attached with Flat Head screws, and has intermediate holes for use with Spring Pin or Screw Pin stops.

SS Flat Track is listed below by size (Track width), and length. If you require Flat Track in sizes or lengths not listed here, we can fabricate any configuration on special order, please forward a sketch with measurements and details for a quote.

Track and Stops are listed below, for other items used with SS Flat Track, See: Spinnaker Cars, Genoa Cars, Outhaul Cars, Traveller Slides & Stops, and Gooseneck Slides.

See other types of Track on the Track Main Page.


3/4" Stainless Steel Flat Track
3/4" x 1/8" SS Flat Track x 3' long: Sch 75-26X-3:

3/4" Stainless Steel Flat Track is 3/4" wide x 1/8" thick and is drilled for 3/16" (#10, or 5mm) FH screws on 3" (76mm) centers with 3/16" diameter stop holes centered between mounting holes. Produced in type 304 Stainless Steel.

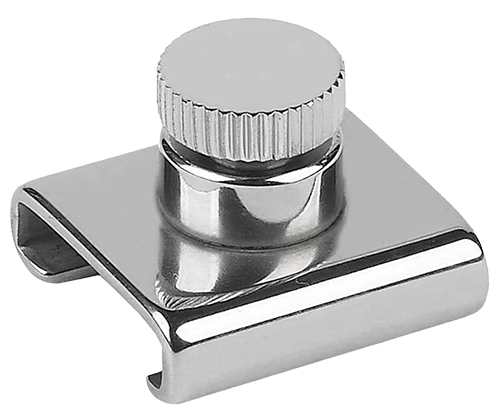

Adjustable Slide Stop for 3/4" T-Track: Sch 74-46:

Stainless Steel Adjustable Stop incorporates a captive SS thumb screw to limit its position, and fits 3/4" T-Track and SS Flat Track. SS Adjustable Stop is 1" long x 15/16" wide.




Adjustable Stop for 3/4" T-Track w/ Spring Pin: Sch 74-46SP:
Stainless Steel Adjustable Stop incorporates a SS Spring Pin to limit its position, and fits 3/4" T-Track and SS Flat Track. SS Adjustable Stop is 1" long x 15/16" wide. Limited availability.




7/8" Stainless Steel Flat Track
7/8" x 1/8" SS Flat Track x 2' long: Sch 75-27X-2:

7/8" x 1/8" SS Flat Track x 4' long: Sch 75-27X-4:

7/8" Stainless Steel Flat Track is 7/8" wide x 1/8" thick and is drilled for 3/16" (#10, or 5mm) FH screws on 3" (76mm) centers with 3/16" diameter stop holes centered between mounting holes. Produced in type 304 Stainless Steel.


Adjustable Stop for 7/8" Flat Track w/ Screw Pin: Sch 74-47X:
Stainless Steel Adjustable Stop incorporates a captive SS thumb screw to limit its position, and fits 7/8" SS Flat Track or T-Track. SS Adjustable Stop is 1" long x 1 1/16" wide. Limited availability.




Adjustable Stop for 7/8" Flat Track w/ Spring Pin: Sch 74-47XSP:
Stainless Steel Adjustable Stop incorporates a SS Spring Pin to limit its position, and fits 7/8" SS Flat Track or T-Track. SS Adjustable Stop is 1" long x 1 1/16" wide. Limited availability.




1" Stainless Steel Flat Track
1" x 1/8" SS Flat Track x 1'3" (15") long: Sch 75-28X-1.2:
1" Stainless Steel Flat Track is 1" wide x 1/8" thick x 15" long and is drilled for 1/4" (6mm) FH screws on 4" (102mm) centers, and has 1/4" diameter stop holes centered between mounting holes. SS Track (type 304) attaches with (4) 1/4" FH screws, lower hole is used for permanent End Stop or screw to stop Slide from falling off. As used for Gooseneck Track on (some) O'Day 27, and others. RR 75-28X-1.25


1" x 1/8" SS Flat Track x 4' long: Sch 75-28X-4:

1" x 1/8" SS Flat Track x 6' long: Sch 75-28X-6:

1" x 1/8" SS Flat Track x 10' long: Sch 75-28X-10:

1" x 1/8" SS Flat Track x 12' long: Sch 75-28X-12:

1" Stainless Steel Flat Track is 1" wide x 1/8" thick and is drilled for 1/4" (6mm) FH screws on 3 7/8" (98mm) centers, and has 1/4" diameter stop holes centered between mounting holes. Produced in type 304 Stainless Steel, it is available in lengths up to 12'.


1" x 1/8" SS Flat Track x 2 1/2' long w/ End Stop: Sch 75-28X-2.5E:

1" x 1/8" SS Flat Track x 4' long w/ End Stop: Sch 75-28X-4E:
1" Stainless Steel Flat Track is 1" wide x 1/8" thick and is drilled for 1/4" (6mm) FH screws on 3 7/8" (98mm) centers, and has 1/4" diameter stop holes centered between mounting holes. Track has integral welded End Stop on one end. Produced in type 304 Stainless Steel.

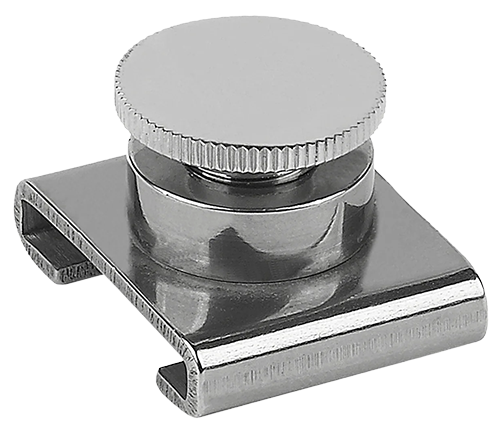

Adjustable Slide Stop for 1" T-Track: Sch 74-48:

Stainless Steel Adjustable Stop incorporates a captive SS thumb screw to limit its position, and fits 1" T-Track and SS Flat Track. SS Adjustable Stop is 1" long x 1 1/4" wide.




Adjustable Slide Stop for 1" T-Track w/ Spring Pin: Sch 74-48SP:
Stainless Steel Adjustable Stop incorporates a SS Spring Pin to limit its position, and fits 1" T-Track and SS Flat Track. SS Adjustable Stop is 1" long x 1 1/4" wide. Limited availability.




1" SS Flat Track End Stop: Sch 75-28ES:
1" Stainless Steel Flat Track End Stop attaches to top of Track, under the last Track screw. SS End Stop is 1" wide x 3/16" thick x 1 1/4" long and is drilled for up to 5/16" (8mm) FH screw.




1 1/4" Stainless Steel Flat Track
1 1/4" x 3/16" SS Flat Track x 4' long: Sch 75-30X-4:

1 1/4" x 3/16" SS Flat Track x 8' long: Sch 75-30X-8:

1 1/4" Stainless Steel Flat Track is 1 1/4" wide x 3/16" thick and is drilled for 5/16" (8mm) FH screws on +/- 4" (102mm) centers, and has 5/16" diameter stop holes centered between mounting holes. Produced in type 304 Stainless Steel.


1 1/4" x 3/16" SS Flat Track x 2' long w/ End Stop: Sch 75-30X-2E:

1 1/4" x 3/16" SS Flat Track x 2 1/2' long w/ End Stop: Sch 75-30X-2.5E:

1 1/4" x 3/16" SS Flat Track x 5' long w/ End Stop: Sch 75-30X-5E:
1 1/4" Stainless Steel Flat Track is 1 1/4" wide x 3/16" thick and is drilled for 5/16" (8mm) FH screws on +/- 4" (102mm) centers, and has 5/16" diameter stop holes centered between mounting holes. Track has integral welded End Stop on one end. Produced in type 304 Stainless Steel.


  1 1/4" SS Flat Track End Stop: Sch 75-30ES:

1 1/4" Stainless Steel Flat Track End Stop attaches to top of Track, under the last Track screw. SS End Stop is 1 1/4" wide x 3/16" thick x 1" long and is drilled for 5/16" (8mm) FH screw.




1 1/4" x 3/16" SS Flat Track Ass'y x 13" long: Sch 75-30X-13AR:
Heavy-duty 1 1/4" Slide Track Assembly. Stainless Steel Flat Track is 1 1/4" wide x 3/16" thick x 13" long and is drilled for (7) 1/4" (6mm) FH screws on 2" (51mm) centers. Assembly includes drilled Aluminum Riser (3/4" wide x 3/8" thick). As used for Outhaul Track on C&C Landfall 48, and others.

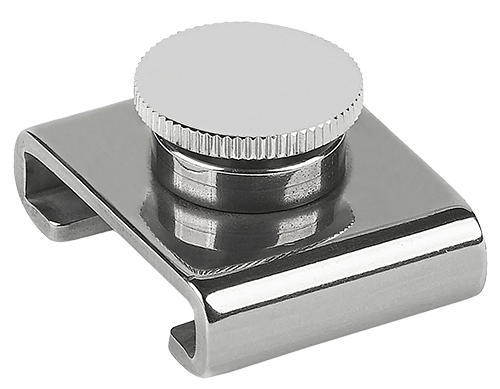

Adjustable Slide Stop for 1 1/4" T-Track: Sch 74-51:

Stainless Steel Adjustable Stop incorporates a captive SS thumb screw, and fits 1 1/4" T-Track and SS Flat Track. SS Adjustable Stop is 1 1/4" long x 1 9/16" wide.




Adjustable Slide Stop for 1 1/4" T-Track w/ Spring Pin: Sch 74-50X:
Stainless Steel Adjustable Stop incorporates a SS Spring Pin to limit its position, and fits 1 1/4" T-Track and SS Flat Track. SS Adjustable Stop is 1 1/4" long x 1 9/16" wide.




1 1/2" Stainless Steel Flat Track
1 1/2" x 3/16" SS Flat Track x 1'6" long w/ End Stop: Sch 75-32X-1.5E:
1 1/2" Stainless Steel Flat Track is 1 1/2" wide x 3/16" thick and is drilled for (6) 1/4" (6mm) FH screws on 3 3/8" (86mm) centers. Track has integral welded End Stop on one end. Highly polished type 316 SS Track is 18" long. Commonly used as Gooseneck Track.


1 1/2" x 1/4" SS Flat Track x 1'6" long: Sch 75-32X-1.5H:

Heavy-duty 1 1/2" Stainless Steel Flat Track is 1 1/2" wide x 1/4" thick and is drilled for (5) 5/16" (8mm) FH screws on 4" (aprox.) centers. Track has additional tapped holes (1/4-20) on each end for screw to keep Slide captive. Highly polished type 304 SS Track is 18 1/8" long. Original as used for Gooseneck Track on Pearson 30 (up to #564?), and others.

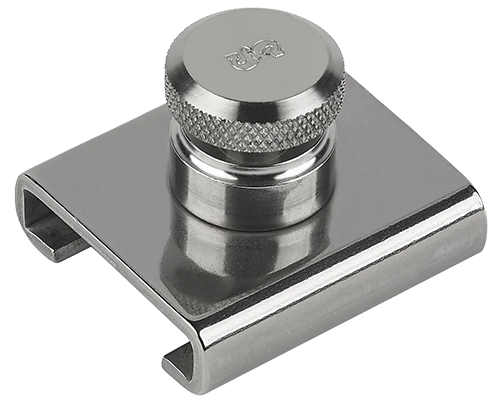

Adjustable Slide Stop for 1 1/2" T-Track w/ Screw Pin: Sch 74-52:
Stainless Steel Adjustable Stop incorporates a captive SS thumb screw to limit its position, and fits 1 1/2" T-Track and SS Flat Track. SS Adjustable Stop is 2" long x 1 13/16" wide.




Replacement Screw Pin for Sch 1 1/2" Cars: Sch 173SP:

Replacement Thumb Screw Pin for Sch 73-52, Sch 74-52, Sch 32-89 and other Schaefer Cars and Slides for 1 1/2" T-Track. SS Screw Pin has 1" knurled head with a 7/16-20 thread.




Adjustable Slide Stop for 1 1/2" T-Track w/ Spring Pin: Sch 74-52XSP:
Stainless Steel Adjustable Stop incorporates a SS Spring Pin to limit its position, and fits 1 1/2" T-Track and SS Flat Track. SS Adjustable Stop is 2" long x 1 13/16" wide. Limited availability.
