| Pintles and Gudgeons | ||
| Pintles and Gudgeons comprise the hinging mechanism
on outboard-mounted Rudders. Pintles always incorporate a Pin, Gudgeons always have a hole
for a Pin, either may be attached to the rudder or to the Transom. In standard
configuration, Pintles are attached to the Rudder, and Gudgeons are attached to the
Transom. Less common are Pintles that attach to the Transom, referred to as Transom
Pintles, the Gudgeons they are used with (attached to the Rudder) are known as Rudder
Gudgeons. It is not uncommon for a boat to use only Gudgeons
with removable Hinge Pins connecting 2 Transom Gudgeons with a Rudder Gudgeon between. The
J/24 currently uses this arrangement. For reference, the J/24
package includes (4) 1/2" Transom Gudgeons (Sch 81-46), (2)
1/2" Hinge Pins (Sch 81-49P), and (1 ea.) short (upper)
and long (lower) Rudder Gudgeons, (Sch 81-47S, Sch 81-48L).
The J/30 (among others) uses 2 (double) Transom Gudgeons and a Rudder Gudgeon with each. Pintles and Gudgeons are listed below by configuration, and by Pin size. For example, 1/2" Pintles are used with 1/2" Gudgeons. If you require Pintles or Gudgeons not listed here, please contact us with details on the configuration and dimensions you require. Pintles |
||
|
|
||
|
Standard (Rudder) Pintles Standard (Rudder-mounted) Pintles are attached to the Rudder and have an integral Pin. It is common to use 2 Pintles with different length Pins, allowing the lower (longer) Pintle (L) to be fitted first which makes it easier to fit the upper (short) one (S). Pin lengths given are total lengths, subtract strap width to get a protruding length. Standard Pintles are sometimes mounted (upside down) to the Rudder skeg, acting, in essence, as Transom Pintles. |
||
| 1/4" Rudder Pintles | ||
|
1/4" Pintle for 1 1/4" Rudder - Short: Sch 80-02XS:
1/4" Pintle for 1 1/4" Rudder - Long: Sch 80-01XL: Special 1/4" Pintles attach to 1 1/4" wide Rudder with (2) #10 (3/16") bolts and locknuts on 1" vertical centers. 1/4" SS Pin is welded to 1 3/4" wide x .090" formed SS strap. Unit is 2 1/4" long, 1/4" Pins are 2 3/8" long (S) and 3 1/8" long (L). Short Pin has hole for cotter Pin. As used on early O'Day Daysailers. These items were deemed to be insufficiently strong and are no longer available.
|
||
|
|
||
| 5/16" Rudder Pintles | ||
|
5/16" Pintle for 1/2" Rudder - Short: Sch 80-02S:
5/16" Pintle for 1/2" Rudder - Long: Sch 80-01L: Standard 5/16" Pintles attach to 1/2" wide Rudder with (2) #10 (3/16") bolts and locknuts on 1 15/16" centers. 5/16" SS Pin is welded to 1/2" wide x .062" formed SS strap. Unit is 3 1/2" long, 5/16" Pins are 1 1/4" long (S) and 1 1/2" long (L).
|
||
|
|
||
|
5/16" Pintle for 3/4" Rudder, 1/2" Strap - Short: Sch 80-12S:
5/16" Pintle for 3/4" Rudder, 1/2" Strap - Long: Sch 80-11L: Light-Duty 5/16" Pintles attach to 3/4" wide Rudder with (2) #10 (3/16") bolts and locknuts on 1 15/16" centers. 5/16" SS Pin is welded to 1/2" wide x .062" formed SS strap. Unit is 3 3/8" long, 5/16" Pins are 1 1/4" long (S) and 1 1/2" long (L).
|
|
|
|
5/16" Pintle for 3/4" Rudder, 5/8" Strap - Short: NF 657:
5/16" Pintle for 3/4" Rudder, 5/8" Strap - Long: NF 658: Heavy-Duty 5/16" Pintles attach to 3/4" wide Rudder with (2) #10 (3/16") bolts and locknuts on 1 7/8" centers. 5/16" SS Pin is welded to 5/8" wide x .062" formed SS strap. Unit is 3 3/8" long, 5/16" Pins are 1 1/8" long (S) and 1 3/8" long (L). Original units are marked FG 657 & FG 658. mil
|
|
|
|
|
||
|
5/16" Pintle for 1" Rudder - Short: RR 80-14S:
5/16" Pintle for 1" Rudder - Long: RR 80-13L: Standard 5/16" Pintles attach to 1" wide Rudder with (2) #10 (3/16") bolts and locknuts on 1 7/16" centers. 5/16" SS Pin is welded to 5/8" wide x .062" formed SS strap. Unit is 3 3/8" long, 5/16" Pins are 1 1/8" long (S) and 1 3/8" long (L). mil
|
|
|
|
|
||
| 3/8" Rudder Pintles | ||
|
Special 3/8" Pintle for 3/8" Rudder: K-430L:
Heavy 3/8" Pintle attaches to 3/8" wide Rudder with (2) 1/4" bolts and locknuts on 2 1/4" centers. 3/8" SS Pin is welded to heavy formed, 1/8" x 1" wide SS strap. Unit is 4" long, 3/8" Pin is 2" long.
|
||
|
|
||
|
3/8" Pintle for 3/4" Rudder - Short: RR 80-22XS:
3/8" Pintle for 3/4" Rudder - Long: RR 80-21XL: Standard 3/8" Pintles attach to 3/4" wide Rudder with (2) #10 (3/16") bolts and locknuts on 1 7/8" centers. 3/8" SS Pin is welded to formed, 3/4" wide x .080" SS strap. Unit is 4" long, 3/8" Pins are 2 1/4" long (S) and 2 3/4" long (L). As used on Flying Jr. and others. # |
||
|
|
||
|
3/8" Pintle for 7/8" Rudder - Short: RR 80-26S:
3/8" Pintle for 7/8" Rudder - Long: RR 80-25L: Standard 3/8" Pintles attach to 7/8" wide Rudder with (2) #10 (3/16") bolts and locknuts on 1 7/8" centers. 3/8" SS Pin is welded to formed, 3/4" wide x 1/8" SS strap. Unit is 4" long, 3/8" Pins are 1 7/8" long (S) and 2 1/8" long (L). As used on Capri 15 and others. |
||
|
|
||
|
3/8" Pintle for 1" Rudder - Short: Sch 80-24XS: 3/8" Pintle for 1" Rudder - Long: Sch 80-23XL: Standard 3/8" Pintles attach to 1" wide Rudder with (2) #10 (3/16") bolts and locknuts on 2 1/8" centers. 3/8" SS Pin is welded to formed, 3/4" wide x .080" SS strap. Unit is 4 1/8" long, 3/8" Pins are 1 3/4" long (S) and 2 1/4" long (L). These items are no longer available having been replaced by the stronger Sch 80-34XS and Sch 80-33XL below.
|
||
|
Heavy 3/8" Pintle for 1" Rudder - Short: Sch 80-34XS:
Heavy 3/8" Pintle for 1" Rudder - Long: Sch 80-33XL: Standard 3/8" Pintles attach to 1" wide Rudder with (2) #10 (3/16") bolts and locknuts on 1 13/16" centers. 3/8" SS Pin is welded to formed, 1" wide SS strap. Unit is 4" long, 3/8" Pins are 2" long (S) and 2 1/2" long (L). #
|
||
|
Large 3/8" Pintle for 1" Rudder: Sch 80-113X:
Large 3/8" Pintle attaches to 1" wide Rudder with (2) #10 (3/16") bolts and (1) 1/4" bolt and locknuts. 3/8" SS Pin is welded to formed, 1" wide SS strap. Unit is 9 3/8" long, 3/8" Pin is 2 1/8" long. |
||
|
|
||
|
3/8" Pintle for 1 1/4" Rudder - Short: K-456S:
3/8" Pintle for 1 1/4" Rudder - Long: K-456L: Heavy-Duty 3/8" Pintle attaches to 1 1/4" wide Rudder with (2) #10 (3/16") bolts and locknuts on 2" centers. 3/8" SS Pin is welded to formed U, which is welded to 1" wide SS rudder strap. Unit is 4 1/4" long, 3/8" Pins are 2 1/2" long (S) and 3" long (L). |
|
|
|
|
||
|
3/8" Pintle for 1 1/2" Rudder - Short: K-457S:
3/8" Pintle for 1 1/2" Rudder - Long: K-457L: Heavy-Duty 3/8" Pintle attaches to 1 1/2" wide Rudder with (2) 1/4" bolts and locknuts on 2" centers. 3/8" SS Pin is welded to formed U, which is welded to 1" wide SS rudder strap. Unit is 4 1/4" long, 3/8" Pins are 2 1/2" long (S) and 3" long (L).
|
|
|
|
3/8" Pintle for 1 1/2" Rudder - Short: RR 80-36S:
3/8" Pintle for 1 1/2" Rudder - Long: RR 80-35L: Heavy-Duty 3/8" Pintles attach to 1 1/2" wide Rudder with (2) 1/4" bolts and locknuts on 2 1/8" centers. 3/8" SS Pin is welded to formed, 1/8" x 1" wide SS strap. Unit is 4 1/4" long, 3/8" Pins are 2 1/2" long (S) and 2 7/8" long (L). As used on Capri 18, 22, some Catalina 22's and others. |
||
|
|
||
| 1/2" Rudder Pintles | ||
|
1/2" Pintle for 1" Rudder - Long: Sch 80-45L:
Standard 1/2" Pintle attaches to 1" wide Rudder with (4) #10 (3/16") bolts and locknuts. 1/2" SS Pin is welded to formed, 1" wide x .072" SS strap. Unit is 8" long, mounting holes are 1 7/8" apart. 1/2" Pin is 2 3/4" long. As used on O'Day 22.
|
||
|
1/2" Pintle for 1" Rudder - Short: Sch 80-46S:
Standard 1/2" Pintle attaches to 1" wide Rudder with (2) #10 (3/16") bolts and locknuts. 1/2" SS Pin is welded to formed, 1" wide x .072" SS strap. Unit is 4" long, mounting holes are 1 3/4" apart. 1/2" Pin is 1 3/4" long. As used on O'Day 22. |
 |
|
|
|
||
|
1/2" Pintle for 1 1/2" Rudder - Long: Sch 80-55L:
Standard 1/2" Pintle attaches to 1 1/2" wide Rudder with (4) #10 (3/16") bolts and locknuts. 1/2" SS Pin is welded to formed, 1" wide x 1/8" SS strap. Unit is 8" long, the first 2 (inboard) mounting holes are 1 1/4" apart, the rest are 2" apart. 1/2" Pin is 2 3/4" long.
|
||
|
1/2" Pintle for 1 1/2" Rudder - Short: Sch 80-56S:
Standard 1/2" Pintle attaches to 1 1/2" wide Rudder with (2) #10 (3/16") bolts and locknuts. 1/2" SS Pin is welded to formed, 1" wide x 1/8" SS strap. Unit is 4 1/4" long, mounting holes are 1 3/4" apart. 1/2" Pin is 1 3/4" long.
|
||
| 1/2" Heavy-duty Pintle for 1 1/2" Rudder - Long: Sch 80-55HXL: | ||
|
Heavy-duty 1/2" Pintle attaches to 1 1/2" wide Rudder with (4) 1/4" bolts and locknuts.
1/2" SS Pin is welded to formed, 1" wide x 1/8" SS strap. Unit is 8" long, the first 2
(inboard) mounting holes are 1 1/4" apart, the rest are 2" apart. 1/2" Pin is 2 3/4" long.
As used on some O'Day 20, 222, 23, 25, and 26's.
|
||
| 1/2" Heavy-duty Pintle for 1 1/2" Rudder - Short: Sch 80-56HXS: | ||
|
Heavy-duty 1/2" Pintle attaches to 1 1/2" wide Rudder with (2) 1/4" bolts and locknuts.
1/2" SS Pin is welded to formed, 1" wide x 1/8" SS strap. Unit is 4 1/4" long, mounting holes
are 1 3/4" apart. 1/2" Pin is 1 3/4" long.
As used on some O'Day 20, 222, 23, 25, and 26's.
|
||
|
1/2" Heavy-duty Pintle for 1 1/2" Rudder - Long: RR 80-57L:
1/2" Heavy-duty Pintle for 1 1/2" Rudder - Short: RR 80-58S: Heavy-duty 1/2" Pintles attach to 1 1/2" wide Rudder with (2) 1/4" bolts and locknuts. 1/2" SS Pin is welded to formed, 1 1/2" wide x 5/32" SS strap. Unit is 5" long, mounting holes are 1 7/8" apart. 1/2" Pins are 2 1/2" long (S) and 3" long (L). As used on Capri 22, Catalina 250, and 27. |
||
|
|
||
|
1/2" Pintle for 1 3/4" Rudder - Long: Sch 80-65XL:
1/2" Pintle for 1 3/4" Rudder - Short: Sch 80-66XS: Special 1/2" Pintles attach to 1 3/4" wide Rudder Head with (2) 1/4" bolts and locknuts. 1/2" SS Pin is welded to formed, 2" wide SS strap. Unit is 2 1/2" long, mounting holes are on 1" (vertical) centers. 1/2" Pins are 2" long (S) and 2 1/2" long (L). As used on O'Day 19, 192, and 222. Early versions of this unit used a 3/8" Pin, replacement requires changing Gudgeons to Sch 81-45XH, below. # |
 |
|
|
|
||
|
1/2" Heavy-duty Pintle for 2" Rudder - Long: Sch 80-67XL:
Heavy-duty 1/2" Pintle attaches to 2" wide Rudder with (5) 1/4" bolts and locknuts. 1/2" SS Pin is welded to formed, 1 1/4" wide SS strap with reinforcing plate. Unit is 9" long, 1/2" Pin is 4" long, mounting holes are on staggered centers. As used on O'Day 240 and 272. |
||
|
1/2" Heavy-duty Pintle for 2" Rudder - Short: Sch 80-68XS:
Heavy-duty 1/2" Pintle attaches to 2" wide Rudder with (3) 1/4" bolts and locknuts. 1/2" SS Pin is welded to formed, 1 1/4" wide SS strap with reinforcing plate. Unit is 6 1/2" long, 1/2" Pin is 3" long, mounting holes are on staggered centers. As used on O'Day 240 and 272. |
||
|
|
||
|
1/2" Pintle for 2 1/4" Rudder: Sch 80-75X:
Special 1/2" Pintle attaches to 2 1/4" wide Rudder with (3) #10 (3/16") bolts and locknuts. 1/2" SS Pin is welded to formed, 1" wide SS strap. Unit is 6 1/4" long, mounting holes are on 2" centers. 1/2" Pin is 2 1/2" long. As used on S2 6.9. SK4721 |
||
|
|
||
|
Standard (Transom) Gudgeons Standard (Transom-mounted) Gudgeons are attached to the Transom and have a hole for a Pin or Pintle. Channel-type Triangular Gudgeons are suitable for use with Pintles, or with Rudder Gudgeons (fitting inside the channel) and separate Pins. |
||
|
Gudgeon for 1/4" Pin: RF 254:
Channel-type 1/4" Gudgeon attaches to Transom with (3) 3/16" (5mm) screws. Triangular Gudgeon is formed from 1/16" stock, hole center for 1/4" Pin is 9/16" from Transom. Outer mounting holes are on 1 5/16" (35mm) centers. Base is (maximum) 2 1/8" wide x 1 1/8" high with a 1" ID clearance.
|
|
|
|
|
||
|
Standard Gudgeon for 5/16" Pin: Sch 81-01:
Light-Duty 5/16" Strap Gudgeon attaches to Transom with (4) #10 (3/16") screws. Formed from 1/2" wide SS strap, Gudgeon is 3 1/2" long, hole center for 5/16" Pintle is 3/8" from Transom. Outer mounting holes are on 3" centers, inner holes are on 7/8" centers.
|
|
|
|
Heavy Gudgeon for 5/16" Pin: NF 656:
Heavy 5/16" Strap Gudgeon attaches to Transom with (4) #10 (3/16") screws. Gudgeon is formed from 5/8" wide SS strap. Gudgeon is 3 3/4" long, hole center for 5/16" Pintle is 3/8" from Transom. Outer mounting holes are on 3" centers, inner holes are on 1 1/4" centers.
|
|
|
|
Heavy Gudgeon for 5/16" Pin: NF 656W: Heavy 5/16" Strap Gudgeon attaches to Transom with (4) #10 (3/16") screws. Gudgeon is formed from 5/8" wide SS strap. Gudgeon is 4" long, hole center for 5/16" Pintle is 3/8" from Transom. Outer mounting holes are on 3 1/4" centers, inner holes are on 1 1/4" centers. As NF 656, but longer. This item is no longer available and is shown here for identification only. The NF 656, above, is recommended for replacement applications, however (2) new mounting holes will have to be drilled.
|
||
|

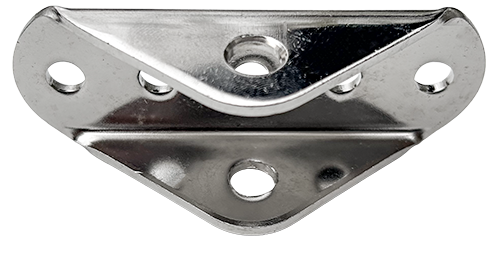

Gudgeon for 5/16" Pin: RF 314X:
Channel-type 5/16" Gudgeon attaches to Transom with (4) 1/4" (6mm) screws. Base is 3 1/4" wide x 1 1/8" high, center of 5/16" hole is 5/8" from Transom. Base holes (5) are 5/8" apart.
|
||
|
Heavy-Duty Gudgeon for 5/16" Pin: RF 1330-5X:
Heavy-Duty Channel-type 5/16" Gudgeon attaches to Transom with (2) 5/16" (8mm) screws or bolts. Triangular Gudgeon is formed from 1/8" stock, hole center for 5/16" Pin is 1 1/4" from Transom. Base is 5 5/16" wide x 1 1/4" high, with mounting holes on 4 3/8" centers and has 1" ID clearance. also NF 1330R-5 mil |
|
|
|
|
||
|
Standard Gudgeon for 3/8" Pin: Sch 81-02X: Standard 3/8" Gudgeon attaches to Transom with (4) #10 (3/16") screws. Gudgeon is formed from 5/8" wide SS strap. Gudgeon is 4 1/8" long, hole center for 3/8" Pintle is 9/16" from Transom. This item is no longer available and is shown here for identification only. The stronger Sch 81-02XS, below, is recommended for replacement applications, however new mounting holes will have to be drilled. * -21x
|
||
|
Standard Gudgeon for 3/8" Pin: Sch 81-02XS:
Standard 3/8" Strap Gudgeon attaches to Transom with (4) #10 (3/16") screws in a staggered pattern. Gudgeon is formed from 3/4" wide SS strap. Gudgeon is 3 3/4" long, hole center for 3/8" Pintle is 1/2" from Transom. # mil
|
|
|
|
Long Reinforced Gudgeon for 3/8" Pin: RR 81-02XL:
Heavy-Duty 3/8" Strap Gudgeon attaches to Transom with (4) 1/4" (6mm) screws. Gudgeon is formed from 3/4" wide x 3/32" SS strap with welded strap reinforcement. Gudgeon is 5 1/16" long, hole center for 3/8" Pintle is 11/16" from Transom. Outer mounting holes are on 4 3/8" centers, inner holes are on 1 3/8" centers. As used on some older Catalina 22's. # mil
|
|
|
|
Special Gudgeon for 3/8" Pin - Harpoon 5.2: RR 81-44H5.2:
Special 3/8" Gudgeon attaches to Transom with (3) 1/4" screws on 1" centers. Special replacement Gudgeon developed for Harpoon 5.2 is formed 1/8" triangular SS channel. Gudgeon is 2 3/4" long, hole center for 3/8" Pintle is 7/16" from Transom. As used on some Harpoon 5.2. mil
|
||
|
Bent Angle Gudgeon for 3/8" Pin: RR 81-72B:
Bent Angle type 3/8" Gudgeon attaches to Transom with (2) 1/4" (6mm) bolts. Gudgeon is formed from .100" SS plate with welded washer to increase bearing surface. Base is (maximum) 3" wide x 1" high, hole center for 3/8" Pin is 1 3/8" from Transom. Mounting holes are on 2" (horizontal) centers. As used on Capri 16.5, Coronado 15, some Catalina 22's, and others.
|
|
|
|
Heavy-Duty Gudgeon for 3/8" Pin: RR 81-43R-6:
Heavy-Duty 3/8" Gudgeon attaches to Transom with (4) 1/4" (6mm) screws. Formed from 1" wide x 1/8" SS strap with welded SS tube, Gudgeon is 3 5/8" long, hole center for 3/8" Pintle is 5/8" from Transom. Outer mounting holes are on 2 3/4" centers, inner holes are on 1 5/16" centers. 81-42PB
|
||
|
Heavy-Duty Gudgeon for 3/8" Pin: RF 1330X:
Heavy-Duty Channel-type 3/8" Gudgeon attaches to Transom with (2) 5/16" (8mm) screws or bolts. Triangular Gudgeon is formed from 1/8" stock, hole center for 3/8" Pin is 1 1/4" from Transom. Base is 5 5/16" wide x 1 1/4" high, with mounting holes on 4 3/8" centers and has 1" ID clearance. NF 1330R
|
|
|
|
|
||
|
Bent Angle Gudgeon for 1/2" Pin: RR 81-73B:
Short Bent Angle type 1/2" Gudgeon attaches to Transom with (3) 1/4" (6mm) bolts. Gudgeon is formed from 1/8" SS plate with welded bushing to increase bearing surface. Base is (maximum) 2 3/4" wide x 1 7/8" high, hole center for 1/2" Pin is 1 3/8" from Transom. Upper (2) Mounting holes are on 2" (horizontal) centers.
|
||
|
Bent Angle Gudgeon for 1/2" Pin: RR 81-74B:
Bent Angle type 1/2" Gudgeon attaches to Transom with (3) 5/16" (8mm) bolts. Gudgeon is form /8" SS plate with welded washer to increase bearing surface. Base is (maximum) 4" wide x 1 5/8" high, hole cenin is 1 5/16" from Transom. Upper (2) Mounting holes are on 3" (horizontal) centers. As used on Catalina 25, 27, MacGregor 25, and others.
|
||
|
Heavy-duty Bent Angle Gudgeon for 1/2" Pin: RR 81-74B-H:
Heavy-duty Bent Angle type 1/2" Gudgeon attaches to Transom with (3) 5/16" (8mm) bolts. Gudgeon is formed from 1/8" SS plate with welded support tabs and welded bushing to increase bearing surface. Base is (maximum) 4" wide x 1 5/8" high, hole center for 1/2" Pin is 1 5/16" from Transom. Upper (2) Mounting holes are on 3" (horizontal) centers. As used on Catalina 250, and others.
|
|
|
|
18° Bent Angle Gudgeon for 1/2" Pin: RR 81-76B-A18:
Special Long Bent Angle type 1/2" Gudgeon is designed for use on Transom with an 18° angle. Gudgeon attaches to Transom with (3) 1/4" (6mm) bolts. Gudgeon is formed from 1/8" SS plate with welded bushing to increase bearing surface. Base is (maximum) 3 1/2" wide x 1 5/8" high, hole center for 1/2" Pin is 2 9/16" from Transom. Upper (2) Mounting holes are on 2 3/4" (horizontal) centers.
|
||
|
Standard Gudgeon for 1/2" Pin: Sch 81-46:
Standard Gudgeon Set w/ 1/2" Pin: Sch 81-50: Standard 1/2" Gudgeon attaches to Transom with (4) 1/4" (6mm) screws. Gudgeon is formed from 1" wide SS strap with hole for 1/2" Pin or Pintle. 2-Piece Gudgeon is 4 1/4" long with reinforcing plate, hole center for 1/2" Pintle is 3/4" from Transom. Outer mounting holes are on 3 1/4" centers, inner holes are on 1 7/16" centers. Sch 81-50 Gudgeon Set includes (2) Sch 81-46 Gudgeons and (1) Sch 81-49P 1/2" Pin. As used on J/24, and others.
|

|
|
|
Short Gudgeon for 1/2" Pin: Sch 81-42X:
Short 1/2" Gudgeon is as Sch 81-46, above, but with narrower mounting hole pattern. 1/2" Gudgeon attaches to Transom with (4) 1/4" (6mm) screws. Gudgeon is formed from 1" wide SS strap with heavy externally welded SS tube with hole for 1/2" Pin or Pintle. Gudgeon is 3 5/8" long, hole center for 1/2" Pintle is 5/8" from Transom. Outer mounting holes are on 2 3/4" centers, inner holes are on 1 5/16" centers. As used on O'Day 20 and 22. Stronger replacement version has Pintle hole closer to the Transom and must be replaced in pairs.
|
|
|
|
Gudgeon w/ Bushing for 1/2" Pin: Sch 81-41:
Special 1/2" Gudgeon with low friction Bushing attaches to Transom with (2) 1/4" (6mm) FH screws. Gudgeon is formed from 7/8" wide SS strap with welded SS tube fitted with special replaceable phenolic Bushing with hole for 1/2" Pin or Pintle. Gudgeon is 3 9/16" long, hole center for 1/2" Pintle is 3/4" from Transom. Mounting holes are on 2 3/4" centers. As used on some later Harpoon 5.2.
|
|
|
|
|
Replacement Gudgeon Bushing for 1/2" Pin: Sch 81-41B:
Phenolic replacement Bushing for use with Sch 81-41 1/2" Gudgeon. Bushing is 1" long, x 3/4" OD with hole for 1/2" Pin or Pintle. 25047
|
|
|
|
1/2" Gudgeon Pin: Sch 81-49P:
Specially machined 1/2" Pin for use with Sch 81-47S or Sch 81-48L Rudder Gudgeon, and a pair of Sch 81-46 or other 1" wide Transom Gudgeons. Pin is 1/2" OD with a 3 1/4" grip length (3 7/8" overall) and a hole for 3/16" cotter Pin. As used on J/24, and others.
|
|
|
Special Gudgeon for 1/2" Pin: Sch 81-45XH:
Special Heavy-duty 1/2" Gudgeon attaches to Transom with (3) 5/16" bolts on 1 1/2" centers. Gudgeon has heavy formed strap welded over SS U-Bracket. Gudgeon is 4" long x (maximum) 1 3/8" high, hole center for 1/2" Pintle is 1 1/4" from Transom, clearance between tabs is 1". Base is 15/16" high x .156" thick. As used on some versions of the O'Day 19, 222, 23, 240, 25, 26, 272, and on some versions of the Cal 22. mil
|
|
|
|
|
Backing Plate for Sch 81-45XH Gudgeon: Sch 81-45BP:
SS Backing Plate for use with Sch 81-45XH Gudgeon is 4" long x 1" wide x 1/8" thick, with (3) 3/8" holes on 1 1/2" centers. mil
|
|
|

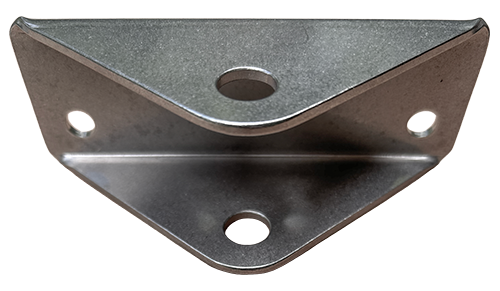

Special Gudgeon for 1/2" Pin - Pearson 27: Sch 81-55X:
Special 1/2" Channel-type Gudgeon attaches to Transom w/ (4) 5/16" bolts. Triangular Gudgeon is formed from 1/8" stock, hole center for 1/2" Pin is 1 1/2" from Transom. Base is 5" wide x 1 13/16" high, with mounting holes on 4" (upper) and 1 1/4" (lower) centers and has 1 1/2" ID clearance. As used on Pearson P-27.
|
||
|
|
Backing Plate for Sch 81-55 Gudgeon: Sch 81-55BP:
Clear anodized Aluminum Backing Plate for Sch 81-55 is 5" wide x 1 1/2" high x 1/4" thick with (4) holes for 5/16" screws.
|
|
|
Short Heavy-Duty Gudgeon w/ 1/2" Pin: RF 1336M:
Heavy-Duty 1/2" Gudgeon attaches to Transom with (4) 5/16" (8mm) FH screws. Gudgeon has (2) heavy 1/4" triangular tabs welded to 1/4" base plate. Gudgeon protrudes 1 7/8" (maximum) from Transom, hole center for 1/2" Pin (included) is 1 3/8" from Transom, clearance between tabs is 1 3/8". New-style Base is 3 1/8" wide x 2 3/8" high x 1/4" thick with mounting holes on 2 3/8" horizontal and 11/16" vertical centers.
|
|
|
|
Heavy-Duty Gudgeon for 1/2" Pin: RR 81-56X:
Heavy-Duty 1/2" Gudgeon attaches to Transom with (4) 3/8" (10mm) bolts. Gudgeon is formed from 3/16" SS plate. Base is (maximum) 4 11/16" wide x 2 3/8" high, hole center for 1/2" Pin is 1 1/4" from Transom, clearance between tabs is 2". Mounting holes are on 3 9/16" (horizontal) and 1 1/4" (vertical) centers. As used on J/27, J/80,, Pearson Flyer and others.
|
|
|
|
|
1/2" Gudgeon Pin: Sch 81-59XP:
Specially machined 1/2" Pin for use with RR 81-56X or Sch 81-68X Transom Gudgeons. Pin is 1/2" OD with a 2 5/16" grip length (2 15/16" overall) and a hole for 1/8" cotter Pin. =-69n'97
|
|
|
|
1/2" Gudgeon Pin, Long: RR 81-59LPN:
Long Specially machined 1/2" Pin for use with a pair of RR 81-56X 1/2" Gudgeons. Pin is 1/2" OD with a 11 3/8" grip length (12 3/8" overall) and a hole for 3/16" cotter Pin. Special long pin goes through 2 RR 81-56X Gudgeons. As used on J/27, J/80, and others.
|
|
|
|
||
|
Special Gudgeon for 1" Pin: RR 81-78JT:
Special Heavy-duty SS Gudgeon for 1" Pin attaches to Transom with (4) 5/16" bolts. Gudgeon has (2) heavy 1/4" triangular tabs welded to 1/4" base plate. Gudgeon protrudes 2 3/4" (maximum) from Transom, hole center for 1" Pin is 1 3/4" from Transom, clearance between tabs is 2 1/8". Base is 7" wide x 3" high x 1/4" thick with mounting holes on 6" horizontal and 2" vertical centers. As used on J/29F, J/29M, & J/30.
|
|
|
|
|
1" Gudgeon Pin: RR 81-78P:
Specially machined 1" Pin for use with RR 81-78JT 1" Gudgeon. Pin is (maximum) 3" long x 1" OD and includes 3/16" cotter Pin.
|
|
|
|
||
|
Rudder Gudgeons Rudder Gudgeons are attached to the Rudder (or to a Rudder skeg) and have a hole for a Pin or Pintle. |
||
|
1/4" Rudder Gudgeon for 3/4" Rudder: RF 242X: 1/4" Rudder Gudgeon attaches to 3/4" wide Rudder with (2) 3/16" (5mm) bolts and locknuts. Formed SS unit has hole for 1/4" Pin or Pintle. Unit is 3 1/4" long, strap is (maximum) 3/4" wide and extends 2 3/8" onto Rudder, mounting holes are 1 7/16" apart. This item is no longer available and is shown here for identification only.
|
||
|
1/4" Rudder Gudgeon for 1" Rudder: RF 243:
1/4" Rudder Gudgeon attaches to 1" wide Rudder with (2) 3/16" (5mm) bolts and locknuts. Formed SS unit has hole for 1/4" Pin or Pintle. Unit is 3 1/4" long, strap is (maximum) 3/4" wide and extends 2 1/4" onto Rudder, mounting holes are 1 7/16" apart.
|
||
|
1/4" Rudder Gudgeon for 1 1/2" Rudder: RF 239:
1/4" Rudder Gudgeon attaches to 1 1/2" wide Rudder with (2) 3/16" (5mm) bolts and locknuts. Formed SS unit has hole for 1/4" Pin or Pintle. Unit is 3" long, strap is (maximum) 3/4" wide and extends 2" onto Rudder, mounting holes are 7/8" apart.
|
|
|
|
1/4" Rudder Gudgeon for 1 1/2" Rudder: NF 81-03RXN:
1/4" Rudder Gudgeon attaches to 1 1/2" wide Rudder with (2) 3/16" (5mm) bolts and locknuts. Formed SS strap has hole for 1/4" Pin or Pintle. Unit is 4" long, strap is (maximum) 3/4" wide and extends 2 3/4" onto Rudder, mounting holes are 1 7/8" apart. Though formed for 1 1/2" wide Rudder, this unit is easily bent to suit wider, or narrower Rudders.
|
||
|
|
||
|
5/16" Rudder Gudgeon for 1" Rudder: NF 41A:
5/16" Rudder Gudgeon attaches to 1" wide Rudder with (3) 1/4" bolts and locknuts. Formed SS strap is riveted to U-bracket with hole for 5/16" Pin or Pintle. Unit is 7" long, strap is 3/4" wide, mounting holes are 2 7/16" apart. FG
|
 |
|
|
|
||
|
3/8" Rudder Gudgeon for 1 1/2" Rudder: K-457G:
Heavy-duty 3/8" Rudder Gudgeon attaches to 1 1/2" wide Rudder with (2) 1/4" bolts and locknuts on 2" centers. Formed SS strap is welded to U-bracket with hole for 3/8" Pin or Pintle. Unit is 4 1/4" long, strap is 1 1/4" wide.
|
|
|
|
3/8" Rudder Gudgeon for 1 3/4" Rudder: K-457G-17: Heavy-duty 3/8" Rudder Gudgeon attaches to 1 3/4" wide Rudder with (2) 1/4" bolts and locknuts on 2" centers. Formed SS strap is welded to U-bracket with hole for 3/8" Pin or Pintle. Unit is 4" long, strap is 1 1/4" wide.
|
|
|
|
3/8" Rudder Gudgeon for 2" Rudder: K-457G-20:
Heavy-duty 3/8" Rudder Gudgeon attaches to 2" wide Rudder with (2) 1/4" bolts and locknuts on 2" centers. Formed SS strap is welded to U-bracket with hole for 3/8" Pin or Pintle. Unit is 3 3/4" long, strap is 1 1/4" wide.
|
|
|
|
3/8" Rudder Gudgeon for 2 1/4" Rudder: K-457G-22: Heavy-duty 3/8" Rudder Gudgeon attaches to 2 1/4" wide Rudder with (2) 1/4" bolts and locknuts on 2" centers. Formed SS strap is welded to U-bracket with hole for 3/8" Pin or Pintle. Unit is 3 1/2" long, strap is 1 1/4" wide.
|
|
|
|
3/8" Rudder Gudgeon for 2" Rudder: NF 51A: Heavy-duty 3/8" Rudder Gudgeon attaches to 2" wide Rudder with (3) 1/4" bolts and locknuts. Formed SS inner strap is welded to outer strap which goes beyond the first mounting hole. SS ferruled tube, with hole for 3/8" Pin or Pintle, is fixed between the straps, and requires 1 3/8" clearance when used with a Transom Gudgeon. Unit is 7 1/2" long, strap is 1 1/4" wide, mounting holes are 2" apart. * R13-32
|
|
|
|
|
||
|
1/2" Rudder Gudgeon for 1 3/8" Rudder: RF-1337X: 1/2" Rudder Gudgeon attaches to 1 3/8" wide Rudder with (3) 1/4" bolts and locknuts. Formed SS strap has heavy welded tube with hole for 1/2" Pin or Pintle. Unit is 7 1/2" long, strap is 1 1/4" wide, mounting holes are on 2 1/16" centers. *2
|
||
|
1/2" Rudder Gudgeon for 1 1/2" Rudder: Sch 81-47S:
1/2" Rudder Gudgeon attaches to 1 1/2" wide Rudder with (2) 1/4" bolts and locknuts. Formed SS strap has heavy welded tube with hole for 1/2" Pin or Pintle. Un wide, staggered mounting holes are on 1 3/4" centers. As used on J/24 (upper).
|
 |
|
|
1/2" Rudder Gudgeon for 1 1/2" Rudder: Sch 81-48L:
1/2" Rudder Gudgeon attaches to 1 1/2" wide Rudder with (4) 1/4" bolts and locknuts. Formed SS strap has heavy welded tube with hole for 1/2" Pin or Pintle. Unit is 7 7/8" long, strap is 1" wide with staggered mounting holes. As used on J/24 (lower).
|
||
|
1/2" Gudgeon Pin: Sch 81-49P:
Specially machined 1/2" Pin for use with Sch 81-47S or Sch 81-48L Rudder Gudgeon, and a pair of Sch 81-46 or other 1" wide Transom Gudgeons. Pin is 1/2" OD with a 3 1/4" grip length (3 7/8" overall) and a hole for 3/16" cotter Pin. As used on J/24, and others.
|
||
|
1/2" Rudder Gudgeon for 1 1/2" Rudder: Sch 81-67X:
Heavy-Duty 1/2" Rudder Gudgeon attaches to 1 1/2" wide Rudder with (4) 1/4" bolts and locknuts. Formed, welded SS assembly has heavy welded tube with Nomex-Teflon Bushing to fit 1/2" Pin or Pintle. Unit is (maximum) 8 1/8" long x 3 1/4" wide x 2" high, formed from 1/8" stock. Space where Rudder attaches is 1 1/2" wide x 5 7/8" deep. Normally used with Sch 81-68X Transom Gudgeon (discontinued), modified version Sch 81-67XM (below) is suitable for use with RR 81-56X Transom Gudgeon.
|
|
|
|
1/2" Rudder Gudgeon for 1 1/2" Rudder: Sch 81-67XM: Heavy-Duty 1/2" Rudder Gudgeon as Sch 81-67X, above, but specially modified for use with RR 81-56X Transom Gudgeon.
|
||
|
1/2" Rudder Gudgeon for 1 3/4" Rudder: RR 81-57N:
Heavy-duty 1/2" Rudder Gudgeon attaches to 1 3/4" wide Rudder with (3) 5/16" bolts and locknuts. Heavy SS side straps are welded to 3/16" formed end plate with hole for 1/2" Pin or Pintle. Unit is (maximum) 8" long, straps are 2" wide x 3/16" thick, staggered mounting holes are 2 1/4" apart and 3/4" from strap edge. As used on J/80. 6811
|
|
|
|
1/2" Rudder Gudgeon for 2 1/8" Rudder: Sch 81-49PP:
1/2" Rudder Gudgeon attaches to 2 1/8" wide Rudder with (2) 3/8" bolts and locknuts. Formed SS strap has heavy 3/8" spacer plate and welded tube with hole for 1/2" Pin or Pintle. Unit is 7" long, strap is 1 1/2" wide, mounting holes are 3 1/2" apart. As used on Pearson P-27. SK8880
|
|
|
|
|
||
|
1" Rudder Gudgeon for 2 1/4" Rudder - Short: RR 81-79JS: Heavy 1" Rudder Gudgeon attaches to 2 1/4" wide Rudder with (3) 3/8" bolts and locknuts. Formed SS strap has heavy spacer plates and welded tube with hole for 1" Pin or Pintle. Unit is (maximum) 8 1/2" long, strap is 2" wide x 1/4" thick, mounting holes are 2 1/4" apart. Newer style has staggered mounting holes 3/4" from strap edge. As used on J/29F, J/29M, & J/30 (upper). *
|
||
|
1" Rudder Gudgeon for 2 1/4" Rudder - Long: RR 81-80JL: Heavy 1" Rudder Gudgeon attaches to 2 1/4" wide Rudder with (4) 3/8" bolts and locknuts. Formed SS strap has heavy spacer plates and welded tube with hole for 1" Pin or Pintle. Unit is (maximum) 11 1/8" long, strap is 2" wide x 1/4" thick, forward mounting holes are 2 1/2" apart, aft mounting hole is 2 1/4" from next to last hole. Newer style has staggered mounting holes 3/4" from strap edge. As used on J/29F, J/29M, & J/30 (lower). *
|
||
|
|
|
|
Transom Pintles Transom Pintles are attached to the Transom and have an integral Pin. Mounted with the Pin pointing up, the Rudder Gudgeon slips over it. |
|
|
1/4" Transom Pintle: RF 255:
1/4" Transom Pintle attaches to Transom with (2) #10 (3/16") screws on 1 5/16" centers. Pintle is formed from triangular SS channel with welded 1/4" Pin. Base is 2" wide x 1 1/8" high, center of 1/4" Pin is 9/16" from Transom. 1/4" Pin is 1 5/8" long with hole for cotter pin to keep Rudder captive.
|
|
|
5/16" Transom Pintle: NF 38:
5/16" Transom Pintle attaches to Transom with (4) 1/4" (6mm) screws. Pintle is formed from triangular SS channel with welded 5/16" Pin. Base is 3 1/4" wide x 1 1/8" high, center of 5/16" Pin is 5/8" from Transom. Base holes (5) are 5/8" apart. 5/16" Pin is 2 1/4" long with hole for cotter pin to keep Rudder captive. RF315X
|
 |
|
3/8" Transom Pintle, Short: RR 80-37TS:
3/8" Transom Pintle, Long: RR 80-38TL: 3/8" Transom Pintles attach to Transom with (4) 1/4" (6mm) screws. Pintle is formed from 3/4" wide x 3/32" SS strap with welded Pin and reinforcing strap. Base is 5 1/16" long, 3/8" Pin center is 11/16" from Transom. Outer mounting holes are on 4 3/8" centers, inner holes are on 1 3/8" centers. 3/8" Pins are 1 1/2" or 2 1/8" long, Pintles have hole for cotter pin to keep Rudder captive. As used on Lightning, and others. # mil
|
|
|
3/8" Transom Pintle, Heavy-Duty: RF 1331X:
Heavy-Duty 3/8" Transom Pintle attaches to Transom with (2) 5/16" (8mm) screws on 4 3/8" centers. Pintle is formed from triangular SS channel (1/8" thick) with welded 3/8" Pin. Base is 5 5/16" wide x 1 1/4" high, center of 3/8" Pin is 1 1/4" from Transom. 3/8" Pin is 2" long with hole for cotter pin to keep Rudder captive. was NF 38L mil
|
|
|
1/2" Transom Pintle: RR 80-12TP:
1/2" Transom Pintle attaches to Transom with (2) 5/16" (8mm) screws on 3 5/8" centers. Pintle is formed from triangular SS channel (3/16" thick) with welded 1/2" Pin. Base is 5" wide x 1 3/8" high, center of 1/2" Pin is 1 3/8" from Transom. 1/2" Pin is 2" long with hole for cotter pin to keep Rudder captive. **
|
|
|
|
|
|
Rudder Stops Rudder Stops are attached to the Transom and prevent the Rudder from becoming detached in rough conditions by getting in the way of a rudder-mounted Pintle or Gudgeon. |
|
|
Rudder Spring Stop: Sch 82-01:
SS Rudder Spring Stop attaches to Transom with (2) screws. Spring steel Stop keeps Rudder from inadvertently coming off, but is easily depressed when removal is desired. Formed SS strap is 4" long x 1/2" wide, with (2) #10 (3/16") mounting holes.
|
|
|
Adjustable Rudder Spring Stop: Sch 82-R767:
SS Rudder Spring Stop attaches to Transom with (2) #10 (3/16") screws in slots allowing height to be easily adjusted. Spring steel Stop keeps Rudder from inadvertently coming off, but is easily depressed when removal is desired. Bent SS strap is 3 3/16" long x 3/4" wide, with (2) 3/16" x 1/2" mounting slots on 3/4" centers. RWO
|
Sch 82-R767
|
|

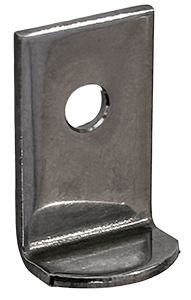

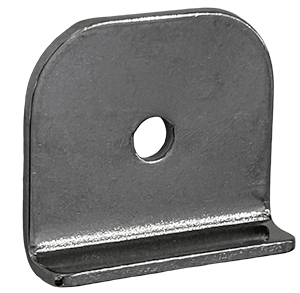

Swinging Rudder Stop: K-450:
Swinging SS Rudder Stop attaches to Transom with (1) screw. Swinging Stop keeps Rudder from inadvertently coming off, but is easily moved aside when removal is desired. Formed SS strap is 1 14" long x 5/8" wide, with (1) #10 (3/16") mounting hole. |
|
~ Back to Rudder Hardware Main Page ~
~ Home ~
