Metric SS Lifeline Stanchions


Metric SS Lifeline Stanchions - 25mm & 34mm OD

These 25mm OD Metric SS Lifeline Stanchions are standard equipment on a large variety of European production yachts as well as some Canadian and US yachts. Stanchions are made from 25mm OD (.984") polished Type 316 Stainless Steel tube. Most Metric Stanchions are Tapered to approximately 15mm before the top is welded on. 34mm Stanchions are rare.
Note: 25mm Stanchions will fit female Stanchion Bases designed for 25mm Stanchions as well as 1" Stanchion Bases, possibly needing a wrap with Rigging or Electrical tape to fit tightly, while 1" Stanchions will not fit in 25mm Stanchion Bases.

1" OD (25.4mm) Stanchions are listed separately, See 1" OD SS Stanchions.


See, also, Metric SS Stanchion Bases, Metric Aluminum Stanchion Bases,
and other Stanchions and Stanchion Bases.



Standard Metric (25mm) SS Tapered Stanchions
Standard Metric SS Stanchions are made from 25mm OD (.984") polished Type 316 Stainless Steel tube tapered to approximately 15mm and welded to 16mm (5/8") OD 'Barrel Top' with a 10mm hole. Intermediate holes have a Flared SS Ferrule (10mm, 3/8" ID). Stanchion is (maximum) 21.7mm ID and not suitable for use with internal (male) 22mm Stanchion Base Studs.
For lengths not listed, please specify Length (from bottom) to center of Top Hole and Intermediate Hole.


25mm Tapered Single Stanchion, 18" long: SA 36-MT18-1:

25mm Tapered Double Stanchion, 18" long: SA 36-MT18-2:

25mm OD Tapered SS Stanchion with standard 'Barrel Top' has hole at 17 3/4" (450mm). Double version has intermediate hole with flared SS Ferrule (10mm, 3/8" ID) at 8 7/8" (225mm) from the bottom. Stanchion is (minimum) 21.7mm ID and is tapered to approximately 15mm, welded SS standard Barrel Top is 16mm (5/8") OD.



25mm Tapered Double Stanchion, 20" long: SA 36-MT20-2:

25mm OD Tapered SS Stanchion with standard 'Barrel Top' hole at 19 5/8" (500mm) and flared SS Ferrule at 9 13/16" (250mm) from the bottom.





25mm Tapered Single Stanchion, 24" long: SA 36-MT24-1:

25mm Tapered Double Stanchion, 24" long: SA 36-MT24-2:

25mm OD Tapered SS Stanchion with standard 'Barrel Top' hole at 24" (610mm). Double version has intermediate hole with flared SS Ferrule at 12" (305mm) from the bottom.

25mm Tapered Double Stanchion Ass'y w/ Brace, 24": SA 36-MT24-2BA:

25mm OD Tapered SS Stanchion Assembly with removable threaded Brace has standard 'Barrel Top' hole at 24" (610mm) and flared SS Ferrule at 12" (305mm) from the bottom. Stanchion has integral insert for removable threaded Brace. Brace has welded foot for attachment to Deck with (1) 6mm FH screw.




Threaded Brace for 25mm Stanchion Ass'y x 24" long: SA 36-MT24B:
Replacement Brace only for 25mm Tapered Stanchion Assembly with top hole at 24" (610mm). Brace Assembly has threaded upper end and welded foot for attachment to Deck with (1) 6mm FH screw. T=450


25mm Tapered Single Stanchion, 25" long: SA 36-MT25-1:
25mm Tapered Double Stanchion, 25" long: SA 36-MT25-2:
25mm OD Tapered SS Stanchion with standard 'Barrel Top' hole at 24 13/16" (630mm). Double version has intermediate hole with flared SS Ferrule at 13" (330mm) from the bottom. These items are no longer available and shown here for identification only.

25mm Tapered Double Stanchion Ass'y w/ Brace, 25": SA 36-MT25-2BA:

25mm OD Tapered SS Stanchion Assembly with removable threaded Brace has standard 'Barrel Top' hole at 24 13/16" (630mm) and flared SS Ferrule at 13" (330mm) from the bottom. Stanchion has integral insert for removable threaded Brace. Brace has welded foot for attachment to Deck with (1) 6mm FH screw.

  Threaded Brace for 25mm Stanchion Ass'y x 25" long: SA 36-MT25B:
Replacement Brace only for 25mm Tapered Stanchion Assembly with top hole at 24 13/16" (630mm). Brace Assembly has threaded upper end and welded foot for attachment to Deck with (1) 6mm FH screw. T=470


25mm Tapered Single Stanchion, 27" long: SA 36-MT27-1:
25mm Tapered Double Stanchion, 27" long: SA 36-MT27-2:

25mm OD Tapered SS Stanchion with standard 'Barrel Top' hole at 26 3/4" (680mm). Double version has intermediate hole with flared SS Ferrule at 15" (380mm) from the bottom. Sometimes produced with intermediate hole at other heights, please contact us if such is required.

25mm Tapered Double Stanchion Ass'y w/ Brace, 27": SA 36-MT27-2BA:

25mm OD Tapered SS Stanchion Assembly with removable threaded Brace has standard 'Barrel Top' hole at 26 3/4" (680mm) and intermediate hole with flared SS Ferrule at 15" (380mm) from the bottom. Stanchion has integral insert for removable threaded Brace. Brace has welded foot for attachment to Deck with (1) 6mm FH screw.

  Threaded Brace for 25mm Stanchion Ass'y x 27": SA 36-MT27B:
Replacement Brace only for 25mm Tapered Stanchion Assembly with top hole at 26 3/4" (680mm). Brace Assembly has threaded upper end and welded foot for attachment to Deck with (1) 6mm FH screw. T=520


25mm Tapered Double Stanchion, 28" long: SA 36-MT28-2:

25mm OD Tapered SS Stanchion with standard 'Barrel Top' hole at 28" (710mm). Double version has intermediate hole with flared SS Ferrule at 14" (355mm) from the bottom.


25mm Tapered Single Stanchion, 30" long: SA 36-MT30-1:

25mm Tapered Double Stanchion, 30" long: SA 36-MT30-2:

25mm Tapered Triple Stanchion, 30" long: SA 36-MT30-3:

25mm OD Tapered SS Stanchion with standard 'Barrel Top' hole at 29 1/2" (750mm). Double version has intermediate hole with flared SS Ferrule at 15 3/8" (390mm) from the bottom. Triple version has intermediate holes at 9 7/8" (250mm), and 19 3/4" (500mm) from the bottom.

25mm Tapered Double Stanchion Ass'y w/ Brace, 30": SA 36-MT30-2BA:

25mm OD Tapered SS Stanchion Assembly with removable threaded Brace has standard 'Barrel Top' hole at 29 1/2" (750mm) and intermediate hole with flared SS Ferrule at 15 3/8" (390mm) from the bottom. Stanchion has integral insert for removable threaded Brace. Brace has welded foot for attachment to Deck with (1) 6mm FH screw.

  Threaded Brace for 25mm Stanchion Ass'y x 30" long: SA 36-MT30B:
Replacement Brace only for 25mm Tapered Stanchion Assembly with top hole at 29 1/2" (750mm). Brace Assembly has threaded upper end and welded foot for attachment to Deck with (1) 6mm FH screw. T=610




Special Metric (25mm) SS Tapered Stanchions
On newer boats, Beneteau and other European builders use SS Stanchions that are slightly different from the Standard Metric Tapered Stanchions listed above. The most obvious distinction is that they have an Intermediate hole with a Rolled (vs. Flared) SS Ferrule, and they are made from thinner stock, allowing for use of internal (male) 22mm Stanchion Base Studs. Some have Tapered Bottoms to fit Special conical Stanchion Bases. Stanchions have 10mm (3/8") holes for Lifelines and have been produced with several Top styles.
For items not listed, please specify: 1. Top Style, 2. Length (from bottom) to center of Top Hole and Intermediate Hole. 3. Base type if other than Standard socket type.


25mm Tapered Double Stanchion, 25" long: SA 36-MT25-2GS:
Special 25mm OD Tapered SS Stanchion has standard Barrel Top with upper hole at 25" (630mm), Intermediate hole has Rolled SS Ferrule at 11 3/4" (300mm) from the bottom. Stanchion is (minimum) 22mm ID, Bottom has (3) 8mm mounting holes. G




25mm Tapered Double Stanchion, 25" long - Beneteau Special: SA 36-MT25-2BS:
Special Beneteau 25mm OD Tapered SS Stanchion has standard Barrel Top with upper hole at 25 1/8" (638mm), Intermediate hole has Rolled SS Ferrule at 11 5/8" (295mm) from the bottom. Stanchion is (minimum) 22mm ID and is tapered to approximately 13mm, welded SS standard Barrel Top is 16mm (5/8") OD. Bottom has 14mm & 10mm mounting holes. As used on a variety of Beneteaus', including Beneteau 300, 320, 350, 352, 370; Figaro; First 30, 305, 310, 32, 32s5, 325, 345, 35, 35s5, 375, 38, 38s5, 405, 42, 435E, 456; Idylle 8.8, 10.5, 11.5, 13.5; Oceanis 280, 285; 1st Class 10, 12.




25mm Tapered Double Stanchion, 25" long w/ Welded Nut: SA 36-MT25-2WN:
Special 25mm OD Tapered SS Stanchion has standard Barrel Top with upper hole at 24 7/8" (630mm), Intermediate hole has Rolled SS Ferrule at 11 7/8" (300mm) from the bottom. Stanchion is (minimum) 22mm ID and is tapered to approximately 13mm, welded SS standard Barrel Top is 16mm (5/8") OD. Bottom has 6mm Welded Nut for use with a variety of Stanchion Bases with a male stud. As used on a variety of Beneteau, and Dufour yachts.




25mm Tapered Double Stanchion w/ Tapered Bottom, 25" long: SA 36-MT25-2BS-TB:
Special Beneteau 25mm OD Tapered SS Stanchion has standard Barrel Top with upper hole at 25" (635mm), Intermediate hole has Rolled SS Ferrule at 12" (305mm) from the bottom. Stanchion Bottom is Tapered to approximately 20.5mm for use with Special conical Bases and has a 12mm mounting hole. As used on some Beneteau 390, and others.





25mm Tapered Double Stanchion w/ Round Top, 24" long: SA 36-MTR24-2:
Special 25mm OD Tapered SS Stanchions with Round (Spherical) Top has top hole at 24" (610mm), Intermediate hole has Rolled SS Ferrule at 12 1/8" (307mm) from the bottom. Welded SS Round Top is 22mm (7/8") OD, Stanchion is 22mm ID and has 6mm & 8mm mounting holes. As used on some Beneteau, and others. G




25mm Tapered Double w/ Round Top & Tapered Bottom, 25": SA 36-MTR25-2TB:
Special Beneteau 25mm OD Tapered SS Stanchions with Round (Spherical) Top has top hole at 24 5/8" (625mm), Intermediate hole has Rolled SS Ferrule at 11 5/8" (295mm) from the bottom. Welded SS Round Top is 22mm (7/8") OD, Stanchion Bottom is Tapered to approximately 20.5mm for use with Special conical Bases and has a 12mm mounting hole. As used on some Beneteau, and others. 1673




5mm Tapered Double Stanchion w/ Round Top, 27" long: SA 36-MTR27-2:
Special 25mm OD Tapered SS Stanchions with Round (Spherical) Top has top hole at 27" (680mm), Intermediate hole has Rolled SS Ferrule at 15" (380mm) from the bottom. Welded SS Round Top is 22mm (7/8") OD, Stanchion is 22mm ID and has an 8mm mounting hole. As used on some Beneteau, and others. G





Special Metric (25mm) SS Gate Stanchions
Beneteau and other European builders commonly use Tapered SS Stanchion Gate assemblies consisting of 2 vertical members welded together to form a solid Gate Brace. The main Stanchion in these assemblies are as Special Metric Tapered Stanchions listed above, with all the same variations, and have welded loops at the holes on the primary Stanchion.
For items not listed, please specify: 1. Top Style, 2. Length (from bottom) to center of Top Hole and Intermediate Hole. 3. Distance between centers of Bases (Primary and secondary). 4. Base types (Primary and secondary) if other than Standard socket type.

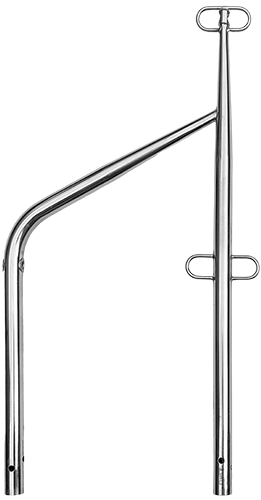

25mm Stanchion Gate Ass'y w/ Loops: SA 36-MTG25-1L:
25mm OD Tapered SS Stanchion Gate assembly has standard Barrel Top and four (4) welded loops on the primary for Lifeline attachment at 630mm (24 3/4") and 300mm (11 3/4"), Brace has rolled ferrules. Bases are on 280mm (11") centers. As used on some Beneteau, & others.

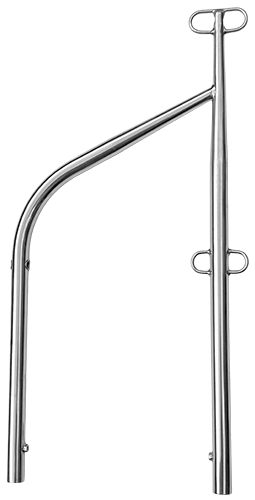

25mm Stanchion Gate Ass'y w/ Loops & Welded Nuts, 25": SA 36-MTG25-1WN:
25mm OD Tapered SS Stanchion Gate assembly has standard Barrel Top and four (4) welded loops on the primary for Lifeline attachment at 630mm (24 3/4") and 300mm (11 3/4"), Brace has rolled ferrules. Bases are on 280mm (11") centers. Unit has welded nuts (1 on each leg) for use with internal stud-type bases. As used on some Beneteau, & others.

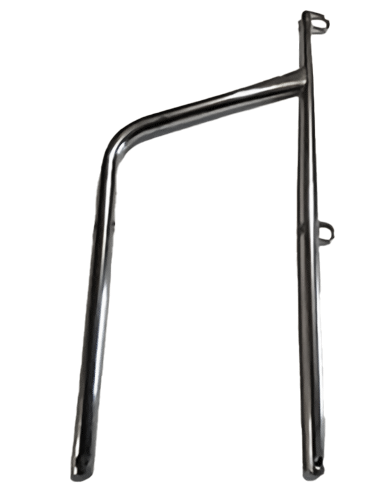

25mm Stanchion Gate Ass'y w/ Tapered Bottom on primary, 25": SA 36-MTG25-1TB:
Special Beneteau 25mm OD Tapered SS Stanchion Gate assembly has standard Barrel Top with upper hole at 24 3/4" (630mm), Intermediate hole has Rolled SS Ferrule at 11 3/4" (300mm) from the bottom. Primary Stanchion Bottom is Tapered to approximately 20.5mm for use with Special conical Bases and has a 12mm mounting hole. Secondary Stanchion Bottom is straight with a 14mm mounting hole. Bases are on 280mm (11") centers. As used on some Beneteau, and others. 1673, 10203560

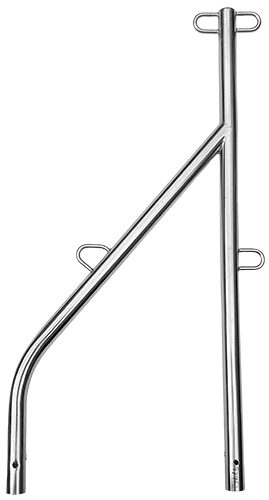

25mm Stanchion Gate Ass'y w/ Loops, Un-Tapered: SA 36-MTG25-1NT:
25mm OD Un-Tapered SS Stanchion Gate assembly has four (4) welded loops on the primary for Lifeline attachment at 630mm (24 3/4") and 300mm (11 3/4"), Brace has rolled ferrules. Bases are on 280mm (11") centers. As used on some Beneteau, & others.

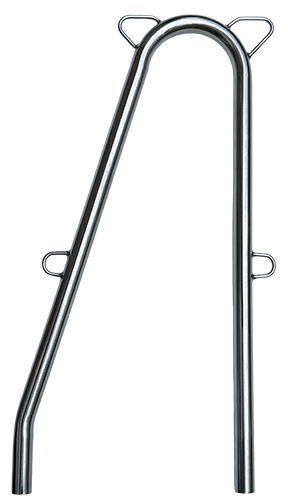

25mm Stanchion Gate Ass'y w/ Arch-type w/ (4) welded loops: SA 36-MTG25-AWL:
Arch-type SS Stanchion Gate assembly is a bent tube with (4) welded loops for Lifeline attachment. 25mm OD SS Stanchion Gate assembly is 24 1/2" (620mm) (max) high. Bases are on 280mm (11") centers.



Special Metric (34mm) SS Gate Stanchions
Beneteau and other European builders commonly use Tapered SS Stanchion Gate assemblies consisting of 2 vertical members welded together to form a solid Gate Brace.

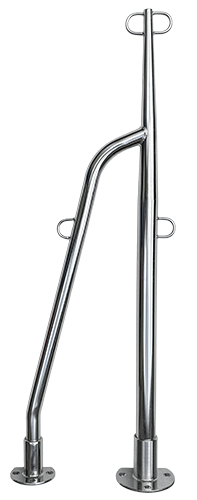

34mm Stanchion Gate Ass'y w/ Loops: SA 36-MTG34-1WL:
34mm OD Tapered SS Stanchion Gate assembly has four (4) welded loops for Lifeline attachment at 740mm (29") and 430mm (17"). Primary Stanchion is 34mm OD, Brace is 25mm OD. Bases are on 190mm (7 1/2") centers. Goiot 907156 LA 1O
