| Sparcraft F-1410E Furling Mast Measurements (OD): 12" x 6 3/16" (305mm x 157mm) Wall Thickness (minimum): 5mm Weight/m.: 12.6kg. - Weight/ft.: 8.60 lbs. Moments of inertia: Ixx = 107.88", Iyy = 33.80" Moments of inertia: Ixx = 4490cm4, Iyy = 1410cm4 Circumference: 31 3/8" (797mm) Sail slides: Alloy: 6005-T6 Standard Mast Lengths: 19M, 22.5M Standard Mast Equivalent: FM-1395 Common Mast usage: Beneteau Oceanis 523; Catalina 470; Colin Archer 16.5; Dufour 525; Island Packet 485; Jeanneau Sun-Odyssey |
 |
| 51; Nuvoza; Puffin 47; Reinke 15M; |
See also Sparcraft Booms, and Sparcraft Spreaders. See also, other Sparcraft Furling Masts, and other Sparcraft Mast Sections. |
|
|
| F-1410E Furling Mast |
|
The Sparcraft F-1410E has characteristics similar to the Sparcraft
FM-1395 Mast Section, and shares many parts with
it. Parts used primarily or exclusively with the F-1410E Mast Section
are listed here. * For all other parts, See Sparcraft FM-1395 Mast Section. |
|
|
|
F-1410E Mast - Furling Components |
|
FE2 Furling Foil, D34 x 1.8M: FE2-Foil-1.8M:
FE2 Furling Foil, D34 x __: FE2-Foil-__: FE2 (D34) Furling Foil is used on F-560E and larger Furling Masts. Available in 1.8M (71") lengths for ease of shipping, D34 aluminum Furling extrusion is 34.6mm diameter, and is also available in lengths up to 16.5M (54' 2"). Please Call for shipping options on longer lengths.
|
||
|
F-1410E Internal Halyard Hoist Car: F1410E-HC:
SS Halyard Hoist Car for FE2 Furling Foil is used with F-1410E Furling Masts. Unit is (maximum) 131mm OD x 152mm (6") long (without shackles) and includes Shackles for attachment of Halyard and sail.
|
||
|
FE2 Foil Splice Connector: FE2-SC:
Aluminum Splice connects the to the Furling Foil to the lower Feeder Foil on F-760E and larger Furling Masts. Splice Connector is (maximum) 15mm fore & aft x 25mm wide x 255mm (10") long, and must be drilled for (2) 6mm x 12mm FH screws during installation. Note: This item is used in US production only.
|
||
|
FE2 Feeder Foil: FE2-LF: Lower Foil has specially milled upper end for smooth feeding. Feeder Foil is connected to Upper Foil using Splice Connector, lower end fits inside Furling Screw Drive Cap. Feeder Foil is 900mm (35 3/8") long. Note: This item is used in US production only.
|
||
|
FE2 Furling Screw Drive Cap: FE2-DC:
Aluminum Drive Cap is used on top of F-760E and larger Furling Screws, the Link that anchors the Furling Screw to the Luff Foil. Unit attaches to top of SS Drive Screw with (3) 8mm Bolts and (3) Rubber washers to insulate it from the Drive Screw, (2) 6mm screws in tapped holes are provided to secure the luff foil. Cast Drive Cap is 3 1/2" (89mm) OD x 2" (50mm) high, and includes hole for attachment of 8mm Tack shackle.
|
|
|
|
FE2 Tack Shackle: NB2-2:
SS Tack Shackle fits hole in Furling Screw Drive Cap. Shackle has 8mm (5/16") pin, throat width is 22mm (7/8").
|
|
|
|
Screw Pin for NB2-2 Tack Shackle: NB2-2SP:
Replacement Screw Pin only for NB2-2 Tack Shackle. Screw Pin has 8mm thread.
|
||
|
FE2 Furling Screw Rubber Washers: FE2-RW3:
Rubber washers mount below the Furling Screw Drive Cap to dampen vibration and to insulate it from the Drive Screw. Rubber washers have an 8mm hole, and are sold in packs of three (3) pieces. |
|
|
|
|
||
|
F-1410E Furling Screw Ass'y: F1410E-FA: FE2 Furling Screw Assembly is used on F-1410E Furling Masts. Unit is attached to Mast with (4) 1/4" (or 6mm) FH screws. Note: Mast must be down to replace Furling Screw Assembly.
|
||
|
FE2 Furling Screw Line: FE2-Line: Standard Furling Line for F-1410E Furling Masts is 12mm x 65' (20M) long.
|
||
|
F-1410E Furling Screw Line Guard: F1410E-LG: SS Line Guard Assembly is used on F-1410E Furling Masts produced in France only. Unit is attached to Mast with (4) 5mm RH screws.
|
||
|
|
||
|
Folding Mast Stair - Composite Gray: K-11770C-G:
Folding Mast Stairs are commonly used on Furling Masts, to aid in attaching and removing the Mainsail. This lightweight Composite unit projects 1 3/8" out from Mast when closed, and 6" when open. Fold-down tread is (maximum) 1 1/4" wide with a 4 1/2" foot space. Molded glass-filled unit will not rattle. Base is 4 1/4" high x (maximum) 2 5/8" wide, unit is 6" high when closed. Attaches to mast with (5) 3/16" (5mm) RH screws or rivets. Wide slightly curved base will fit most larger Mast Sections, composite base is easily faired to fit others. Unit weighs only 5.8 oz. and has a maximum load capacity of 300 lbs. (140 Kg.). Stocked in medium Gray (-G), unit is also available in Black (-B), or White (-W). A variety of other Mast Stairs are available, See: Mast Stairs.
|
|
|
|
F-1410E Mast - Gooseneck Brackets & Hardware The F-1410E Mast Section is used with FM2, NG2 and NG3 Gooseneck Brackets for Booms FB-220 and larger. For other Gooseneck Brackets, See FM-1395 Gooseneck Brackets. Gooseneck Brackets are also used as Vang Brackets. For Vang Toggles used with these Brackets, See FM-1395 Vang Brackets. |
||
|
|
||
| FM2 Gooseneck Bracket, Furling Mast - 14mm Pin: FM2-11F: | ||
|
Extruded aluminum FM2 Gooseneck/ Vang Bracket is used on a variety of Furling Mast Sections
for use with FB-220 and larger Booms. Bracket has a
14mm (9/16") hole for use with any of the FB2-1 Gooseneck Pins and FB2-4
Gooseneck Toggles, below. Bracket is 4 3/8" (112mm) high x 3 7/16" (88mm)
wide, and is fastened with ten (10) 1/4" (6mm) rivets.
|
|
|
| F-1410E Reinforced Gooseneck Bracket - 14mm Pin: F1410E-11R-14: | ||
|
Heavy-duty Reinforced FM2 Gooseneck/ Vang Bracket is used on F-1410E Masts for use with
FB-220 and larger Booms. Bracket has 14mm (9/16") hole
for use with any of the FB2-1 Gooseneck Pins and FB2-4 Gooseneck Toggles, below.
Extruded Bracket with welded plate is 180mm (7 1/8") high and is fastened with twelve (12) 6mm FH screws.
As used on Island Packet 485, and others.
|
||
| F-1410E Reinforced Gooseneck Bracket - 14mm Pin: F1410E-11R-14FR: | ||
|
Heavy-duty Reinforced FM2 Gooseneck/ Vang Bracket is used on F-1410E Masts for use with
FB-220 and larger Booms. Bracket has 14mm (9/16") hole
for use with any of the FB2-1 Gooseneck Pins and FB2-4 Gooseneck Toggles, below.
French version has Extruded Bracket with angled welded plate and is 155mm (6 1/8") high.
Unit is fastened with fourteen (14) 8mm FH screws.
|
||
|
FB2 Gooseneck Pin Ass'y w/ Shackle: FB2-1ARA:
14mm Vertical Gooseneck Toggle Pin Assembly is used to attach FB2-412 or FB2-414 Gooseneck Toggles to FM2-11 Mast Brackets. SS Gooseneck Pin Assembly includes Tack Shackle NB2-2, washers and 14mm SS Locknut. Unit is 14mm (9/16") diameter x 135mm (5 3/8") long (under head).
|
|
|
|
FB2 Vertical Gooseneck/Vang Pin: FB2-1BA:
14mm Vertical Gooseneck Toggle Pin with washers and Locknut only. As FB2-1ARA assembly, above, but without Shackle. SS Gooseneck Pin is 14mm (9/16") diameter x 135mm (5 3/8") long (under head).
|
||
|
FE2 Tack Shackle: NB2-2:
SS Tack Shackle fits hole in Furling Screw Drive Cap. Shackle has 8mm (5/16") pin, throat width is 22mm (7/8").
|
|
|
|
Screw Pin for NB2-2 Tack Shackle: NB2-2SP:
Replacement Screw Pin only for NB2-2 Tack Shackle. Screw Pin has 8mm thread.
|
||
| FB2 Gooseneck Toggle for 12mm Horizontal Pin: FB2-412: | ||
|
Cast Aluminum Gooseneck Toggle is used on FB-220 and
FB-550 Booms to attach to FM2-11 and
NG2-12 Gooseneck Brackets. Toggle is 2 3/4" (69mm) high x 1 1/2" (37mm) wide x 3 3/8"
(86mm) long, with holes for 14mm Vertical and 12mm Horizontal pins, on 2"
(50mm) centers. Anodized Toggle features central hole for cotter pin to secure Horizontal Pin.
|
 |
|
| FB2 Gooseneck Toggle for 14mm Horizontal Pin: FB2-414: | ||
|
Cast Aluminum Gooseneck Toggle is used on FB-810 and
larger Booms to attach to FM2-11 and NG2-12 Gooseneck Brackets, above.
Anodized Toggle is 2 3/4" (69mm) high x 1 1/2" (37mm) wide x 3 3/8" (86mm) long, with holes for
14mm Vertical and 14mm Horizontal pins, on 2" (50mm) centers.
|
|
|
|
|
||
| F-1410E Reinforced Gooseneck Bracket - 16mm Pin: F1410E-11R: | ||
|
Heavy-duty Reinforced NG3 Gooseneck/ Vang Bracket is used on F-1410E Masts for use with
FB-810 and larger Booms. Bracket has 16mm
(5/8") hole for use with any of the FB3-1 Gooseneck Pins and FB3-4 Gooseneck Toggles, below.
Cast Bracket with welded plate is 180mm (7 1/8") high and is fastened with ten (10) 6mm FH screws.
As used on Island Packet 485, and others.
|
||
| F-1410E Reinforced Gooseneck Bracket - 16mm Pin: F1410E-11R-FR: | ||
|
Heavy-duty Reinforced NG3 Gooseneck/ Vang Bracket is used on F-1410E Masts for use with
FB-810 and larger Booms. Bracket has 16mm
(5/8") hole for use with any of the FB3-1 Gooseneck Pins and FB3-4 Gooseneck Toggles, below.
French version Heavy-duty welded Bracket with formed plate is 190mm (7 1/2") high and is
fastened with twenty (20) 6mm FH screws.
|
||
|
FB3 Gooseneck Pin w/ Tack Pin & Loops: FB3-1ARL:
16mm Vertical Gooseneck Toggle Pin Assembly is used to attach FB3 Gooseneck Toggles to NG3 Mast Brackets. SS Gooseneck Pin Assembly includes welded side loops, 10mm (3/8") Tack Pin, washers and 16mm SS Locknut. Unit is 16mm (5/8") diameter x 170mm (6 3/4") long (under head).
|
|
|
|
FB3 Gooseneck Toggle: FB3-416:
Gooseneck Toggle is used with NG3 Gooseneck Brackets to attach to FB-810 and larger FB Booms. Cast Aluminum Gooseneck Toggle is 3 1/8" high and accommodates 16mm vertical and 14mm horizontal pins. Anodized Toggle is 3 1/8" (80mm) high x 1 9/16" (39mm) wide x (maximum) 3 3/4" (95mm) long, pin holes are on 2" (50mm) centers.
|
|
|
|
FB3 Gooseneck Toggle - Heavy-duty: FB3-416HD:
Heavy-duty Solid Gooseneck Toggle is used with NG3 Gooseneck Brackets to attach to FB-810 and larger FB Booms. Solid, machined Aluminum Gooseneck Toggle accommodates 16mm vertical and 14mm horizontal pins. Anodized Toggle is 3 1/4" (83mm) high x 1 1/2" (36mm) wide x (maximum) 3 3/4" (95mm) long, pin holes are on 2" (50mm) centers.
|
|
|
|
|
||
|
F-1410E Mast - Deck Collars, Mast Boots & Hardware Deck Collars used primarily or exclusively with the F-1410E Mast Section are listed here. For other Deck Collars, used with this Mast Section, See Sparcraft FM-1395 Mast Section. |
|
|
F-1410E Mast Boot: FM1060-15B:
Heavy molded Black Rubber Boot for use with F-1410E Mast section and all FM-1395 Deck Collars. 1060,1395
|
 |
|
F-1410E Mast Boot Clamp: FM1395-16M:
All Stainless Steel Clamp for use with Mast Boot on F-1410E Mast. --
|
|
|
F-1410E Collar Boot Clamp: FM1395-16C:
All Stainless Steel Clamp is suitable for use with Mast Boots on all F-1410E Deck Collars. --
|
mmm |
|
Mast Collar Wedge – Small Rubber: NGA-18:
Heavy Extruded Rubber Wedge for use with Isomat and other Masts. Small stepped Rubber Wedge is used to support the mast as it passes through the Deck Collar. Wedge is 2 3/4" (70mm) long x 1 1/8" (28mm) wide, and is 15/16" (24mm) thick at the top tapering to 3/8" (10mm) thick at the bottom.
|
 |
|
Mast Collar Wedge – Large Rubber: NGA-19:
Heavy Extruded Rubber Wedge for use with Isomat and other Masts. Large stepped Rubber Wedge is used to support the mast as it passes through the Deck Collar. Wedge is 2 3/4" (70mm) long x 1 1/8" (28mm) wide, and is 1 3/16" (30mm) thick at the top tapering to 11/16" (18mm) thick at the bottom.
|
 |
|
|
|
| F-1410E Deck Collar w/ SS Plates: FM2100-11ASC: | ||
|
Deck Collar Assembly for F-1410E and other Masts includes Cast Aluminum Deck Collar,
F1410E-11C, and attached SS Plates (both sides and aft) with multiple holes for
attachment of Blocks and shackles. Also used with Clamp Ring Deck Collars.
2100,2390,F1980E
|
||
|
F-1410E Deck Collar Casting only: FM2100-11C:
Cast Aluminum Deck Collar only, as used in with F-1410E & F-1980E Masts and with FM-2100 and FM-2390 Clamp Ring Deck Collar Assemblies. Deck Collar features (6) provisions for deck tie-down turnbuckles, and six (6) slots for NGA-18 and NGA-19 Mast Wedges. Collar is 418mm (16 1/2") long x 317mm (12 1/16") wide and attaches to Deck with (8) 10mm FH screws. 2100,2390,F1980E
|
||
|

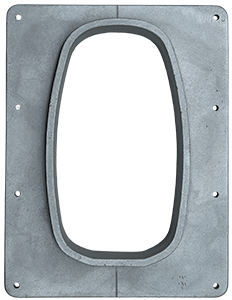

F-1410E Simple Deck Collar - Island Packet: F1410E-13:
Simple Aluminum Deck Collar for use with F-1410E Mast Section provides a clean, uncluttered look without any attachment provisions. Used with Special One-piece Mast Collar Wedge, F1410E-13SW, below. Cast, clear anodized Deck Collar is 17" (431mm) long x 13" (330mm) wide x (maximum) 2" high, and fastens to deck with (8) 5/16" (8mm) screws. Maximum ID is 13" x 7 3/16". As used on Island Packet 485, and others. Bcir 37 1/4"
|
||
|
Special One-piece Mast Collar Wedge: F1410E-13SW:
Special One-piece Molded Polyurethane Wedge for use with FM-1410E Mast and Simple Deck Collar, F1410E-13. One-piece molded Wedge fits like a glove to give maximum support to the mast as it passes through the Deck Collar. Wedge is (maximum) 14" (355mm) long x 8 1/4" (210mm) wide x 3 1/2" (89mm) high. As used on Island Packet 485, and others.
|
 |
|
|
|
||
|
F-1410E Mast - Mast Steps Mast Steps used primarily or exclusively with the F-1410E Mast Section are listed here. For other Mast Steps used with this Mast Section, See Sparcraft FM-1395 Mast Section. |
||
|
F-1410E Mast Plug for Tenon Deck Plate: F1410E-3P:
Mast Step Plug is attached to F-1410E Mast, reinforcing the tube end, and has dual cut-outs to sit on Deck-mount Mast Base with Tenons, FM3-3DP, below. Cast Mast Step Plug is 12 3/16" (310mm) long x (maximum) 6 5/16" (160mm) wide.
|
|
|
|
Deck-mount Mast Base w/ Tenons: FM3-3DP:
Deck-mount Mast Base with Tenons attaches to Deck for use with F1410E-3P and other Mast Step Plugs. Cast unit is 14 3/4" (377mm) long x 9 1/2" (240mm) wide, and has trapezoidal Tenons (fore & aft) with 4 3/4" x 3 1/2" (110 x 90mm) center cut-out for wiring. Unit has provisions for (8) 14mm Mast Step Block Pins, NG3-21, (2) 12mm NG2-21 Block Studs (forward), and a SS Tab for attachment of a soft Boom Vang. Mast Base fastens to deck with (10) 8mm (5/16") FH Screws. Note that not all Block Pins may be usable depending on which Mast Plug is used with this unit. Also compatible with Mast Plugs for FM-1060, 1395, 2390; NG-105/ IM-1630; F-980E, 1410E, 1980E, and 2600E Mast Sections.
|
|
|
|
NG2 Mast Step Block Stud Pin - 12mm: NG2-21:
12mm SS Clevis Pin-shaped Block Stud is used for attachment of shackle or block to lead halyards aft. Fits in integral recessed 12mm hole in a variety of Mast Steps and Deck Collars. Block Stud is installed from underside of Casting, Casting must be removed to install Block Studs. Small head Block Stud is 12mm diameter x 45mm (1 3/4") long (maximum), with a 30mm (1 3/16") grip length and a 6mm (1/4") hole for shackle pin or Block bolt.
|
|
|
|
NG3 Mast Step Block Pin - 14mm: NG3-21:
14mm SS Block Pin is used for attachment of shackle or block to lead halyards aft. Fits in integral recessed hole in Mast Steps and Deck Collars with 14mm mounting holes. Block Pin is installed from underside of Mast Step Casting, Mast Step must be removed to install Block Pins. Special Block Pin is 14mm (9/16") diameter x 54mm (2 1/8") long (maximum), with a 35mm (1 3/8") grip length and an 8mm (5/16") hole for shackle pin, Block bolt or Block Pin Swivel Assembly.
|
|
|
| NG3 Mast Step Block Pin Ass'y w/ Toggle - 14mm: NG3-21PTA: | ||
|
Special 14mm SS Block Pin Assembly includes standard 14mm Pin, NG3-21, and
cast SS Toggle with a 8mm (5/16") Pin for attachment of shackle or block. Removable Toggle is
attached with a separate 8mm Pin (included), and has 5/8" (17mm) inside jaw clearance.
Unit fits in integral recessed hole in
Isomat and
Sparcraft Steps and Collars with
14mm mounting holes. Block Pin is installed from underside of Mast Step Casting,
Mast Step must be removed to install Block Pins.
|
|
|
|
NG3 Block Pin Toggle for 14mm Pin: NG3-21TA:
Heavy-duty Block Pin Toggle only, as used in NG3-21PTA, above. Investment cast SS Toggle is 26mm (1") wide with a 5/8" (17mm) inside jaw clearance and includes (2) 8mm Pins for attachment to 14mm Block Pin and Block. Assembly fits on NG3-21 Block Pin. Unit is marked 48093000014.
|
||
| NG3 Threaded Block Stud - Heavy-Duty Triangular: NG3-22T: | ||
|
NG-3 SS Block Stud with triangular U-bracket and nut to fit Isomat Steps and Collars with
14mm mounting holes. Stud is 14mm (9/16") maximum diameter with a 12mm thread.
Bracket inside has 3/4" (19mm) clearance and includes a 5/16" (8mm) Pin for
attachment of shackle or block. As used on Catalina 470, and others.
|
|
|
|
NG3 Threaded Block Stud - Heavy-Duty: NG3-22U:
NG-3 SS Block Stud with U-bracket and nut to fit Isomat Steps and Collars with 14mm mounting holes. Stud is 14mm (9/16") maximum diameter with a 12mm thread. Bracket inside has 3/4" (19mm) clearance and includes a 5/16" (8mm) Pin for attachment of shackle or block. As used on Catalina 470, and others.
|
||
|
FM3 Mast Step Vang Tab: FM3-23T: SS Bent Tab is used for attachment of Boom Vang, and fits in integral slot in aft side of FM3-3DP Deck-mount Mast Base with Tenons. Tab is installed in recess in aft side of Mast Base using the (2) aft mounting screws. SS Tab is made from 100mm wide x 5mm plate with (2) 1/4" (6mm) mounting holes on 80mm centers, and has slot (10 x 30mm) for attachment of Vang shackle.
|
mmm | |
|
|
||
| F-1410E Internal Waterproofing Plug - Fwd.: F1410E-WPF: | ||
|
Internal Waterproofing Plugs are installed in Keel-stepped Masts to prevent water intrusion below
deck. Assembly for Forward Mast Cavity consists of 2 plastic pieces carefully cut to fit
Mast interior with central PVC standpipe to allow passage of electrical wires.
Unit slides up from the bottom of the Mast to a point just above Deck level where a hole is
drilled in Mast to allow for application of expanding foam between plastic pieces.
Second hole is drilled just above upper plastic piece to allow water drainage.
|
||
|
F-1410E Internal Waterproofing Plug - Aft: F1410E-WPA:
Internal Waterproofing Plugs are installed in Keel-stepped Masts to prevent water intrusion below deck. Assembly for Aft Mast Cavity consists of 2 plastic pieces carefully cut to fit Mast interior with central spacer. Unit slides up from the bottom of the Mast to a point just above Deck level where a hole is drilled in Mast to allow for application of expanding foam between plastic pieces. Second hole is drilled just above upper plastic piece to allow water drainage.
|
|
|
|
Internal Waterproofing Foam: NGA-Foam:
Expanding foam is used for installation of Internal Waterproofing Plug. Single-use can is sufficient for installation of any Internal Waterproofing Plug. |
||
