Sparcraft FM-1060 Mast


French Extruded Masthead Parts FM-1060 Masts produced in France commonly use a variety of 6 different Extruded Mastheads. Parts common to most French Extruded Mastheads are listed below. For complete Masthead Assemblies and Parts not listed, Please contact us with full details.

	FM2 Masthead Sheave - 80mm: SM80R15-12: Turned Delrin Sheave is 80mm (3 3/16") OD x 15mm (<5/8") wide x 12mm (7/16") ID.
	FM2 Masthead Sheave Axle Clevis Pin: FM2-6P: SS Clevis Pin is used as a Sheave Axle in some FM2 Double Channel Extruded Mastheads. Clevis Pin is 12mm (<1/2") diameter with a 52mm (2") grip length. CPM12-52
	Double Masthead Spinnaker Bail: FM2-2: Double Masthead Spinnaker Bail is cut from 5mm SS plate and attaches to the top of the masthead with (6) 6mm (1/4") screws and locknuts. Plate has (2) slots (7/8" x 7/16") for attachment of any Swivel Blocks. Plate is (maximum) 3 3/4" long x 4 1/4" wide. Screw holes are in 2 rows, 7/8" apart. Mounting requires drilling (6) 1/4" holes.

US Extruded Masthead Parts FM-1060 Masts produced in the US commonly use a variety of different Extruded FM2C and NG2 Mastheads. FM2C Mastheads are easily identifiable by their use of 'Drop-in' Sheave Axles. NG2 Extruded Mastheads use Clevis Pins, or Sheave Axle Pins with Tab, as Sheave Axles. Parts common to most US-manufactured Mastheads are listed below. For complete Masthead Assemblies and Parts not listed, Please contact us with full details.
Sheaves and Axles for US Mastheads using 22mm Sheave Axles.

	FM2C Masthead Sheave w/ 22mm ID: NG2-3: Factory standard Acetyl Sheave is 85mm (3 3/8") x 15mm (5/8") wide x 22mm (7/8") ID. Med C MHO
	FM2C Masthead Sheave w/ 22mm ID - Alu.: NG2-3A: Anodized Aluminum Sheave is 85mm (3 3/8") x 15mm (5/8") wide x 22mm (7/8") ID, and is much sturdier than the plastic version.
	FM2C Masthead Sheave Axle - 22mm: NG2-6S: SS 'Drop-in' Tubular Sheave Axle pin is used in some FM2C Double Channel Extruded Mastheads. 'Drop-in' Sheave Axle pin is 22mm (7/8") diameter x 46mm (1 13/16") long, and is used with NG2-3 or *NG2-3A* Sheaves.

Sheaves and Axles for US Mastheads using 12mm Sheave Axles.

	FM2C Masthead Sheave w/ 12mm ID: NG2-3B12: Acetyl Sheave is 85mm (3 3/8") x 15mm (5/8") wide x 12mm (7/16") ID. As NG2-3, above, with a Bushing to reduce the ID to 12mm. Med C MHN
	FM2C Masthead Sheave w/ 12mm ID - Aluminum: NG2-3AB12:
	Anodized Aluminum Sheave is 85mm (3 3/8") x 15mm (5/8") wide x 12mm (7/16") ID. As NG2-3A, above, with a Bushing to reduce the ID to 12mm.
	FM2C Masthead Sheave Axle - 12mm: FM2C-6P: SS 'Drop-in' Sheave Axle pin is used in FM2C Double Channel Extruded Mastheads. 'Drop-in' Sheave Axle pin is 12mm (<1/2") diameter x 50.5mm (2") long.

Parts Common to all FM2C Mastheads

	*FM2C Masthead Toggle w/ 1/2" Pin: K-10469H:* Heavy-Duty Slotted SS Masthead Toggle used in FM2C Masthead is formed to sit on 5/8" cross-pin going through masthead channel, and *includes 1/2" (lower) Clevis Pin, CP8-42.* Toggle measures 1 1/2" (38mm) wide x 1/4" thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 3/8" wide x 2" deep.
	*FM2C Masthead Toggle w/ 5/8" Pin: K-10469H-1:* Heavy-Duty Slotted SS Masthead Toggle used in FM2C Masthead is formed to sit on 5/8" cross-pin going through masthead channel, and *includes 5/8" (lower) Clevis Pin, CP10-42M.* Toggle measures 1 1/2" (38mm) wide x 1/4" thick, with 2 1/4" between pin centers, and will accommodate eyes up to 5/8" thick. Slot is 3/8" wide x 2" deep.
	*FM2C Masthead Toggle Attachment Pin - 5/8": CP10-80:*
	SS Clevis Pin is used in FM2C Masthead for attachment of Headstay and Backstay Toggles. Toggle attachment Pin is 5/8" (16mm) diameter with a 2 1/2" (64mm) grip length.
	*FM2C Masthead Clevis Pin - 1/2" x 2 1/2": CP8-80:* SS Clevis Pin is used in FM2C Masthead for attachment of topping lift, lazy jacks, or other items. Clevis Pin is 5/8" (16mm) diameter with a 2 1/2" (64mm) grip length.
	*FM2C Masthead Cover Plate: FM2C-CP:* Masthead Cover Plate is used on FM2C Masthead to cover and contain Sheaves and halyards. Anodized Aluminum Cover Plate is 10 1/4" long x 3" wide x 1/8" thick, with 3/16" holes for 10-24 screws on opposing corners.
	FM2C Spinnaker Crane Doubler Plate: FM2C-DP: Doubler Plate is used on FM2C Masthead to reinforce Masthead where Spinnaker Crane U-bolts are mounted. Anodized Aluminum Doubler Plate is 2" long x 7" wide x 3/8" thick, with 10mm mounting holes for Masthead Spinnaker Crane U-bolts, FM2C-2U. Med C MH 3001.316.7403.
	Masthead Spinnaker Crane U-bolt - 10mm: FM2C-2U: SS U-bolt assembly is 10mm (3/8") diameter x 2 1/2" LOA x 1 1/4" ID (1 5/8" centers). Comes with (2) SS nuts for underside of Masthead, and (2) SS Locknuts for upper side.

Parts Common to FM3 and NG3 Mastheads

NG3 Masthead Sheave: NG3-3: Factory standard turned Delrin Sheave is 110mm (4 5/16") x 21mm (13/16") wide x 18mm (<3/4") ID.

FM-1060 Mast – Tangs A wide variety of Tangs are used on the FM-1060 Mast Section, but most commonly used are Stemball Backing Shell Tangs. See also, other Tangs.

FM-1060 Mast – Jib Boxes & Forestay Attachments Several other varieties of Jib Boxes and Forestay Attachments are used on the FM-1060 Mast Section, See Isomat Jib Boxes and Forestay/Staysail Tangs.

FM-1060 Mast – Exit Blocks Several varieties of Exit Blocks are used on the FM-1060 Mast Section, See Isomat Exit Blocks.

FM-1060 Mast – Spreaders The FM-1060 Mast Section is commonly used with BF-4 Spreaders, and BF-5 Spreaders. For Spreaders, Spreader Parts, and Spreader Bars and Bases not listed here, See Sparcraft Spreaders & Components.

FM-1060 Mast – Spreader Bases The FM-1060 Mast Section is commonly used with Cast SS Spreader Bars, listed below. Other Spreader Bars and Bases have been used, See Sparcraft Spreaders & Components. Early FM-1060 Masts used Francespar Spreaders and stamped SS Spreader Bases that are no longer available.
*SS Spreader Bar for FM-1060 & BF-4 Spreader: BF4-43-140:*
New-style cast SS Spreader Bar for FM-1060 Mast and BF4 Spreaders incorporates seats for NG1 wire or rod Stemballs and is suitable for Spreaders angled up to 25° aft. SS Spreader Bar is (maximum) 1 3/8" (35mm) high x 3 5/8" (93mm) wide, and incorporates a 5 degree vertical angle; length of center section is 140mm. This item requires a contoured cut-out in the Mast wall, and is available in a variety of lengths for use with other Mast Sections from FM-385 through FM-1060. For Spreaders, Spreader Parts, and other Spreader Bars and Bases, See BF-4 Spreaders & Components. sbsl=1
	Spreader Base Clevis Pin - 12mm: BF4-30: Attaches BF4 Spreader to standard Spreader Bar or Base. SS Clevis Pin is 12mm diameter x 38mm (1 1/2") long. Two (2) Required per Spreader.
	*Doubler Plate for BF-4 SS Spreader Bar: BF4-43F:* Formed Aluminum Doubler Plate is contoured to fit the mast section and reinforces it for use with any size BF4-43 SS Spreader Bar. Plate is (maximum) 5 5/8" (144mm) long x 3" (77mm) high. Slot in plate is (maximum) 3 5/8" (93mm) long x 1 3/8" (35mm) high. Plates (2 required) are attached to the mast with (6) 3/16" (5mm) rivets. Used with FM-385 through FM-1060 Mast Sections. +52903

*SS Spreader Bar for FM-1060 & BF-5 Spreader: BF5-43-140:*
New-style cast SS Spreader Bar for FM-1060 Mast and BF5 Spreaders incorporates seats for NG1 wire or rod Stemballs and is suitable for Spreaders angled up to 25° aft. SS Spreader Bar is (maximum) 1 3/4" (45mm) high x 5 1/8" (130mm) wide, and incorporates a 5 degree vertical angle; length of center section is 140mm. This item requires a contoured cut-out in the Mast wall. Cast SS Spreader Bar is available in a variety of other lengths for use with other Mast Sections from FM-740 through FM-2390. For Spreaders, Spreader Parts, and other Spreader Bars and Bases, See BF-5 Spreaders & Components. sbsl=1
	Spreader Base Clevis Pin: BF5-30: Attaches BF5 Spreader to standard Spreader Bar or Base. SS Clevis Pin is 12mm diameter x 45mm (1 3/4") long. Two (2) Required per Spreader.

FM-1060 Mast – Spinnaker Cars Spinnaker Cars on the FM-1060 Mast Section, normally run of one of several sizes of added T-Track, See Spinnaker Cars for T-Track.
Spinnaker Car only, w/ Tow Shackles: FM 32TC-T: *Spinnaker Car only, w/ Pin Stop: FM 32TC-P:* Spinnaker Car only for 32mm T-Track, as used in a wide variety configurations. Chrome-plated cast Bronze slide has plastic liners to minimize friction and is available with towing shackles, OR with Spring Pin Stop. Car is (maximum) 4 5/8" long x 1 13/16" wide, and accepts Toggle up to 1 1/2" (39mm) high using a 10mm Pin. Includes plastic liners, FM 32TC-LP. Spinnaker Car fits 1 1/4" and 32mm T-Track. Also available Complete with various Bell and Toggle Assemblies, See: Spinnaker Cars for 1 1/4" T-Track.
	Liners for FM 32TC Spinnaker Car: FM 32TC-LP:
	Replacement Liners for *FM 32TC* Spinnaker Cars are sold in pairs only. Black Plastic Liners are (maximum) 3 9/16" (90mm) long. Fits into slot on Car that is 3/8" wide x 3 3/8" long.
	End Stop for 32mm T-Track: FM 32T-ESB:
	End Stop for 32mm x 5.5mm T-Track attaches to Mast with 8mm FH screw. Black Plastic End Stop projects (maximum) 32mm (1 1/4") from Track end.
FM2 Spinnaker Pole Mast Eye: FM2-37: Fixed Eye for attachment of whisker or spinnaker pole on the front of the mast. Used where vertical adjustment of inboard pole end is not required, Cast SS Pole eye is curved to fit the front of the Mast. Base is 58mm (2 1/4") square, and attaches to Mast with (4) 1/4" screws or rivets. 10mm Ring has 50mm (2") ID. Used with FM-305 through FM-740 and larger Mast Sections. Part is marked 33501000104.

FM-1060 Mast – Exit Plates Several varieties of Exit Plates are used on the FM-1060 Mast Section, See Isomat Exit Plates.

FM-1060 Mast – Cleats Several sizes of Cleats are used on the FM-1060 Mast Section, See Isomat Cleats.

FM-1060 Mast – Mainsail Gates & Feeders
FM3 Aluminum Mainsail Gate & Screw Kit: FM3-9K: Cast aluminum Mainsail Gate Kit fits FM-580 through FM-3360 Mast Sections. Gate has slot for Thumbscrews, NGA-10; Gate is 'opened' by loosening Thumbscrews and sliding gate up and over. Kit includes Gate casting, FM3-9, and (2) SS Thumbscrews, NGA-10.
	FM3 Aluminum Mainsail Gate: FM3-9: Cast aluminum Mainsail Gate only, as in Kit FM3-9K, above. Gate casting is 3 5/16" (85mm) high x (maximum) 2" (50mm) wide.
	NG1 Mainsail Gate Screw: NGA-10: SS Thumbscrew is 4mm diameter with 5/8" (15mm) long thread and has serrated plastic head.
	NG1 Mainsail Gate Screw - All Stainless: NGA-10SS: All Stainless Thumbscrew is 4mm diameter with 5/8" (15mm) long thread and knurled head.
FM2 SS Short Mainsail Gate & Screw Kit: FM2-9S-SK: Formed SS Short Mainsail Gate Kit fits FM-135 through FM-3360 Mast Sections. Gate is 2 3/8" long, and has horizontal slots for Thumbscrews, Gate is 'opened' by loosening Thumbscrews and sliding gate away from Mainsail track. SS Short Gate is 2 3/8" (60mm) high x 1 5/16" (36mm) wide, slots are on 1 5/8" (41mm) centers. Kit includes SS Short Gate, FM2-9S-S, and (2) SS Thumbscrews, NGA-10.
FM2 SS Long Mainsail Gate & Screw Kit: FM2-9S-LK: Formed SS Long Mainsail Gate Kit fits FM-135 through FM-3360 Mast Sections. Gate is 3" long, and has horizontal slots for Thumbscrews, Gate is 'opened' by loosening Thumbscrews and sliding gate away from Mainsail track. SS Long Gate is 3" (76mm) high x 1 5/16" (36mm) wide, slots are on 1 5/8" (41mm) centers. Kit includes SS Long Gate, FM2-9S-L, and (2) SS Thumbscrews, NGA-10.
FM2 SS Mainsail Slide Stop: FM2-10A: SS Mainsail Gate Slide Stop fits FM-135 through FM-3360 Mast Sections and all mast sections with track for 7/8" or 15/16" internal flat slides. Design allows Slide Stop to remain captive in mast track. Gate cutout (1 3/4" high) is made 2" above Gooseneck bracket. Thumbscrews fits in 1/4" holes drilled at top of cutout, and slides down into recess beneath Gooseneck Bracket when Thumbscrews are loosened. This design allows sail slides to come as close as possible to the gooseneck while remaining in track, and eliminates problems associated with slides snagging while going past a normal sail gate. Investment cast SS Slide is 100mm (4") long x 24.5mm (15/16") wide, assembly includes (2) Thumbscrews, NGA-10. Part is marked 34211690154.

AutoReef Fairlead
*AutoReef Fairlead: NGA-65:* SS AutoReef Fairlead is mounted on either side of mast above gooseneck bracket. Acts as fairlead for reef line and stop for sail when reefed with AutoReef (single line) reefing system. Flattened SS ring is welded to diamond shaped SS plate. Ring is 32mm (1 1/4") OD x 16mm (5/8") ID, plate is 65mm (5/8") high x 40mm (1 5/8") wide and is fastened with four (4) 1/4" (6mm) rivets. For details, See: Isomat AutoReef System.

FM-1060 Mast - Gooseneck Brackets & Hardware The FM-1060 Mast Section is used with FM2, NG2 and NG3 Gooseneck Brackets and various Toggles for Booms FB220 and larger.

NG2 Gooseneck Bracket: NG2-12: Cast aluminum Gooseneck Bracket fits a variety of FM and NG Mast Sections for use with FB220 and larger Booms. It is compatible with all FB Gooseneck Toggles that use a 14mm Vertical Pin. Bracket is 4 3/4" (120mm) high x 3 1/2" (90mm) wide, and is fastened with eight (8) 1/4" (6mm) rivets. Bracket has 22mm (7/8") hole at top and 14mm (9/16") hole on bottom side, requiring the use of NG2-13 Bushing when used with any of the 14mm Vertical Gooseneck Pins.
NG2 Gooseneck/ Vang Toggle Pin Ass'y: NG2-14A: 14mm Pin Assembly converts Bracket, NG2-12, for use with any FB Gooseneck Toggles that use a 14mm Vertical Pin. Includes Toggle Pin, NG2-14, Gooseneck Bushing, NG2-13, washers and SS Cotter Ring.
	NG2 Gooseneck Bushing: NG2-13: SS Bushing is used in upper hole of NG2-12 Gooseneck Bracket to adapt it for use with FM2 or NG2 14mm Toggle Pins. Bushing is 22mm (7/8") OD x 14mm (9/16") ID x 16mm (5/8") long.
	NG2 Gooseneck/ Vang Toggle Pin: NG2-14: SS Clevis Pin is 14mm (9/16") diameter with a 125mm (5") grip length, and has 8mm (5/16") hole for Cotter Ring, Shackle, or Block attachment. Fits vertically in NG2-12 and FM2-11 Brackets.

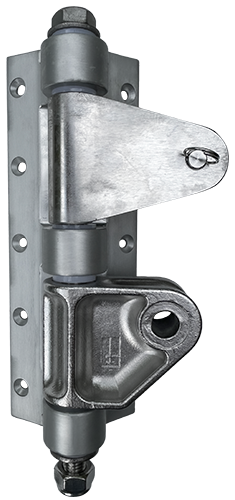

FM2 Gooseneck Bracket for 14mm Pin: FM2-11: FM2 Gooseneck Bracket for 14mm Pin w/ 'T': FM2-11T: Extruded aluminum Gooseneck Mast Bracket is used on a variety of FM Mast Sections for use with FB220 and larger Booms. It is compatible with all FB Gooseneck Toggles that use a 14mm Pin. Bracket is 4 3/8" (112mm) high x 3 1/2" (90mm) wide, and is fastened with eight (8) 3/16" (5mm) rivets and (2) 1/4" (6mm) FH screws. Note that fastener holes are commonly drilled out for use w/ 1/4" (6mm) rivets. FM2-11T* Bracket is as FM2-11, but with an integral 'T' on the back side (24mm (15/16") wide), requiring that the Mast (FM-580 and larger) be down for installation. Bracket has a 14mm (9/16") hole for use with any of the FB2 Vertical Gooseneck Pins and FB2 Gooseneck Toggles, below.
FB2 Gooseneck Pin Ass'y w/ Reef Hooks: FB2-1A: 14mm Vertical Gooseneck Toggle Pin Assembly is used to attach the FB2-412 or FB2-414 Gooseneck Toggles to NG2-12 and FM2-11 Mast Brackets. SS Gooseneck Pin Assembly has (2) integral 10mm Reef Hooks and includes Tack Shackle NB2-2, washers and 14mm SS Locknut. Unit is 14mm (9/16") diameter x 135mm (5 3/8") long (under head).
FB2 Gooseneck Pin Ass'y w/ Shackle: FB2-1ARA: 14mm Vertical Gooseneck Toggle Pin Assembly is used to attach the FB2-412 or FB2-414 Gooseneck Toggles to NG2-12 and FM2-11 Mast Brackets. SS Gooseneck Pin Assembly includes Tack Shackle NB2-2, washers and 14mm SS Locknut. Unit is 14mm (9/16") diameter x 135mm (5 3/8") long (under head).
	FB2 Vertical Gooseneck/Vang Pin: FB2-1BA: 14mm Vertical Gooseneck Toggle Pin with washers and Locknut only. As FB2-1ARA assembly, above, but without Shackle. SS Gooseneck Pin is 14mm (9/16") diameter x 135mm (5 3/8") long (under head).
	FB2 Tack Shackle: NB2-2: SS Tack Shackle fits through hole in top of FB2-1 Vertical Gooseneck Toggle Pins. Shackle has 8mm (5/16") pin, throat width is 22mm (7/8").
	Screw Pin for NB2-2 Tack Shackle: NB2-2SP: Replacement Screw Pin only for NB2-2 Tack Shackle. Screw Pin has 8mm thread.
	FB2 Gooseneck Pin w/ Tack Pin & Loops: FB2-1ARL: 14mm Vertical Gooseneck Toggle Pin Assembly is used to attach the FB2-412 or FB2-414 Gooseneck Toggles to NG2-12 and FM2-11 Mast Brackets. SS Gooseneck Pin Assembly includes welded side loops, 8mm (5/16") Tack Pin, washers and 14mm SS Locknut. Unit is 14mm (9/16") diameter x 135mm (5 3/8") long (under head).
	FB2 Gooseneck Toggle for 12mm Horizontal Pin: FB2-412:
	Cast Aluminum Gooseneck Toggle is used on FB-220 and FB-550 Booms to attach to FM2-11 and NG2-12 Gooseneck Brackets, using any of the FB2-1 Vertical Gooseneck Pins, above. Toggle is 2 3/4" (69mm) high x 1 1/2" (37mm) wide x 3 3/8" (86mm) long, with holes for 14mm Vertical and 12mm Horizontal pins, on 2" (50mm) centers. Anodized Toggle features central hole for cotter pin to secure Horizontal Pin.
	FB2 Gooseneck Toggle for 14mm Horizontal Pin: FB2-414:
	Cast Aluminum Gooseneck Toggle is used on FB-810 and larger Booms to attach to FM2-11 and NG2-12 Gooseneck Brackets, using any of the FB2-1 Vertical Gooseneck Pins, above. Anodized Toggle is 2 3/4" (69mm) high x 1 1/2" (37mm) wide x 3 3/8" (86mm) long, with holes for 14mm Vertical and 14mm Horizontal pins, on 2" (50mm) centers.

*NG3 Gooseneck Bracket for 16mm Pin: NG3-11:* Cast aluminum Gooseneck Mast Bracket for use with FB-810 and larger Booms. Heavy-duty Bracket fits NG-86, FM-740 and larger Mast Sections. Bracket is 6 7/8" (175mm) high x 4" (100mm) wide, and attaches to mast with twelve (12) 1/4" (6mm) rivets. Bracket has holes for 16mm (5/8") pin, for use with any of the FB3-1 Vertical Gooseneck Pins.
	FB3 Gooseneck Pin w/ Tack & Reef Hooks: FB3-1A: 16mm Vertical Gooseneck Toggle Pin Assembly is used to attach the FB3-416 Gooseneck Toggle to NG3-11 Mast Bracket. SS Gooseneck Pin has (2) integral 12mm Reef Hooks and includes 10mm (3/8") captive Tack Pin, washers and 16mm SS Locknut. Unit is 16mm (5/8") diameter x 160mm (6 3/8") long (under head).
	FB3 Gooseneck Pin w/ Tack Pin & Loops: FB3-1ARL: 16mm Vertical Gooseneck Toggle Pin Assembly is used to attach the FB3-416 Gooseneck Toggle to Mast Bracket, NG3-11. SS Gooseneck Pin Assembly includes welded side loops, 10mm (3/8") Tack Pin, washers and 16mm SS Locknut. Unit is 16mm (5/8") diameter x 170mm (6 3/4") long (under head).
	*FB3 Gooseneck Toggle: FB3-416:* Gooseneck Toggle is used with NG3-11 Gooseneck Bracket to attach to FB-810 and larger FB Booms. Cast Aluminum Gooseneck Toggle is 3 1/8" high and accommodates 16mm vertical and 14mm horizontal pins. Anodized Toggle is 3 1/8" (80mm) high x 1 9/16" (39mm) wide x (maximum) 3 3/4" (95mm) long, pin holes are on 2" (50mm) centers.
	FB3 Gooseneck Toggle - Heavy-duty: FB3-416HD: Heavy-duty Solid Gooseneck Toggle is used with NG3-11 Gooseneck Bracket to attach to FB-810 and larger FB Booms. Solid, machined Aluminum Gooseneck Toggle accommodates 16mm vertical and 14mm horizontal pins. Anodized Toggle is 3 1/4" (83mm) high x 1 1/2" (36mm) wide x (maximum) 3 3/4" (95mm) long, pin holes are on 2" (50mm) centers.

FM-1060 Mast – Winch Pads
*FM-1060 Side Winch Pad - Clear Anodized: FM1060-20:* Formed aluminum Bracket fits either side of FM-1060 Mast Section. Winch mounting surface on Bracket is 7 1/2" (190mm) square. Anodized Bracket is 3/16" (5mm) thick and fastens to Mast with eight (8) 1/4" (6mm) rivets. 1060,1395
FM-1060 Aft Winch Pad - Clear Anodized: NG70-21: Formed aluminum Bracket fits aft side of FM-1060 Mast Section. Designed to mount under the Boom for use with a Reef line winch. Winch mounting surface on Bracket is 5 1/8" (130mm) high x 4 5/8" (118mm) and angles aft approximately 12 degrees to align Winch with Outhaul or Reef lines exiting from Boom. Anodized Bracket is 3/16" (5mm) thick and fastens to Mast with eight (8) 1/4" (6mm) rivets. 70,1060
FM-1060 Aft Winch Pad, Cast - Black: FM740-21C: Heavy-duty Cast aluminum Bracket fits aft side of FM-1060 Mast Section. Designed to mount under the Boom for use with a Reef line winch. Winch mounting surface on Bracket is 5 1/2" (140mm) square and angles aft approximately 12 degrees to align Winch with Outhaul or Reef lines exiting from Boom. Black cast Bracket fastens to Mast with ten (10) 1/4" (6mm) rivets. 740, 1395

FM-1060 Mast - Vang Brackets & Hardware Vang Brackets and Toggles used on the FM-1060 Mast Section are listed below. For other Vang Toggles used with these Brackets, See Isomat Vang Toggles. See also Isomat/ Sparcraft Solid Vangs.
NG2 Gooseneck/ Vang Bracket: NG2-12: Cast aluminum Vang Bracket fits a variety of FM and NG Mast Sections for use with all NG2 Vang Toggles that use a 14mm Vertical Pin. Bracket is 4 3/4" (120mm) high x 3 1/2" (90mm) wide, and is fastened with eight (8) 1/4" (6mm) rivets. Bracket has 22mm (7/8") hole at top and 14mm (9/16") hole on bottom side, requiring the use of NG2-13 Bushing.
NG2 Gooseneck/ Vang Toggle Pin Ass'y: NG2-14A: Assembly converts Bracket, NG2-12, for use with any FB Gooseneck Toggles that use a 14mm Vertical Pin. Includes Toggle Pin, NG2-14, NG2 Gooseneck Bushing, NG2-13, and SS Cotter Ring.
	NG2 Gooseneck Bushing: NG2-13: SS Bushing is used in upper hole of NG2-12 Gooseneck Bracket to adapt it for use with FM2 or NG2 14mm Toggle Pins. Bushing is 22mm (7/8") OD x 14mm (9/16") ID x 16mm (5/8") long.
	NG2 Gooseneck/ Vang Toggle Pin: NG2-14: SS Clevis Pin is 14mm (9/16") diameter with a 125mm (5") grip length, and has 8mm (5/16") hole for Cotter Ring, Shackle, or Block attachment. Fits vertically in NG2-12 and FM2-11 Brackets.
FM2 Vang Bracket Ass'y for 14mm Pin: FM2-11-VBS: FM2 Vang Bracket Ass'y for 14mm Pin w/ 'T': FM2-11T-VBS:
Mast Vang Bracket Assembly has 14mm Pin hole for use with Sparcraft Pneuvang. Standard Assembly includes Mast Bracket FM2-11, Vertical Pin Assembly with shackle, FB2-1ARA, and *NG2-18S* Vang Toggle. Assembly with FM2-11T* Bracket is recommended for use on* FM-580 and larger FM Mast Sections, but 'T' requires the Mast be down for installation. Bracket is fastened with eight (8) 3/16" (5mm) rivets and (2) 1/4" (6mm) FH screws. Note that fastener holes are commonly drilled out for use w/ 1/4" (6mm) rivets. Bracket is also compatible with other NG2* Vang Toggles, below.
FM2 Vang Bracket for 14mm Pin: FM2-11: FM2 Vang Bracket for 14mm Pin w/ 'T': FM2-11T: Extruded aluminum Gooseneck/Vang Mast Bracket is used on a variety of FM Mast Sections. It accepts a 14mm Vertical Pin and is compatible with all NG2 Vang Toggles. Bracket is 4 3/8" (112mm) high x 3 1/2" (90mm) wide, and is fastened with eight (8) 3/16" (5mm) rivets and (2) 1/4" (6mm) FH screws. Note that fastener holes are commonly drilled out for use w/ 1/4" (6mm) rivets. FM2-11T* Bracket is as FM2-11, but for use on FM-580 and larger FM Mast Sections. FM2-11T Bracket is strengthened with an integral 'T' on the back side (24mm (15/16") wide), but 'T' requires the Mast be down for installation. Bracket is compatible with a variety of NG2 Vang Toggles, below.
FB2 Vertical Gooseneck/Vang Pin Ass'y: FB2-1ARA: 14mm Vertical Gooseneck/Vang Toggle Pin Assembly with Shackle is used to attach various Vang Toggles to FM2-11 and NG2-12 Mast Brackets. SS Gooseneck Pin is 14mm (9/16") diameter x 135mm (5 3/8") long (under head), and threaded on the bottom. Assembly includes Shackle NB2-2, washers and 14mm SS Locknut.
	FB2 Vertical Gooseneck/Vang Pin: FB2-1BA: 14mm Vertical Gooseneck Toggle Pin with washers and Locknut only. As FB2-1ARA assembly, above, but without Shackle. SS Gooseneck Pin is 14mm (9/16") diameter x 135mm (5 3/8") long (under head).
	FB2 Tack Shackle: NB2-2: SS Tack Shackle fits through hole in top of FB2-1 Vertical Gooseneck Toggle Pins. Shackle has 8mm (5/16") pin, throat width is 22mm (7/8").
	Screw Pin for NB2-2 Tack Shackle: NB2-2SP: Replacement Screw Pin only for NB2-2 Tack Shackle. Screw Pin has 8mm thread.
*NG2 SS Vang Toggle w/ hole for 1/2" Pin: NG2-17-12:* *NG2 SS Vang Toggle w/ hole for 5/8" Pin: NG2-17-16:* SS Welded Vang Toggle Fits *FM2-11* and NG2-12 Vang Brackets. SS tube is 2 5/8" (67mm) long and is drilled for 14mm Vertical Pin, NG2-14. Welded SS Tab is 5.5mm (7/32") thick and projects 2 1/2" (65mm) out from tube. Toggle for 1/2" Pin is used with NG1 Isovang.
*NG2 Vang Toggle w/ Slot & hole for 14mm Pin: NG2-18S:* SS Welded Vang Toggle Fits *FM2-11* and NG2-12 Vang Brackets and has 14mm (9/16") hole for attachment of Sparcraft Pneuvang. SS tube is 2 3/4" (70mm) long and is drilled for 14mm Vertical Pin, NG2-14. Welded SS Tab is 5mm (3/16") thick and projects 2 9/16" (65mm) out from tube center. Tab has 14mm hole for attachment of Vang, and slot (14mm x 28mm) for attachment of Vang Tackle.
*NG2 SS Vang Toggle w/ hole for 14mm Pin: NG2-18-4P:* SS Welded Vang Toggle Fits *FM2-11* and NG2-12 Vang Brackets and has 14mm (9/16") hole for attachment of Sparcraft Pneuvang. SS tube is 2 3/4" (70mm) long and is drilled for 14mm Vertical Pin, NG2-14. Welded SS Tab is 6mm (1/4") thick and projects 2 9/16" (65mm) out from tube center. Tab has (1) 14mm hole for attachment of Vang, and (3) 8mm (5/16") holes for blocks or shackles for attachment of Vang Tackle.
*NG2 SS Vang Toggle w/ hole for 22mm Pin: NG2-19:* SS Welded Vang Toggle Fits *FM2-11* and NG2-12 Vang Brackets. SS tube is 2 5/8" (67mm) long and is drilled for 14mm Vertical Pin, NG2-14. Welded SS Tab is 5.5mm (7/32") thick and projects 4" (100mm) out from tube. Tab has 22mm (7/8") hole for attachment of NG2 Isovang. Also recommended for use with Soft (block and tackle) Vangs, as the large hole will accommodate any shackle.

*NG3 Gooseneck/ Vang Bracket for 16mm Pin: NG3-11:* Heavy-duty Cast aluminum Gooseneck/ Vang Bracket fits NG-86, FM-740 and larger Mast Sections. Bracket is 6 7/8" (175mm) high x 4" (100mm) wide, and attaches to mast with twelve (12) 1/4" (6mm) rivets. Bracket has holes for 16mm (5/8") pin, for use with any of the FB3-1 Vertical Gooseneck Pins.
NG3 Vang Toggle Bolt Ass'y: NG3-11BA: Vertical Vang Bolt Assembly is used to attach various Vang Toggles to NG3-11 Mast Bracket. SS Gooseneck Bolt is 16mm (5/8") diameter x 175mm (6 7/8") long (under head), Assembly includes washers and SS Locknut.
NG3 Vang Toggle Pin Ass'y w/ Ring: NG3-14R: 16mm Vertical Vang Pin Assembly is used to attach various Vang Toggles to NG3-11 Mast Brackets. SS Gooseneck Pin is 16mm (5/8") diameter x 175mm (6 7/8") long (under head), and threaded on the bottom. Assembly with welded 10mm Ring includes washers and 16mm SS Locknut.
*NG3 SS Vang Toggle for 16mm (5/8") Pin: NG3-17:* Heavy-duty SS Welded Vang Toggle Fits NG3-11 Vang Bracket. SS tube is 2 3/4" (70mm) long and is drilled for 16mm Vertical Pin. SS Tab is 8mm (5/16") thick with welded reinforcement bushing (5/8" wide) and projects 2 3/4" (70mm) out from 30mm diameter tube. Tab has 16mm (5/8") hole for attachment of Vang. Also recommended for use with Soft (block and tackle) Vangs, as the large hole will accommodate any shackle.

FM-1060 Mast - Deck Collars, Mast Boots & Hardware
FM-1060 Mast Boot: FM1060-15B: Heavy molded Black Rubber Boot for use with FM-1060 Mast section fits all FM-1060 Deck Collars. 1395
FM-1060 Mast Boot Clamp: FM1060-16M: All Stainless Steel Clamp for use with Mast Boot on FM-1060 Mast. 88
FM-1060 Collar Boot Clamp: FM1060-16C: All Stainless Steel Clamp is suitable for use with Mast Boots on all FM-1060 Deck Collars. --		mmm
*Mast Collar Wedge - Small Rubber: NGA-18:* Heavy Extruded Rubber Wedge for use with Isomat and other Masts. Small stepped Rubber Wedge is used to support the mast as it passes through the Deck Collar. Wedge is 2 3/4" (70mm) long x 1 1/8" (28mm) wide, and is 15/16" (24mm) thick at the top tapering to 3/8" (10mm) thick at the bottom.
*Mast Collar Wedge - Large Rubber: NGA-19:* Heavy Extruded Rubber Wedge for use with Isomat and other Masts. Large stepped Rubber Wedge is used to support the mast as it passes through the Deck Collar. Wedge is 2 3/4" (70mm) long x 1 1/8" (28mm) wide, and is 1 3/16" (30mm) thick at the top tapering to 11/16" (18mm) thick at the bottom.

FM-1060 Deck Collar - Standard: FM1060-12: Standard Deck Collar for use with FM-1060 Mast Section provides a clean, uncluttered look without any attachment provisions for Blocks or Bails. Cast Aluminum Deck Collar includes Four (4) provisions for deck tie-down turnbuckles, and slots for NGA-18 and NGA-19 Mast Wedges. Deck Collar is 16 5/8" (423mm) long x 12 3/16" (310mm) wide, and fastens to deck with (8) 8mm (5/16") FH Screws. Maximum inside dimension is 11 3/4" x 7 5/8" (300 x 195mm). Bcirc. 33"?. 556003,1060,1395,S830
FM-1060 Clamp Ring Deck Collar Ass'y - Complete: FM1060-11A:
Clamp Ring Deck Collar Assembly for use with FM-1060 Mast Section includes attached SS Plates (both sides and aft) with multiple holes for attachment of Blocks and shackles. Deck Collar incorporates four (4) provisions for deck tie-down turnbuckles, Complete Assembly includes FM1060-11MW One-piece Urethane Mast Collar Wedge, and the *FM1060-11CR* Deck Collar Wedge Clamp Ring, below.
	*Deck Collar w/ SS Plates for Clamp Ring: FM1060-11ASC:*
	Cast Aluminum Deck Collar with SS Plates only, as used in FM-1060 Clamp Ring Deck Collar Assembly, FM1060-11A, above. Cast Deck Collar, *FM1060-11C*, includes attached SS Plates (both sides and aft) with multiple holes for attachment of Blocks and shackles. 1060,1395,S830,F980E
	*Deck Collar only for Clamp Ring: FM1060-11C:* Cast Aluminum Deck Collar only, as used in with FM-1060 & FM-1395 Clamp Ring Deck Collar Assemblies. Deck Collar features (6) provisions for deck tie-down turnbuckles, and six (6) slots for NGA-18 and NGA-19 Mast Wedges, but is commonly used with the *FM1060-11MW* One-piece Urethane Mast Collar Wedge, and the *FM1060-11CR* Deck Collar Wedge Clamp Ring, below. Collar is (maximum) 418mm (16 1/2") long x 317mm (12 1/16") wide and attaches to Deck with (8) 10mm FH screws. Maximum inside dimension is 11 3/4" x 7 3/4" (300 x 195mm). 1060,1395,S830
	*Urethane Wedge for Clamp Ring Deck Collar: FM1060-11MW:*
	Black Urethane Mast Collar Wedge fits tightly between Mast and FM-1060 Clamp Ring Deck Collar, FM1060-11C, to provide even loading all around the mast and increased resistance to water penetration. One-piece molded construction is far superior to individual wedges, but requires that unit be slipped onto Mast before stepping. Unit is (maximum) 10 1/2" (265mm) long x 7" (175mm) wide x 3 3/4" high. Unit is marked F1060.

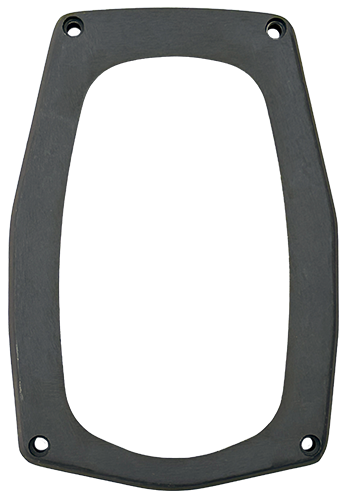

	*Deck Collar Wedge Clamp Ring: FM1060-11CR:* Cast Aluminum Deck Collar Wedge Clamp Ring for use with FM-1060 Deck Collar, FM1060-11, and Urethane Mast Collar Wedge, FM1060-11MW. Wedge Clamp Ring attaches to Deck Collar with 4 screws. Unit must be slipped onto Mast before stepping.
	*Deck Collar Wedge Clamp Ring Screw Ass'y: FM3-11CRS:*
	Special SS Hex Nut Screws are used to attach Deck Collar Wedge Clamp Ring to FM-1060 Deck Collar, FM1060-11C. SS Screws (4 required) are threaded 8mm internally with an 8mm stud and Nut for use with Collars with Nut slots on underside of casting. Unit is 52mm OA long and includes Nut and upper 8mm Allen head screw. 1060,1395
FM-1060 Simple Deck Collar: FM1060-10: Simple Deck Collar for use with with FM-1060 & FM-1395 Mast Sections provides a clean, uncluttered look without any attachment provisions for Blocks or Bails. Cast Aluminum Deck Collar includes Four (4) provisions for deck tie-down turnbuckles, and eight (8) slots for NGA-18 and NGA-19 Mast Wedges. US version Deck Collar is 17 1/8" (435mm) long x 12 5/16" (312mm) wide, and is undrilled for deck fasteners. Maximum inside dimension is 12 1/8" x 6 7/8" (308 x 174mm). Bcirc. 37". 1395,556003,US36061210133

FM-1060 Mast - Mast Steps
FM-1060 Mast Step - Keel Mount: FM740-1K: Adjustable Keel-mounted Mast Step for FM-1060, F-980E and other Mast Sections, attaches to the keel or keelson with (4) 12mm (1/2") bolts in external slots to allow for precise positioning without unstepping the mast. Cast clear anodized Mast Step is 12 7/8" (325mm) long x 8" (200mm) wide, and allows for 38mm (1 1/2") fore and aft adjustment. Unit is marked 557404. 740,1060,760E980E
*FM-1060 Mast Step - Plug for Tenon Deck Plate: FM1060-3P:*
Mast Step Plug is attached to FM-1060 Mast, reinforcing the tube end, and has dual cut-outs to sit on special Deck-mount Mast Base with Tenons, FM3-3DP, below. Cast Mast Step Plug. 980E
	Deck-mount Mast Base w/ Tenons: FM3-3DP: Deck-mount Mast Base with Tenons attaches to Deck for use with FM1060-3P, F980E-3P and other Mast Step Plugs. Cast unit is 14 3/4" (377mm) long x 9 1/2" (240mm) wide, and has trapezoidal Tenons (fore & aft) with 4 3/4" x 3 1/2" (110 x 90mm) center cut-out for wiring. Unit has provisions for (8) 14mm Mast Step Block Pins, NG3-21, (2) 12mm NG2-21 Block Studs (forward), and a SS Tab, FM3-23T, for attachment of a soft Boom Vang. Mast Base fastens to deck with (10) 8mm (5/16") FH Screws. Note that not all Block Pins may be usable depending on which Mast Plug is used with this unit. Also compatible with Mast Plugs for FM-1060, 1395, 2390; NG-105/IM-1630; F-980E, 1410E, 1980E, and 2600E Mast Sections.
	NG2 Mast Step Block Stud Pin - 12mm: NG2-21: 12mm SS Clevis Pin-shaped Block Stud is used for attachment of shackle or block to lead halyards aft. Fits in integral recessed 12mm hole in a variety of Mast Steps and Deck Collars. Block Stud is installed from underside of Casting, Casting must be removed to install Block Studs. Small head Block Stud is 12mm diameter x 45mm (1 3/4") long (maximum), with a 30mm (1 3/16") grip length and a 6mm (1/4") hole for shackle pin or Block bolt.
	NG3 Mast Step Block Pin - 14mm: NG3-21: 14mm SS Block Pin is used for attachment of shackle or block to lead halyards aft. Fits in integral recessed hole in Mast Steps and Deck Collars with 14mm mounting holes. Block Pin is installed from underside of Mast Step Casting, Mast Step must be removed to install Block Pins. Special Block Pin is 14mm (9/16") diameter x 54mm (2 1/8") long (maximum), with a 35mm (1 3/8") grip length and an 8mm (5/16") hole for shackle pin, Block bolt or Block Pin Swivel Assembly.
	NG3 Mast Step Block Pin Ass'y w/ Toggle - 14mm: NG3-21PTA:
	Special 14mm SS Block Pin Assembly includes standard 14mm Pin, NG3-21, and cast SS Toggle with a 8mm (5/16") Pin for attachment of shackle or block. Removable Toggle is attached with a separate 8mm Pin (included), and has 5/8" (17mm) inside jaw clearance. Unit fits in integral recessed hole in Isomat and Sparcraft Steps and Collars with 14mm mounting holes. Block Pin is installed from underside of Mast Step Casting, Mast Step must be removed to install Block Pins.
	NG3 Block Pin Toggle for 14mm Pin: NG3-21TA: Heavy-duty Block Pin Toggle only, as used in NG3-21PTA, above. Investment cast SS Toggle is 26mm (1") wide with a 5/8" (17mm) inside jaw clearance and includes (2) 8mm Pins for attachment to 14mm Block Pin and Block. Assembly fits on NG3-21 Block Pin. Unit is marked 48093000014.
	FM3 Mast Step Vang Tab: FM3-23T: SS Bent Tab is used for attachment of Boom Vang, and fits in integral slot in aft side of FM3-3DP Deck-mount Mast Base with Tenons. Tab is installed in recess in aft side of Mast Base using the (2) aft mounting screws. SS Tab is made from 100mm wide x 5mm plate with (2) 1/4" (6mm) mounting holes on 80mm centers, and has slot (10 x 30mm) for attachment of Vang shackle.	mmm
FM-1060 Mast Step - Deck Mount: F760E-8: Deck-mounted Mast Step for use with FM-1060, F-980E and other Mast Sections. Mast Step has provisions for (12) 14mm Mast Step Block Pins, NG3-21, (2) 12mm NG2-21 Block Studs (aft), and a Vang Bail, FM3-20A, for attachment of a soft Boom Vang. Block Pins and Vang Bail are installed from underside of Mast Step Casting, Mast Step must be removed to install Block Pins or Vang Bail. Unit features Standpipe for Electrical wires and includes watertight cap to prevent water intrusion when Mast is unstepped. Cast Aluminum Mast Step is 14 1/2" (370mm) long x 10 3/4" (273mm) wide, and fastens to deck with (6) 5/16" (8mm) FH Screws. Shown with optional Vang Bail, FM3-20A, and Block Pin Assemblies w/ Toggle, NG3-21PTA. 830,760E,980E
	FM3 Mast Step Bail Ass'y: FM3-20A: Forged SS Mast Step Bail assembly is used for attachment of Boom Vang on a variety of Sparcraft Mast Steps. Bail (10mm) is installed through top of Mast Step Casting, 10 x 68mm rod is installed from underside.
FM-1060 Mast Step - Deck Mount: FM1060-4: Deck-mounted Mast Step for use with FM-1060, F-980E and other Mast Sections. Mast Step has provisions for (12) 14mm Mast Step Block Pins, NG3-21, and a SS Tab, FM3-24T, for attachment of a soft Boom Vang. Block Pins and Tab are installed from underside of Mast Step Casting, Mast Step must be removed to install Block Pins or Vang Tab. Cast Aluminum Mast Step is 14 1/2" (370mm) long x (maximum) 9 1/4" (235mm) wide, and fastens to deck with (6) 5/16" (8mm) FH Screws. Unit is marked 185036. 980E 185036US
	FM3 Mast Step Vang Tab: FM3-24T: SS Bent Tab is used for attachment of Boom Vang, and fits in integral slot in aft side of FM1060-4 Mast Step. Tab is installed from underside of Mast Step Casting; Mast Step must be removed to install Tab. Tab is made from 30mm wide x 5mm plate, and has slot (10 x 30mm) for attachment of Vang shackle.

FM-1060 Internal Waterproofing Plug: FM1060-WP: Internal Waterproofing Plug is installed in Keel-stepped Masts to prevent water intrusion below deck. Assembly consists of 2 plastic pieces carefully cut to fit Mast interior with central PVC standpipe to allow passage of electrical wires. Unit slides up from the bottom of the Mast to a point just above Deck level where a hole is drilled in Mast to allow for application of expanding foam between plastic pieces. Second hole is drilled just above upper plastic piece to allow water drainage.
	Internal Waterproofing Foam: NGA-Foam: Expanding foam is used for installation of Internal Waterproofing Plug. Single-use can is sufficient for installation of any Internal Waterproofing Plug.

FM-1060 Mast Splice Kit - 1200mm Long: FM1060-Spl: Internal Mast Splice Kit is used to join together 2 separate pieces of Mast Section. Used for repair or when shortening a Mast, it requires an absolute clean cut on both sections being joined, Professional installation is required. Kit includes specially machined extrusions and screws - allowing later disassembly, as for transport.

Dufour 48, 50 Atoll; Equator 44; Forgus 44; Gib Sea 48; Grand Soleil 50; Hanse 461; Jeanneau Sun Fast 52; Kaali 49; Kennex 445; Master 48; Nelson Marek 45*; Outbound 44, 46; Petersen 44; Privilege 42, 45; Sanguy 47; Suncrest 46; Wauquiez 43, 48; X-482, X-612 (Boom);
See also Sparcraft Booms, and Sparcraft Spreaders. See also, Sparcraft FM Masts, and other Sparcraft Mast Sections.

FM-1060 Mast Components
Mastheads Tangs Jib Boxes & Forestay Attachments Exit Blocks Spreaders Spreader Bases Spinnaker Cars Exit Plates Cleats	Mainsail Gates & Feeders Gooseneck Brackets Winch Pads Vang Brackets & Hardware Deck Collars, Mast Boots & Hardware Mast Steps Internal Waterproofing Mast Splice

Sparcraft FM-1060 Mast Section Sparcraft FM-1060 Mast Section is available in a variety of lengths fully anodized. Painted finishes and other lengths are available on special order. If you require a complete Mast Assembly, you can select from components below and contact us with specifications. If you require components not listed below please contact us with complete details.

FM-1060 Mast – Mastheads FM-1060 Masts commonly use a variety of (at least 7) different Extruded Mastheads, both welded and bolt-in, for Masthead and for Fractional Rigs. Mastheads and components produced in France are completely different from those produced in the US. In addition, Fractional and Masthead Rigs, on Tapered and Untapered Masts, all use different Masthead Assemblies. Parts common to the French Mastheads are listed below, as are Parts common to the US-manufactured Mastheads. For complete Masthead Assemblies and Parts not listed, Please contact us with full details.
