SS Stanchion Bases for 1" Stanchions


Stainless Steel Stanchion Bases for 1" Stanchions
SS Stanchion Bases have been produced in a variety of configurations, by many different Boat Builders and Hardware manufacturers. In addition to those Stanchion Bases in current production, Rig-Rite stocks a variety of Stanchion Bases Custom made to original specifications for direct replacement applications.
Rig-Rite can also manufacture other Stanchion Bases on a Custom basis. If a Stanchion Base you require is not listed here, please contact us with a sketch and complete dimensions, including base footprint, hole spacing, and angle.

All Stanchion Bases listed here are for use with 1" (25.4mm) Stanchions.
For Backing Plates, See: Stanchion Base Backing Plates.

See also: Aluminum Stanchion Bases, SS Rail Bases & Hardware, other Stanchion Bases,
and Stanchions.
See, also, Metric SS Stanchion Bases and Metric Aluminum Stanchion Bases.




Economy SS Stanchion Bases
These SS Stanchion Bases are in current production, and are available economically.

Rectangular Base w/ Double Bail - 4°: SB 36-E2C-4:

Rectangular Cast SS Stanchion Base with Double Bails and a 4° inboard angle. Cast 316 SS Base is (maximum) 3 9/16" long x 2 13/16" wide and attaches to Deck with (4) 1/4" FH screws on 2 5/16" (fore and aft) x 1 13/16" (athwartships) hole centers in 'E2' Base pattern. Unit has (2) 1/4"-28 set screws to secure Stanchion.





SBFP-E2
Trapezoidal Stanchion Base w/ Double Bail - 5°: SB 36-S2T-5:
Trapezoidal SS Stanchion Base with Double Bails and a 5° inboard angle. Formed, Welded SS Base is (maximum) 5" long x 2 3/4" wide x 1/8" thick, and attaches to Deck with (4) 1/4" screws on 4" (inboard) x 2 3/4" (outboard) hole centers in 'S' Base pattern, below. Base has formed drainage channel to prevent water build-up in socket. Unit has 1/4" hole for attachment of Stanchion, hole in Stanchion is normally tapped (1 3/8" from bottom) for 1/4" screw.   Sch 36-01



Trapezoidal Stanchion Base Backing Plate: SB 36-BPS-S:
SS Backing Plate for use with SB 36-S2T-5° Trapezoidal SS Stanchion Base with Double Bails. Trapezoidal Backing Plate is (maximum) 5" long x 2 3/4" wide x 1/8" thick, with (4) 1/4" holes on 4" (inboard) x 2 3/4" (outboard) hole centers in 'S' Base pattern.  Sch 36-91



SBFP-S

Replacement SS Stanchion Bases
In addition to the Economy SS Stanchion Bases listed above, Rig-Rite stocks a variety of Custom SS Stanchion Bases made to original specifications for direct replacement applications. Replacement SS Stanchion Bases are listed by Base shape, Rectangular or Trapezoidal, and separately if they attach to the Toerail.


SS Stanchion Bases w/ Rectangular Base
----- Rectangular Bases w/ Single Bail
Rectangular Stanchion Base w/ Single Bail -2°: SB 36-H1-(-2):
Rectangular Base w/ Single Bail, 0°: SB 36-H1-0:

Rectangular Base w/ Single Bail, 2°: SB 36-H1-2:

Rectangular Base w/ Single Bail, 4°: SB 36-H1-4:

Rectangular Base w/ Single Bail, 6°: SB 36-H1-6:

Rectangular Base w/ Single Bail, 11°: SB 36-H1-11:

Rectangular Base w/ Single Bail, 19°: SB 36-H1-19:

Rectangular SS Stanchion Bases with Single Bail, 'H' deck footprint, and a variety of inboard (and outboard) angles, bail is on inboard side. Welded SS Base is (maximum) 3 3/4" long x 2 7/8" wide x 1/8" thick, and attaches to Deck with (4) 1/4" screws on 2 1/2" (fore and aft) x 1 5/8" (athwartships) hole centers in 'H' Base pattern. Unit has (2) 3/16" holes for attachment of Stanchion, holes in Stanchion are normally tapped for 3/16" screws. Often used with Special 'H' Pattern Rubber Base Gasket, SB 36-HRG, below. As used on Hunter, J/Boats, O'Day, Pearson, QuickStep, and many others.
-2° angle (outboard angled) as used on J/22 & J/27,
11° & 19° angles as used on some J/24's.
  HF&A



  SBFP-H
Rectangular Stanchion Base w/ Single Bail - 6°: SB 36-OS1-6:
Heavy-duty Rectangular SS Stanchion Bases with Single Bail, and a 6° inboard angle, bail is on inboard side. Welded SS Base is (maximum) 3 1/2" long x 2 1/2" wide x 3/16" thick, and attaches to Deck with (4) 1/4" screws on 1 1/2" (inboard) x 2 11/16" (outboard) hole centers in 'CR' Base pattern, below. Unit features drain hole and has (1) 1/4"-20 set screw and additional 3/16" hole to secure Stanchion. As used on Cape Dory 25, 25D, 27, 33, Intrepid 9M and others.  OECD



Rectangular Stanchion Base w/ Single Bail - 12°: SB 36-OS1-12:
Rectangular SS Stanchion Bases with Single Bail, and a 12° inboard angle, bail is on inboard side. Welded SS Base is (maximum) 3 1/2" long x 2 1/2" wide x 3/16" thick, and attaches to Deck with (4) 1/4" screws on 1 1/2" (inboard) x 2 11/16" (outboard) hole centers in 'CR' Base pattern. Unit features hole for 3/16" screw to secure Stanchion.   OECD




SBFP-CDR

----- Rectangular Bases w/ Double Bails
Rectangular Base w/ Double Bail - 4°: SB 36-E2C-4:

Rectangular Cast SS Stanchion Base with Double Bails and a 4° inboard angle. Cast 316 SS Base is (maximum) 3 9/16" long x 2 13/16" wide and attaches to Deck with (4) 1/4" FH screws on 2 5/16" (fore and aft) x 1 13/16" (athwartships) hole centers in 'E2' Base pattern. Unit has (2) 1/4"-28 set screws to secure Stanchion.





SBFP-E2
Rectangular Base w/ Double Bail - 0°: SB 36-H2-0:

Rectangular Base w/ Double Bail - 2°: SB 36-H2-2:

Rectangular Base w/ Double Bail - 5°: SB 36-H2-5:

Rectangular SS Stanchion Bases with Double Bails, 'H' deck footprint, and a variety of inboard angles. Welded SS Base is (maximum) 3 3/4" long x 2 7/8" wide x 1/8" thick, and attaches to Deck with (4) 1/4" screws on 2 1/2" (fore and aft) x 1 5/8" (athwartships) hole centers in 'H' Base pattern. Unit has (2) 3/16" holes for attachment of Stanchion, holes in Stanchion are normally tapped for 3/16" screws. Often used with Special Rubber Base Gasket, SB 36-HRG, below. As used on Alden, Endeavour, J/Boats, Morgan, O'Day, Pearson, S2, Southern Cross, Tartan, and many others.



  SBFP-H
Rectangular Stanchion Base w/ Double Bail - 0°: SB 36-HD2-0:
Rectangular Stanchion Base w/ Double Bail - 6°: SB 36-HD2-6:
Heavy-duty Rectangular SS Stanchion Bases with Double Bails, 'H' deck footprint, and a variety of inboard angles. Welded SS Base is (maximum) 3 3/4" long x 2 7/8" wide x 3/16" thick, and attaches to Deck with (4) 1/4" FH screws on 2 1/2" (fore and aft) x 1 5/8" (athwartships) hole centers in 'H' Base pattern. Special Heavy-duty Base is formed before Stanchion receiver tube is welded, allowing larger weld with greater penetration. Unit has (2) 3/16" holes for attachment of Stanchion, holes in Stanchion are normally tapped for 3/16" screws. Often used with Special Rubber Base Gasket, SB 36-HRG, below. These items are no longer available and are shown here for identification only. HAth ***



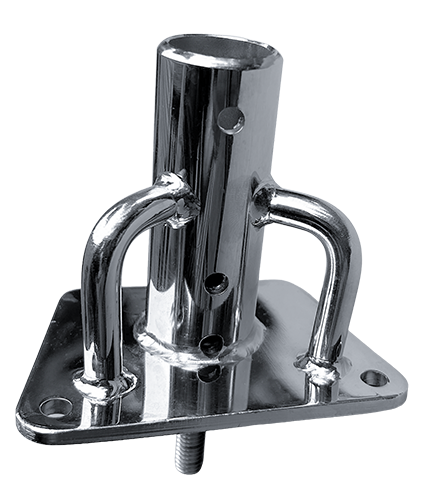

Rectangular Base w/ Double Bail - 0°: SB 36-T2-0:

Rectangular Base w/ Double Bail - 4°: SB 36-T2-4:

Rectangular Base w/ Double Bail - 6°: SB 36-T2-6:

Rectangular Base w/ Double Bail - 10°: SB 36-T2-10:

Heavy-duty Rectangular SS Stanchion Bases with Double Bails, "T" deck footprint, and a variety of inboard angles. Welded SS Base is 4" long x 3" wide x 3/16" thick, and attaches to Deck with (4) 1/4" FH screws on 2 1/2" (fore and aft) x 2" (athwartships) hole centers in 'T' Base pattern. Socket has drainage hole to prevent water build-up, and has (2) 1/4"-28 set screws to secure Stanchion. This base is also available with a variety of other inboard angles, please specify. As used on Gulfstar, Hinckley, Niagara, Pearson, Sabre, Tartan, Valiant Yachts, some early C&C's, and many others. Note: These bases were originally made in chrome-plated Cast Bronze. 10° angle as used on Sabre 38.



  SBFP-T
Rectangular Stanchion Base w/ Double Bail - 6°: SB 36-SC2-6:
Heavy-duty Rectangular Cast SS Stanchion Base with angled Double Bails and a 6° inboard angle. Cast 316 SS Base is (maximum) 3 11/16" long x 3" wide and attaches to Deck with (4) 1/4" FH screws on 2 3/8" (fore and aft) x 1 7/8" (athwartships) hole centers. Unit has (2) 1/4"-20 set screws to secure Stanchion. sw ***



Rectangular Stanchion Base w/ Double Bail - 10°: SB 36-OS2H-10:
Heavy-duty Rectangular SS Stanchion Base with Double Bails has 10° inboard angle. Welded SS Base is 4" long x 3" wide x 1/4" thick and attaches to Deck with (4) 1/4" FH screws on 3 1/8" (fore and aft) x 2 1/8" (athwartships) hole centers. Unit features drain hole and has (1) 1/4"-20 set screw and additional 3/16" hole to secure Stanchion. OECD




SS Stanchion Bases w/ Trapezoidal Base
Trapezoidal Base w/ Double Bail - 5°: SB 36-S2T-5:

Trapezoidal SS Stanchion Base with Double Bails and a 5° inboard angle. Formed, Welded SS Base is x 2 3/4" wide x (maximum) 5" long x 1/8" thick, and attaches to Deck with (4) 1/4" screws on 4" (inboard) x 2 3/4" (outboard) hole centers in 'S' Base pattern. Unit has 1/4" hole for attachment of Stanchion, hole in Stanchion is normally tapped (1 3/8" from bottom) for 1/4" screw.   Sch 36-01








SBFP-S
Trapezoidal Base w/ Double Bail - 6°: SB 36-OS2T-6:

Heavy-duty Trapezoidal SS Stanchion Base with Double Bails and a 6° inboard angle. Welded SS Base is x 2 1/2" wide x (maximum) 3 7/8" long x 3/16" thick and attaches to Deck with (4) 1/4" screws on 1 13/16" (inboard) x 3 1/8" (outboard) hole centers in 'TC' Base pattern. Unit features drain hole and has (1) 1/4"-20 set screw and additional 3/16" hole to secure Stanchion. As used on Bristol 35, 38.8, 41, Cape Dory, and others. OECD







SBFP-CDT

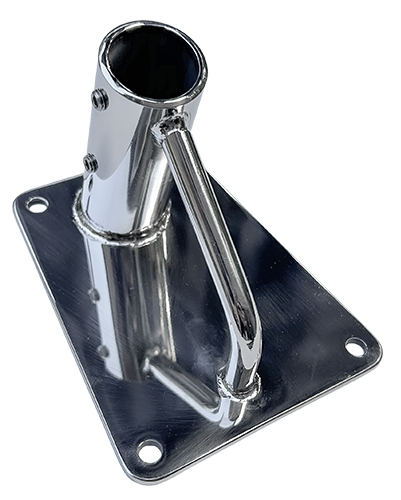

Trapezoidal Stanchion Base w/ Single Bail - 10°: SB 36-LT1-10:

Trapezoidal Stanchion Base w/ Single Bail - 14°: SB 36-LT1-14:
Trapezoidal SS Stanchion Base with Large Footprint and Large 3/8" Single Bail. Welded SS Base is 5" wide x (maximum) 4" long 1/8" thick, and attaches to Deck with (4) 1/4" screws on 3 1/8" (inboard) x 2 5/16" (outboard) hole centers. Unit features outboard drain hole and has (2) 1/4" set screws for attachment of Stanchion. As used on some J/24's. 354





Large Footprint Trapezoidal Stanchion Base w/ Double Bail - 11°: SB 36-LT2-11:

Large Footprint Trapezoidal Stanchion Base w/ Double Bail - 19°: SB 36-LT2-19:
Trapezoidal SS Stanchion Base with Large Footprint and Double Bails. Welded SS Base is 4" wide x (maximum) 4 3/4" long 1/8" thick, and attaches to Deck with (4) 1/4" screws on 3 11/16" (inboard) x 2 1/8" (outboard) hole centers, and a fifth hole in the center in 'LT' Base pattern. Unit features drain hole and has (2) 3/16" holes for attachment of Stanchion, holes in Stanchion are normally tapped for 3/16" screws. As used on J/109 and others.











SBFP-TL
Trapezoidal Stanchion Base w/ Single Bail - J/46: SB 36-J46:
Special Heavy-duty Stanchion Base as used on J/46. Trapezoidal SS Stanchion Base has a 90° angle and a Single 5/16" Bail. Heavy-duty Base is 3/16" thick x (maximum) 4 3/4" long x 4" wide and attaches to Deck with (4) 5/16" RH screws on 3 3/4" (inboard) x 2 3/4" (outboard) hole centers, athwartships hole centers are 3 1/8" apart. Stanchion socket is 4" high, unit features drain hole and has (2) 1/4"-20 set screws to secure Stanchion. Note: Base is bent to fit the 1/4" outboard deck rise of the J/46.



J/46
Trapezoidal Stanchion Base w/ Single Bail - J/160: SB 36-J160:
Special Heavy-duty Stanchion Base as used on J/160. Trapezoidal SS Stanchion Base has a 90° angle and a Single 3/8" Bail. Heavy-duty Base is 1/4" thick x (maximum) 4 1/2" long x 6" wide and attaches to Deck with (4) 3/8" FH screws on 2" (inboard) x 3 1/4" (outboard) hole centers, athwartships hole centers are 4 1/2" apart. Stanchion socket is 5" high, unit features drain hole and has (2) 1/4" holes to secure Stanchion. As used on J/160, and in other Heavy-duty applications.



J/160
Trapezoidal Stanchion Base w/ Double Bail - 4°: RF 405X:

Trapezoidal Stanchion Base w/ Double Bail - 8°: RF 406X:

Trapezoidal Stanchion Base w/ Double Bail - 0°: RF 407X:

Discontinued Ronstan Trapezoidal SS Stanchion Bases have a Double 5/16" Bail. Base is 3" wide x (maximum) 3 3/4" long and attaches to Deck with (4) 1/4" RH screws on 2 1/8" (inboard) x 2 13/16" (outboard) hole centers, athwartships hole centers are 2" apart. Marked with RF part number. Limited availability.





SS Stanchion Bases that Attach to Toerail

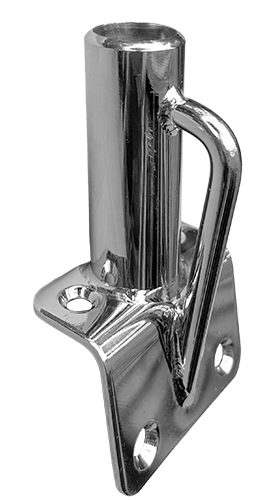

Toerail Mounted SS Stanchion Base w/ Single Bail - 0°: SB 36-H1-T90:
Toerail Mounted SS Stanchion Base w/ Single Bail - 5°: SB 36-H1-T5:
Toerail Mounted SS Stanchion Base w/ Single Bail - 8°: SB 36-H1-T8:
Special SS Toerail-mounted Stanchion Base with Single bail attaches to Toerail with 2 and to Deck with (2) 1/4" screws on 1 5/8" centers. Base is 2 7/8" long and extends 2 7/8" out from Toerail face. Unit has (2) 1/4"-28 set screws to secure Stanchion.
5° used on Hunter 27, 30, 33 (6), 36, 37, 54, and others.
8° used on Hunter 33 (2), and others.



Toerail Mounted SS Stanchion Base w/ Bails - 0°: Gibb 36-T2-90X:

Toerail Mounted SS Stanchion Base w/ Bails - 4°: Gibb 36-T2-4X:
Discontinued Gibb SS Toerail-mounted Stanchion Base with (2) bails attaches to Deck, and to Toerail with (2) 1/4" screws on 2 1/2" centers. Flat base (against Toerail) is 3 1/2" long x 1 1/2" high. Stanchion is secured with screw threaded in Stanchion. Marked Gibb. Limited availability.




Toerail Mounted SS Stanchion Base w/o Bails - 0°: SB 36-H0-T90H:
Special SS Toerail-mounted Stanchion Base without bails attaches to Toerail with 2 and to Deck with (2) 1/4" screws on 1 5/8" centers. Unit has (2) 1/4"-28 set screws to secure Stanchion. As used by Bayfield Yachts. H



Toerail Mounted SS Stanchion Base w/o Bails - 0°: SB 36-H0-T90F:
SS Toerail-mounted Stanchion Base without bails attaches to Toerail with (2) 1/4" screws on 2 1/4" centers, a third screw (1/4") goes through Stanchion and Toerail. Flat base (against Toerail) is 3" long x 1 1/2" high. Unit has open bottom, and (1) additional 1/4"-20 set screw to secure Stanchion. As used on Freedom 32, and others.





Special SS Stanchion Bases
Round Recessed SS Stanchion Base: SB 36-RD3S:

Special Recessed SS Stanchion Base fits in 1 1/8" hole in Deck and attaches to Deck with (3) 1/4" screws in circular pattern. Round Base is 3" diameter and protrudes only 3/32" above Deck and 1 3/8" below Deck. Unit has 1/2" hole in bottom. Also frequently used as mount for removable Ladder (in pairs), or as Flagstaff mount.




Stanchion Base Gaskets
"H" Pattern Stanchion Base Gasket: SB 36-HRG:

Special Rubber Gasket for Stanchion Bases with "H" pattern deck footprint. Black Rubber Gasket has self-adhesive backing on one side and is stuck to Stanchion Base before installation. Gasket helps cushion deck stresses, while the small (5/32") holes for the 1/4" mounting screws help seal the deck from water intrusion. Rubber Gasket is (maximum) 3 11/16" long x 2 13/16" wide x 1/16" thick, with holes on 2 1/2" (fore and aft) x 1 5/8" (athwartships) centers. Suitable for use with all SS 'H' pattern Stanchion Bases listed above. As used by Pearson Yachts.
SBFP-H
